(Lens NOT included) Suits Auto Iris or Manual Lenses
|

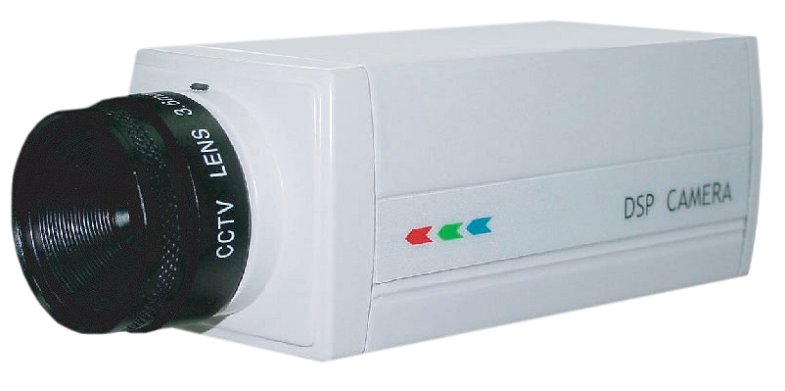

- Colour camera with SHARP 1/3" CCD sensor in metal case. Employs Digital Signal Processor (DSP)
chip-set for image control.
- High sensitivity, low smear, high anti-blooming and high S/N ratio. Powerful functions: Auto Electronic
Shutter (AES), Auto Iris (AI), Auto Gain Control (AGC), Auto White Balance (AWB), Back Light (BLC).
- Supports Auto Iris Lens: both Video-Drive & DC-Drive lens. Supports both C and CS mount lens.
(Lens NOT included) Built-in anti-aliasing and IR - pass
(850nm) optical filter XC611R
|
Kit includes -
- CS to C Lens adapter ring
- Auto Iris lens connector
- Allen key
- Manual
|
| Image Pick-up Device |
SHARP 1/3" CCD |
| High Resolution |
Horizontal Resolution 420 TV lines |
| Effective Picture Elements |
PAL: 500*582 (H*V) |
| Minimum Illumination |
0.05 LUX @ F1.2 0.1 LUX @ F1.2 |
| S/N Ratio |
More than 48 dB |
| Auto Electronic Shutter |
AES ON: PAL: 1/50s~1/110,000s, OFF: PAL: 1/50s |
| Auto Iris Control |
Video-Drive Lens & DC-Drive Lens, Both supported |
| Gamma Characteristic |
0.45 |
| Lens Mount |
C or CS mount adjustable |
| Gain Control |
Automatically |
| White Balance |
Automatically (2500K~9500K) |
| Back Light Compensation |
ON/OFF Switch-able |
| Synchronous System |
Negative sync. Internal |
| Video Output |
1 Vp-p Composite Video / 75 Ohms,
BNC connector |
| Power Supply |
DC 12V - 3W |
| Operating Temp |
-10°C to 50°C (14°F to 122°F) |
|
|
