All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Notice:

Pick up service is not available.

Air Suspension Bag Load Assist Kit For Toyota Hilux GGN120 GUN122 GUN123 GGN15 KUN16

Application:

For Toyota Hilux GGN120R, GUN122R, GUN123R, TGN121R Non Hi-Rider 4x2 Jul.15-25

For Toyota Hilux GGN120R 4.0L Dual Cab Non Hi-Rider 4x2 Jul.15-Sept.17

For Toyota Hilux N10, N20 GGN15, KUN16 & TGN16 4x2 Mar.05-15

Item Specifications:

Condition: Brand New

Placement on Vehicle: Rear left and right

Package Length, width and height: 37*26*23 cm

Package Wight: 8.65 kg

Air spring:

Load capacity：Up to 5000 LBS

Design height: 185 mm

Stroke:  170mm

Max. Extended:  220 mm

Min. Compressed:  50 mm

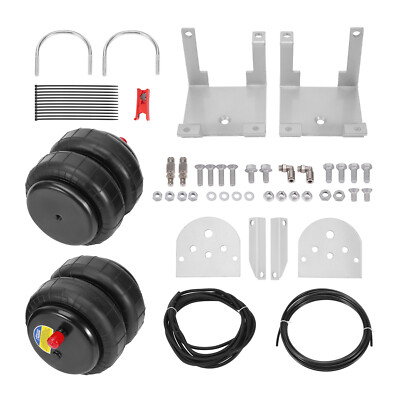

Package includes（as the picture shows）:

2x Heavy Duty Double Bellow Air Ride Suspension bags

4x Upper and lower mounting brackets

Includes All Brackets & Hardware Needed to Install

Mounting Hardware

Features:

- Stress Test Over 5,000,000 Times：Durable and Safe

- Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise

- Air Tightness Test ≤ 0.02MPa：100% Air Tightness Guarantee

- Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material

- Use high-quality steel with high load-bearing capacity and long life.

- Excellent and practical bolt-on installation.

- Safe carrying capacity and stability

- Restore the original ride height and improve ride quality

- Ensure our driving comfort and reduce tire wear.

Notice:

- Instruction is not included. Professional installation is recommended
