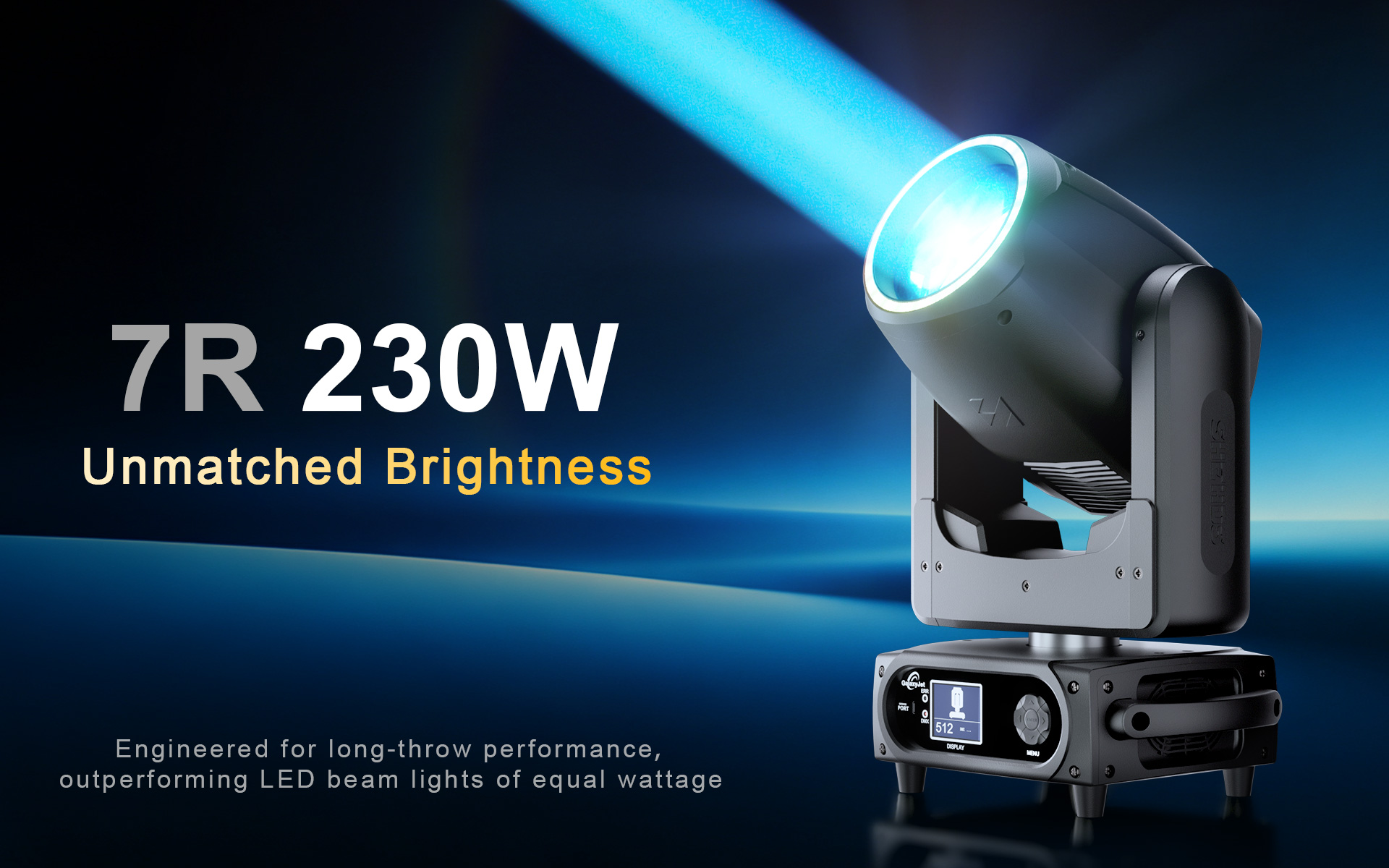

7R 230W  Unmatched Brightness
Engineered for long‑throw performance, outperforming LED beam lights of equal wattage


Influencer-Approved 230W Beam
Real Footage. Stunning Effects. See Why.

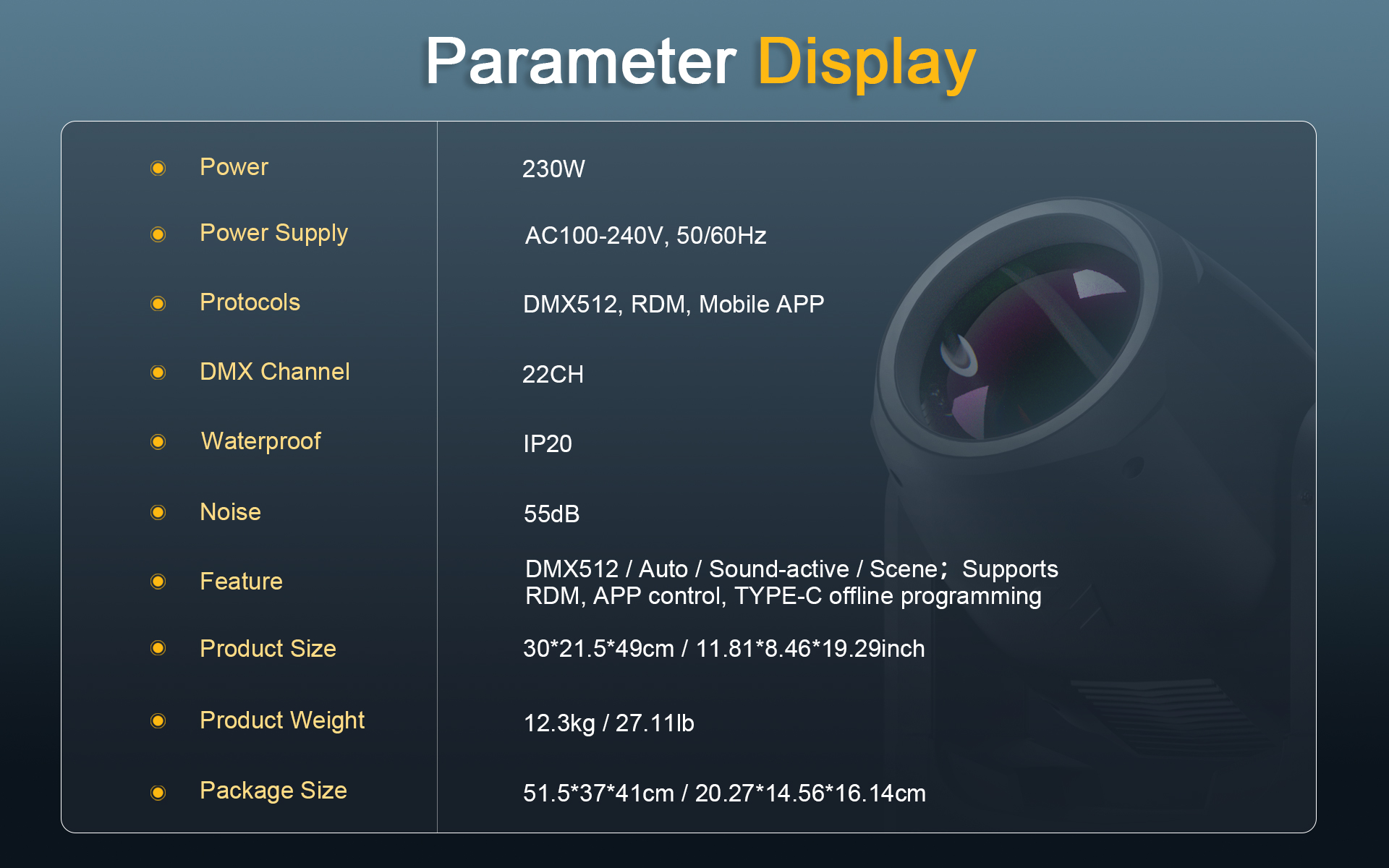

Parameter Display​


Light source parameters
Light source:	230W white color
Color Temperature:	8300K±500 K
Luminous lumens/5m:	626000LX/5m
Beam Angel:	2.1°-3.4°
Lifespan light source:	2000h
Diameter of the outgoing lens:	130mm
Dimming:	0-100% linear dimming
CRI:	Min.Ra 70
Optical effect
Gobos 1:	15 gobos + Flame pattern + Open
Colors:	14 colors + Open
Prism 1:	46mm 8 prism
Prism 2:	46mm 48 prism
Frost:	42mm Simple frost
Rianbow effect:	6 color
Security System
Safety Item	Over current and voltage protection
Degree Of Protection	IP20
Operating Temperature	-15℃~45℃
Interface And Control System
Control Interface	3-pin XLR In/Out
DMX Channel	22CH
Power Interface	PowerCon
Cooling System
Cooling Method	Air cooled
Heat dissipation noise:	63.6 dB@1m
Power Consumption
Working Power	AC100~240V  50/60HZ
Power parameters	400W-380V+36V+12V
Full Power	300W

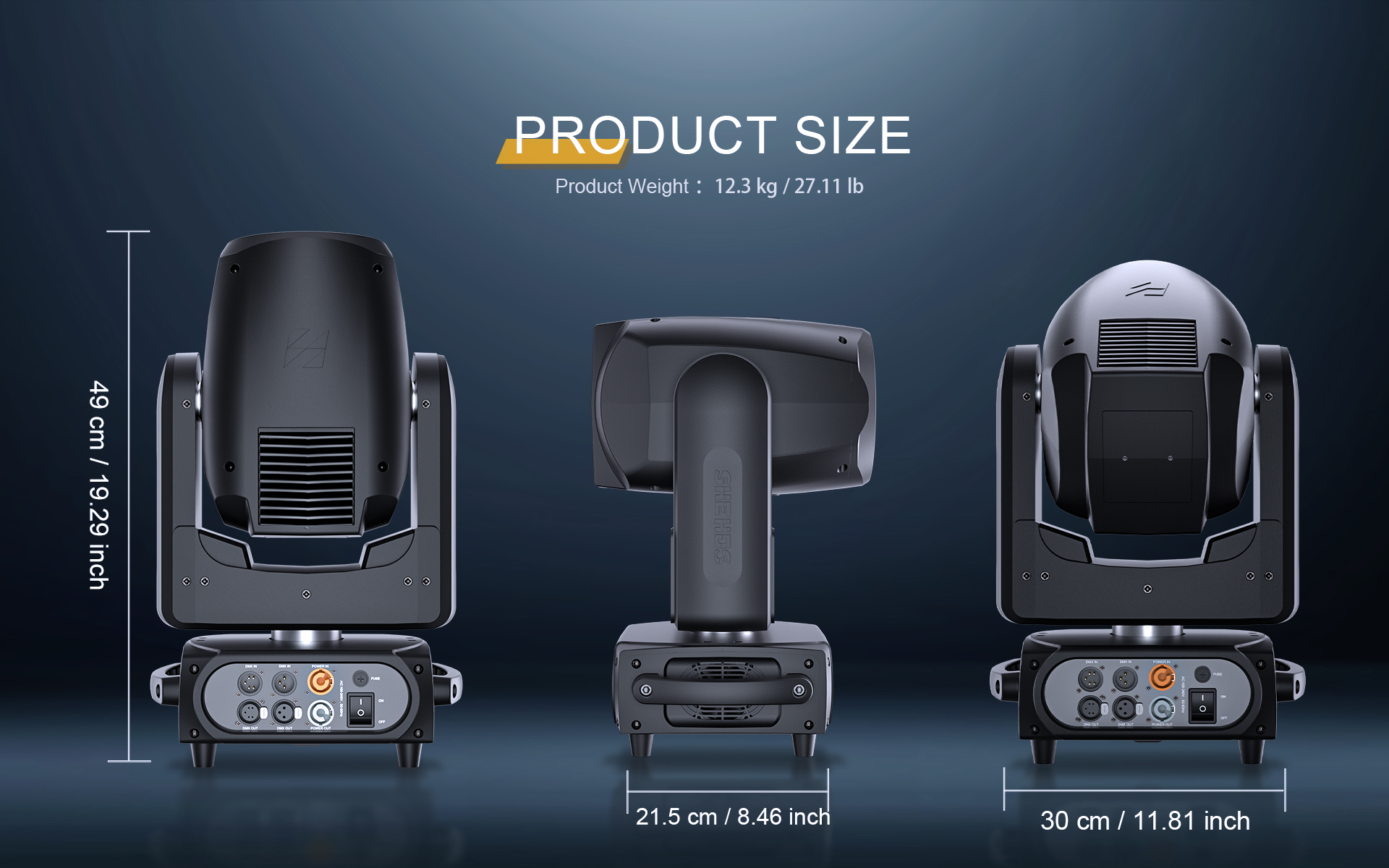

Physical Parameters
Product Size	49cm*30cm*21.5cm
Product Weight	12.3KG
Pack Size	51.5cm*37cm*41cm

SHEHDS APP Control Total Command in Your Hand
Tweak lighting effects and recall presets anytime, anywhere, no heavy console required

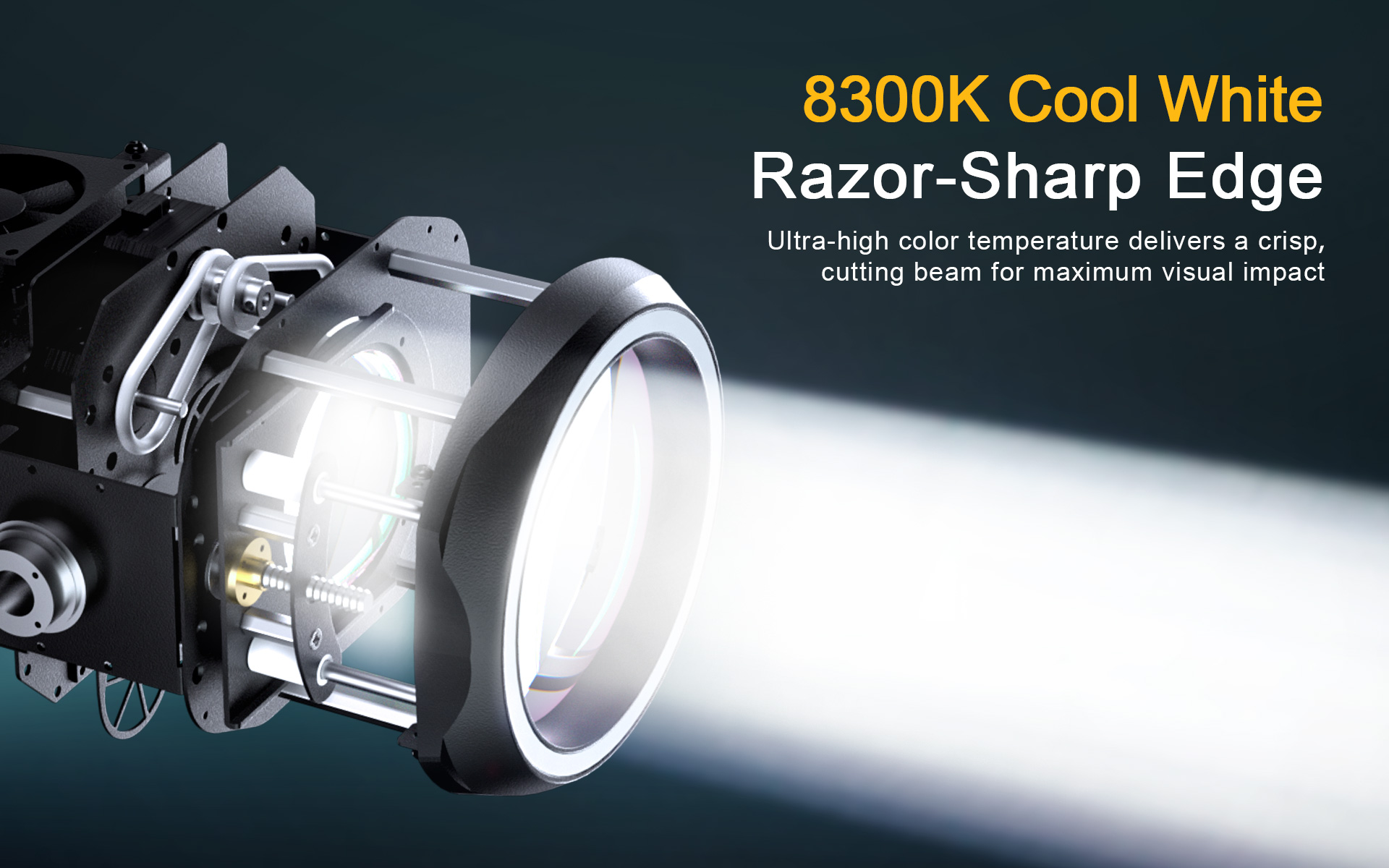

8300K Cool White Razor‑Sharp Edge
Ultra‑high color temperature delivers a crisp, cutting beam for maximum visual impact​

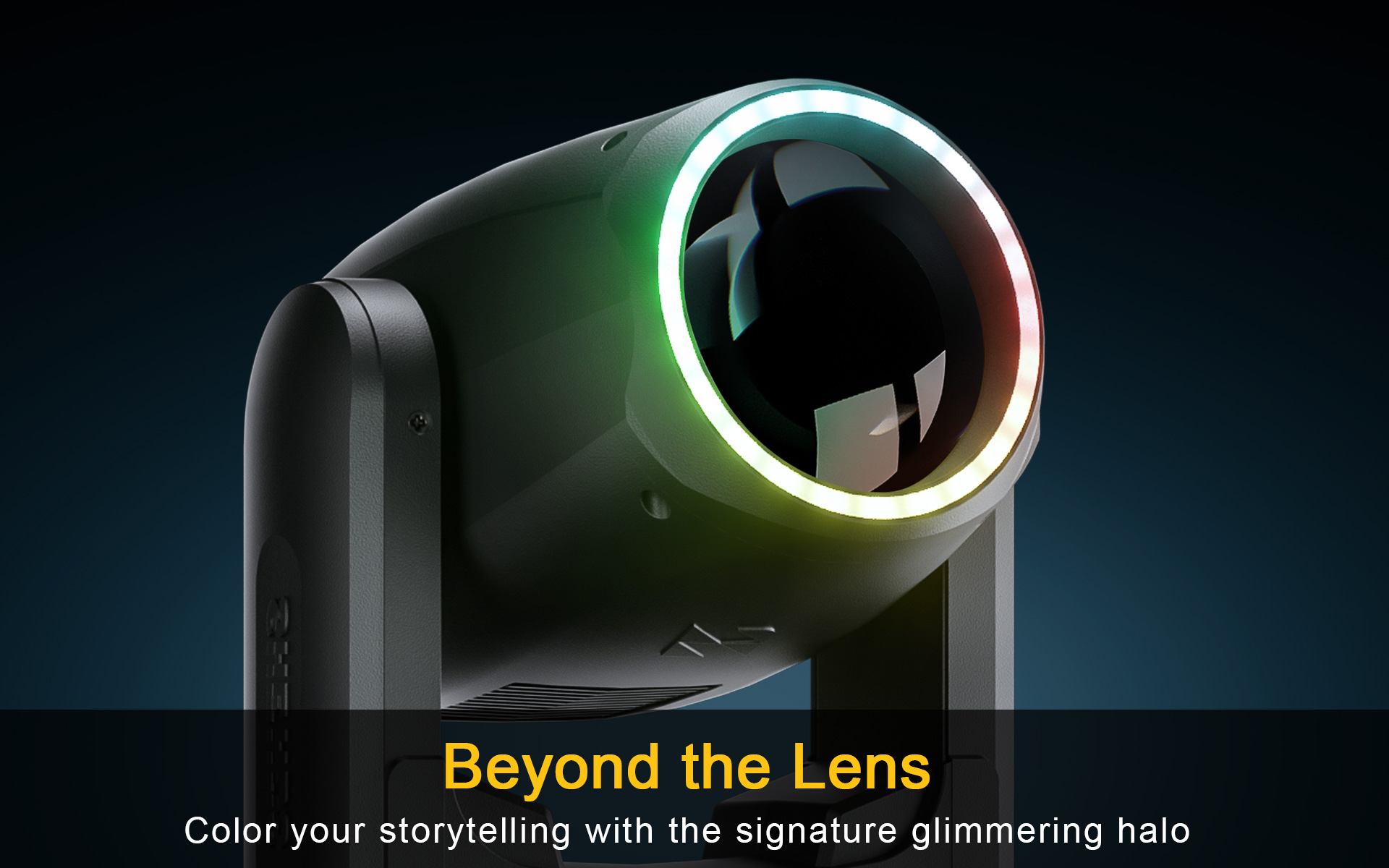

Beyond the Lens
Color your storytelling with the signature glimmering halo

14 Colors + White, Pure Spectrum
High saturation and smooth transitions create vibrant stage palettes with ease

15 Fixed Gobos  Endless Variations
Supports shake, rotation, and indexing, dynamic or static, never a dull moment


Dual Prism Stacking
Independent or combined bi‑directional rotation offers endless beam varieties for creative freedom​

Independent Frost Filter
Softens beam for seamless wash transitions, switch between beam and wash effortlessly​

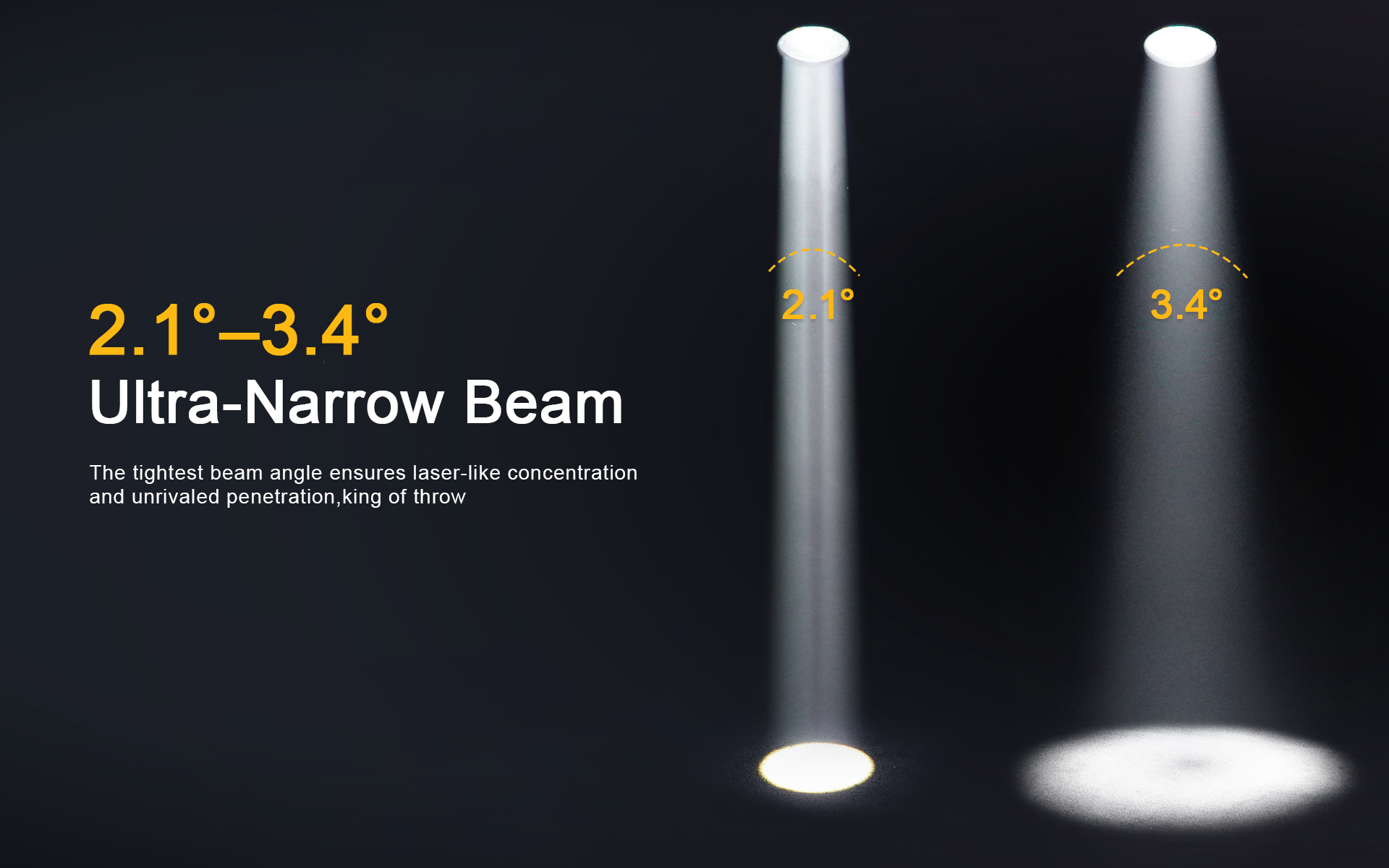

2.1°–3.4° Ultra‑Narrow Beam
The tightest beam angle ensures laser‑like concentration and unrivaled penetration,king of throw​

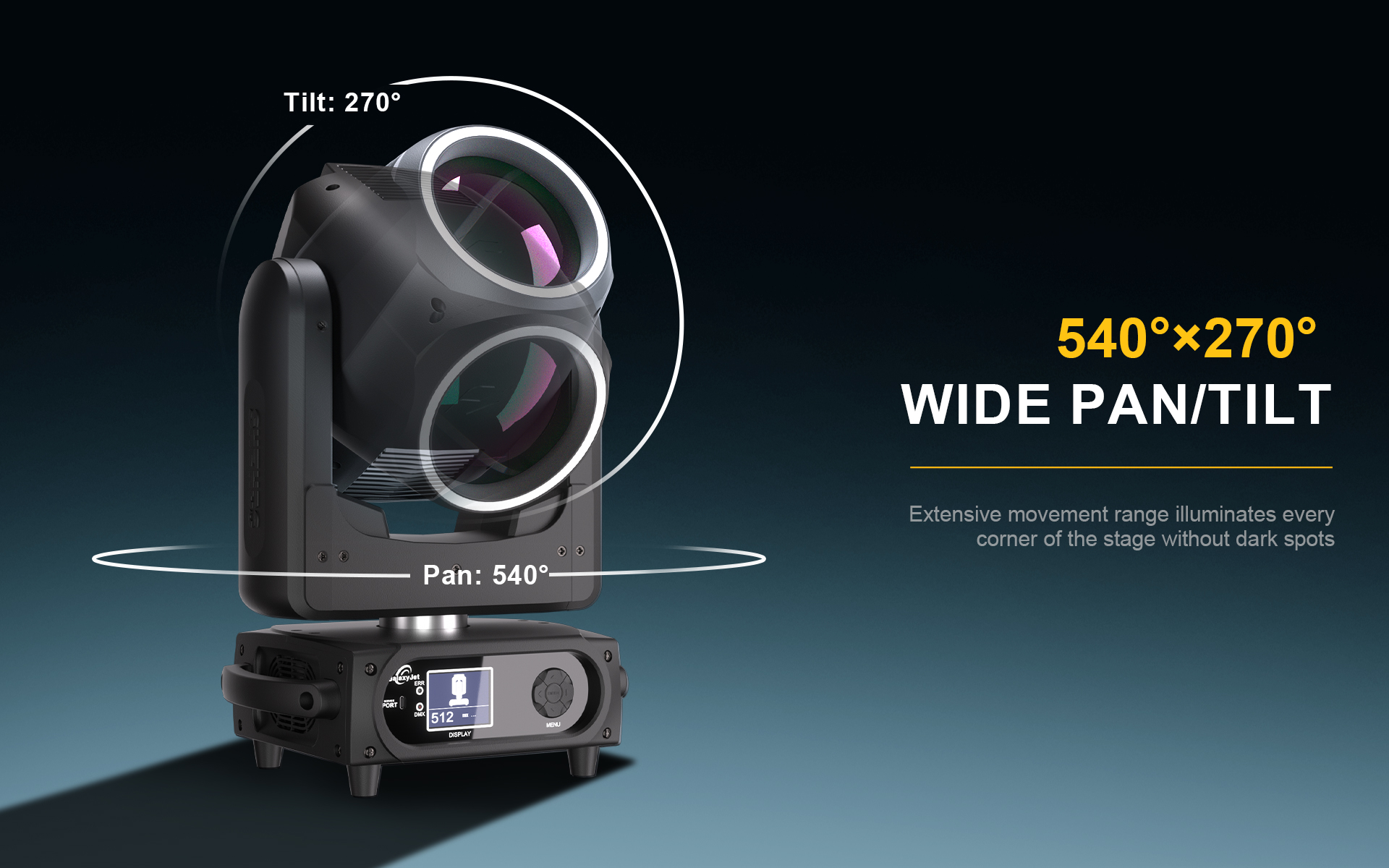

540°×270° Wide Pan/Tilt
Extensive movement range illuminates every corner of the stage without dark spots

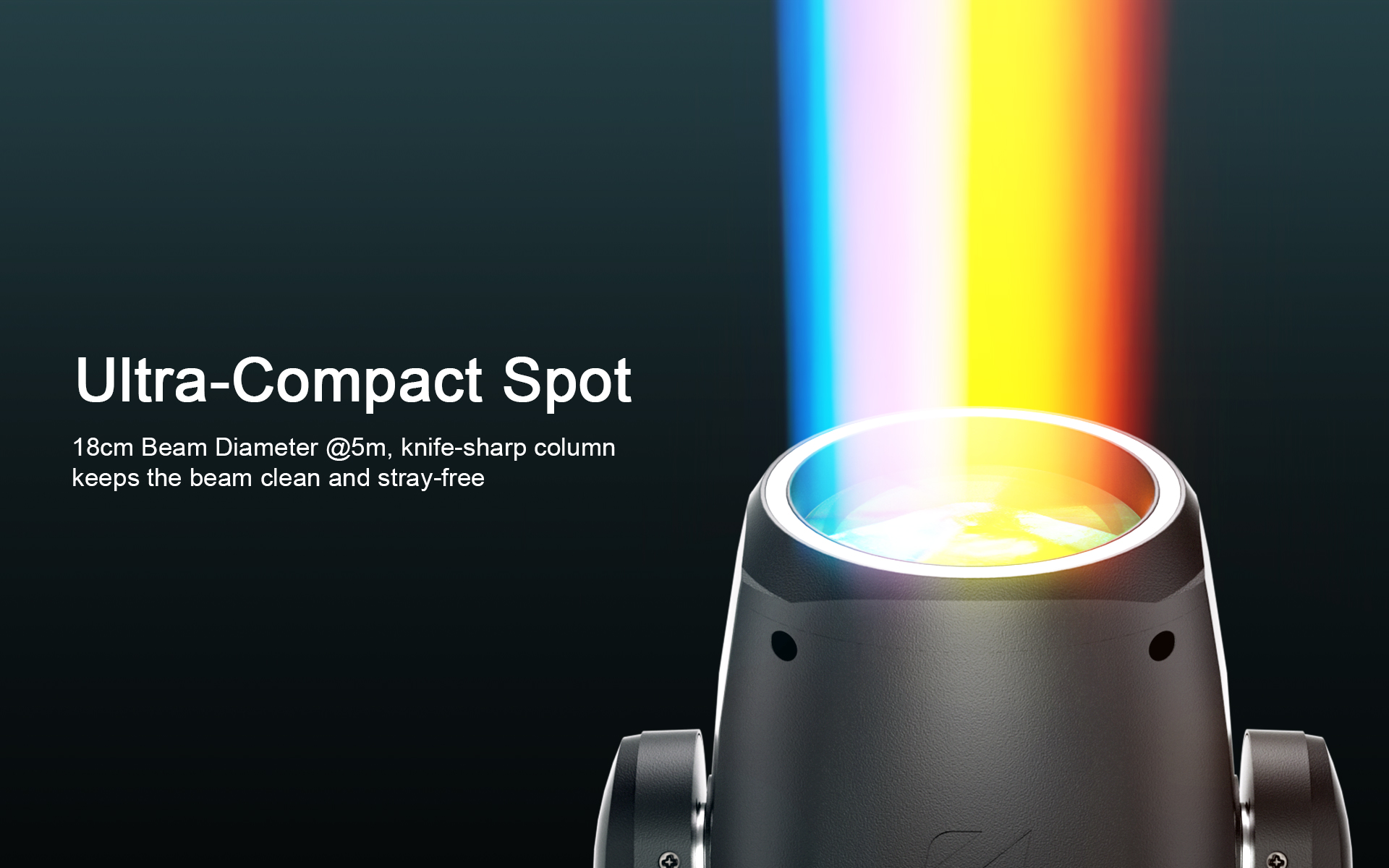

Ultra‑Compact Spot
18cm Beam Diameter @5m, knife‑sharp column keeps the beam clean and stray‑free, precise stage sculpting​

6‑Color Rainbow Wheel
Adds dynamic rainbow sweeps, flowing spectrum bringing extra vitality and visual fun to the beam​

Scene Shooting Demonstration​

Versatile Stage Solution​
Ideal for Bars, Clubs, Weddings, Rentals & TV Shows



Real Shot Real Impact

Powerful 7R Beam Effects Captured in Action

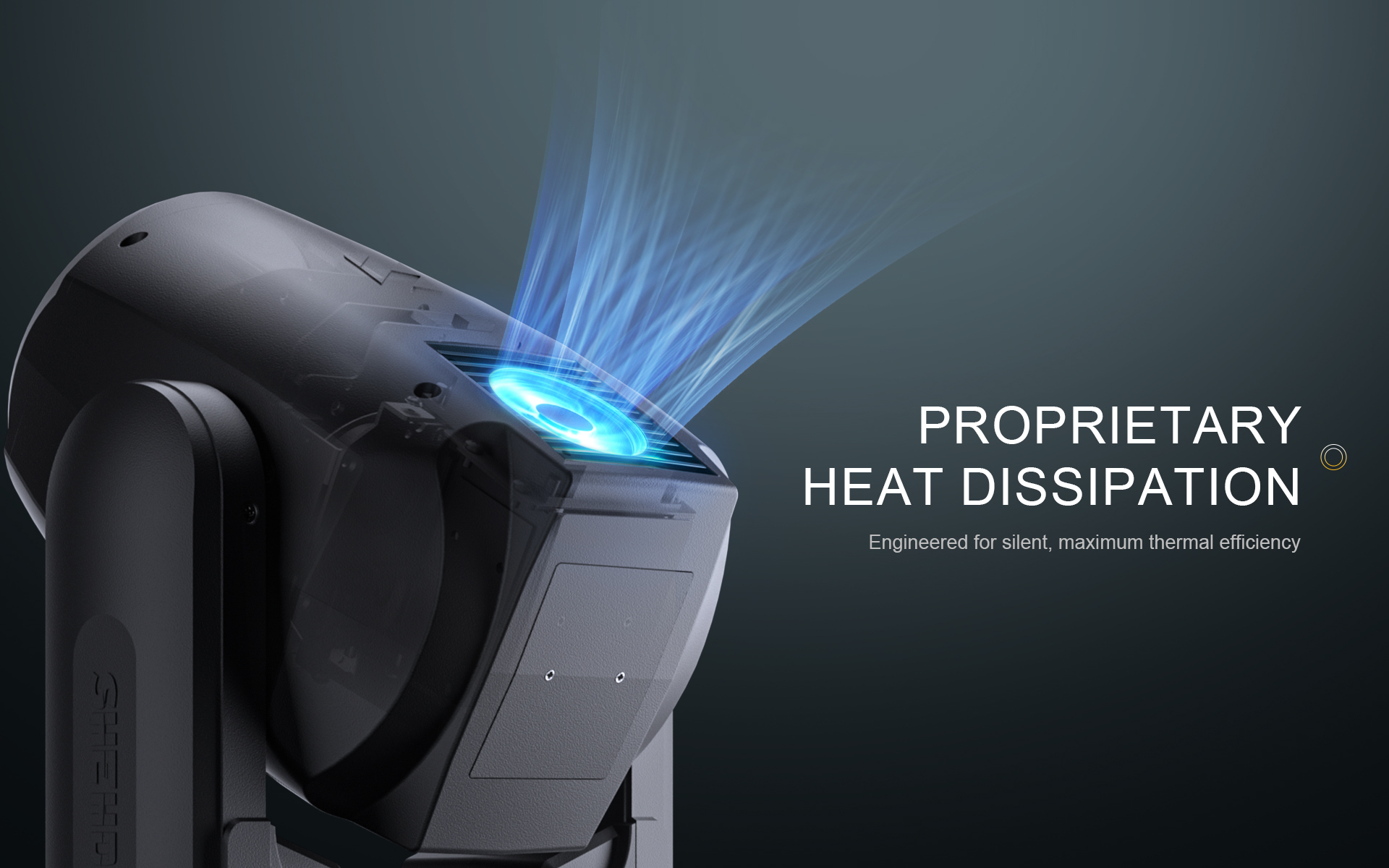

Proprietary Heat Dissipation

Engineered for silent, maximum thermal efficiency.

Compact & Lightweight

Easy to transport and set up for mobile DJs, event planners, and venues.

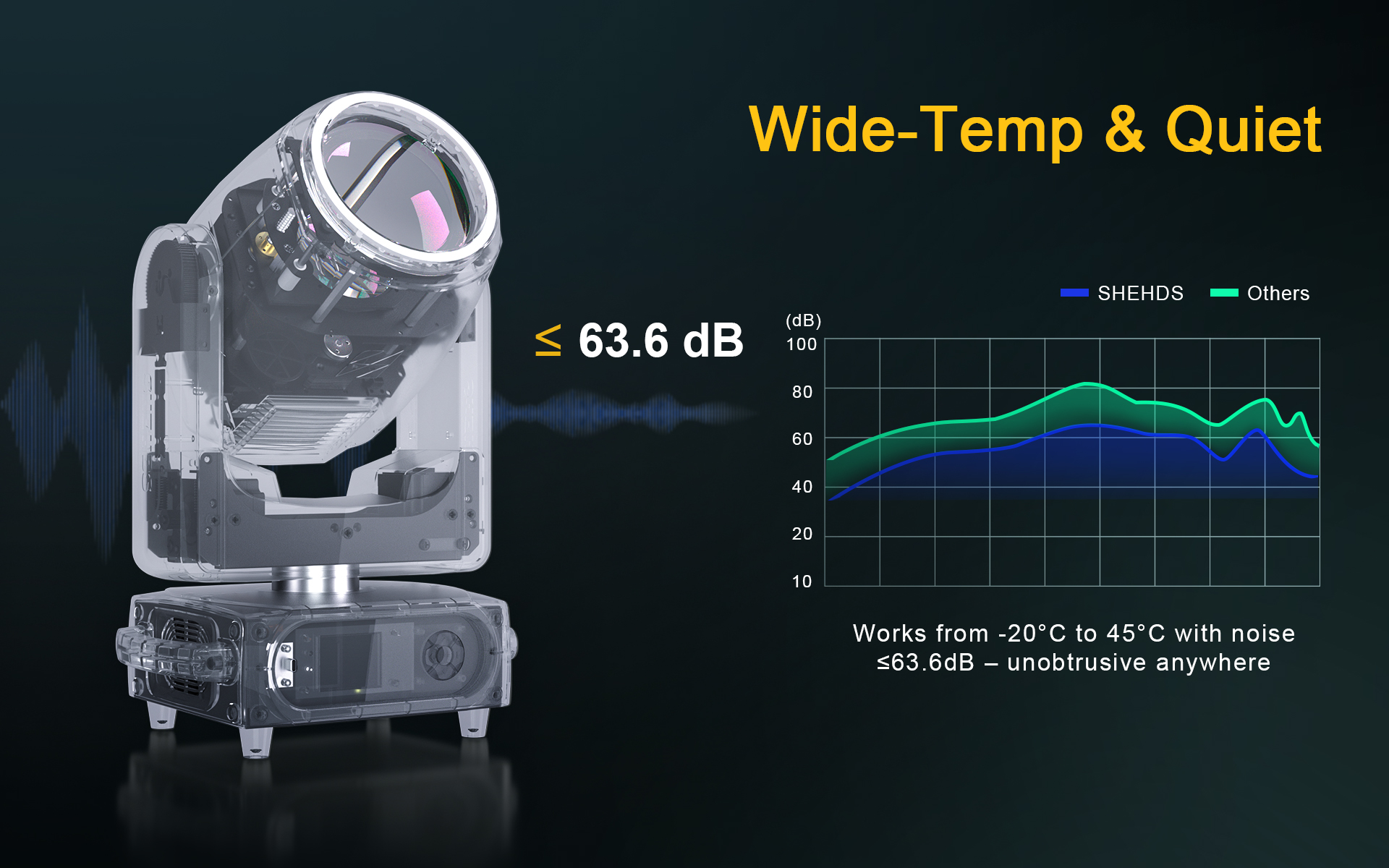

Wide‑Temp & Quiet
Works from ‑20°C to 45°C with noise ≤63.6dB – unobtrusive anywhere.​

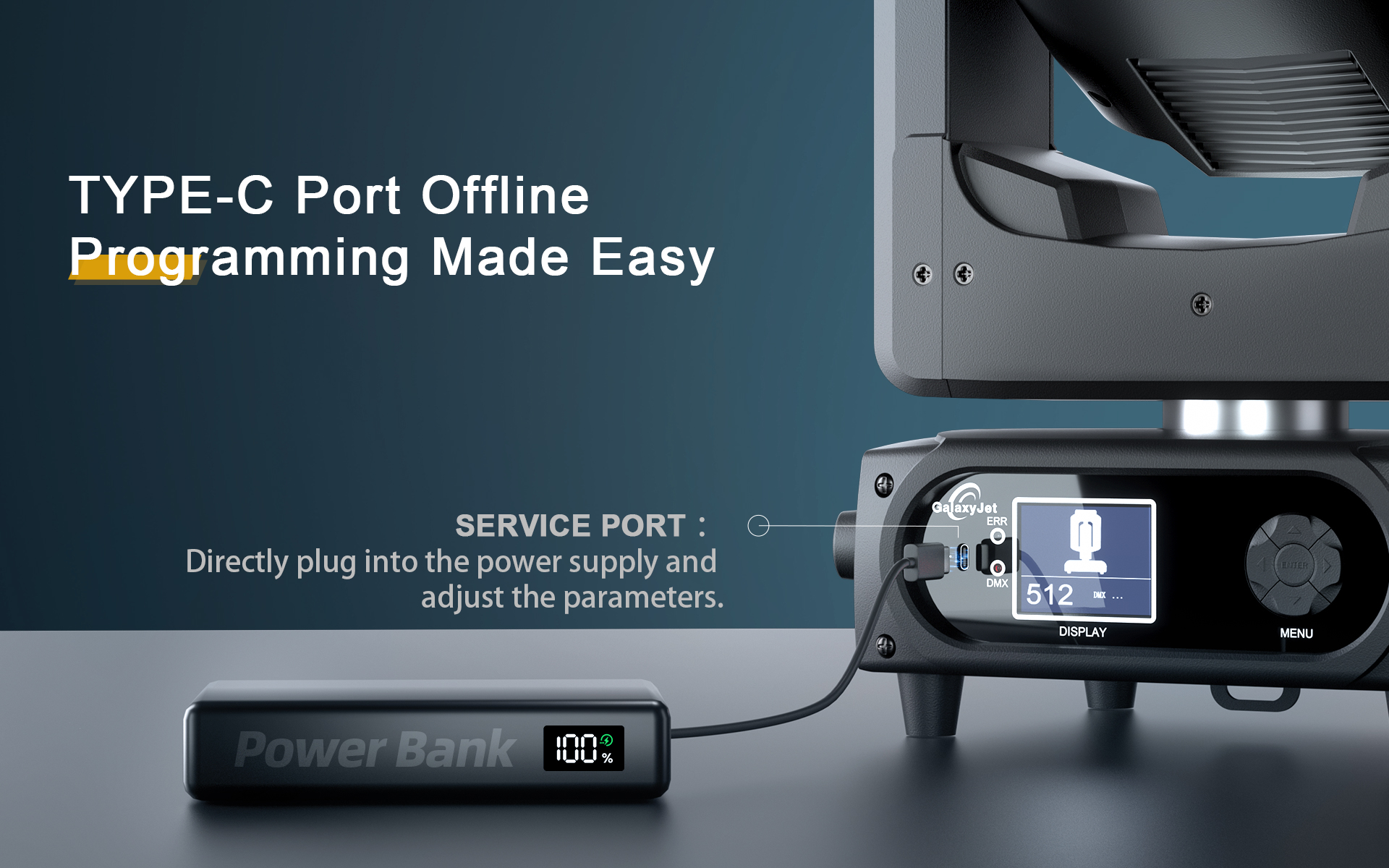

TYPE‑C Port Offline Programming Made Easy
Power and set addresses via a phone charger cable even when the fixture is unpowered

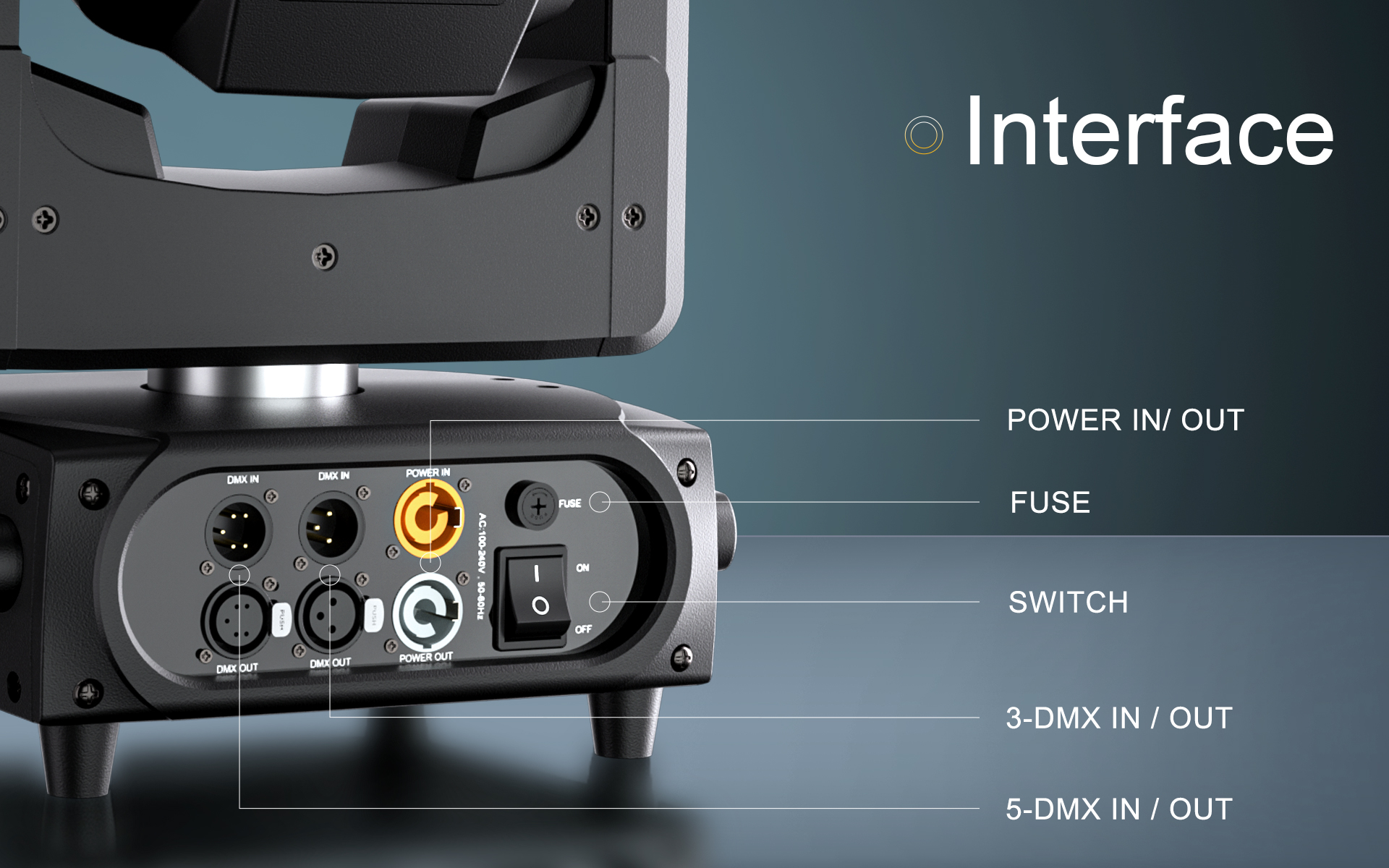

 Interface​

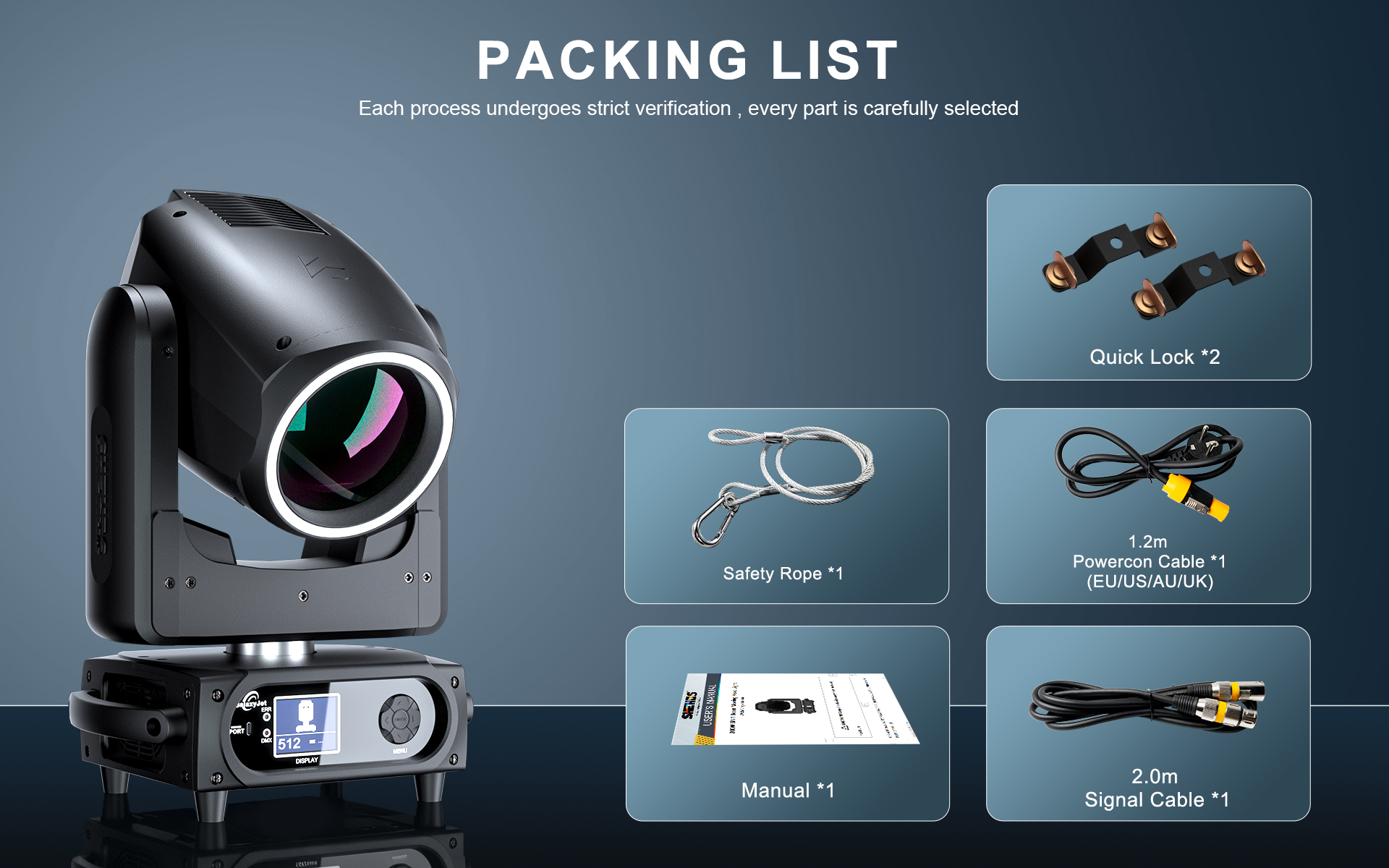

Packing List

Before leaving the factory, each of our products undergoes rigorous testing to ensure they are in perfect condition.

Our strict control over quality is like an artist polishing their masterpiece, striving for perfection in every detail.

Only those products that have gone through layers of checking can confidently leave our factory and arrive in your hands,

bringing you an excellent using experience.

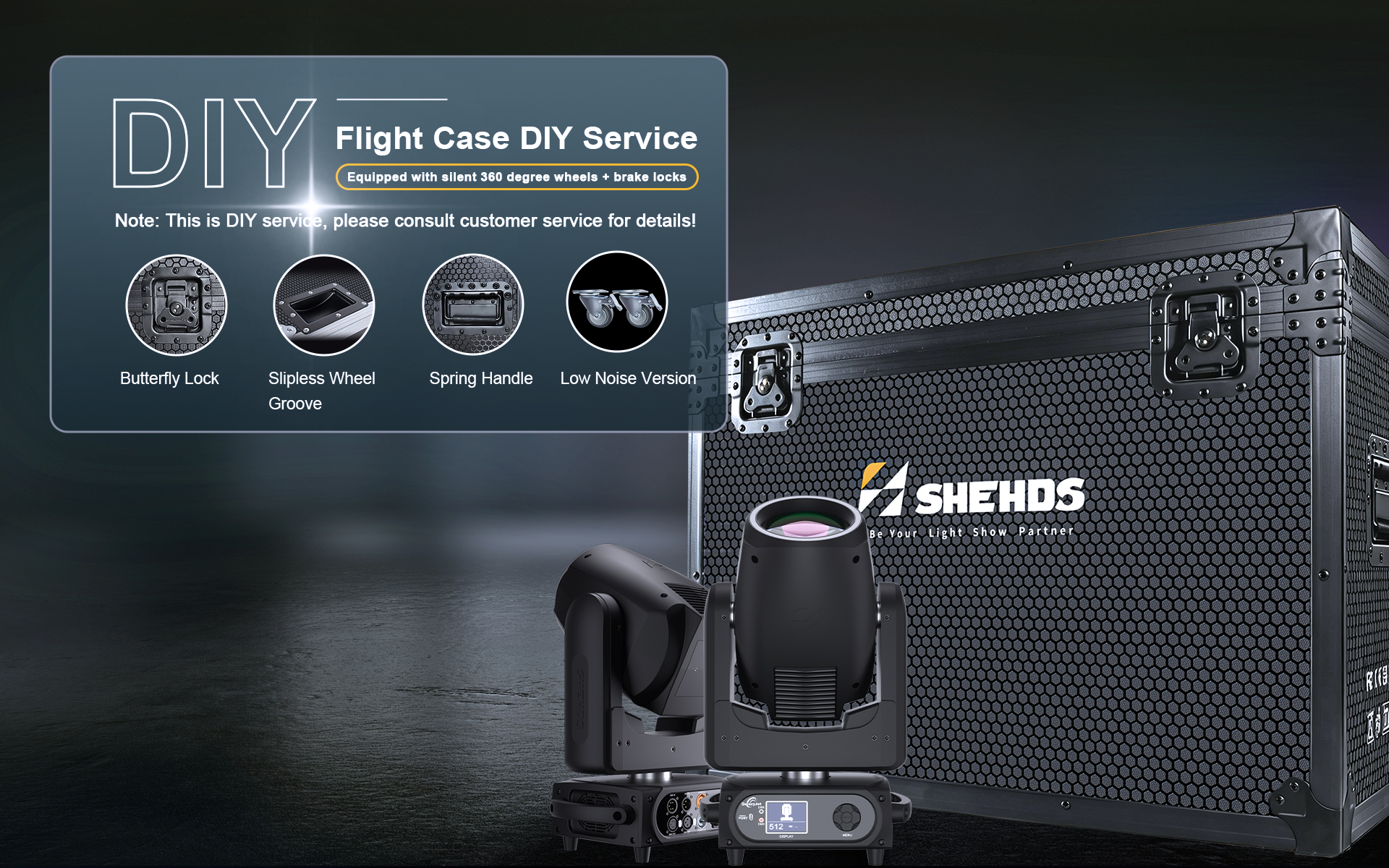

Flight Case DIY Service

It equipped with silent 360 degree wheels + brake locks.

We offer customized road cases that perfectly meet your needs. Whether precision equipment, fragile items, or valuable goods, our road case not only ensures safety protection,

but also adapts flexibly to various specifications and shapes. Each case is finely crafted and made of high-quality materials, providing excellent protection and convenient transportation experience for your products.

From concept to delivery, we work closely with you to ensure that every detail meets your expectations.

Note: This is DIY service, please consult customer service for details!

Qualification Certificate

Our products comply with international safety standards and environmental requirements.

They have multiple voltage options to meet different voltage around the world.

In addition, we also provide comprehensive after-sales service and technical support to ensure that any problems you encounter during use can be promptly and effectively resolved.
