Specialized Design
Dedicated puller for Isuzu 6BG1 & 6BD1 tapered lock sleeve — cannot be substituted by standard multi-jaw pullers

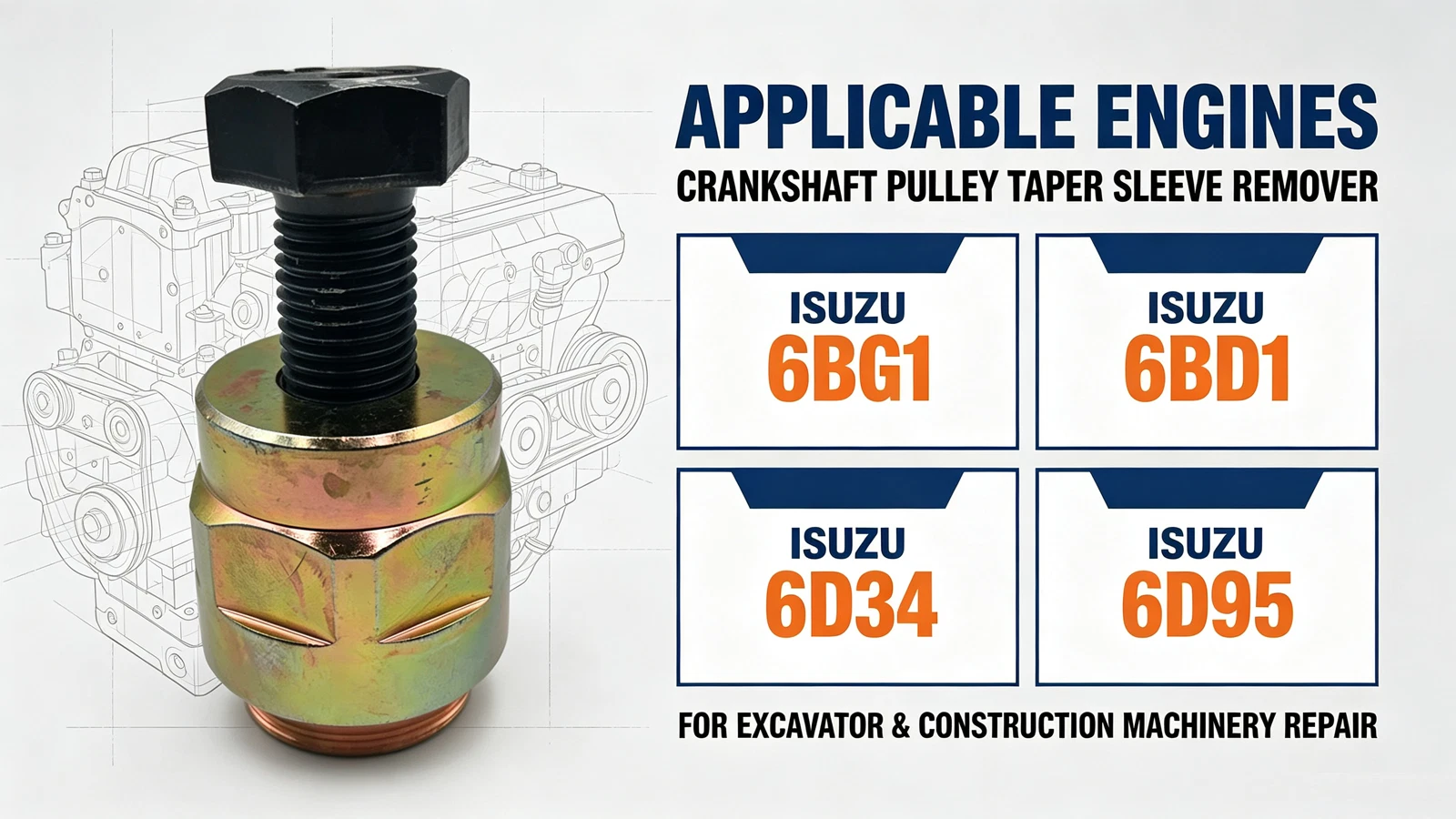

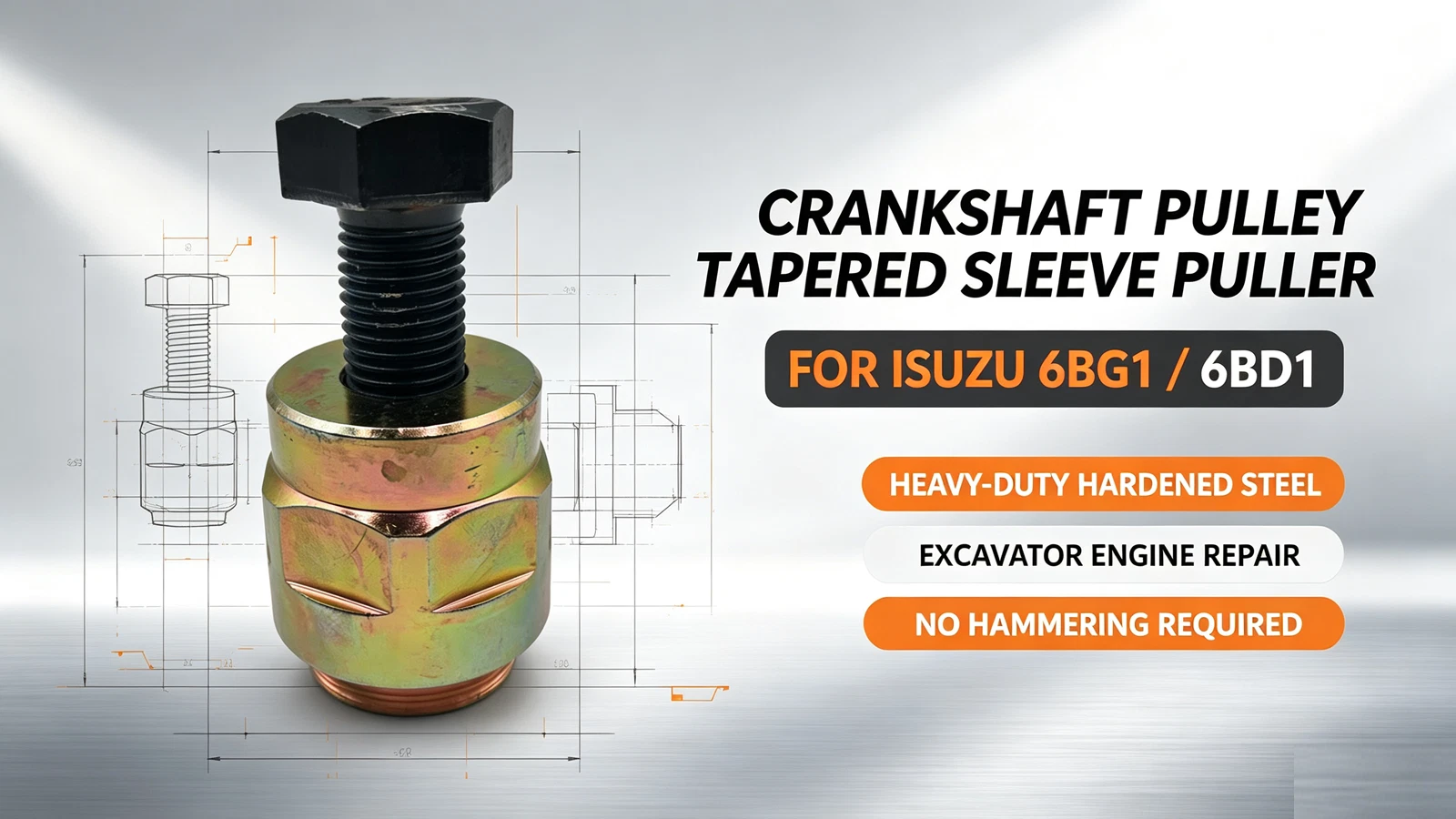

✦ Isuzu 6BG1 / 6BD1 Crankshaft Pulley Tapered Sleeve Puller
Heavy-Duty Non-Impact Disassembly Tool for Excavator & Forklift Engines
★ Professional Grade SKU: ISP-6B-PULL
✦ Key Features
✔
✦
Heavy-Duty Alloy Steel
Color-zinc plated main body + black-oxide high-pressure screw, built for high-torque disassembly
Color-zinc plated main body + black-oxide high-pressure screw, built for high-torque disassembly
✦
Non-Impact Removal
No hammer striking required — prevents scratching crankshaft journal and destroying original threads
No hammer striking required — prevents scratching crankshaft journal and destroying original threads
✦
Outer Hex Design
Holds housing stable during operation, easy to use in narrow engine-bay spaces
Holds housing stable during operation, easy to use in narrow engine-bay spaces
✦
Wide Compatibility
Fits Hitachi, Kobelco, Sany & John Deere excavators, plus forklifts with Isuzu C240, 4JG1, 4JG2, 4LE1, 4LE2, 6BG1 power units — ideal for mechanic shops & field service
Fits Hitachi, Kobelco, Sany & John Deere excavators, plus forklifts with Isuzu C240, 4JG1, 4JG2, 4LE1, 4LE2, 6BG1 power units — ideal for mechanic shops & field service
✦ Material & Craft
⚙️
Main Body
Hardened alloy steel · color zinc plating · anti-rust, impact-resistant for heavy-duty workshop use
🔩
Forcing Screw
High-strength alloy steel with black-oxide treatment · withstands large torque during disassembly
🔧
Outer Hexagon Housing
Allows fixing with a spanner to prevent spinning when operating — stable and reliable
✦ Working Principle
- Screw the lower threaded section of the tool fully onto the tapered sleeve of the crankshaft pulley
- Use a spanner to hold the tool main housing stationary
- Rotate the top hex forcing screw, letting the screw tip press against the crankshaft end face
- Keep turning the top bolt to generate jacking force, pulling the tapered sleeve out smoothly — no hammering required
- Effectively protects the crankshaft journal and original threads from damage
✦ Compatible Equipment Models
| Equipment Type | Brand / Models |
|---|---|
| AR2000, EG40R, EG40R-C, EH3500AC2, EH4000AC2, EH5000AC-3-C, EX100, EX100-2, EX100-3, EX100-3C, EX100M, EX100M-2, EX100M-3, EX100W, EX100WD, EX100WD-2, EX100WD-3, EX100WD-3C, EX1100, EX1100-3, EX120, EX120-2, EX120-3, EX120-3C, EX1200-5, EX1200-5C, EX1200-5D, EX1200-6, EX120K-2, EX120K-3, EX150, EX160WD, EX1800, EX1800-3, EX1900-5, EX1900-6, EX200, EX200-2, EX200-3, EX200-3C, EX200K, EX200K-2, EX200K-3, EX220, EX220-2, EX220-3, EX225USR(LC), EX225USRK(LC), EX2500, EX2500-5, EX2500-6, EX2600-6BH, EX2600-6LD, EX270, EX300, EX300-2, EX300-3, EX3500, EX3600-5, EX3600-6, EX400, EX400-3, EX400-3C, EX400-5, EX450H-5, EX50UR, EX550, EX550-5 JPN, EX60, EX60-2, EX60-3, EX600H-3 JPN, EX600H-5 JPN, EX60G, EX60LCK-3, EX60LCT-3, EX60SR, EX60T-2, EX60UR, EX60WD, EX60WD-2, EX700, EX750-5, EX75UR, EX75UR-3, EX75URLC-3, EX800H-5, EX90, HR320, HR420, MH5510B, PZX450-HCME, RX2000, RX2000-2, TL1100-3, ZR260HC, ZX1800K-3, ZX450-3, ZX450-3F, ZX470-5G, ZX470H-3, ZX470H-3-HCMC, ZX470H-3F, ZX470H-5G, ZX470LC-5B, ZX470LC-5G, ZX470LCH-5B, ZX470LCH-5G, ZX470LCR-5G, ZX470R-3, ZX470R-3F, ZX470R-5G, ZX500LC-3, ZX500LC-3F, ZX520LCH-3, ZX520LCH-3F, ZX520LCR-3, ZX520LCR-3F, ZX600, ZX650H, ZX650LC-3, ZX670LC-5B, ZX670LC-5G, ZX670LCH-3, ZX670LCH-5B, ZX670LCH-5G, ZX670LCR-3, ZX670LCR-5G, ZX800, ZX850-3, ZX850-3F, ZX850H, ZX870-5G, ZX870H-3, ZX870H-3-HCMC, ZX870H-3F, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5G, ZX870LCR-5G, ZX870R-3, ZX870R-3F | |
| SK200, SK200-3, SK200-5, SK220, SK220-3, SK230, SK230-3, SK260, SK260-3, SK300 | |
| SY200, SY205, SY215, SY220, SY225, SY230, SY235, SY260 | |
| 120C, 225CLC, 2054, 2554, 370C, 75C, 80C, JD ZR130HC, JD ZR420JC | |
| Compatible with forklifts equipped with Isuzu engines: 6BG1 | |
| Also compatible with any equipment using Isuzu 6BG1 / 6BD1 power unit |
📌 Please verify your engine model before ordering. This tool is precision-engineered for 6BG1 / 6BD1 series.
