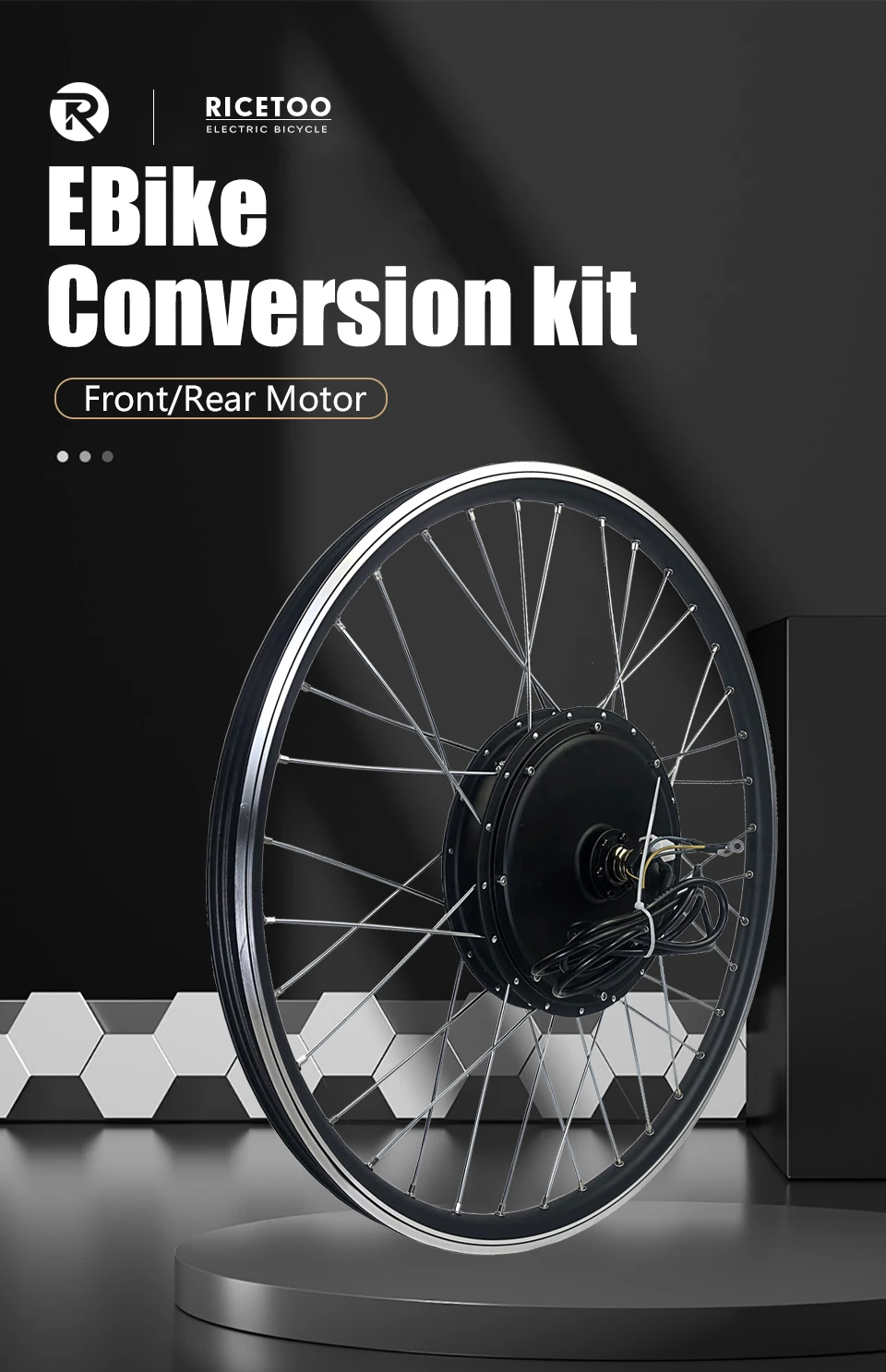

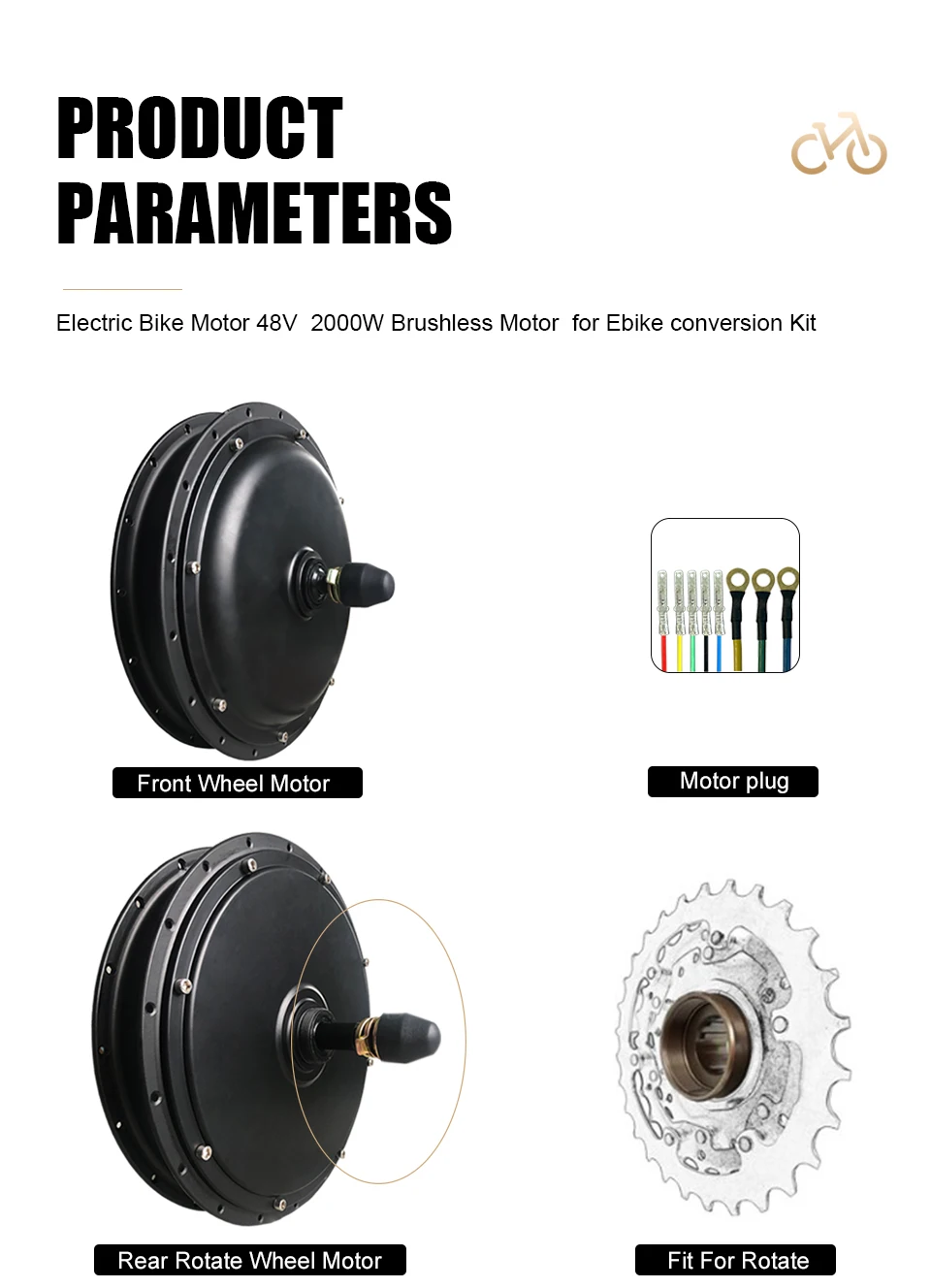

2000W Rear Hub Motor

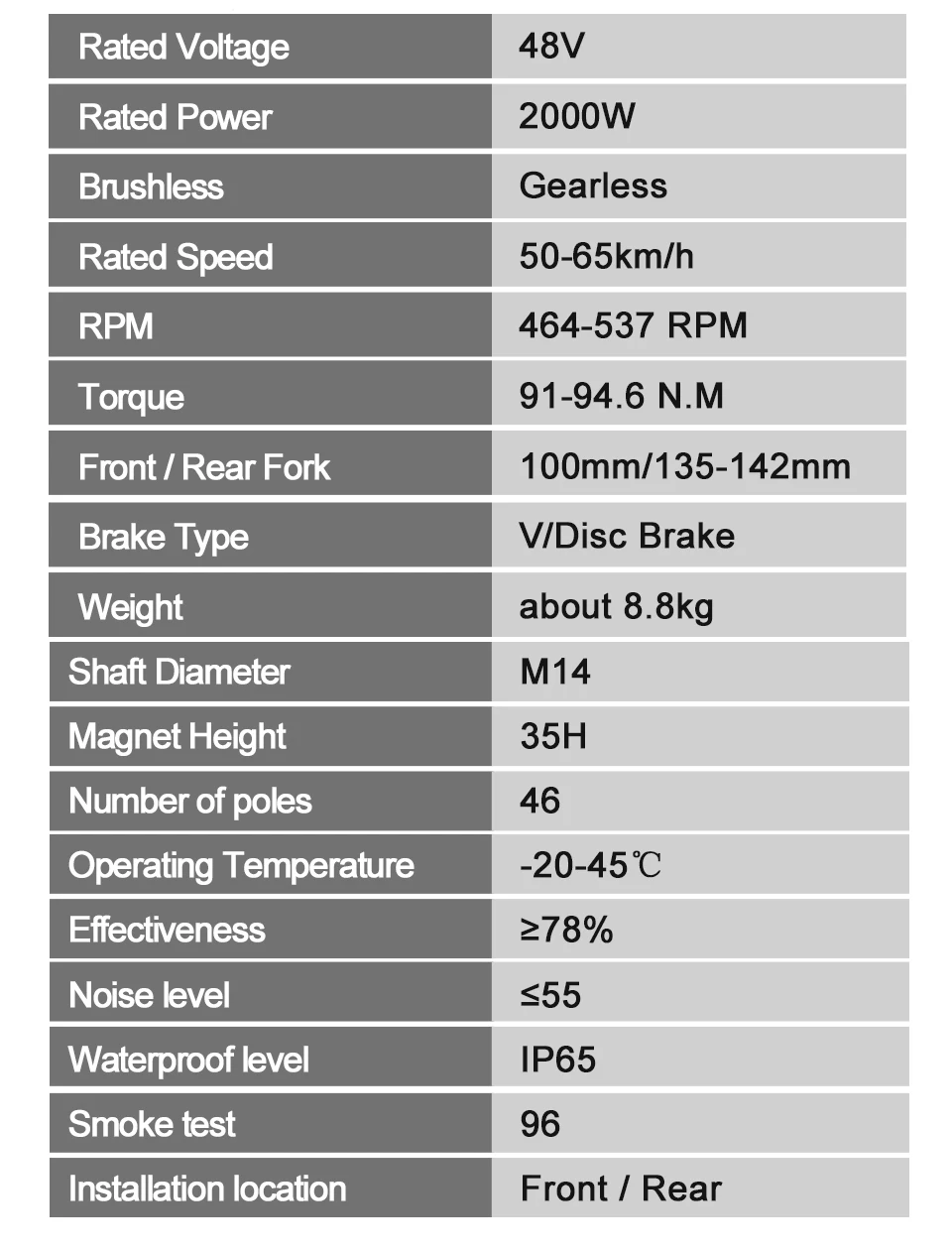

Model:2000W

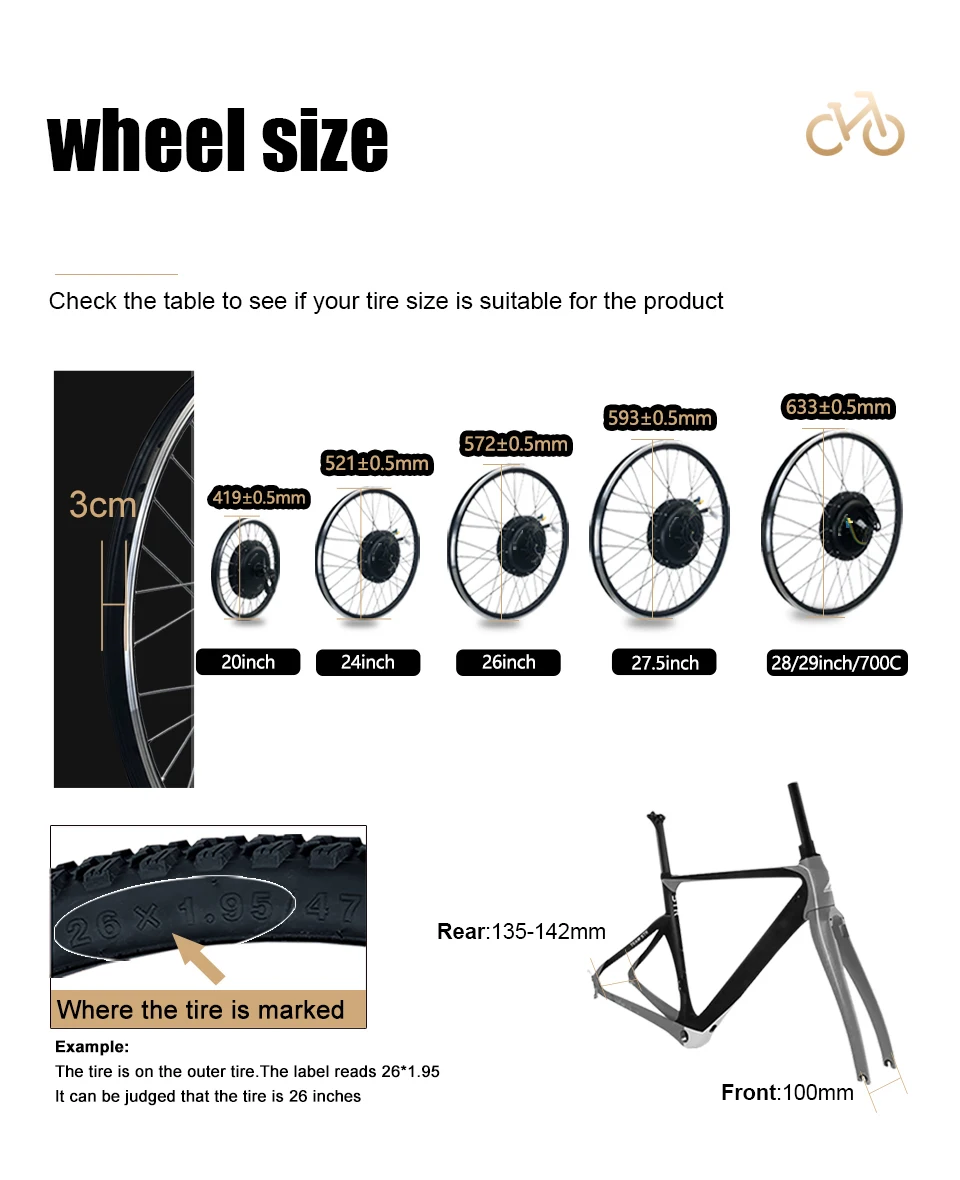

Wheel Diameter (Inch): 20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gearless drive

Rated Voltage (DCV): 48V

Rated Power (W): 2000W

Max Speed (KM/H): about 55-65 KM/H

Speed (Rpm): 464-537

Torque (N.M): 91-94.6

Front drive open size (mm): 135-142mm

Magnet height (48V): 35H

Number of magnet poles: 46

Efficiency (%)≥ 80

Color: Black

Weight (kg): 10kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Rim: Double-wall Aluminium Alloy RimController details

Brand : KT（KUNTENG）50A Controller

Color :Silver

Dimension :236 *83* 42mm

Mosfet :15 Mosfets

Maximum current :50±1A

Rated current :25A

Speed set : 1-4.2V

Brake input :Low-Level

Low voltage protection :DC40±0.5V

Cable length : all about 10-16cm

Weight : about 650g

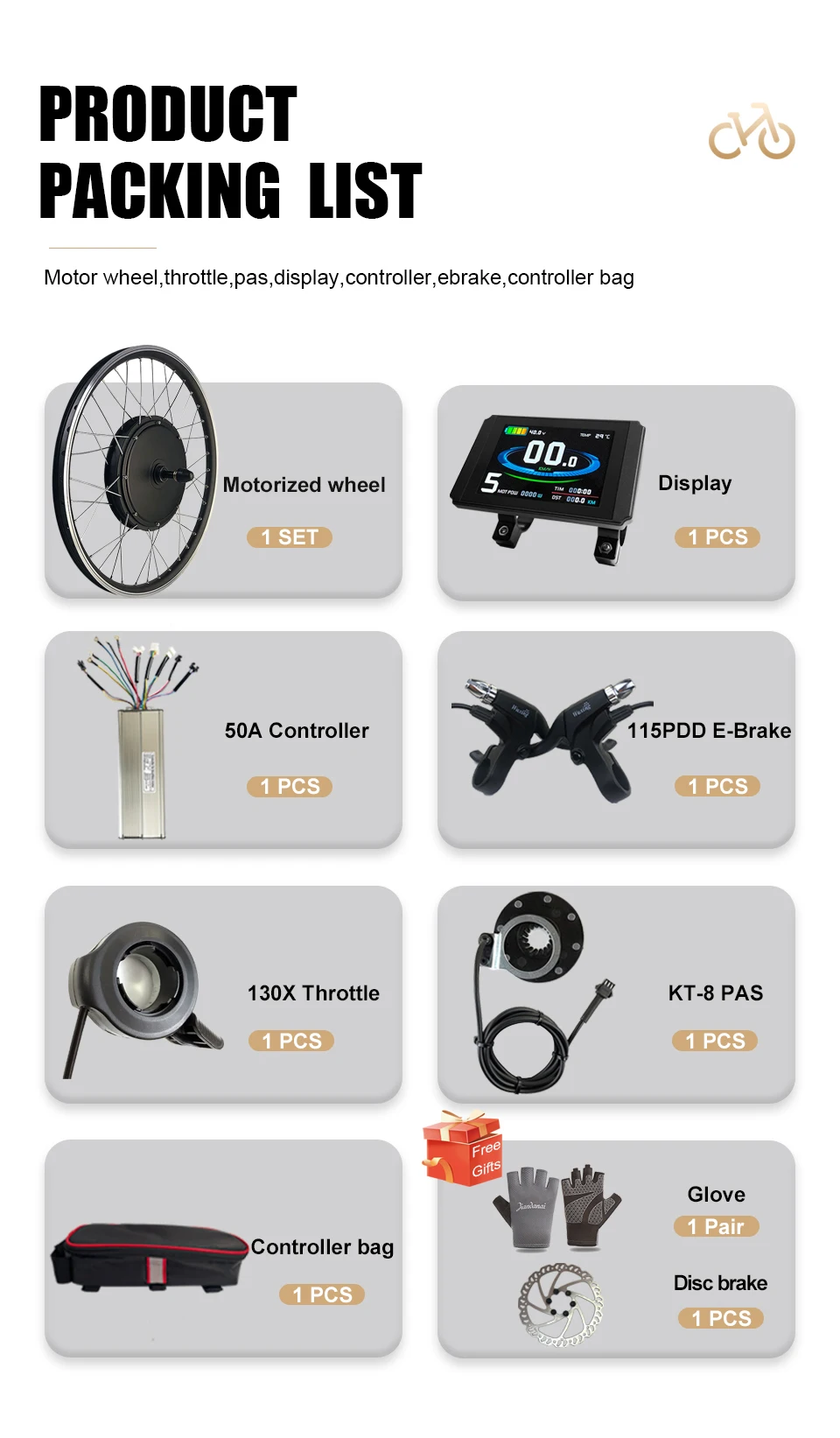

Packing List

Conversion Kit not include Battery

1 PCS * 2000W Front Hub Motor with Rim and Spokes

1 PCS * KT-50A Controller

1 PCS * Controller Bag(not battery)

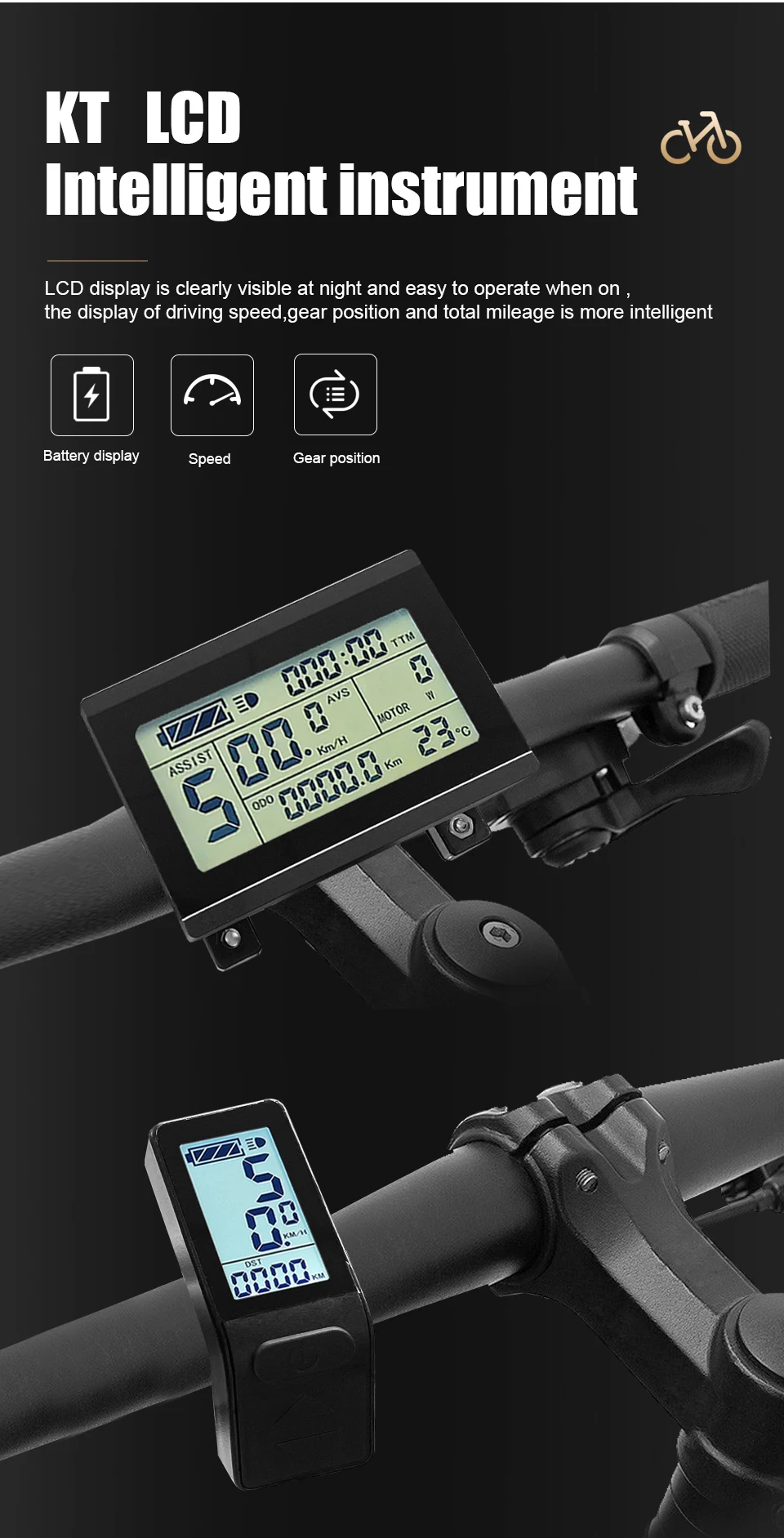

1 PCS * Display(LCD3,LCD5,LCD8H,LED880, option)

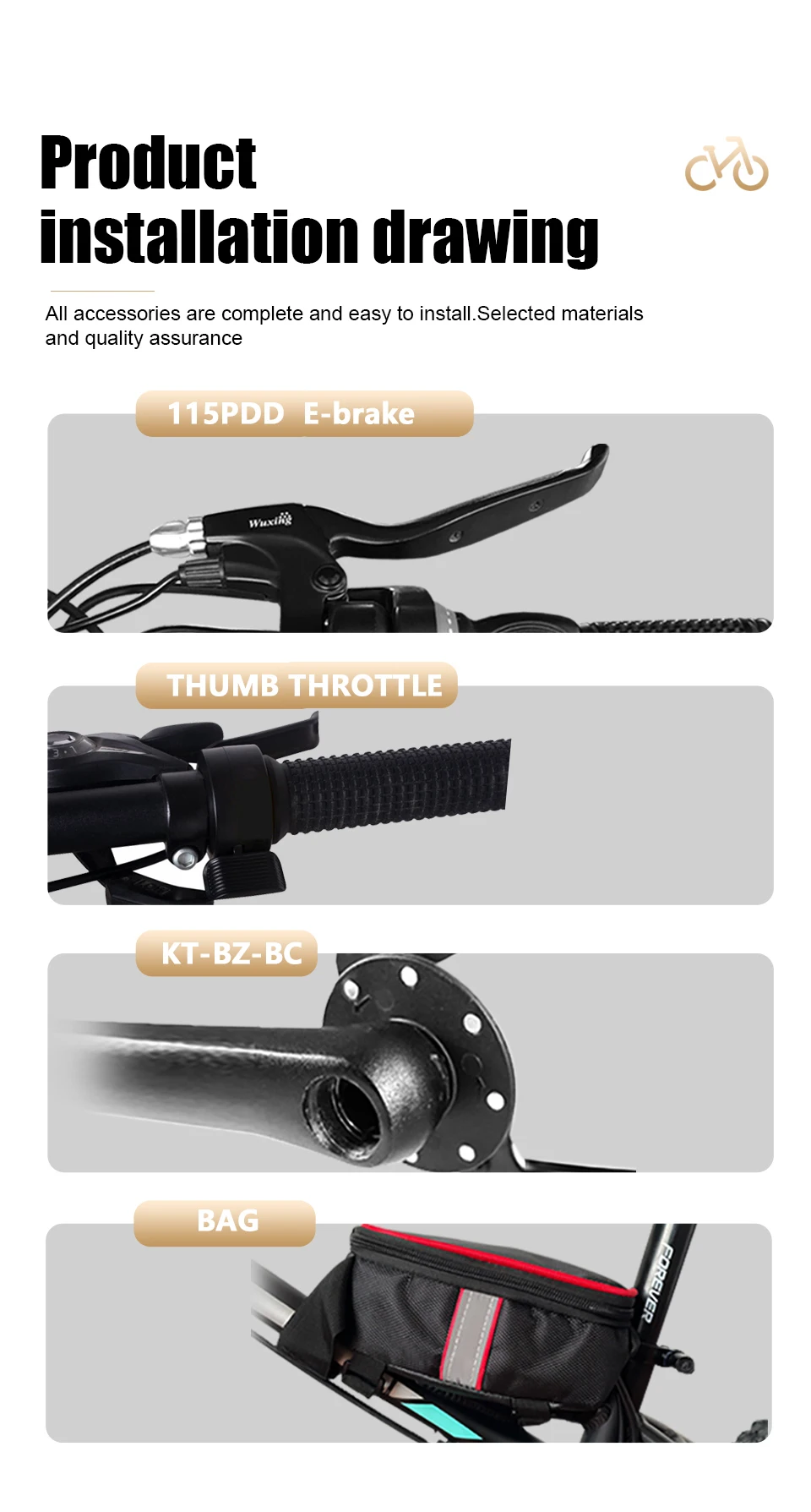

1 PCS * Thumb Throttle ( can change to twist throttle for free if you buy from China)

1 PCS * PAS Sensor

1 Pair * Brake Levers

Gifts: 1*Controller Bag( not battery) + 5*Install cable ties + 1*stretch film+ 1*Installation Manual

TIPS:

Different kits have different specifications of accessories.Specification information is in the main picture.
