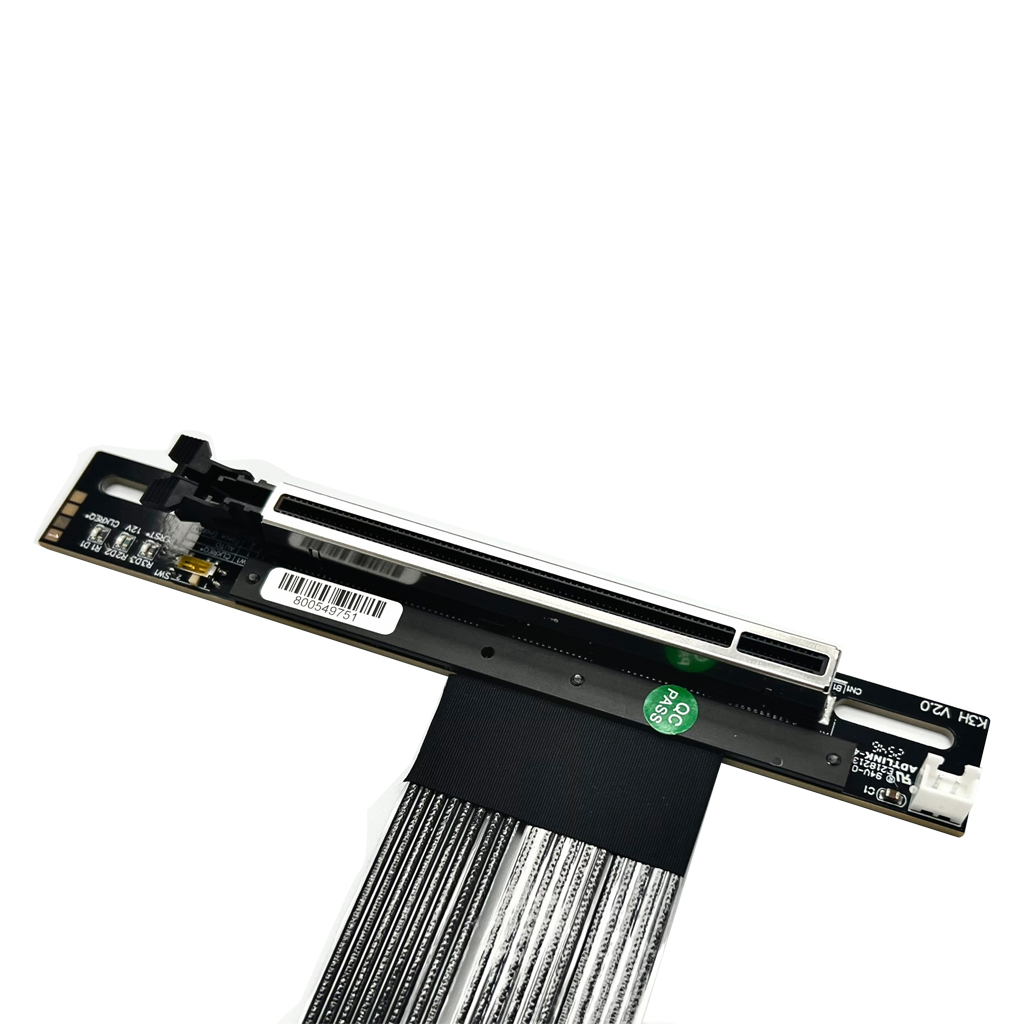

Product model: K43 series products

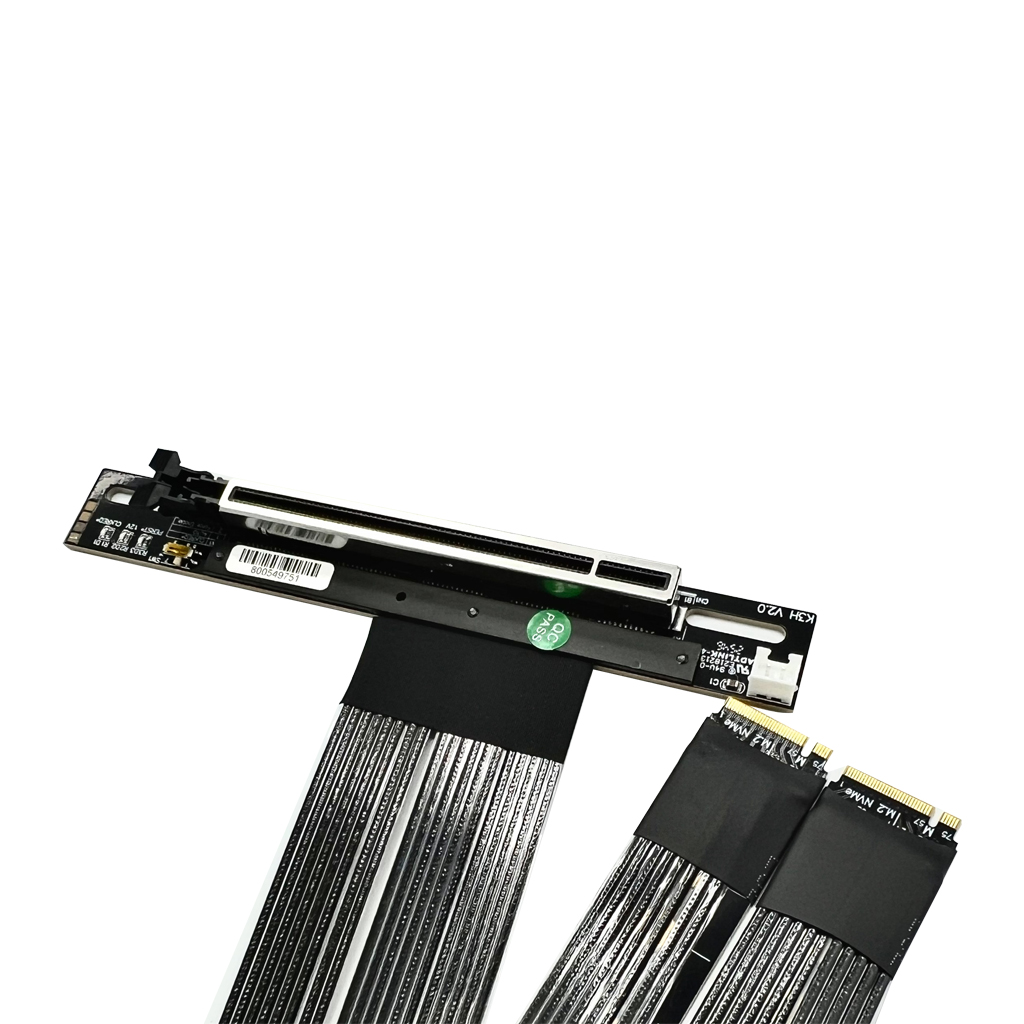

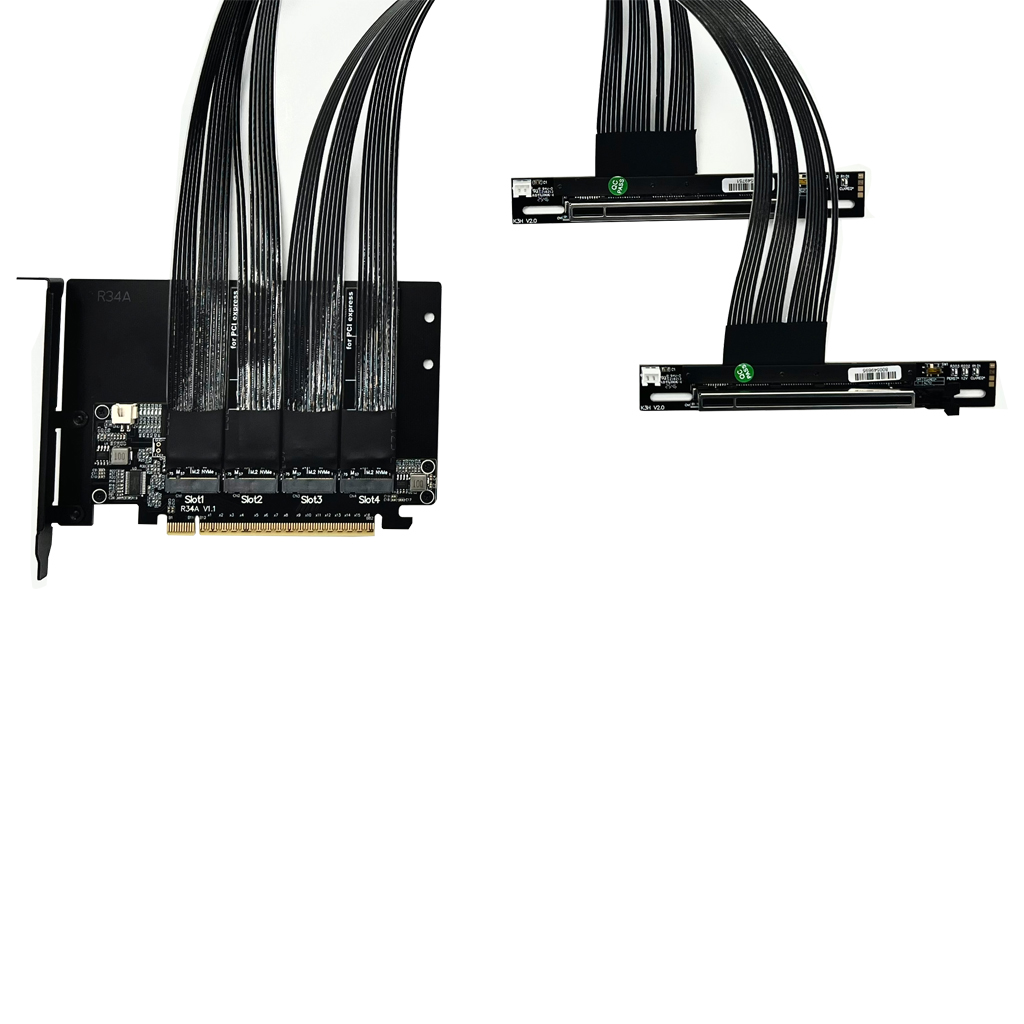

Product Name: PCIe 5.0 x16 to x8 AI Local Deployment Solution One to Two Extension Cable
Wire length: Supports customized wire length
Speed and bandwidth: PCIe 5.0 x16 (x8+x8), Gen5 512Gbps, backward compatible with Gen4 Gen3
Procurement reminder: It is necessary to purchase 1-2 samples for testing and verification before making bulk purchases.
Description of wire length and hole spacing:

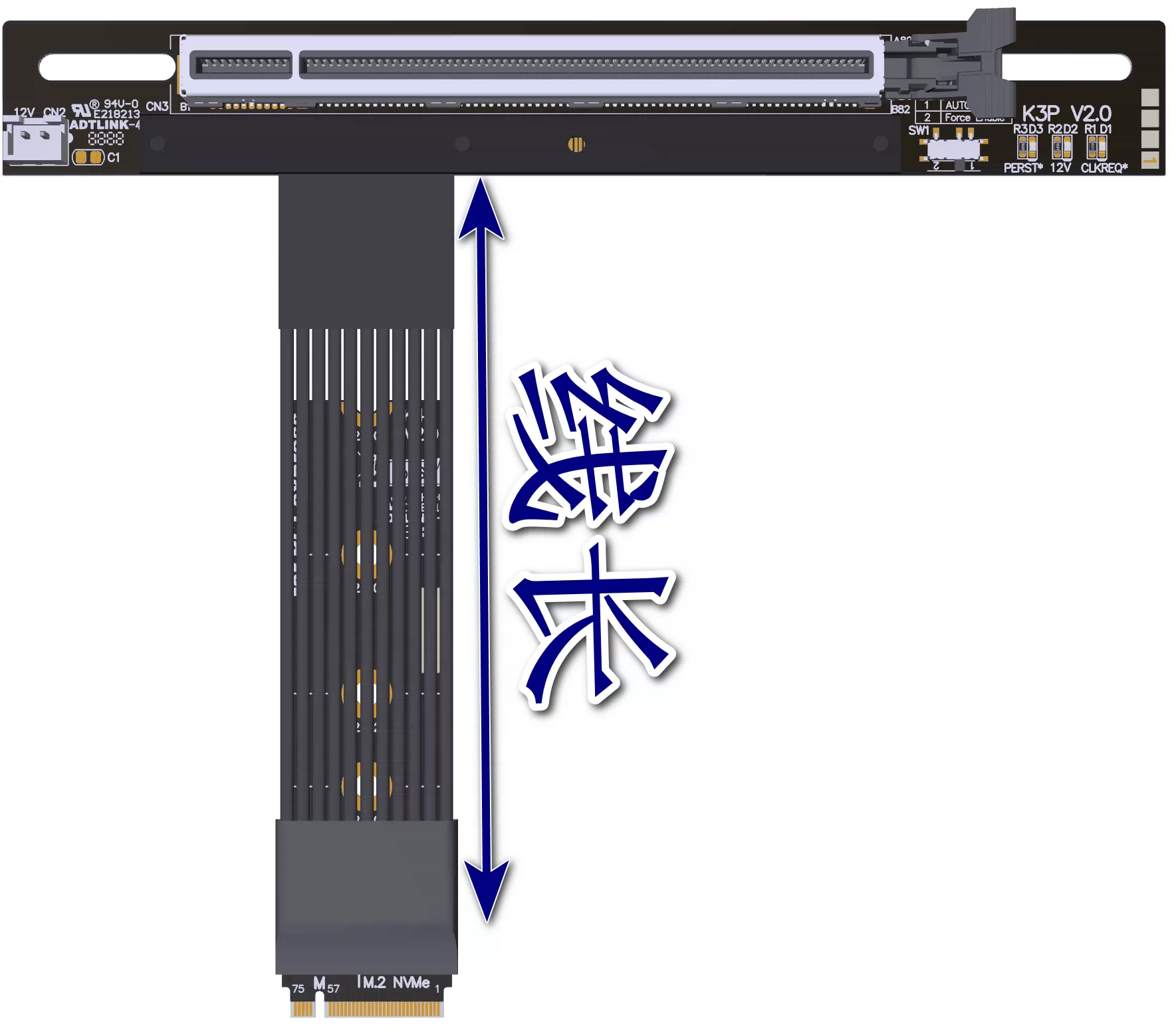

The wire length in our store refers only to the part of the wire, excluding PCB and connectors. Refer to the line length dimension annotation in the following figure. There may be some deviation in the length of the line, please do not take pictures if you mind:

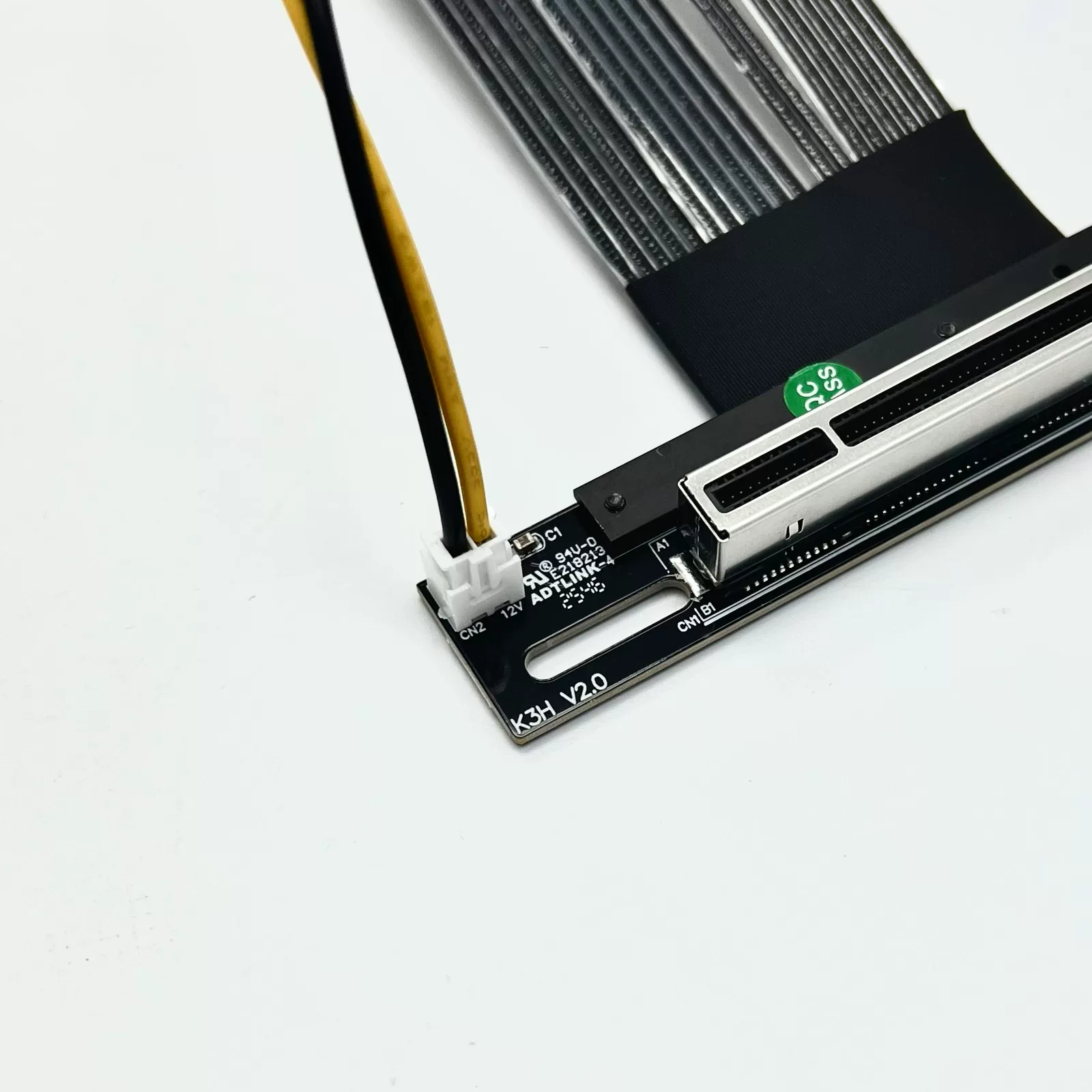

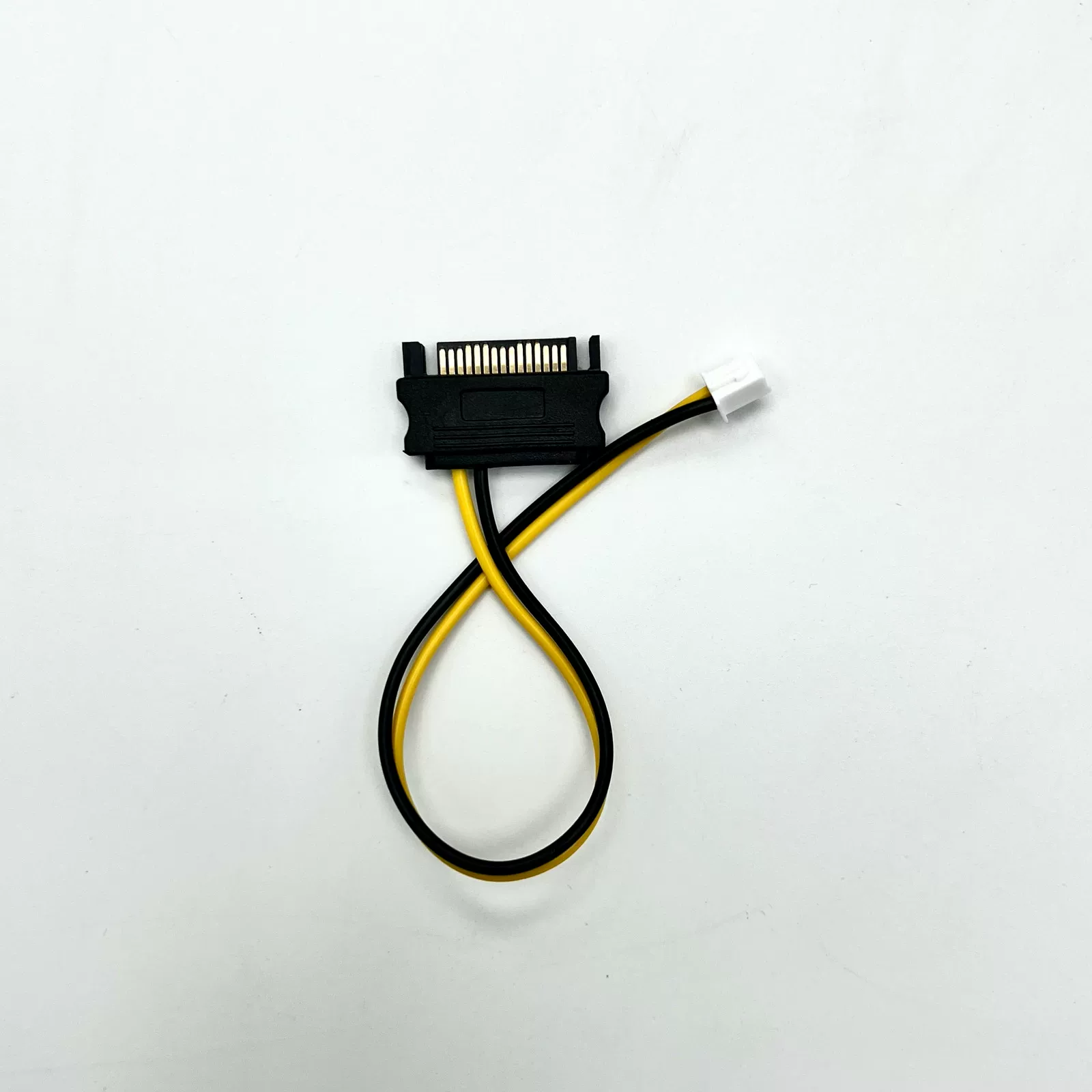

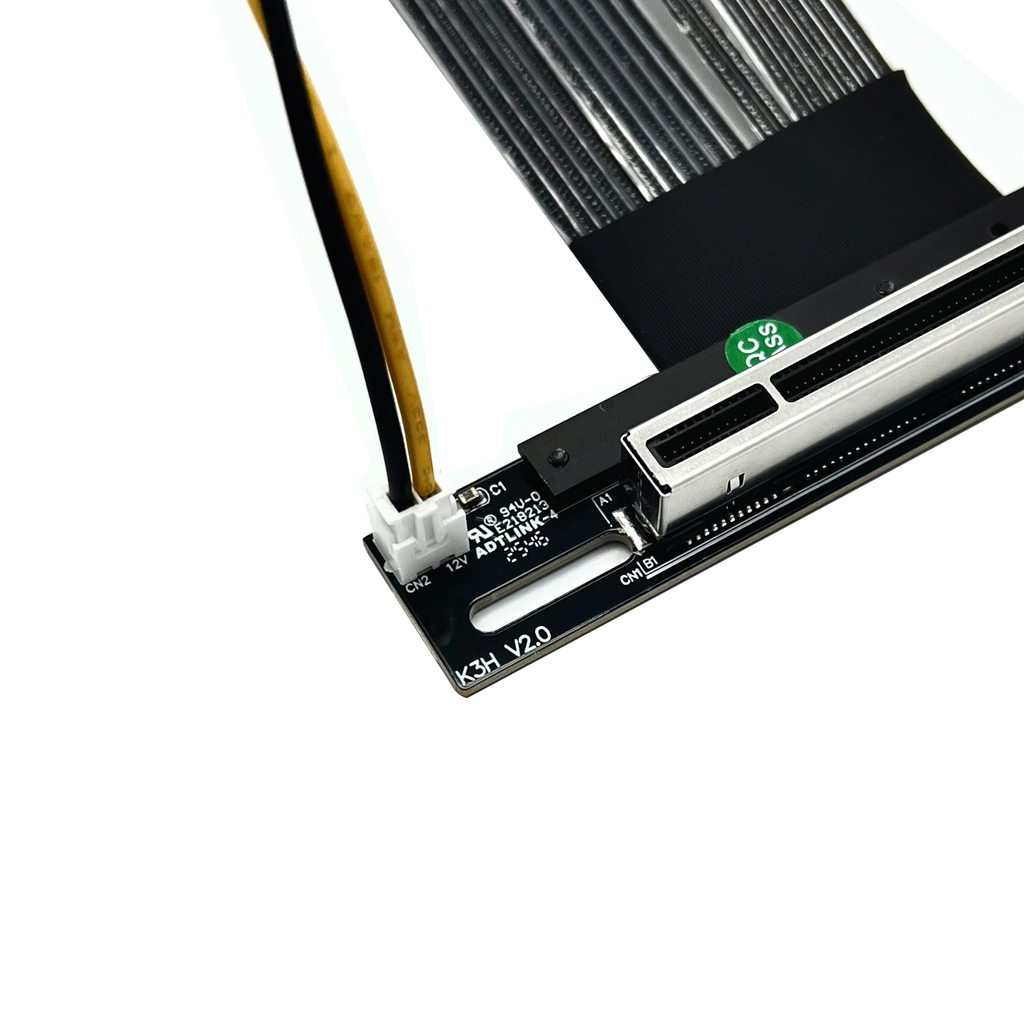

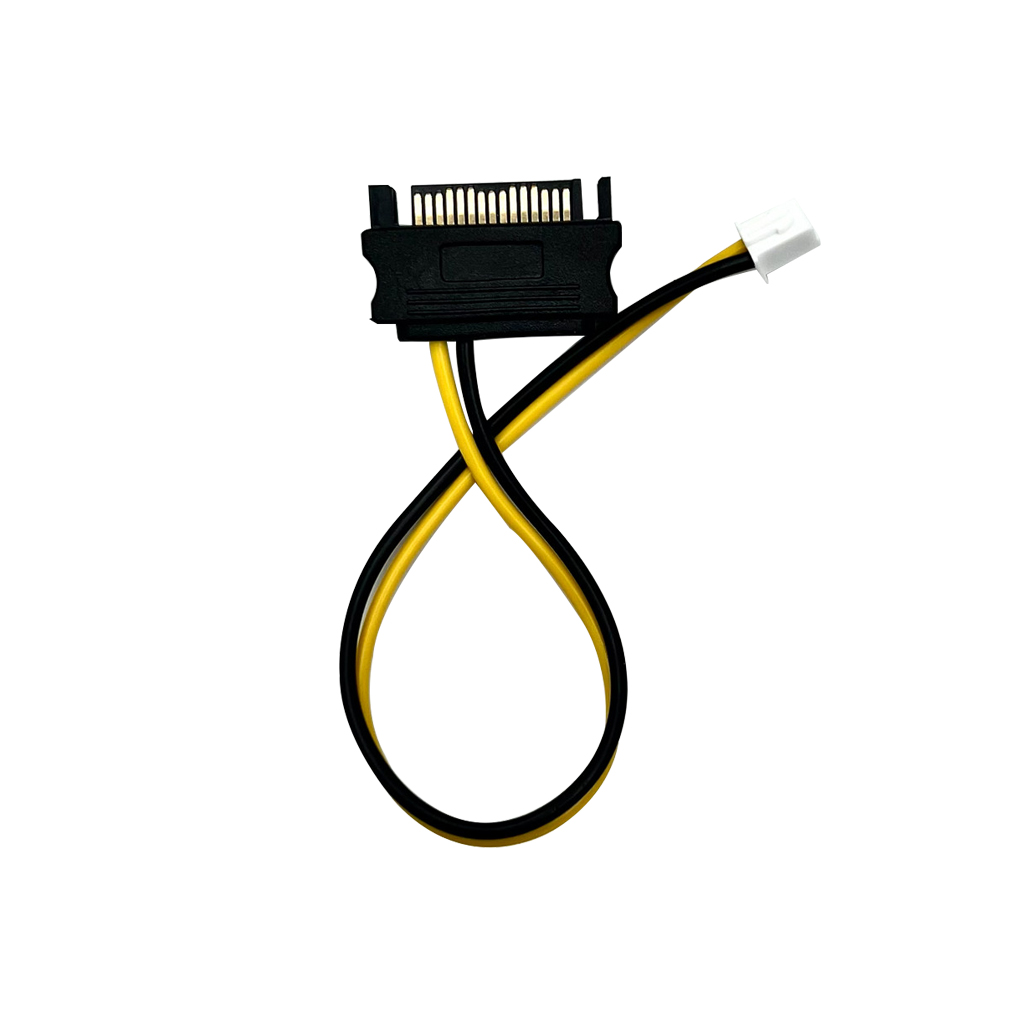

Accessory Description: A SATA power adapter cable is included with the shipment, and must be connected to a white socket to provide 12V power.

Product Advantages:
1. High speed lossless flexible cable, bendable and foldable, with stable transmission speed.
2. UL certified PCB board with good conductivity.
3. Four layer PCB board, advanced design, exquisite craftsmanship, stable signal quality, excellent wiring, good isolation, meets various needs.

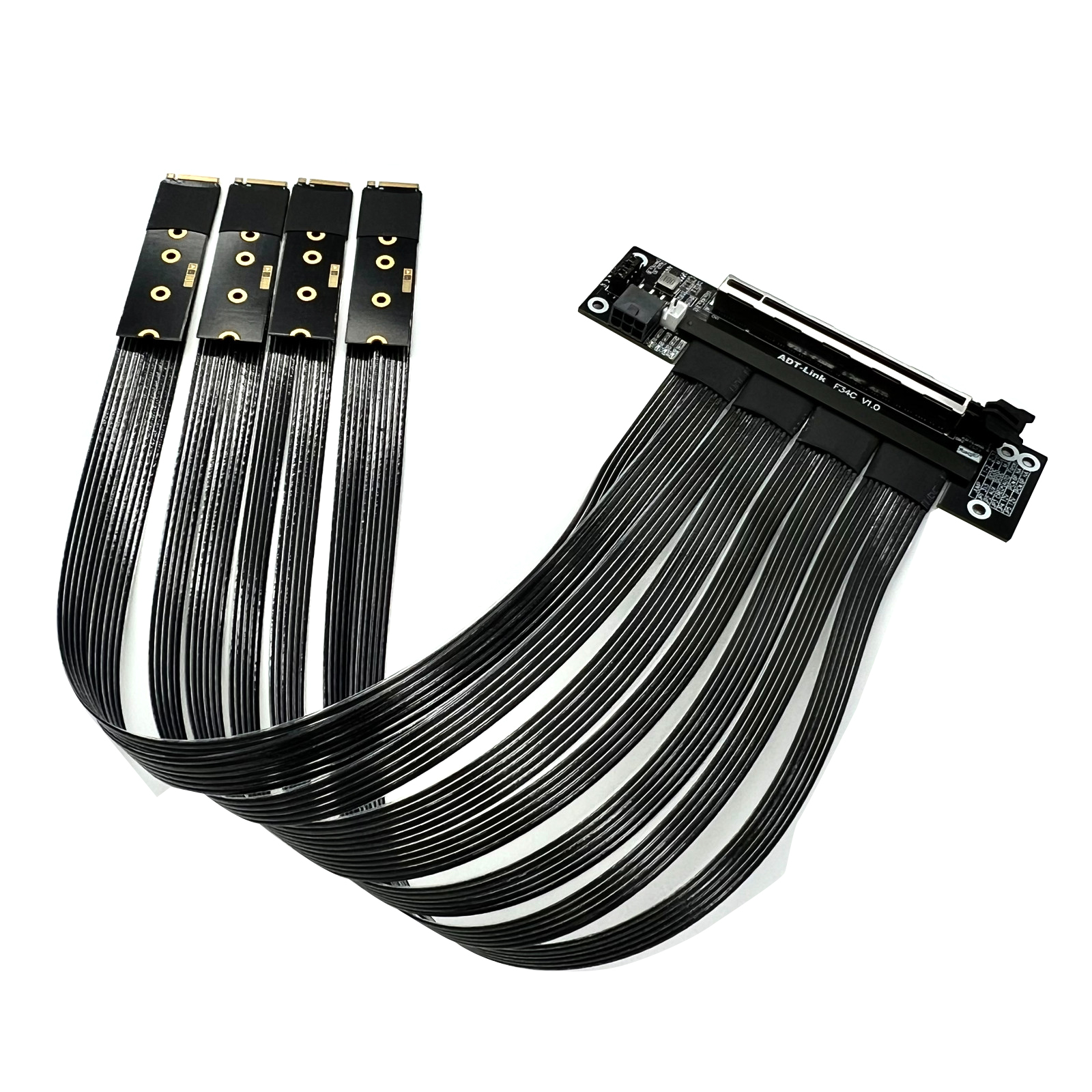

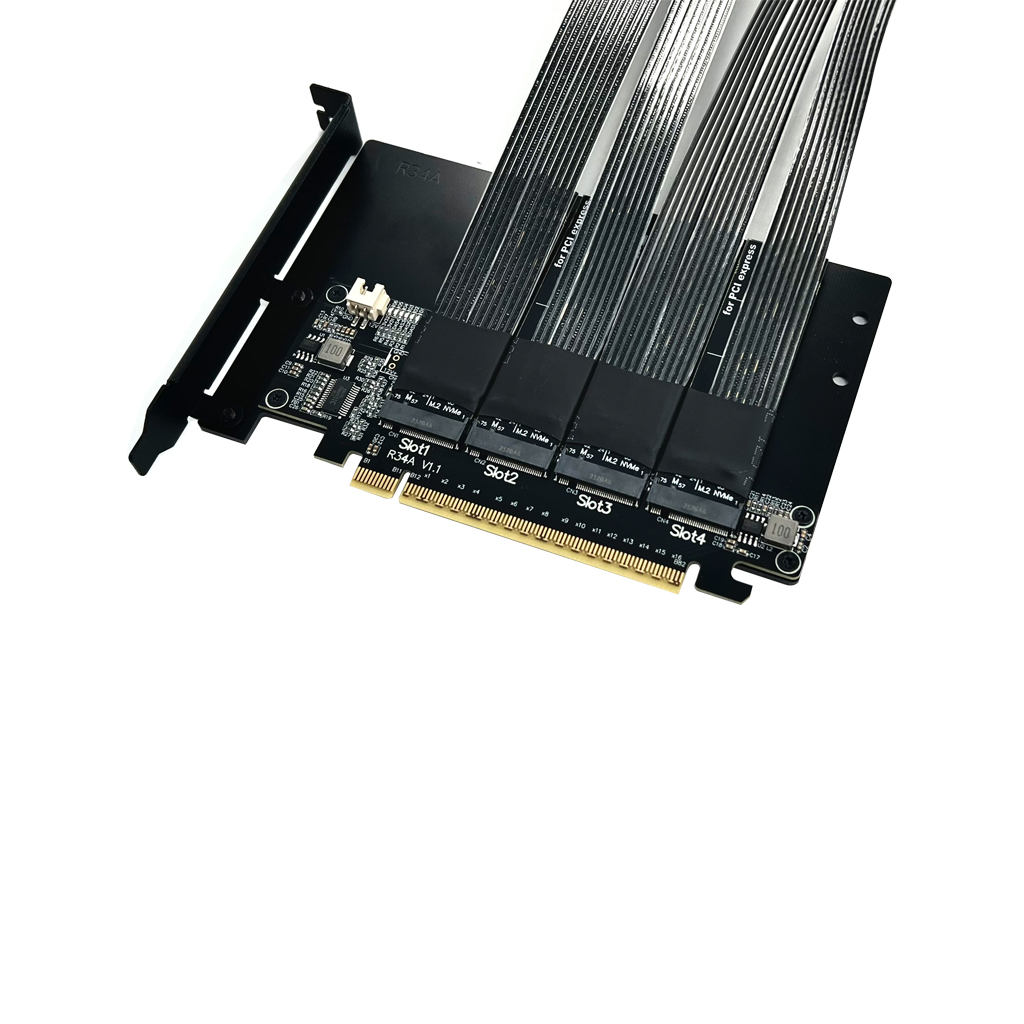

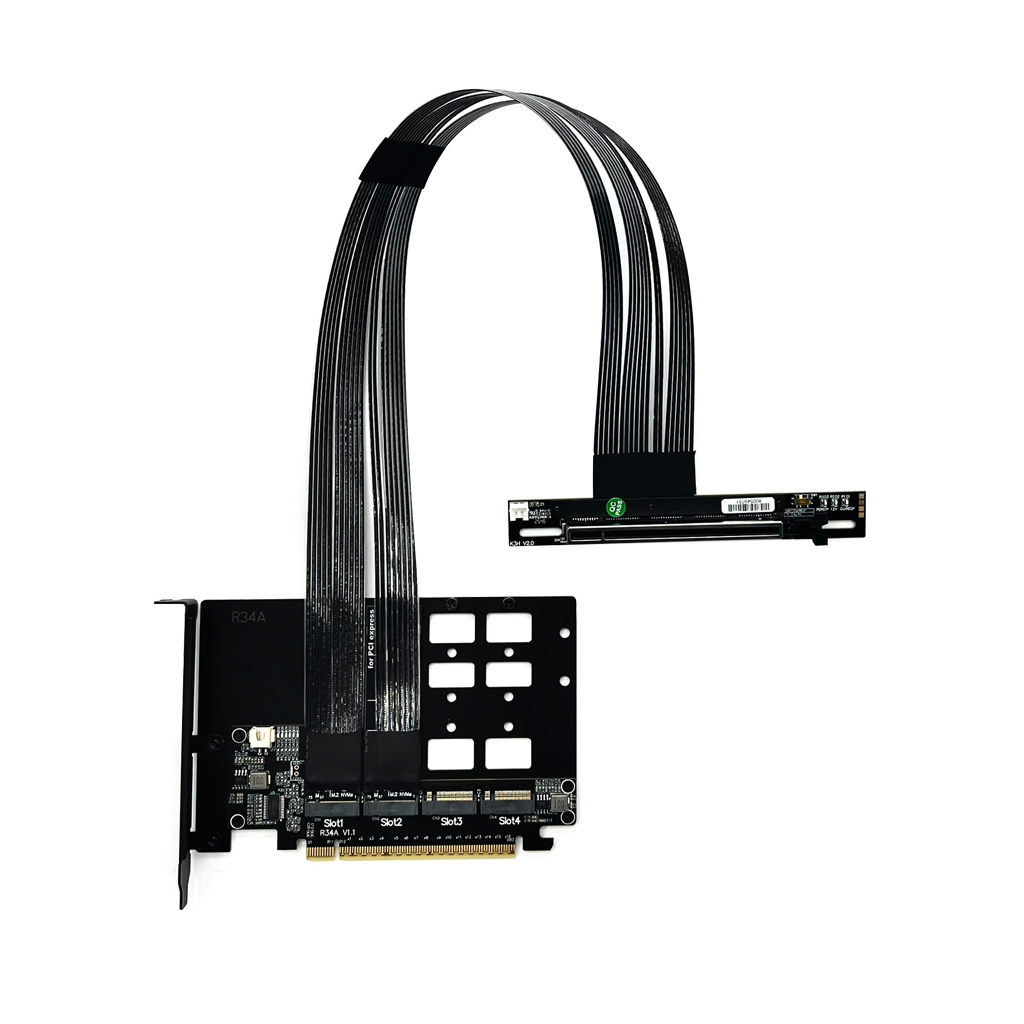

4. PCIe adapter cable supports splitting, motherboard bifurcation, PCIe supports one to two, flexible design, and wide applicability.
Summary of Technical Issues:
Do you support four to one dragging?
At the hardware level, it can support four to one, but at the software level, it cannot provide corresponding technical support.
How fast can the product reach?

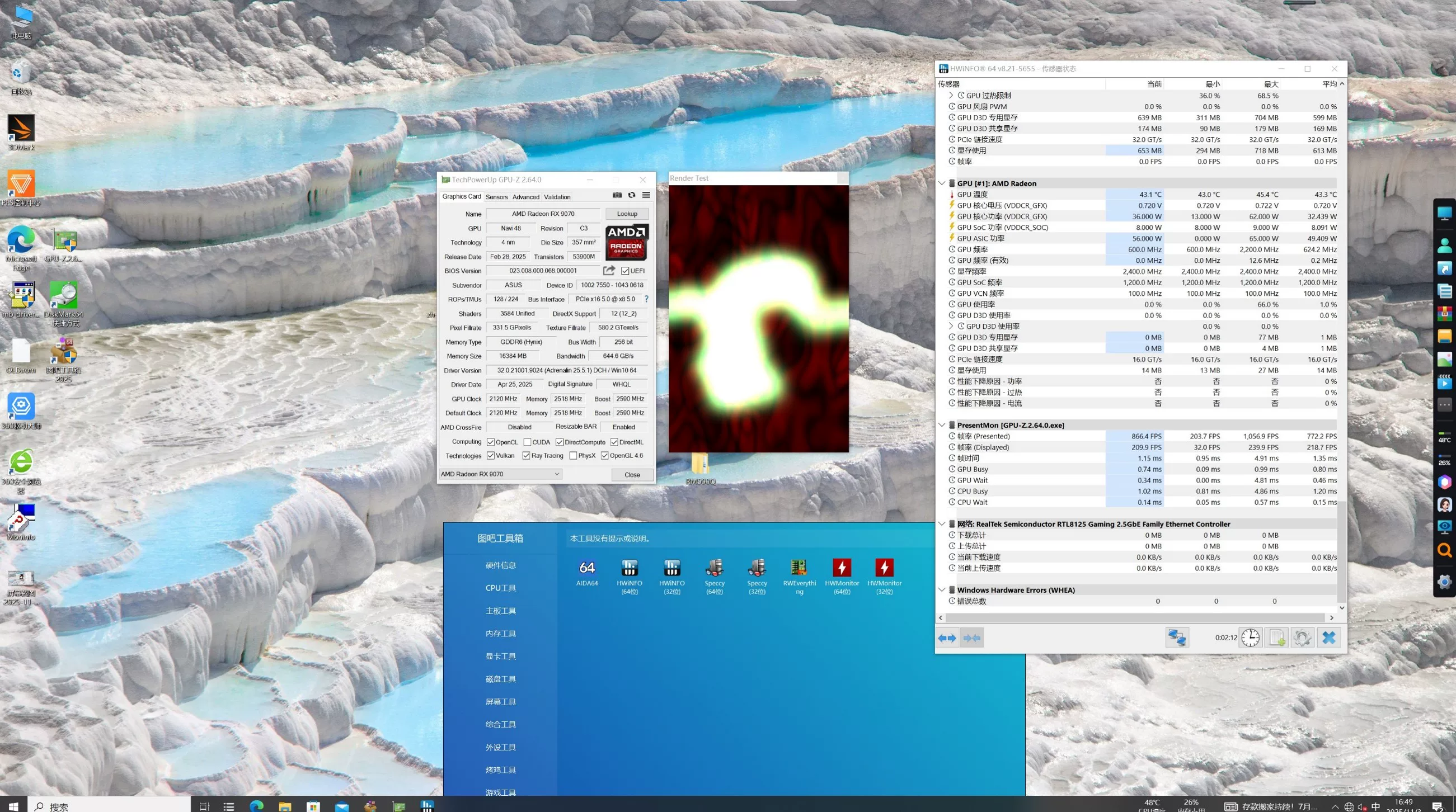

Tested PCIex16 slot one to two, two devices can be used simultaneously, up to PCIe5.0x8 full speed transmission.

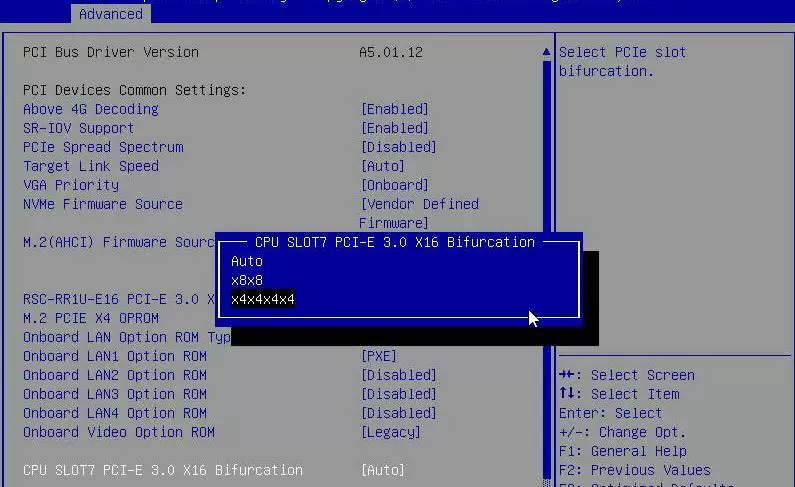

How to confirm if the motherboard supports Bifurcation PCIE splitting?
Please refer to the motherboard manual by yourself. The manual or BIOS options will explain the Bandwidth PCIE channel splitting or Bifurcation options. If they are not mentioned, they are not supported.

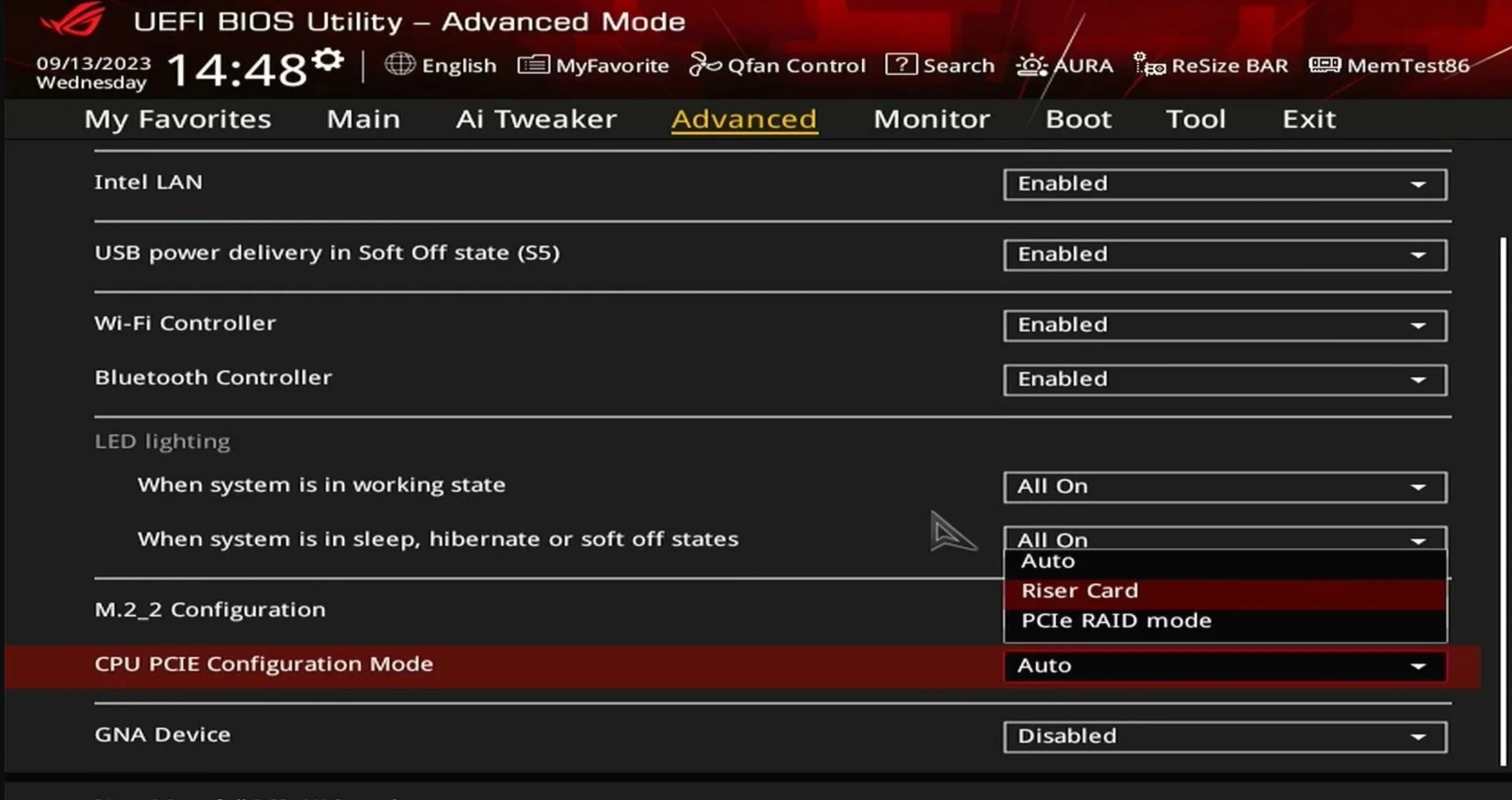

Please select the Riser Card option

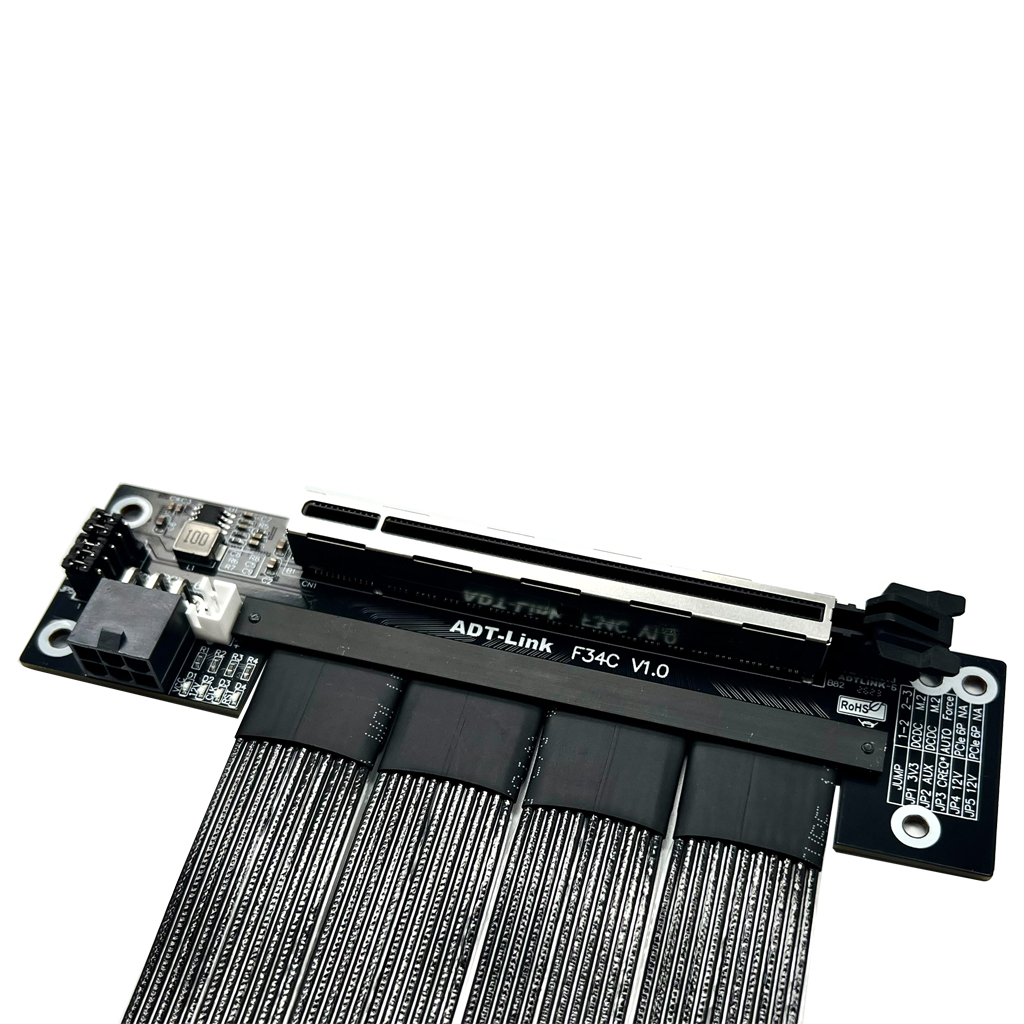

What are the graphics cards supported by ADT F34C? Which version of graphics card driver is installed? The display adapter in the device manager has a yellow exclamation mark! How to solve
Supports all PCIe graphics cards in the past three years. It is necessary to install the latest version of the Nvidia official website driver. If a yellow exclamation mark appears, please reinstall the driver and restart the computer.

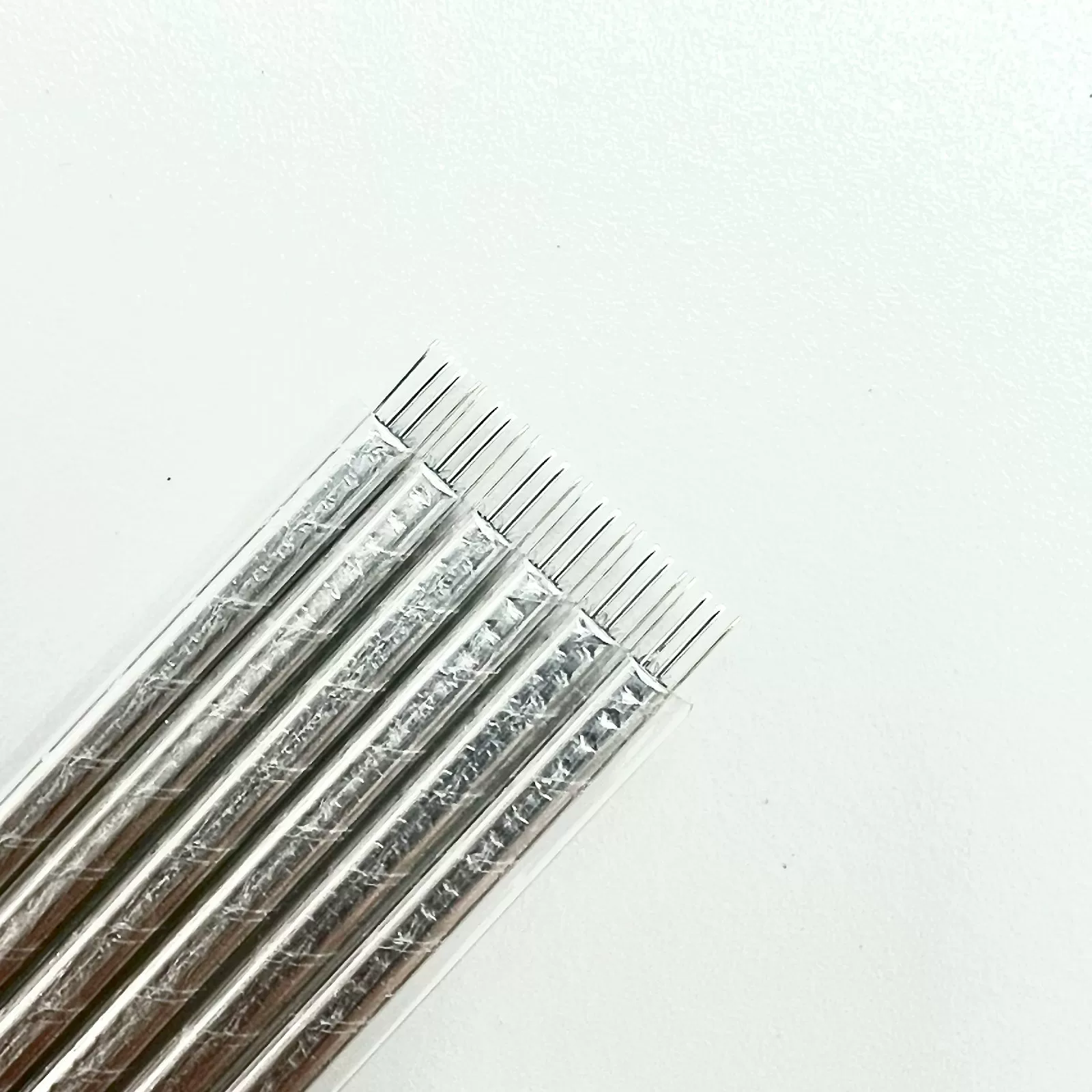

What is the quality of the wire? Is there any blocking?
There is a metal layer shielding, using advanced EMI shielding conductive polymers, new materials for EMI shielding, and flat cable design. This technology allows each cable to be completely covered by electromagnetic interference shielding of conductive polymers to prevent incident or outgoing emissions of electromagnetic frequencies, minimize interference and performance degradation, and reduce the weight of cables.

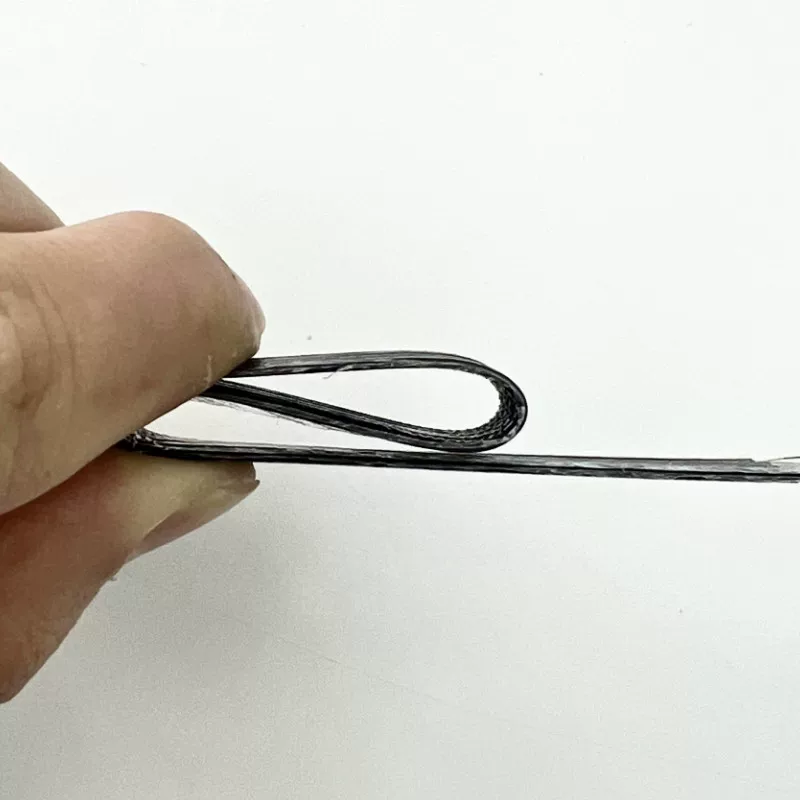

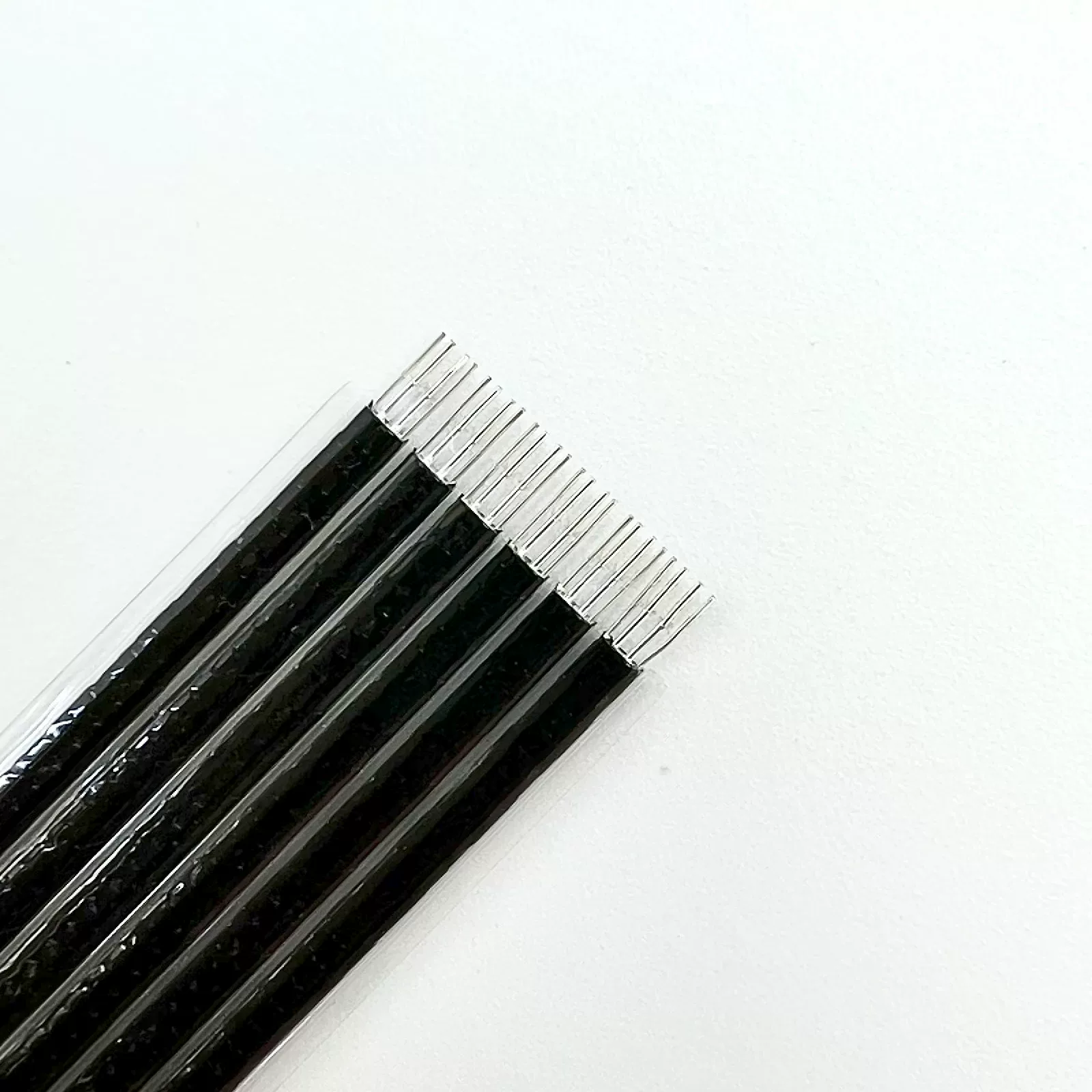

Is the wire soft? Can it be bent?

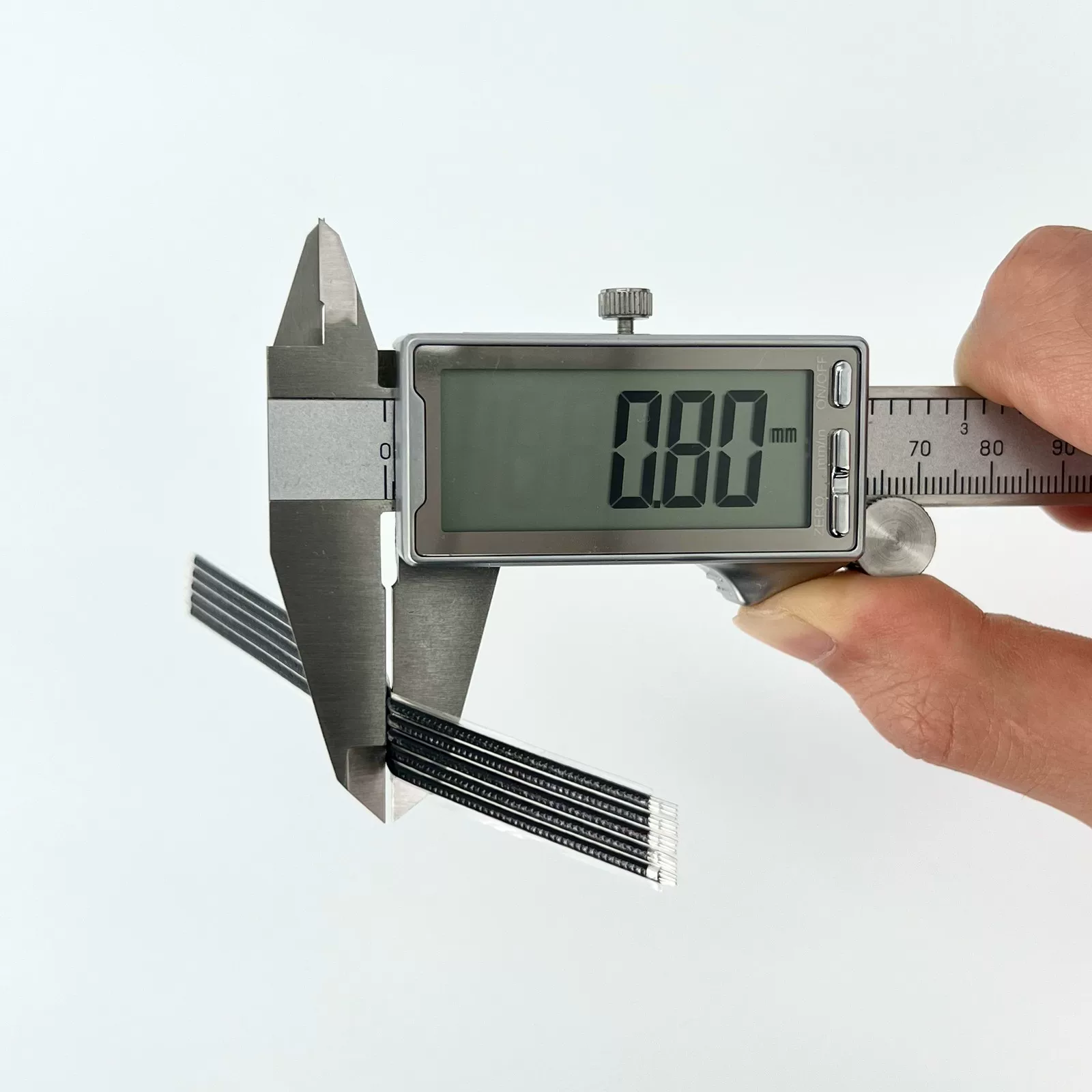

The wire is a black thin version of the fifth generation PCIe dedicated wire independently developed by ADT, with a thickness of 0.8mm. The wire is very soft and bendable, which does not affect its use, but cannot be pulled or pulled.
