🔘 PRODUCT OVERVIEW

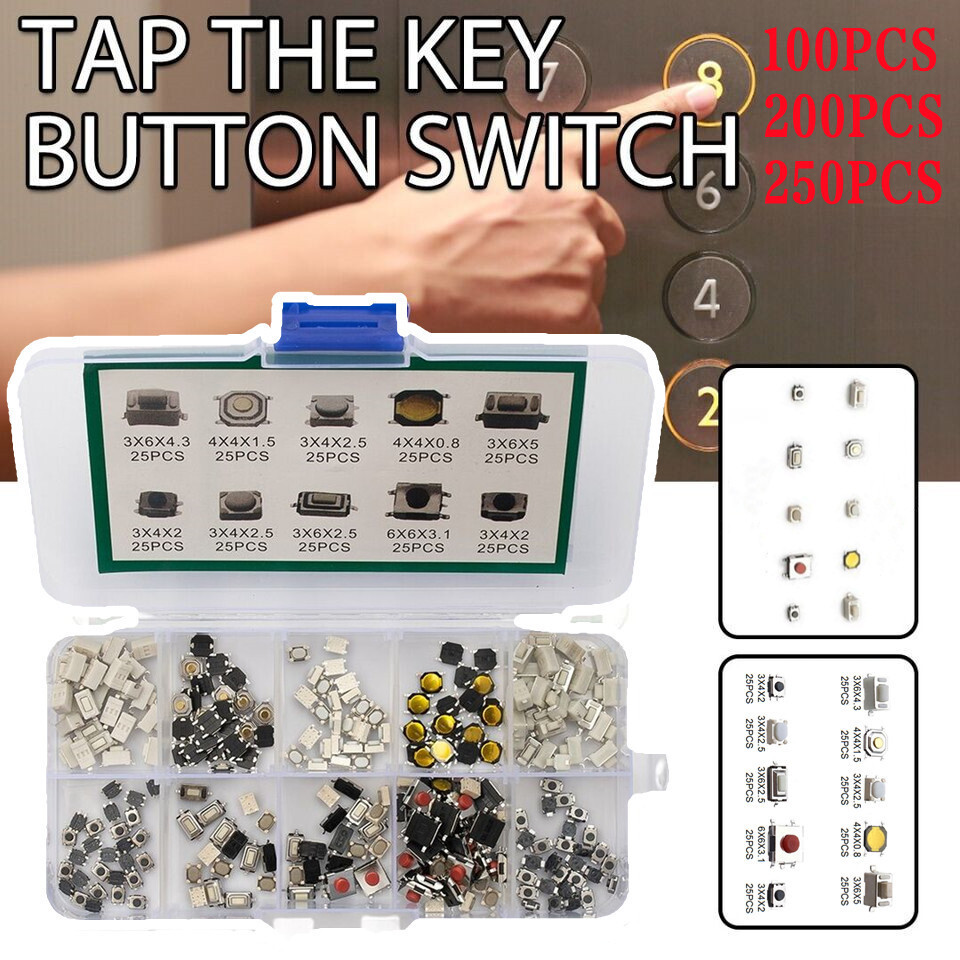

A versatile Micro Switch Assortment Kit containing a wide selection of tactile push button switches, perfectly organized in a compartmentalized plastic storage box. Ideal for repairs, prototyping, and DIY electronics projects.
✅ KIT SPECIFICATIONS
Material: Plastic Housing + Metal Contacts

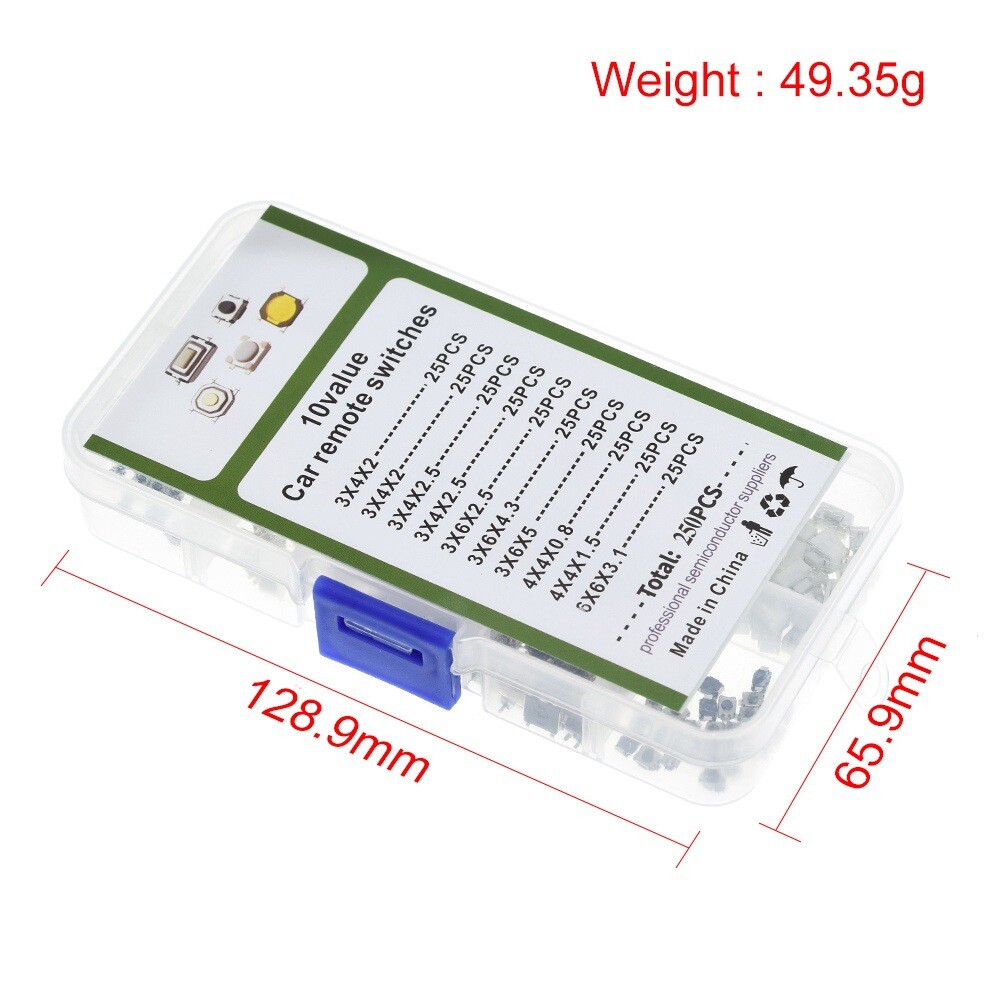

Storage Box Size: Approx. 130 × 66 × 22 mm

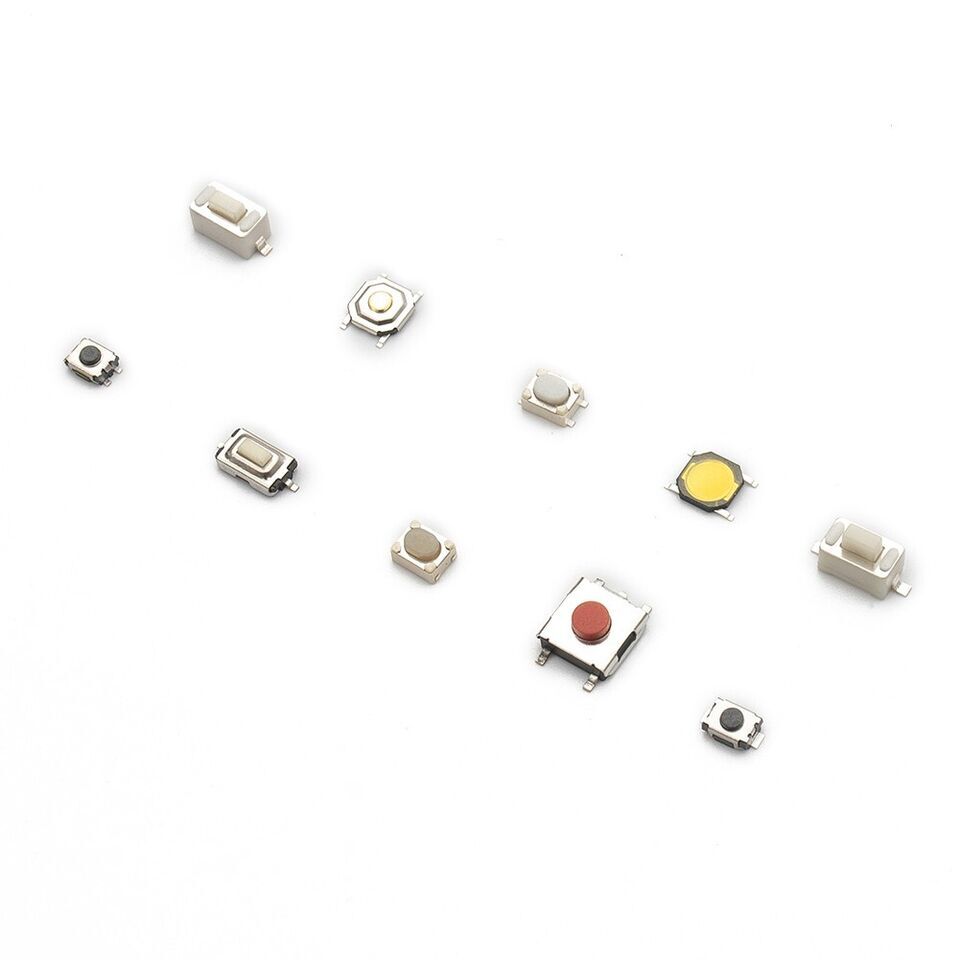

Switch Types: 10 different micro switch models
Package Options:
100‑piece kit: 10 pieces of each type (10 × 10)

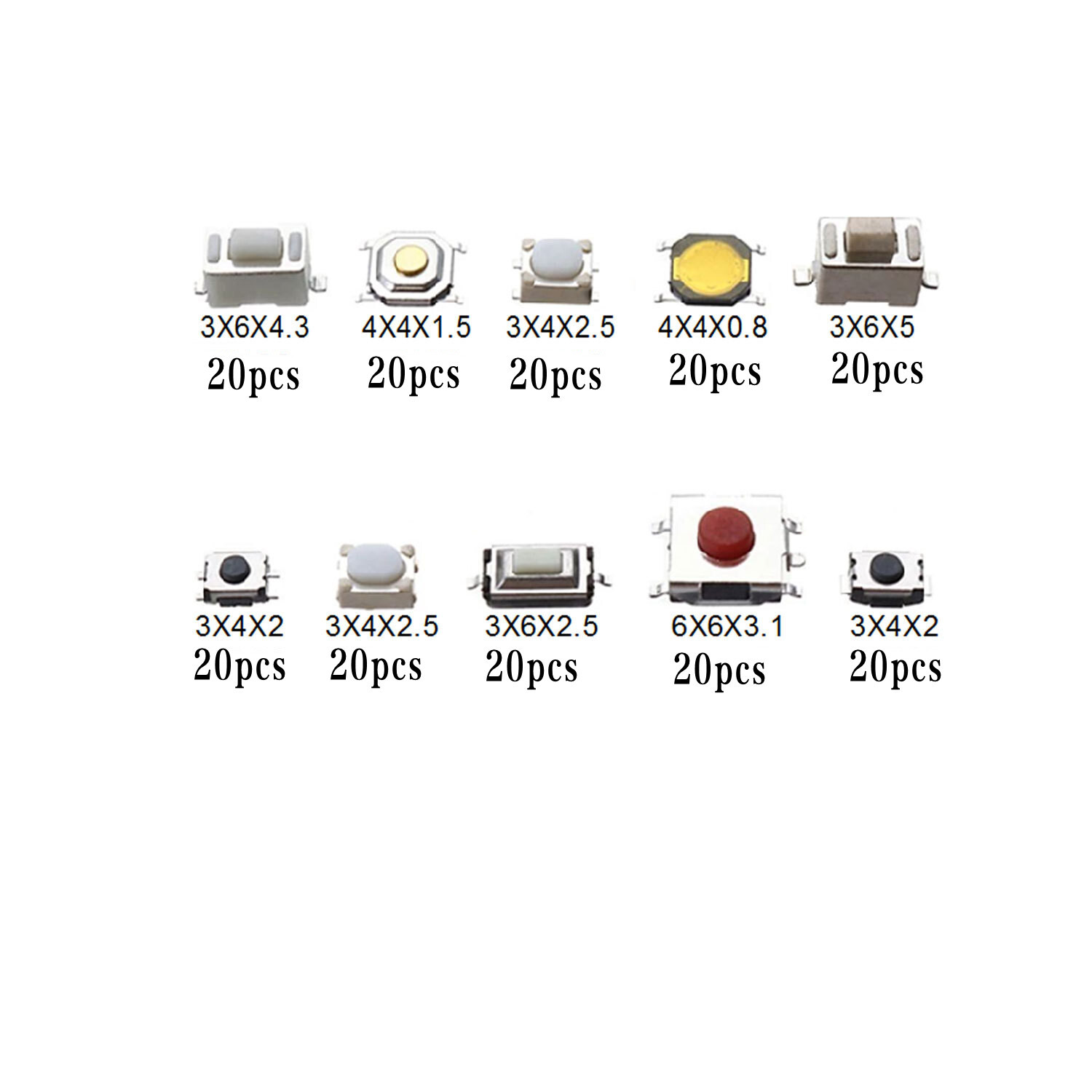

200‑piece kit: 20 pieces of each type (10 × 20)

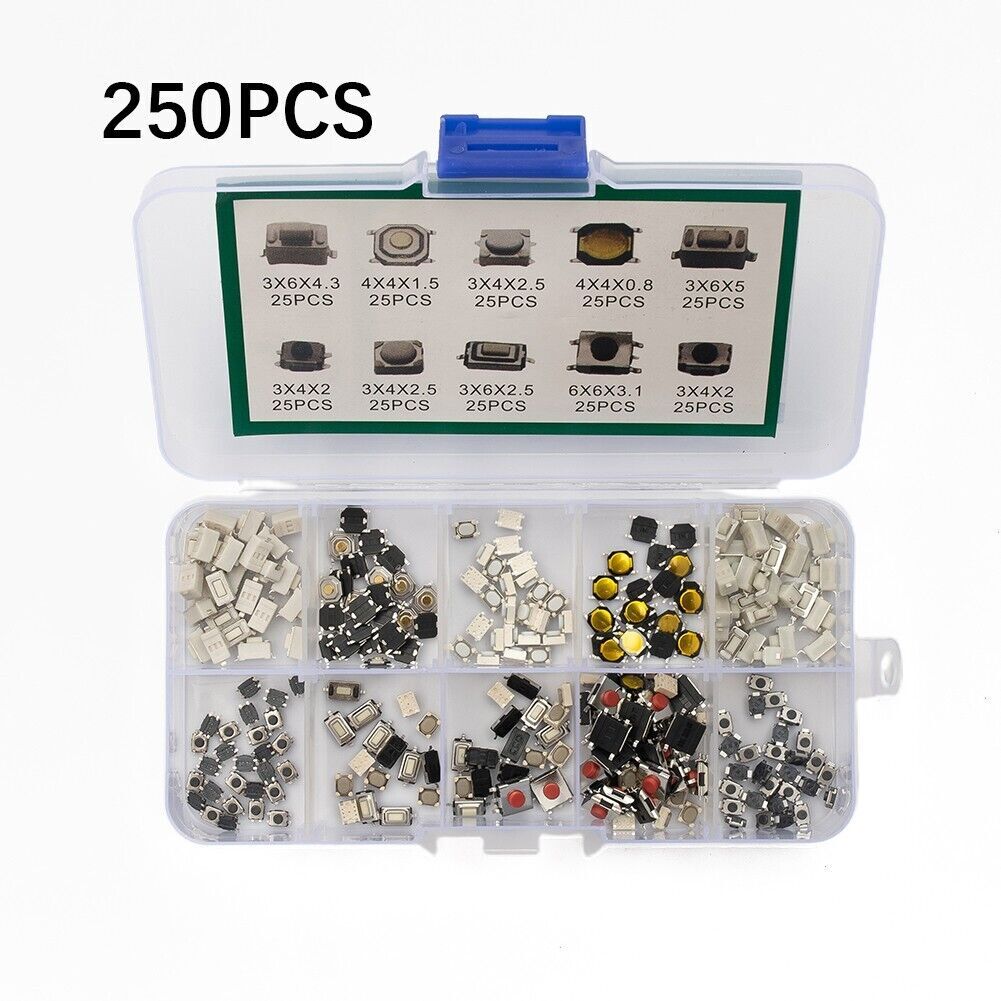

250‑piece kit: 25 pieces of each type (10 × 25)
Terminal Styles: 2‑pin & 4‑pin (through‑hole)
Actuator Styles: Different heights and colors (white common)

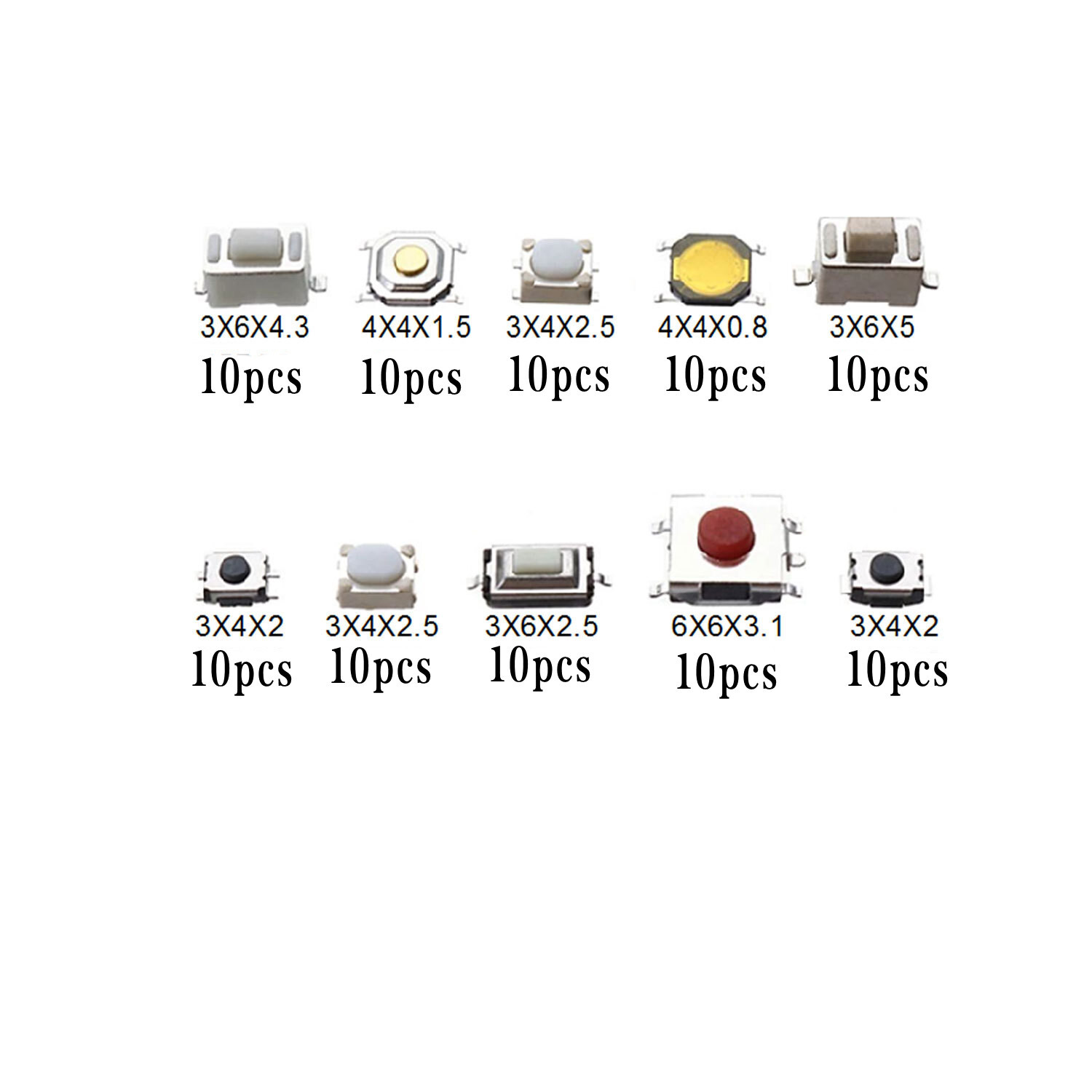

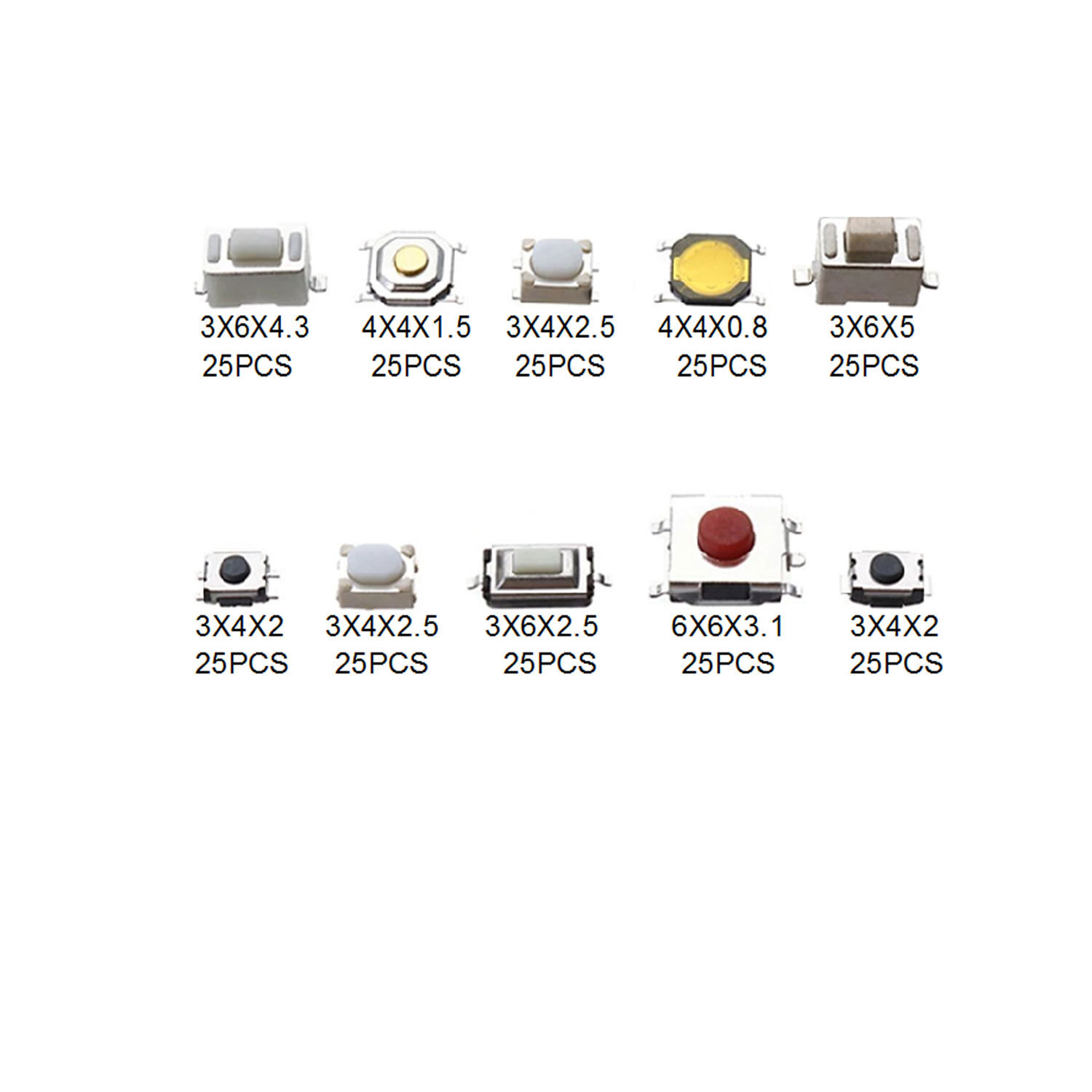

✅ KIT CONTENTS DETAILS (PER TYPE)
| Switch Dimensions (L×W×H mm) | Terminals | Actuator/Color | Common Use |
|---|---|---|---|
| 3×4×2.5 | 4‑pin | White, low‑profile | Keypads, remote controls |
| 3×4×2.5 | 4‑pin | White, low‑profile | Alternative footprint |
| 3×6×4.3 | 2‑pin | White, standard | General electronics |
| 3×6×5 | 2‑pin | White, taller | Panels with thicker overlays |
| 3×4×2 | 2‑pin | Low‑profile | Compact devices, PCBs |
| 3×4×2 | 4‑pin | Low‑profile | Secure mounting, key matrices |
| 4×4×1.5 | 4‑pin | Ultra‑low profile | Slim devices, touch interfaces |
| 4×4×0.8 | 4‑pin | Ultra‑low profile | Very tight spaces |
| 3×6×2.5 | 2‑pin | Low‑profile | Medium‑duty applications |
| 6×6×3.1 | 4‑pin | Standard | Larger panels, robust use |
✅ APPLICATIONS
Repair: Car key fobs, remote controls, electronic toys, audio equipment, printers, scales
DIY & Prototyping: Custom keyboards, control panels, hobby electronics, Arduino/Raspberry Pi projects
Replacement: Swap worn or damaged tactile switches in various consumer electronics
✅ KEY FEATURES

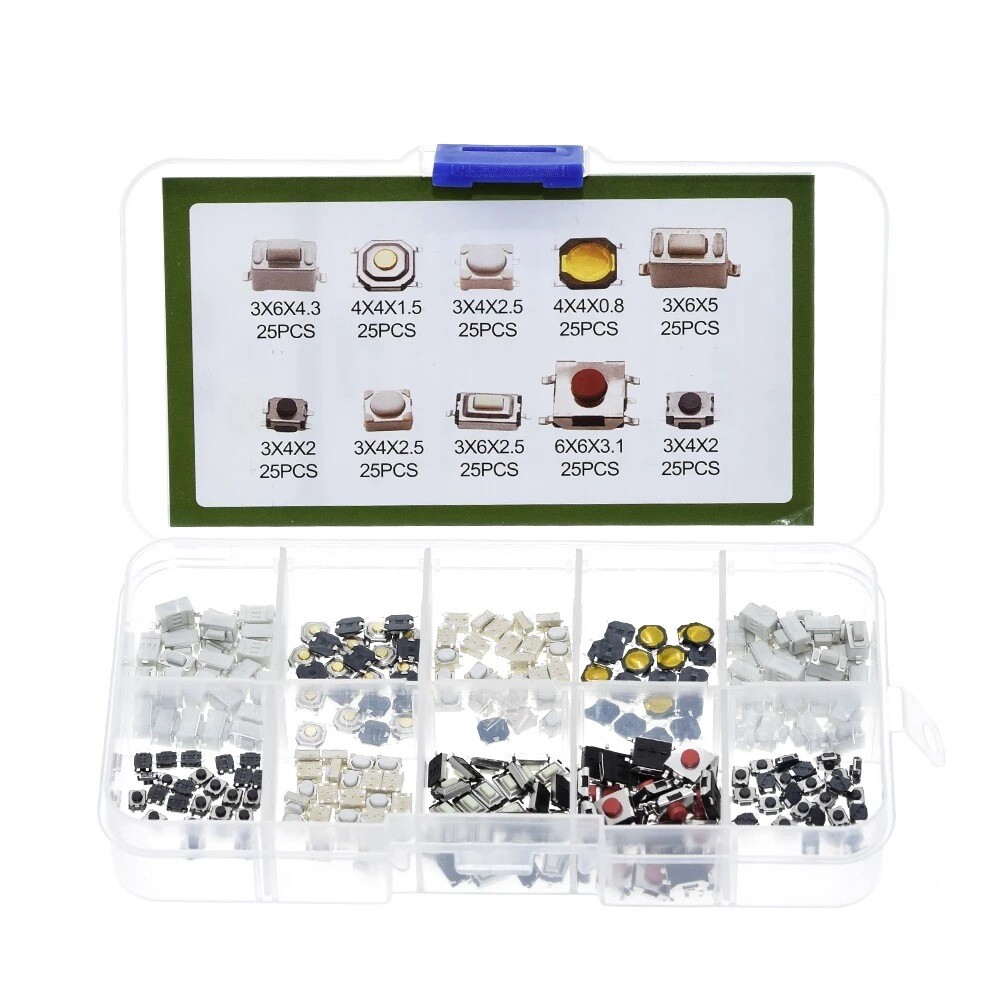

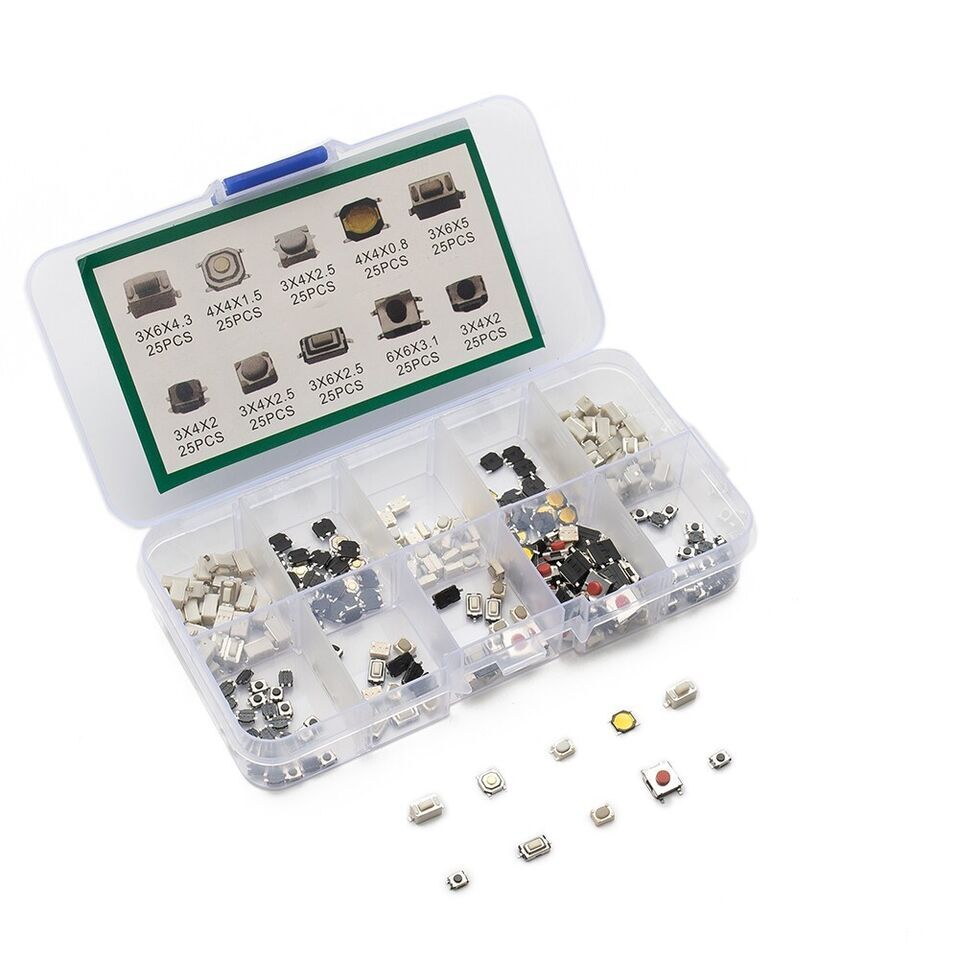

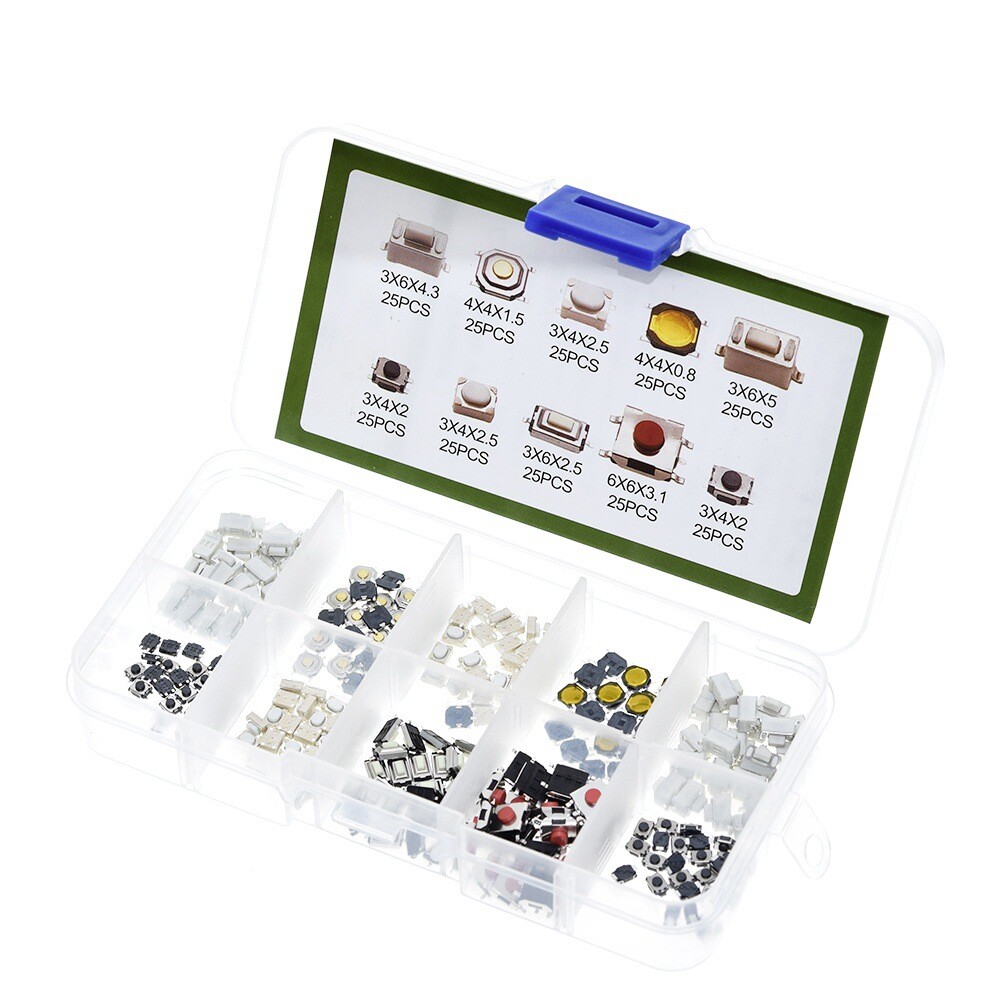

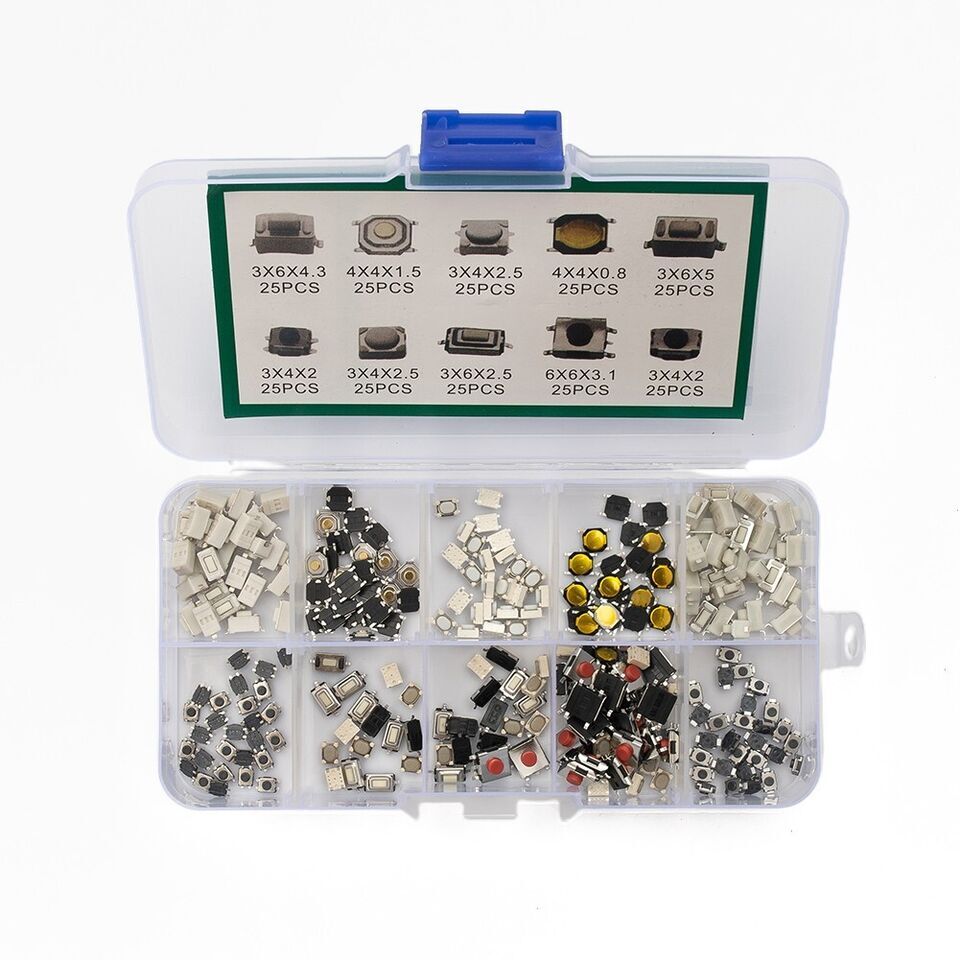

ORGANIZED STORAGE: Switches are sorted by type in a 10‑compartment transparent box – easy to find and access.
VARIETY OF SIZES: Covers common micro switch footprints and heights for flexible design and repair.
THROUGH‑HOLE DESIGN: Easy to solder onto PCBs for secure electrical connections.
COST‑EFFECTIVE: Bulk assortment saves time and money compared to buying individual switches.
⚠️ NOTES
Switches are momentary (normally open) unless otherwise specified.
Check dimensions and pin configuration before using to ensure compatibility with your PCB or device.
Suitable for low‑voltage, low‑current applications typical in consumer electronics.
📦 PACKAGE INCLUDES

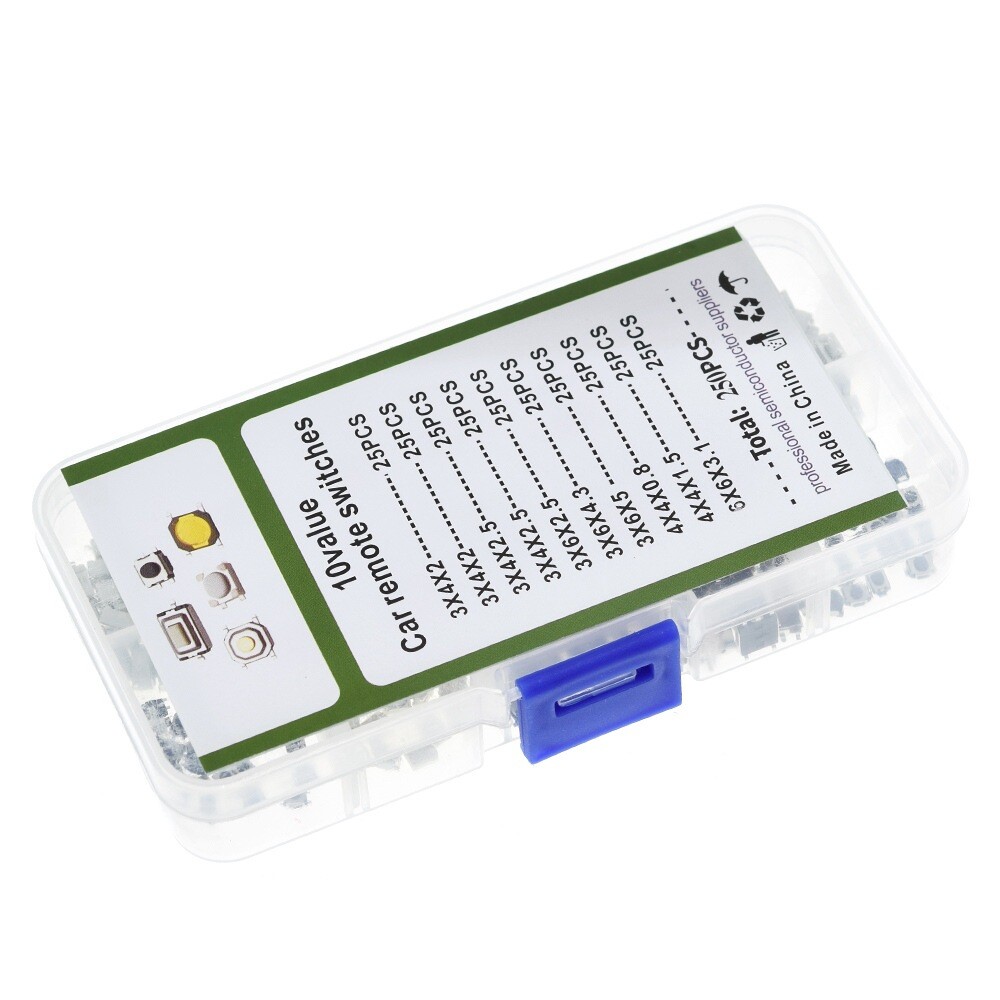

1 × Plastic compartment storage box
100 / 200 / 250 × Micro switches (depending on kit option selected)
Switches pre‑sorted into 10 separate sections by type
