Second, the main technical parameters.
1, the main material: stainless steel
2、Motor power:48W 220V 50Hz
3, coating base size: 570mmX360mm
4、Effective coating size:430mmX 300mm(LxW)
5, coating thickness specification: 12, 15, 20, 25, 30, 40, 50, 60, 80, 100, 120
150, 200μm (according to the film thickness of the special wire rod to determine the wire rod for optional accessories)
6, coating rod specifications: 12mm diameter and 400mm long (or special customized)
7, coating rate: 0 ~ 2cm / s infinitely variable speed
8, external dimensions: 570X370X140mm (LxWxH)
9、Weight:about 21Kg

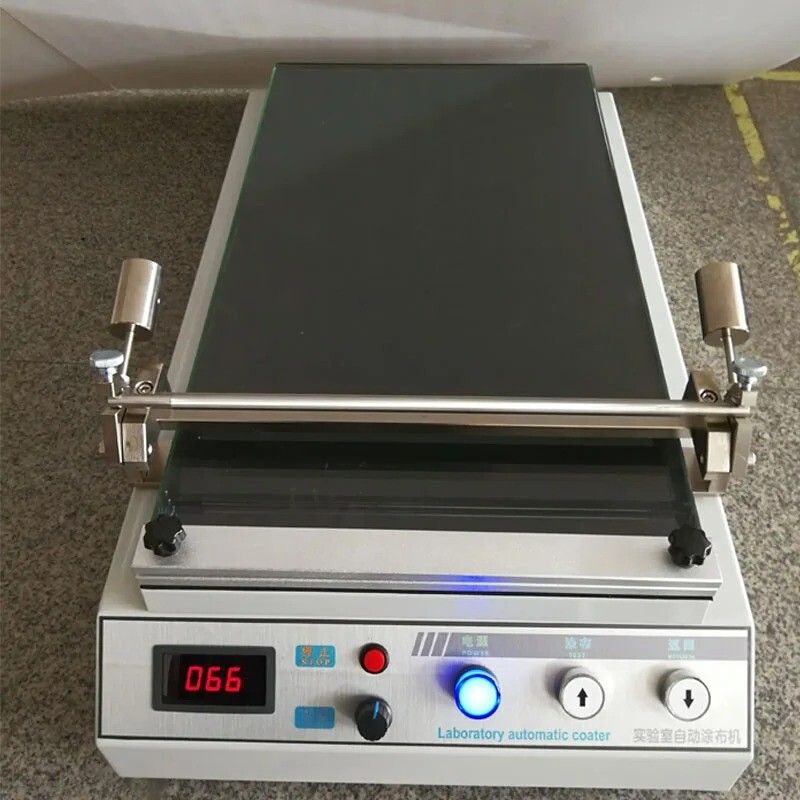

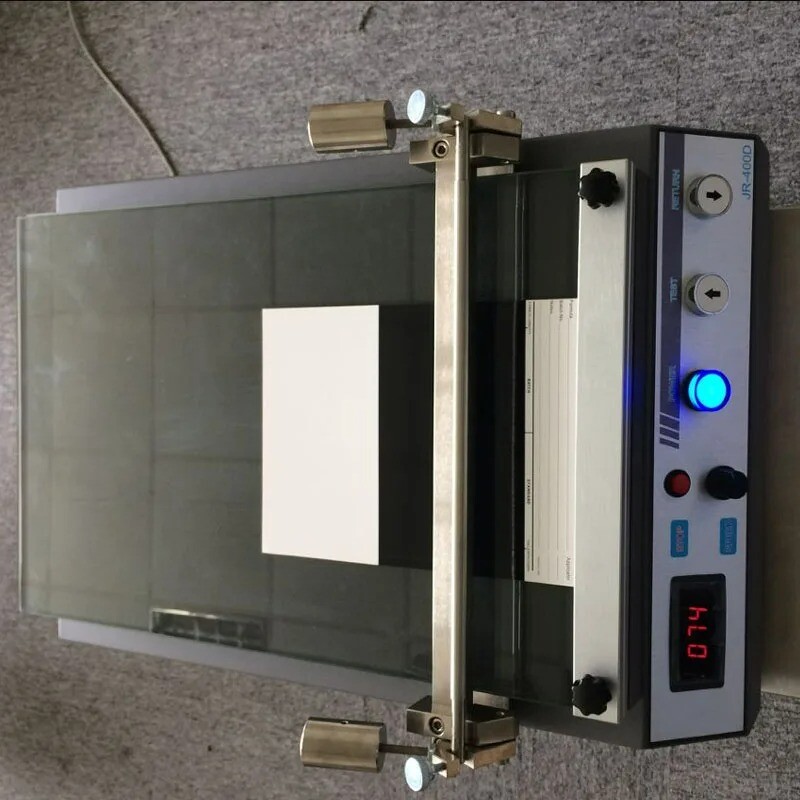

This machine is desktop, no special installation is required, when used flat on the worktable or office desk that is
It must be placed smoothly to avoid vibration during operation, which may affect the coating quality.
V. Use and Maintenance.
1、Please insert the plug completely into the jack, turn on the power, turn on the power switch.
2, the substrate to be coated (such as: black and white paper) laid flat on the coating base, clamped with clamps.
The motion to use flat coating substrate, and at the bottom with transparent tape fixed, so as to avoid to be coated substrate
Coating process sliding, resulting in coating failure.
3、Choose the appropriate coating thickness of the wire rod, snap into the wire rod snap, press down the pressure balance lever.
4、Adjust the speed knob to select the appropriate coating speed.
5, directly in front of the wire rod applicator pour the appropriate amount of paint to be coated.
6, turn the switch to “TEST”, start automatic coating, can be coated into the required thickness of wet film.
7、After the coating stops, lift up the pressure balance bar and turn the switch to “RETURN”, the coater will return automatically.
The coater will return automatically.
8、Shut down the coating machine, take down the sample plate for the next operation.
