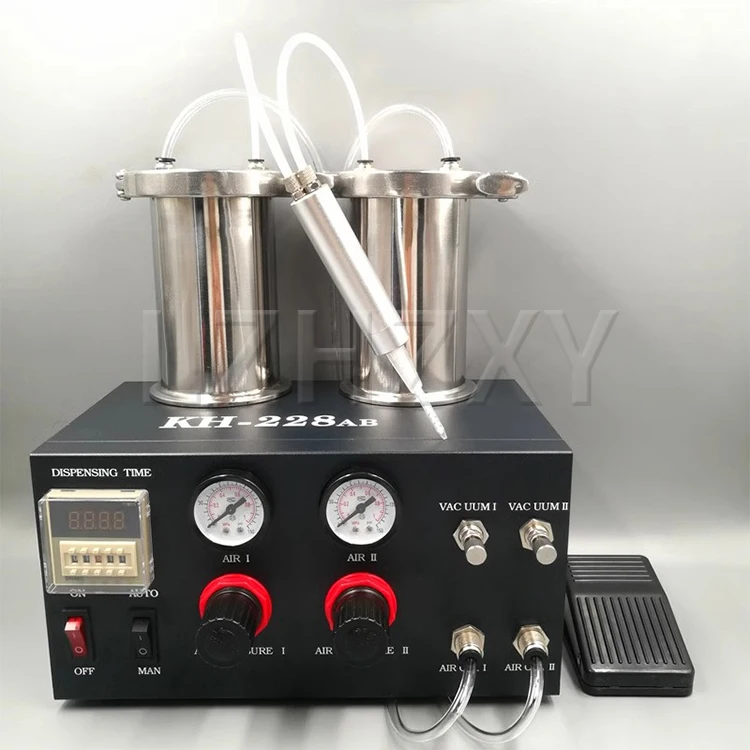

Epoxy AB Glue Automatic Double Liquid Dispenser CNC Glue Applicator Glue Machine

Model: KH-228AB

Specification: 1. External dimension: 240mm×160mm×140mm
      2.Weight: 4kg
      3. Power supply: AC220V±10%/50HZ
      4.Power consumption: ≤8W
      5. Total air pressure: 0.8Mpa (Max)
      6. Gluing pressure adjustment range: 0-0.8Mpa
      7. Adjustment range of glue time: 0-99.99S (multiplier can be set)
      8. Function mode: manual/semi-automatic (quantitative spitting)
      9. Suction function: adjustable to negative 600mmHg (Max)
      10. Repeatability: ± 0.05%
      11. Maximum working frequency: 600 times / minute
      12.Minimum spit volume: 0.01ml
      13. Control mode: foot switch

      14.Ratio range:1:1-1:2, applicable to AB glue, epoxy resin, etc. ....
