Effective Stroke L(mm) | 100~1000 |
| Overall Length (mm) | L+143 |
| Overall Height (mm) | 80 |
NOTE:This product is upgraded to version 2.0,the backplane is provided with fixed mounting
holes for secure installation,the holes can be customized,please contact us if you need.

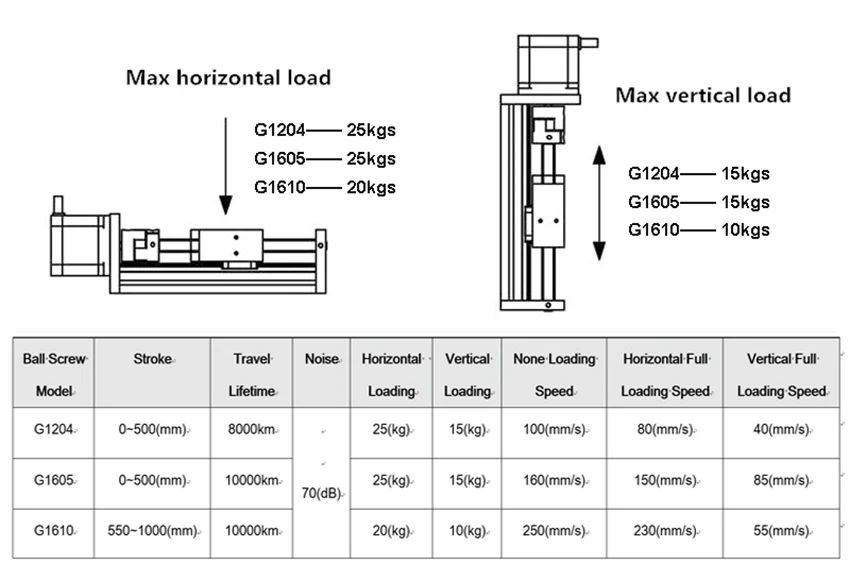

Model No. | Dia.(mm) | Lead(mm) | Accuracy Class |
G1610 (100~500mm stoke) | 16 | 10 | C7 |
G1610(600~1000mm stroke) | 16 | 10 | C7 |
| Model No | Step angle | Motor flange size | Motor length | Holding torque | Current | Resistance | Inductance | Rotor Inertia | Lead wire |
| (°) | (mm) | L (mm) | ( N.m) | (A) | ( Ω) | ( mH) | (g.cm⊃2;) | (No.) | |
| FM5756SFD04 | 1.8 | 57 | 56 | 0.93 | 2.0 | 3.0±20% | 3.19 | 200 | 4 |
Chengdu Fuyu Technology Co., Ltd.
E-mail：liting@fuyuautomation.com
Our main products:
- Linear motion guide
- XYZ table
- Linear stepper motor (lead screw and ball screw)
- Stepper motor with gearbox
- Stepper motor driver
- High-precision planetary gearbox for stepper motor and servo motor
