ROCKET-RC GECKO MINI24 15A ESC & 1212 3500KV Motor Brushless Sensorless Motor ESC Combo Waterproof 6.0V/7.4V/8.4V BEC For 1/16 1/18 1/24 RC Car

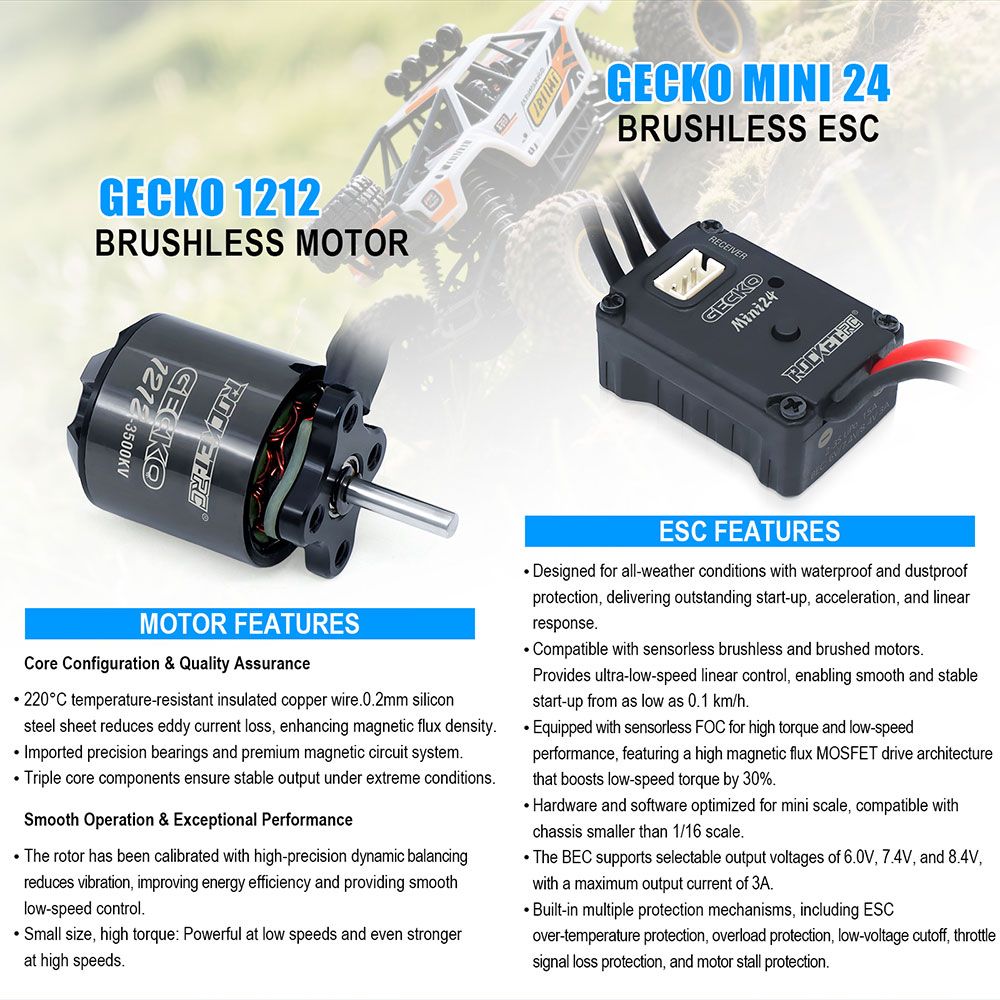

ESC Features:

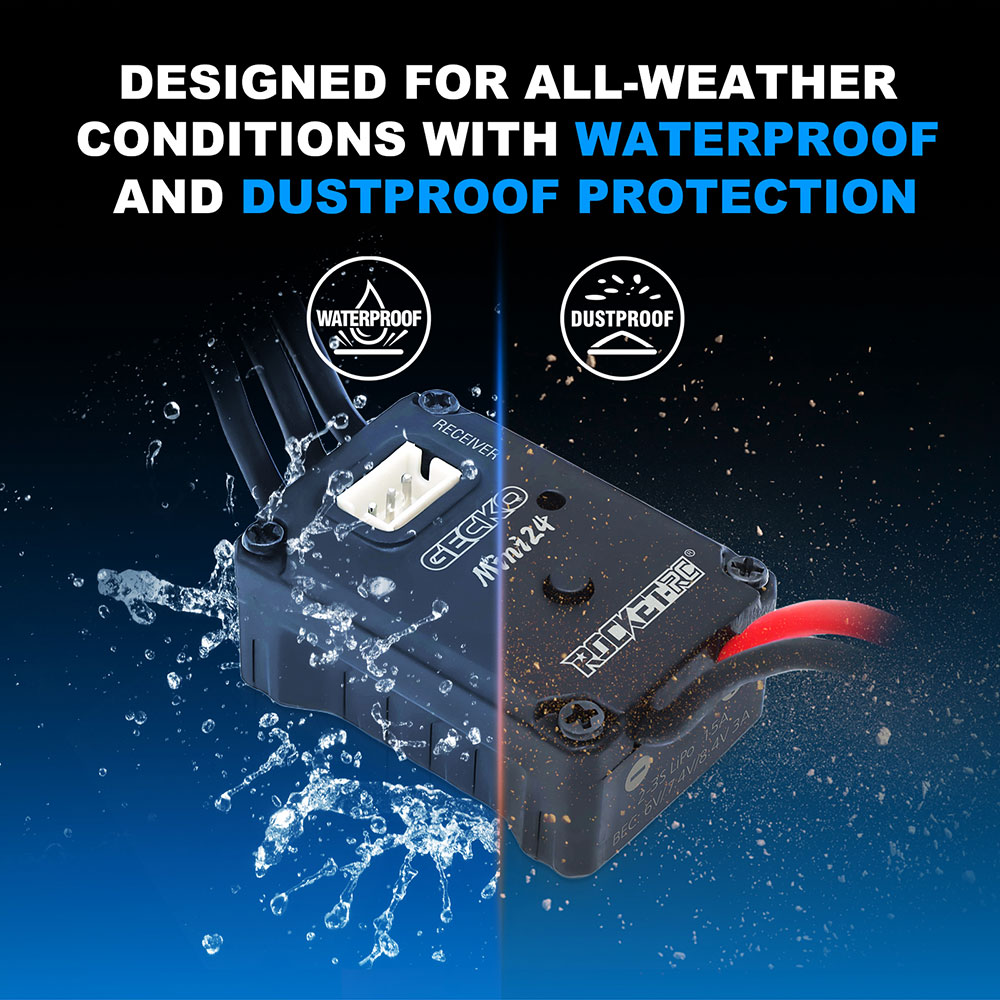

1. Designed for all wearher conditions with waterpoof and dusrproof protection.
2. GECKO Mini24 supports both brushedand brushless motors.
3. The BEC supports selectable output voltages of 6.0V, 7.4V, and 8.4V,with a maximum output current of 3A.
4. Equipped with sensorless FOC for high torque and low-speedperformance.
5. Optimized for small-scale crawlers like 1/24 1/18, 1/16, offering precise low-speed control and strong torque output.
Motor Features:

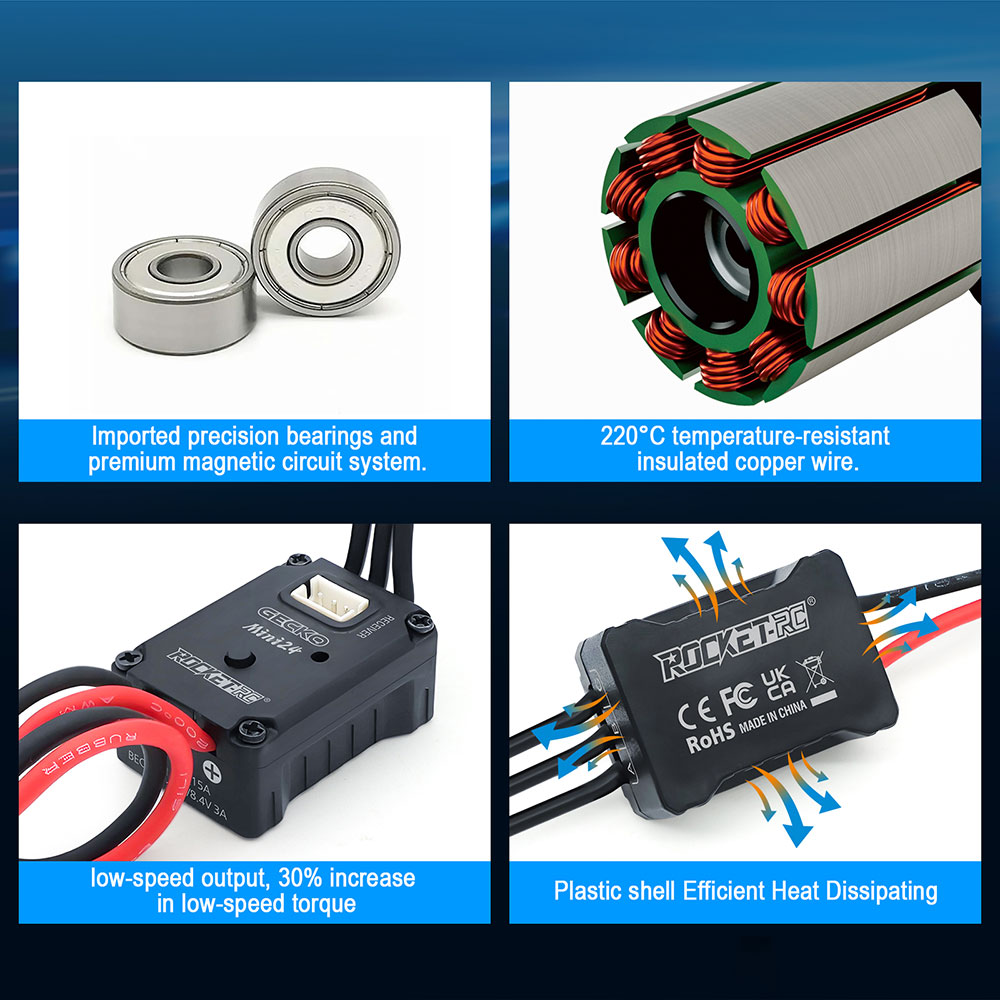

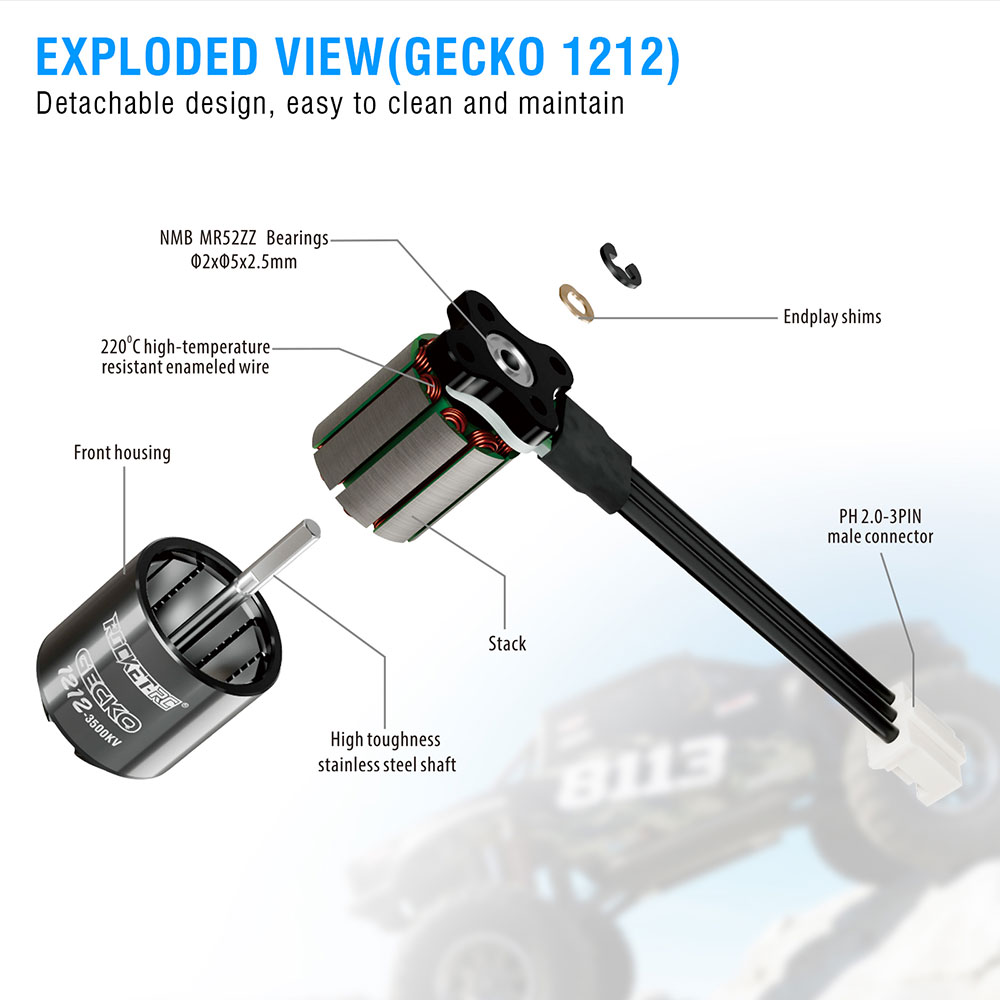

1. Detachable design, easy to clean and maintain.
2. 220°C temperature-resistant insulated copper wire.0.2mm siliconsteel sheet reduces eddy current loss, enhancing magnetic flux density.
3. Imported precision bearings and premium magnetic circuit system.
4.Triple core components ensure stable output under extreme conditions.
5. For 1/24 1/18, 1/16 small-scale crawlers car.
Description:

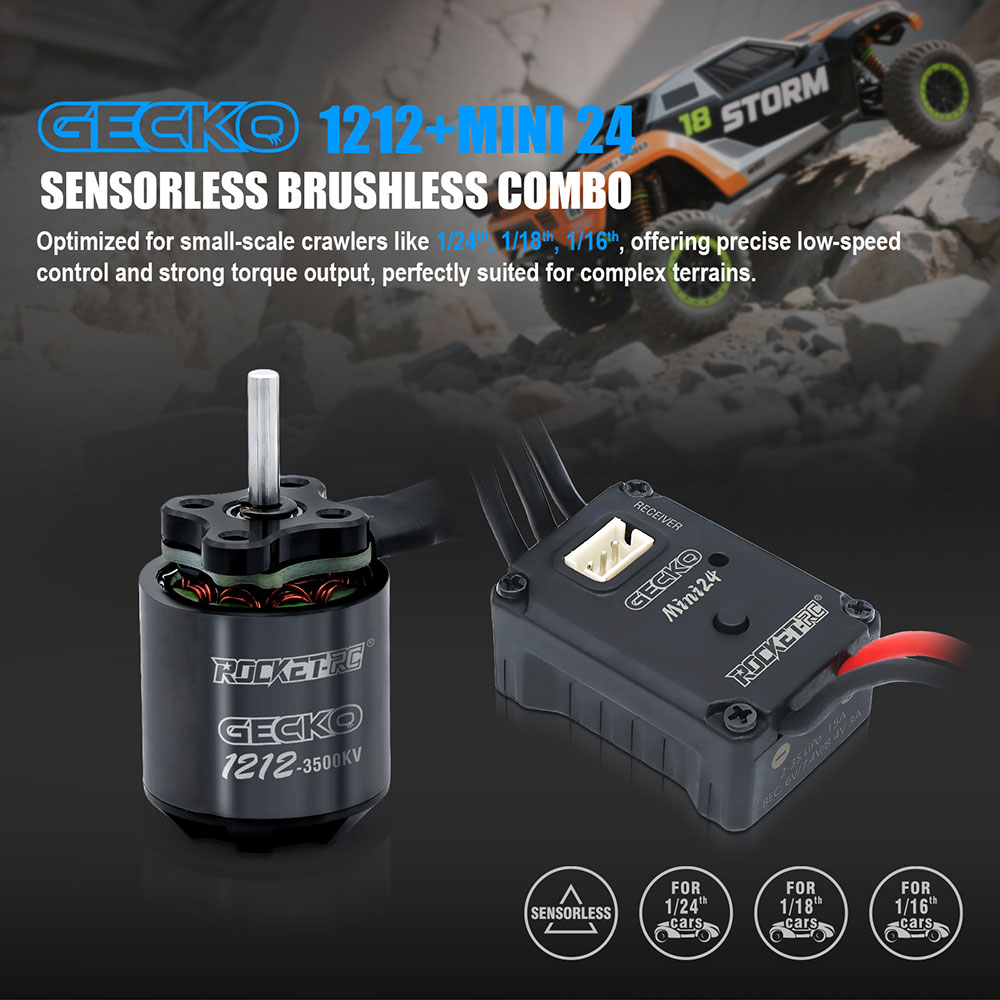

GECKO MINI24 ESC & 1212 Motor Brushless Sensorless Combo,Optimized for small-scale crawlers like 1/24 1/18, 1/16, offering precise low-speed control and strong torque output, perfectly suited for complex terrains.

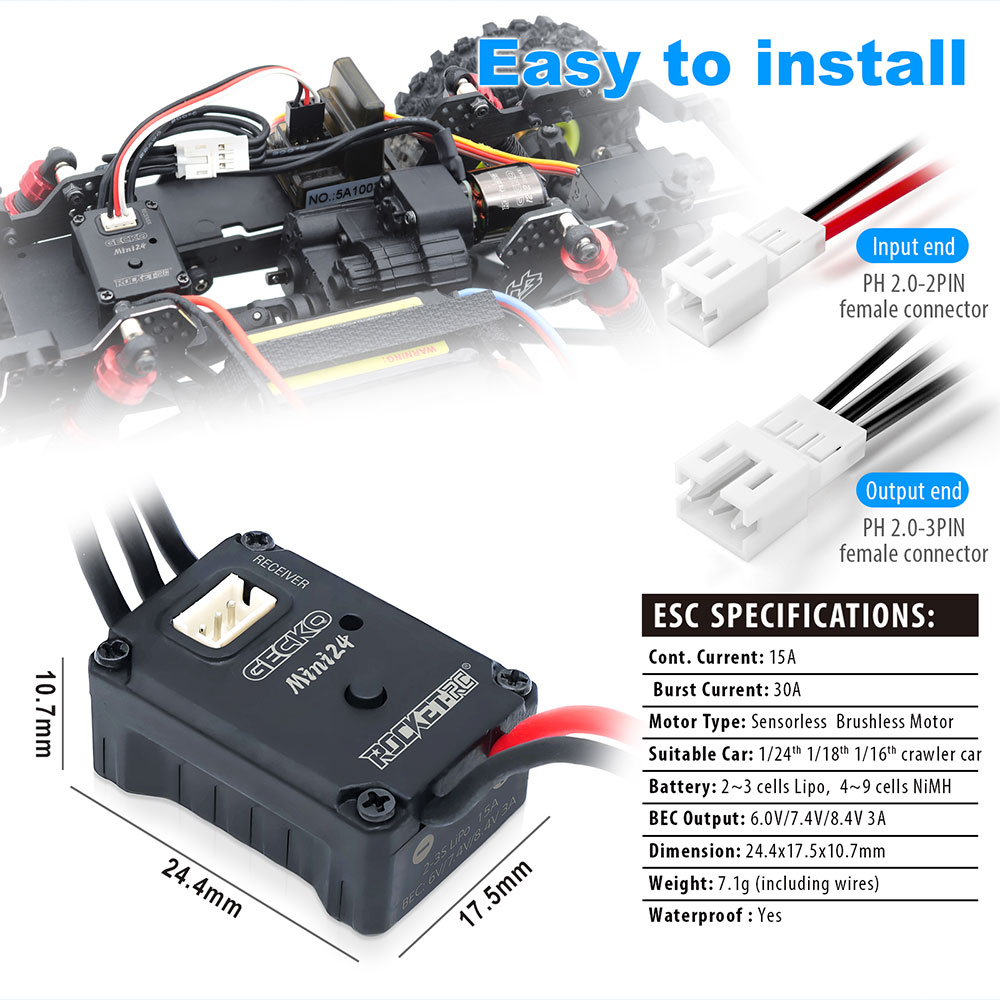

ESC Specifications:
Cont.current:15A
Burst Current: 30A
Motor Type: Sensorless Brushless Motor
Suitable (ar: 1/24 1/18 1/16 crawler car
Battery:2~3 cells Lipo, 4~9 cells NiMH
BEC Output:6.0V/7.4V/8.4V 3A
Dimension:24.4x17.5x10.7mm
Weight: 7.1g (including wires)
Waterproof :Yes

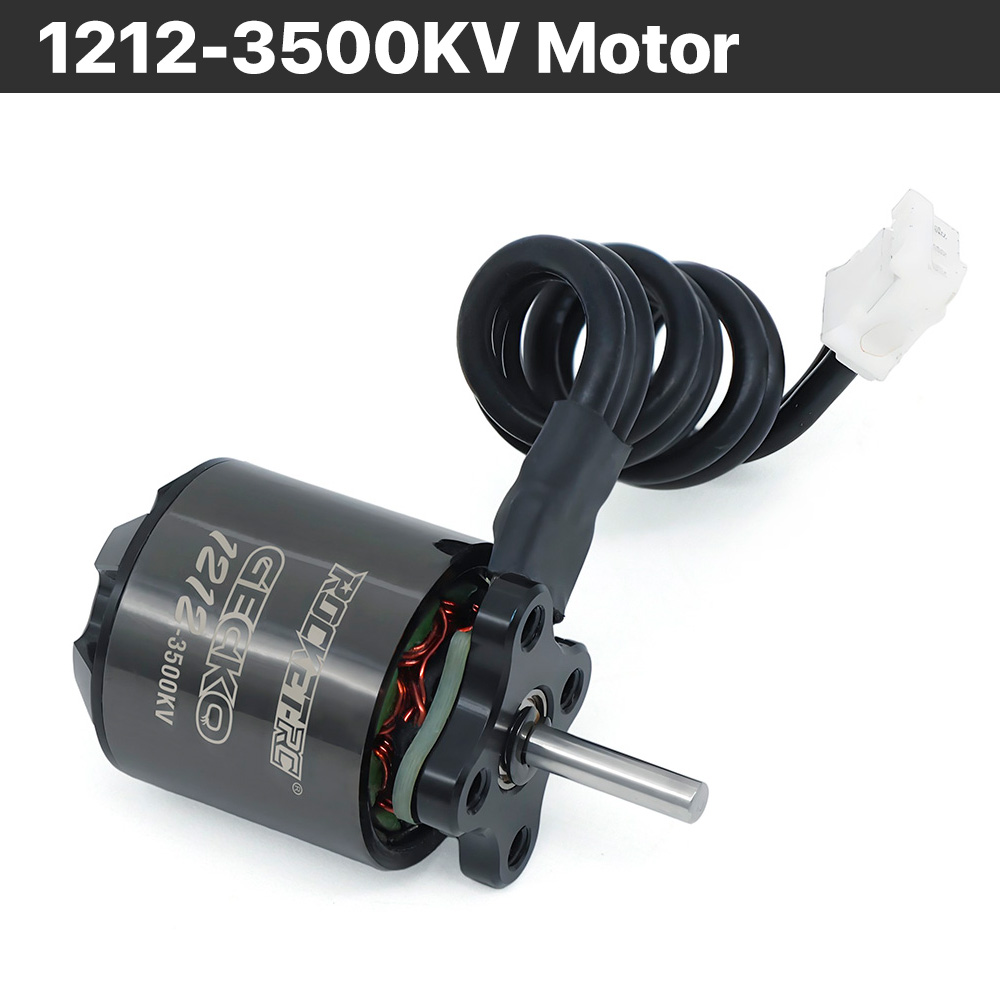

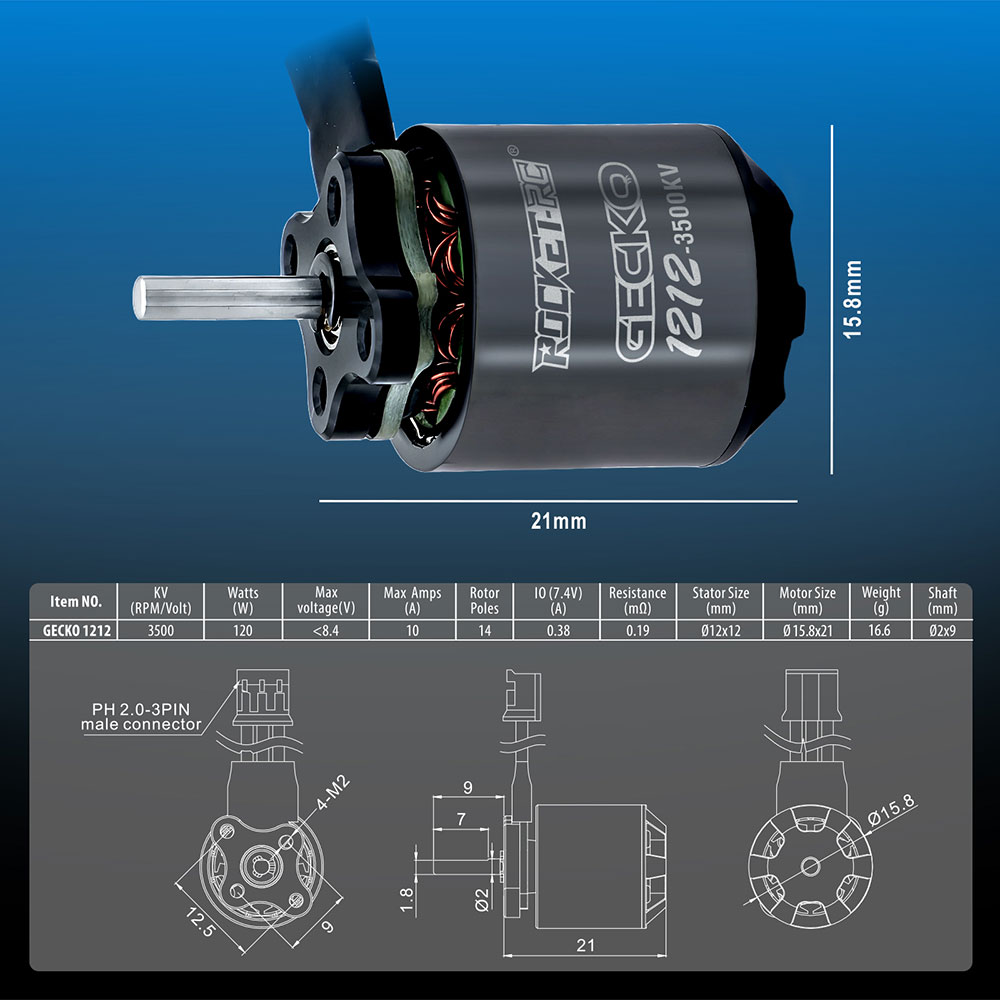

1212 Motor Specifications:
KV(RPM/Volt): 3500KV
Watts(w): 120
Max voltage(V): <8.4
Max Amps(A):10
Rotor Poles: 14
Fits For 1/24 1/18, 1/16 small-scale crawlers car.

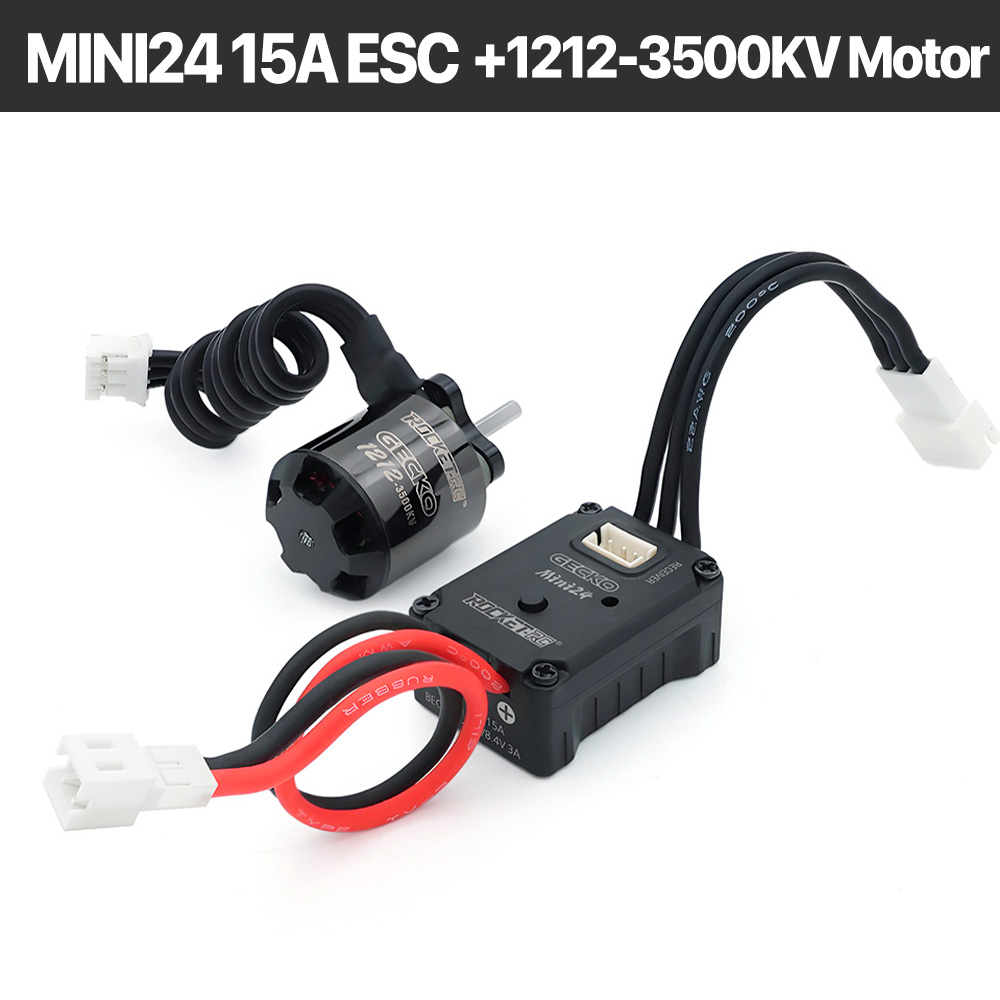

Package contents:
1* MINI24 ESC
1* 1212-3500KV Motor
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm
deviation.Thanks!
