Brake disc Brembo T-Drive 208A98553 with approval, floating front 2 pieces – Bild 1
Brake disc Brembo T-Drive 208A98553 with approval, floating front 2 pieces – Bild 2
Brembo

Brake disc Brembo T-Drive 208A98553 with approval, floating front 2 pieces

  • Art. ID.: 1164204
  • Art. No.: BRE-208A98553
  • Manufacturer: Brembo

General

  • Material
    Stainless steel, Aluminium
  • Placement on Vehicle
    Front
  • Included
    1x 208A98553
  • Approval
    with approval
  • Type
    Brake disc
  • Features
    Floating bearing

Brakes

  • Mounting points
    6
  • Thickness (mm)
    5.5
  • Ø inner diameter (mm)
    64
  • Ø outer diameter (mm)
    320
  • Ø between holes
    8.6

Description

The floating-mounted Brembo 208A98553 brake disc from the T-Drive series combines state-of-the-art racing technology with the highest manufacturing quality and offers maximum performance for high-performance sport motorcycles. The patented T-Drive system connects the stainless steel friction ring to the aluminium inner carrier via T-shaped drive pins, enabling optimal thermal expansion and consistently high braking performance even under extreme thermal and mechanical loads.

The floating mounting reduces stresses between the friction ring and the carrier, improves lateral runout accuracy and ensures consistent contact between the brake pads and the brake disc at all times. This results in a precise braking point, excellent modulation and stable braking performance even under intensive use. At the same time, the lightweight aluminium inner carrier helps reduce unsprung mass, thereby improving handling and riding dynamics.

The friction ring, manufactured from high-quality stainless steel, features a specially developed hole pattern for effective heat dissipation, water displacement and cleaning of the friction surface. The T-Drive series is based on Brembo’s many years of experience in international motorcycle racing and meets the highest demands in terms of performance, durability and reliability.

  • Patented T-Drive technology with T-shaped drive pins for optimal thermal expansion
  • Floating mounting system for maximum braking performance under extreme loads
  • Lightweight aluminium inner carrier to reduce unsprung mass
  • High lateral runout accuracy and consistent pad contact for a constant braking point
  • Optimised hole pattern for improved heat dissipation, water displacement and cleaning of the friction surface
  • Brembo technology developed directly from professional racing
  • High resistance to thermal and mechanical stresses

Technical details

  • Series: Upgrade T-Drive
  • Material: Stainless Steel, Aluminium
  • Storage: Floating
  • Approval: E-Approval
  • Installation position: Front

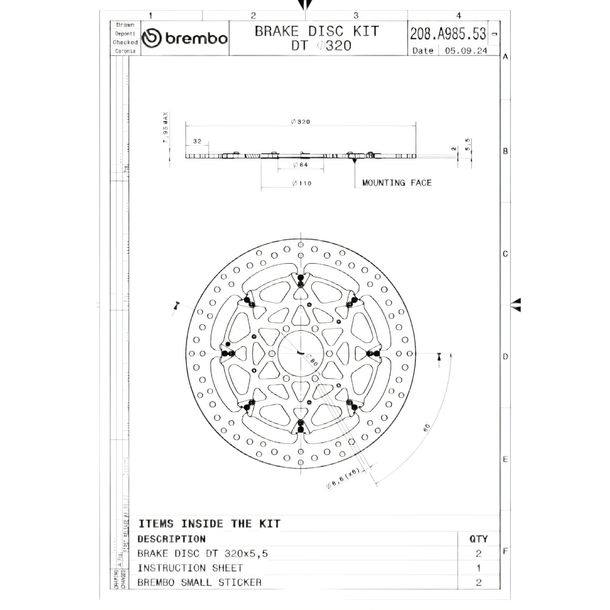

Dimensions

  • Outer diameter: 320 mm
  • Inner diameter: 64 mm
  • Brake disc thickness: 5,5 mm
  • Number of holes: 6
  • Hole diameter: 8,6 mm
  • Bolt circle: 80 mm

Scope of delivery

  • 1x 208A98553, Brake disc Brembo T-Drive 208A98553 with approval, floating front 320x5,5mm 2 pieces

About the manufacturer Brembo

Brembo is recognised worldwide as a leading manufacturer of high-performance brake discs. Each disc is manufactured with the utmost precision and care to ensure optimum braking performance, even heat distribution and a long service life. Brembo brake discs deliver reliable performance in all driving conditions, from everyday use to sporty driving.

Suitable for

Brake disc Brembo T-Drive 208A98553 with approval, floating front 2 pieces

BMW S 1000 R (Bj. 2016)
BMW S 1000 R (Bj. 2017)
BMW S 1000 R (Bj. 2018)
BMW S 1000 R (Bj. 2019)
BMW S 1000 R (Bj. 2020)
BMW S 1000 RR (Bj. 2009)
BMW S 1000 RR (Bj. 2010)
BMW S 1000 RR (Bj. 2011)
BMW S 1000 RR (Bj. 2012)
BMW S 1000 RR (Bj. 2013)
BMW S 1000 RR (Bj. 2014)
BMW S 1000 RR (Bj. 2015)
BMW S 1000 RR (Bj. 2016)
BMW S 1000 RR (Bj. 2017)
BMW S 1000 RR (Bj. 2018)
