Karnasch HM multi-blade circular saw blade wood saw blade Ø 250-500 mm FZ WZ 3R 4R

Carbide-tipped circular saw blade for cutting and multi-blade circular saws

Product details

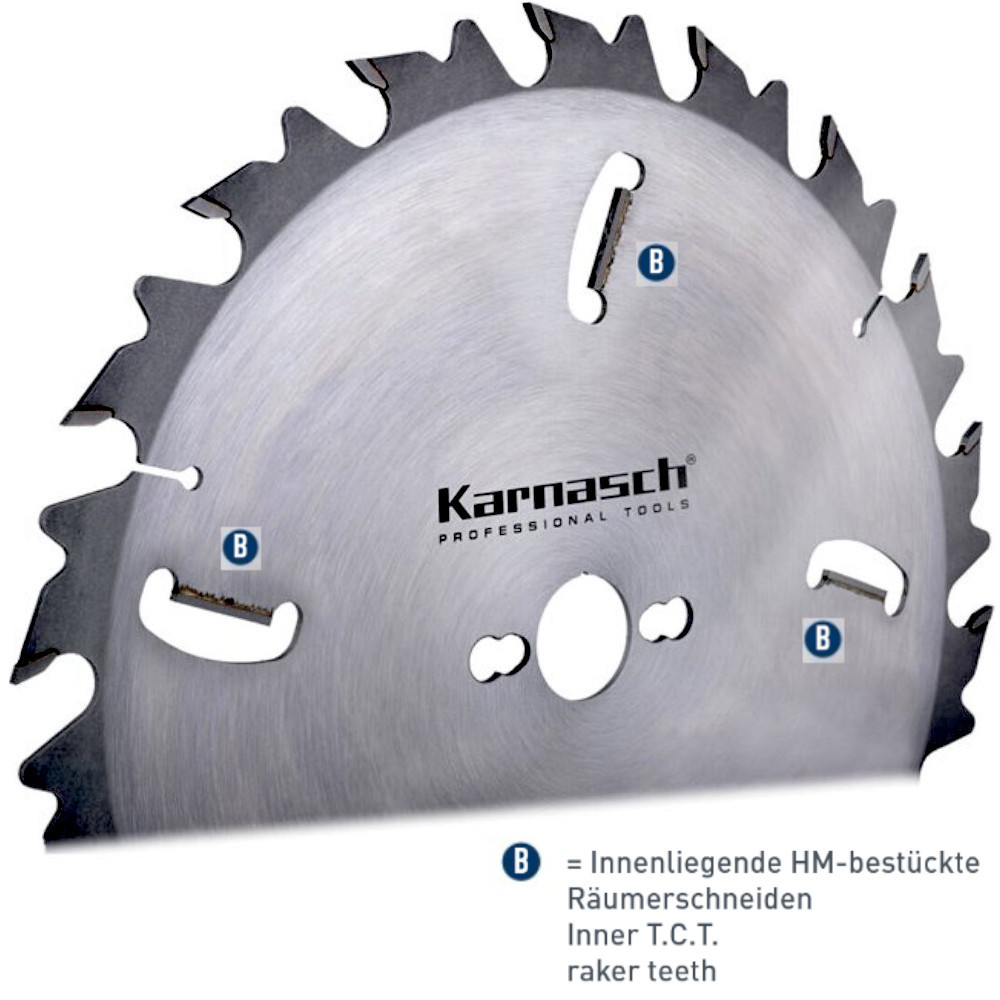

This professional and carbide-tipped Circular saw blade from the house Karnash was specially developed for productive and demanding use in woodworking and industry. As a high-quality tool, it offers excellent cost-effectiveness on your Multi-blade circular saw. The optimized geometry with integrated Reamer cutting and practical Deflector guarantees minimal vibrations, excellent cutting control and effective prevention of jamming in the wood - ideal for particularly deep cuts in tough workshop use.

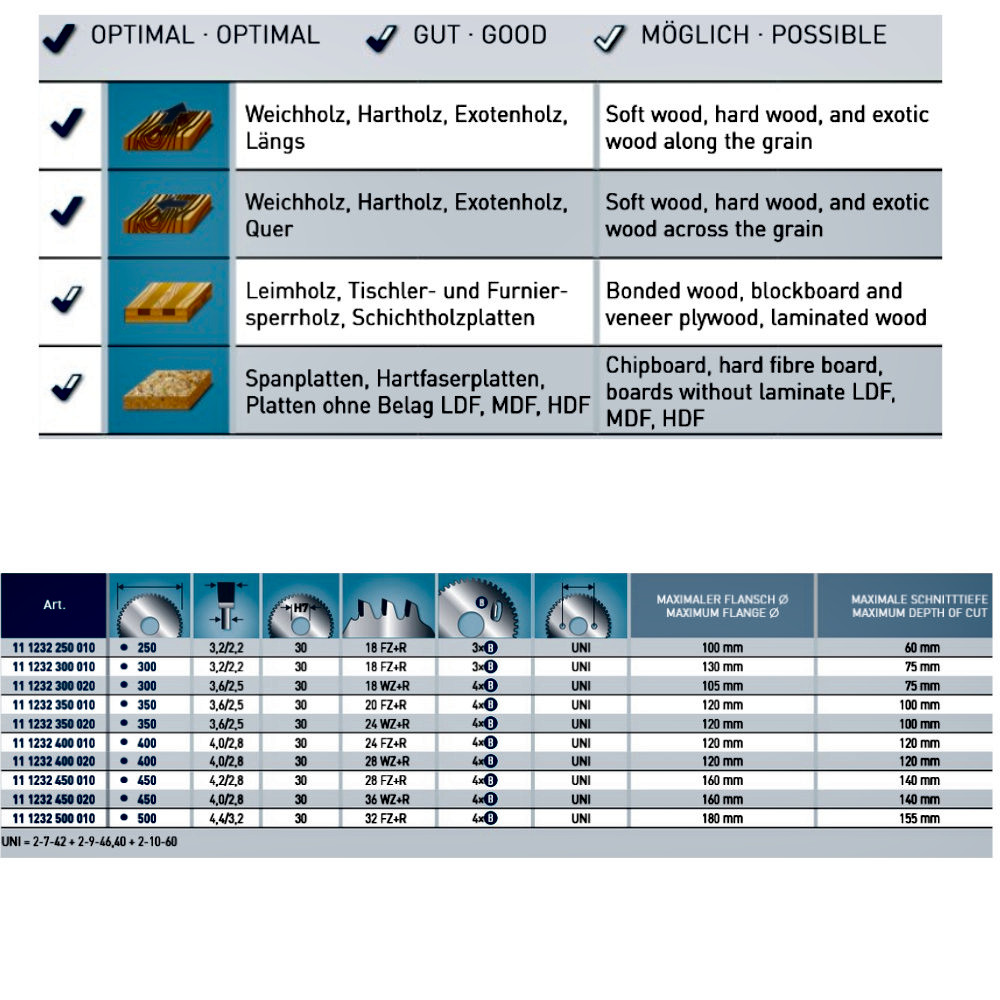

Material suitability

material	fitness
Softwood / hardwood / exotic wood (longitudinal section)	✅ Optimal
Softwood / hardwood / exotic wood (cross section)	✅ Optimal
Glued wood / carpentry / veneer plywood / laminated wood panels	✔ Good
Chipboard / hardboard / boards without covering LDF, MDF, HDF	✔ Good

machines

• Sizing machines and table saws
• Carpentry hand circular saws
• Hemmers and multi-leaf joinery systems
• Designed for manual or automatic feed

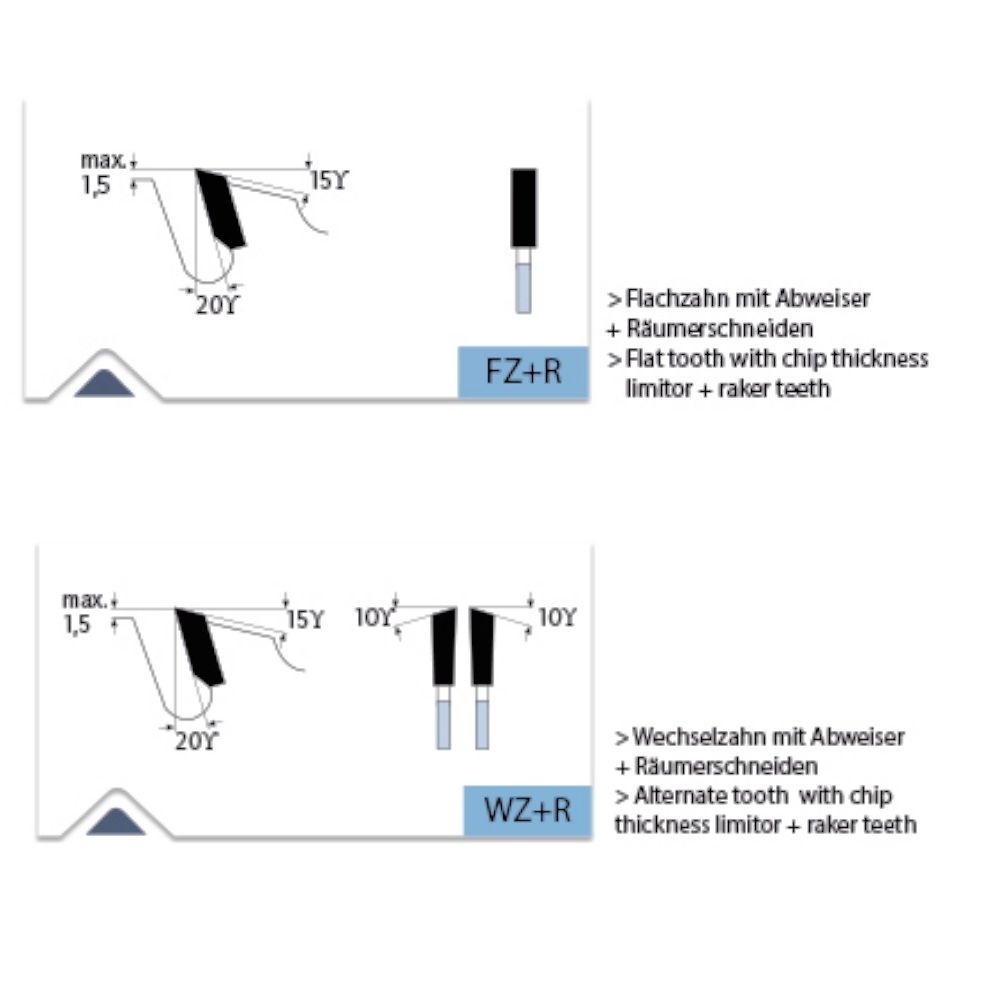

Tooth shapes

• Flat tooth with deflector + reamer blades (FZ+R): Designed primarily for quick and clean longitudinal cuts in solid wood.
• Alternating tooth with deflector + reamer cutting edges (WZ+R): For universal longitudinal and cross-sections with smooth running behavior.

Technical data

• Shapes: flat tooth with reamer cutting edges (FZ+R) or alternating tooth with reamer cutting edges (WZ+R)
• Ø 250 mm: bore 30 mm | Cutting width 3.2/2.2 mm | 18 FZ+R | 3 internal HM reamer blades
• Ø 300 mm: bore 30 mm | Cutting width 3.2/2.2 mm | 18 FZ+R | 3 internal HM reamer blades
• Ø 300 mm: bore 30 mm | Cutting width 3.6/2.5 mm | 18 WZ+R | 4 internal HM reamer blades
• Ø 350 mm: bore 30 mm | Cutting width 3.6/2.5 mm | 20 FZ+R | 4 internal HM reamer blades
• Ø 350 mm: bore 30 mm | Cutting width 3.6/2.5 mm | 24 WZ+R | 4 internal HM reamer blades
• Ø 400 mm: bore 30 mm | Cutting width 4.0/2.8 mm | 24 FZ+R | 4 internal HM reamer blades
• Ø 400 mm: bore 30 mm | Cutting width 4.0/2.8 mm | 28 WZ+R | 4 internal HM reamer blades
• Ø 450 mm: bore 30 mm | Cutting width 4.2/2.8 mm | 28 FZ+R | 4 internal HM reamer blades
• Ø 450 mm: bore 30 mm | Cutting width 4.0/2.8 mm | 36 WZ+R | 4 internal HM reamer blades
• Ø 500 mm: bore 30 mm | Cutting width 4.4/3.2 mm | 32 FZ+R | 4 internal HM reamer blades
• Side holes: UNI combination hole (2-7-42 + 2-9-46.40 + 2-10-60) for a perfect fit on the machine

Application instructions & area of ​​application

This is impressive for maximum service life and to prevent the tool from seizing under heavy loads saw blade through the following properties:

• For longitudinal and cross sections Solid wood from soft to hard.
• Excellent for dry to naturally moist wood.
• Optimal results for deep cuts thanks to highly efficient HM reamer blades.

Recommendation

• The ideal tool for sawmills, carpentry businesses, joinery and professional cutting.
• You can secure first-class service life for industrial requirements directly online Main shipping24.

Safety instructions

• Workpiece fixation: Please ensure that the workpiece is guided and secured in an absolutely firm and vibration-free manner. Failure to do so will result in tooth breakage.
• Switch off the machine from power before assembly and secure it against being switched on again.
• Only use undamaged saw blades and pay attention to the direction of rotation.
• Insert protective cover and riving knife according to instructions.
• Observe the maximum speed according to the manufacturer.
• Wear safety glasses and hearing protection; no gloves on rotating machines.
