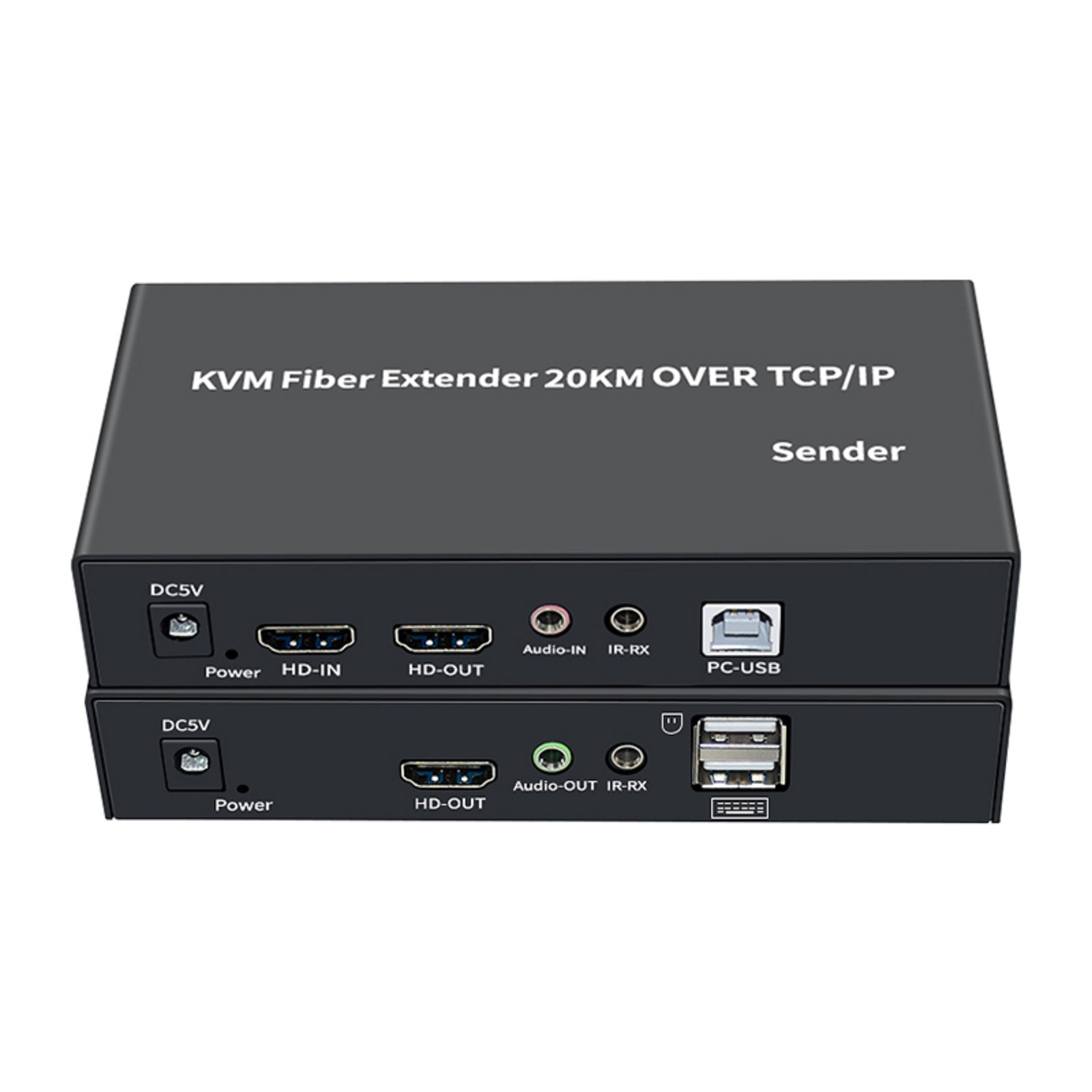

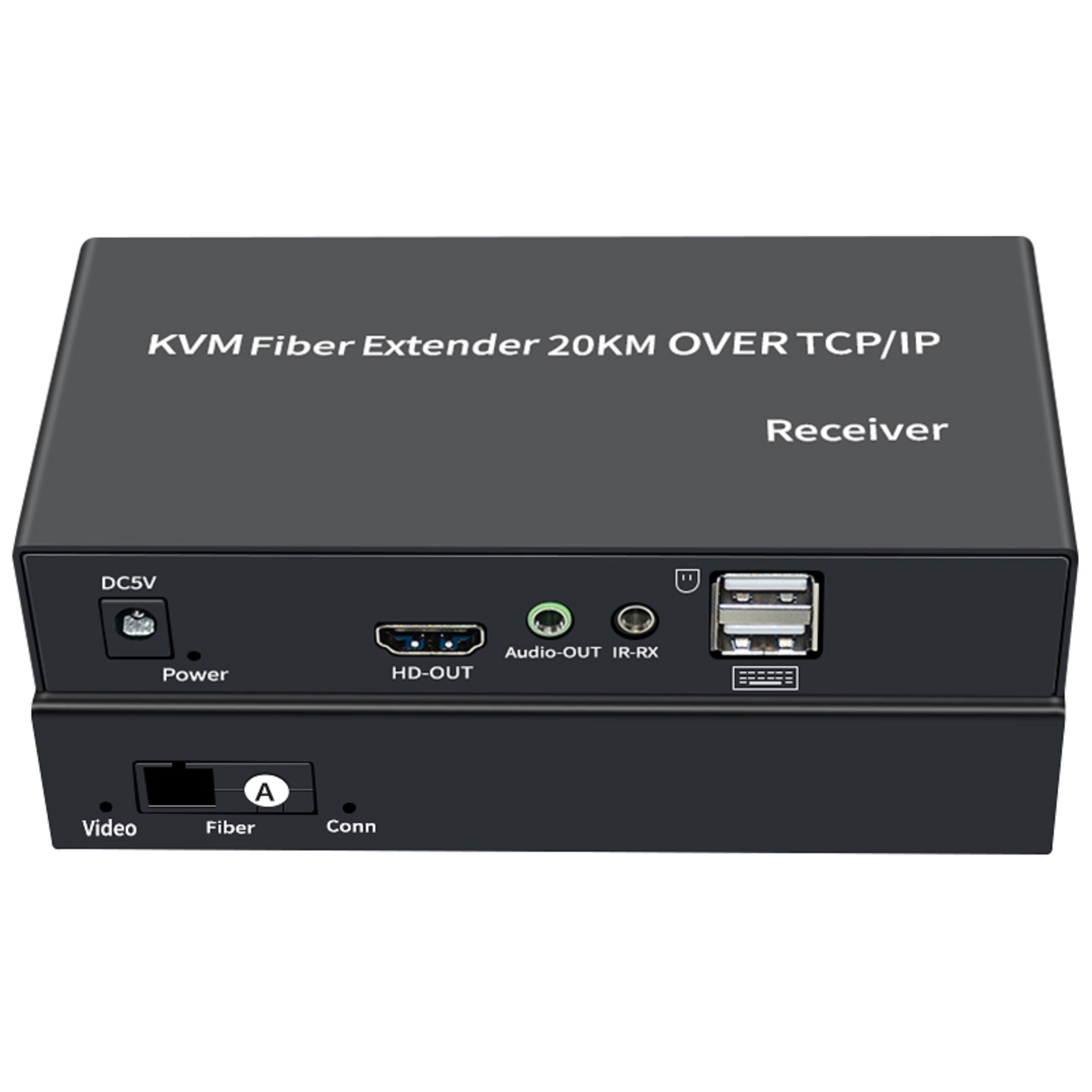

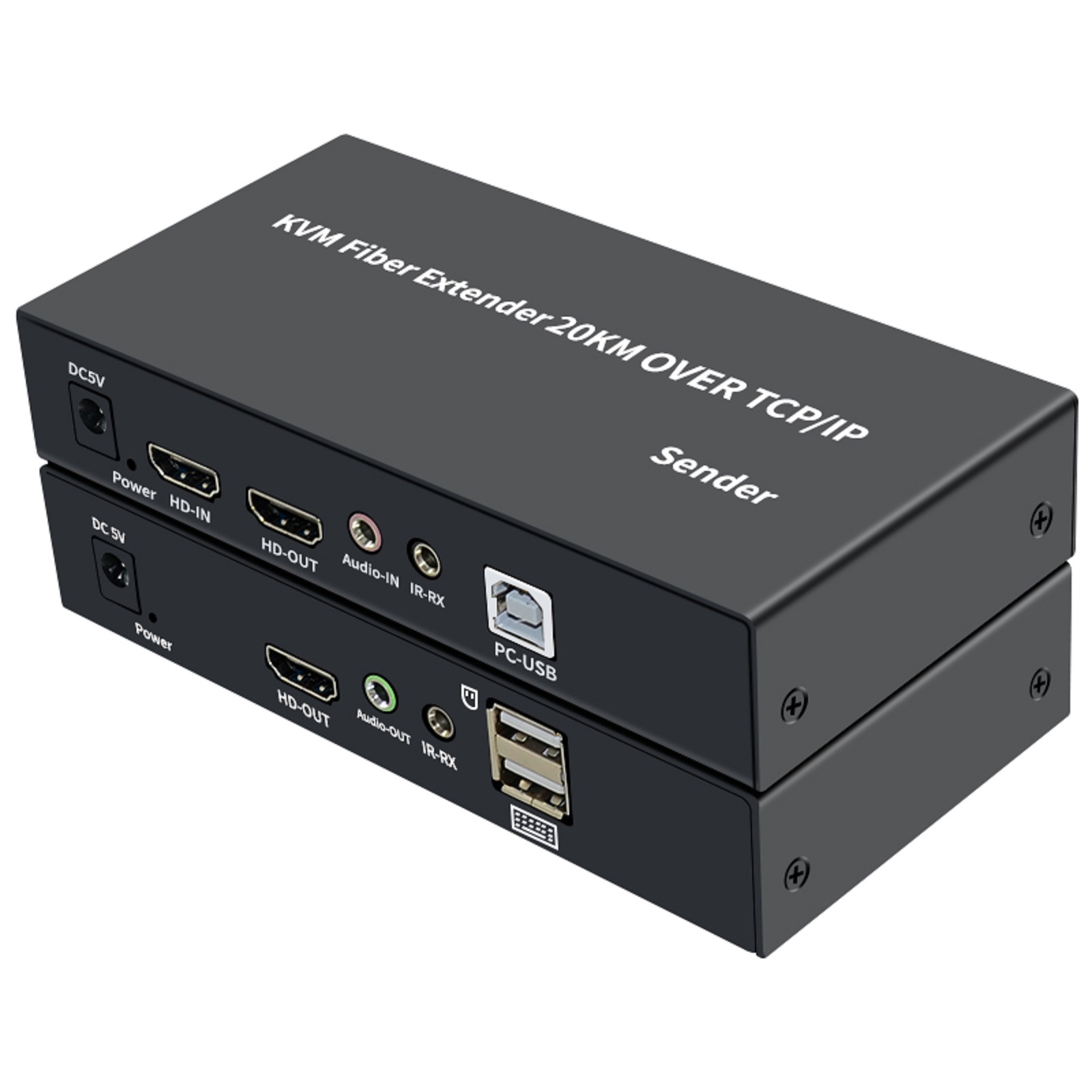

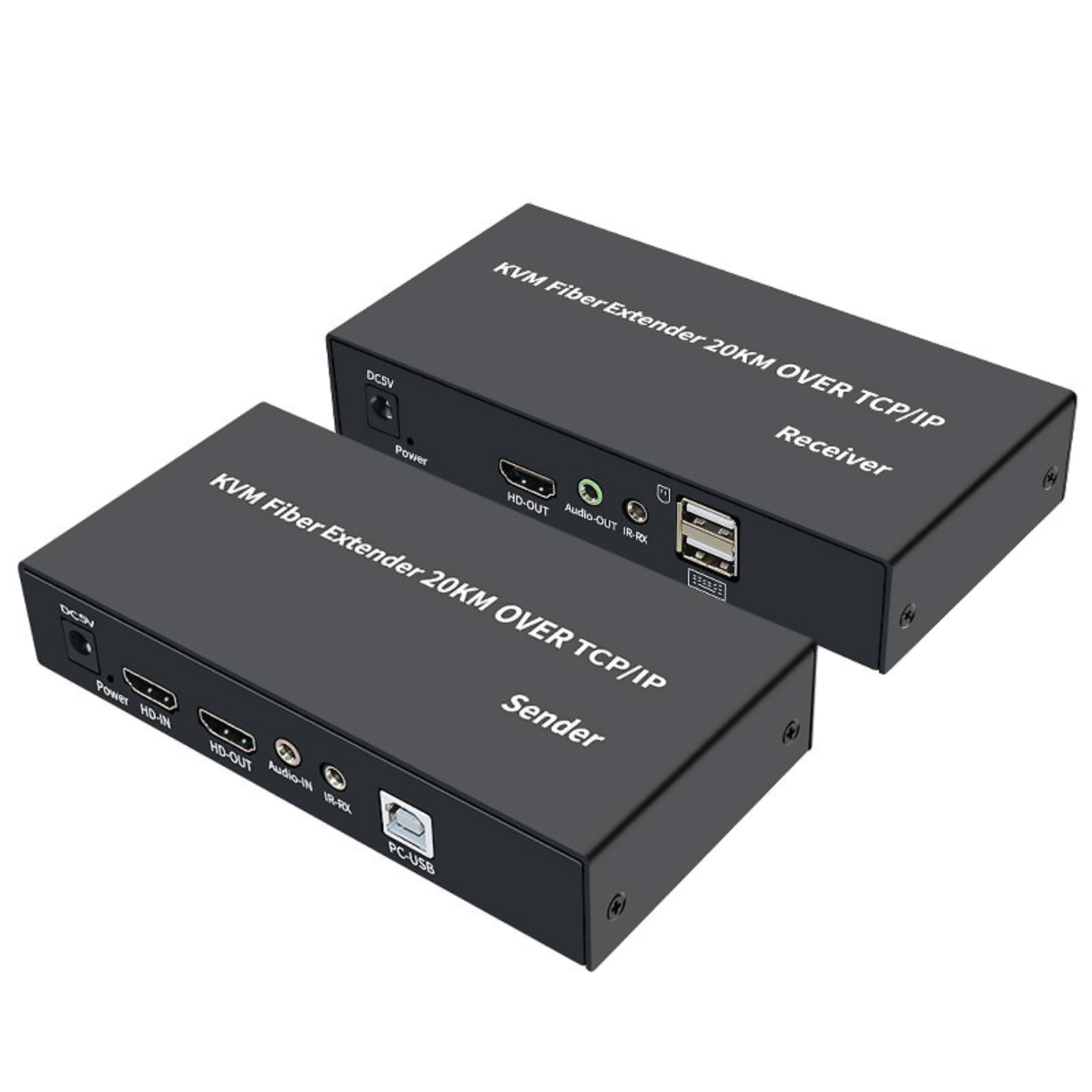

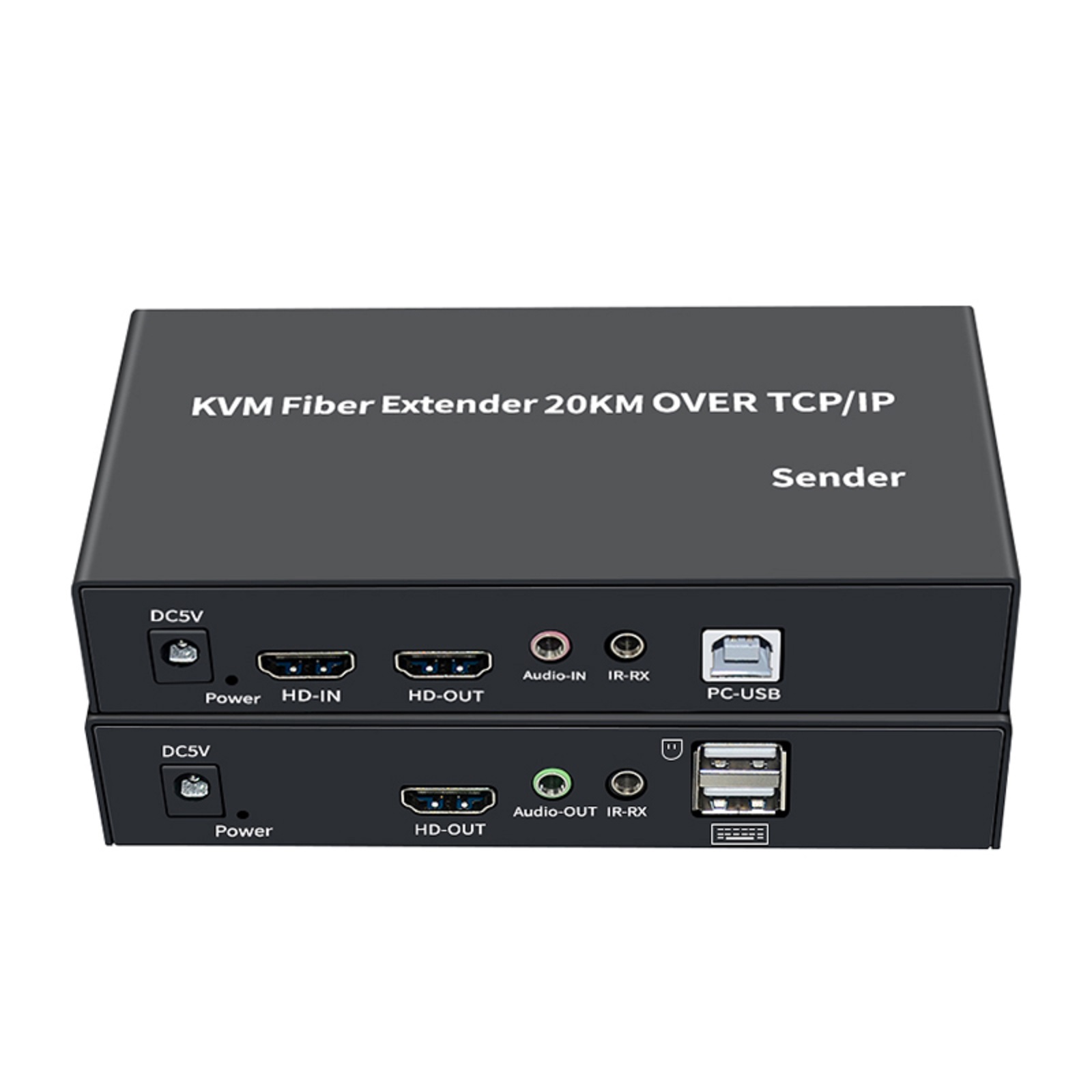

1920X1080P @60Hz HDMI KVM Fiber Extender over SC Fiber Optical Cable to 20Km
Product Description
HDMI KVM Fiber Extender over SC Fiber Optical Cable to 20Km HDMI KVM Extender to Fiber Transceiver Support USB Mouse Keyboard
Specification: Standards: For HD V1.3; for HDCP 1.2 Maximum pixel clock: 165MHz Maximum data rate: 6.75Gbps Resolution: 1920X1080P@60Hz Connector: HD-A Impedance: 100Ω PC: Type B USB interface; connect to pc; K/M: connect USB keyboard and mouse; Interface: 3.5mm seat IR frequency: 20-60kHz Fiber: Interface SC Fiber Model: Single mode wavelength: Single mode 1310nm;1550nm bandwidth: 6.25Gbps Transmission distance: MAX up to 20KM
Features: Transmits HD video and audio signals up to 20KM over a single Fiber Support video resolution up to 1920*1080P@60Hz Support IR signal transmission(20KHz~60KHz) Support keyboard and mouse Support over TCP/IP, support one TX to more RX by optical fiber splitter or optical fiber switch , distribution function is realized Compliance with HD V1.3 and For HDCP 1.2 standard High compatibility, can auto-match source and display device Built-in automatic adjustment system, make the image smooth, clear and stable Built-in ESD protection system Simple to install, plug and play

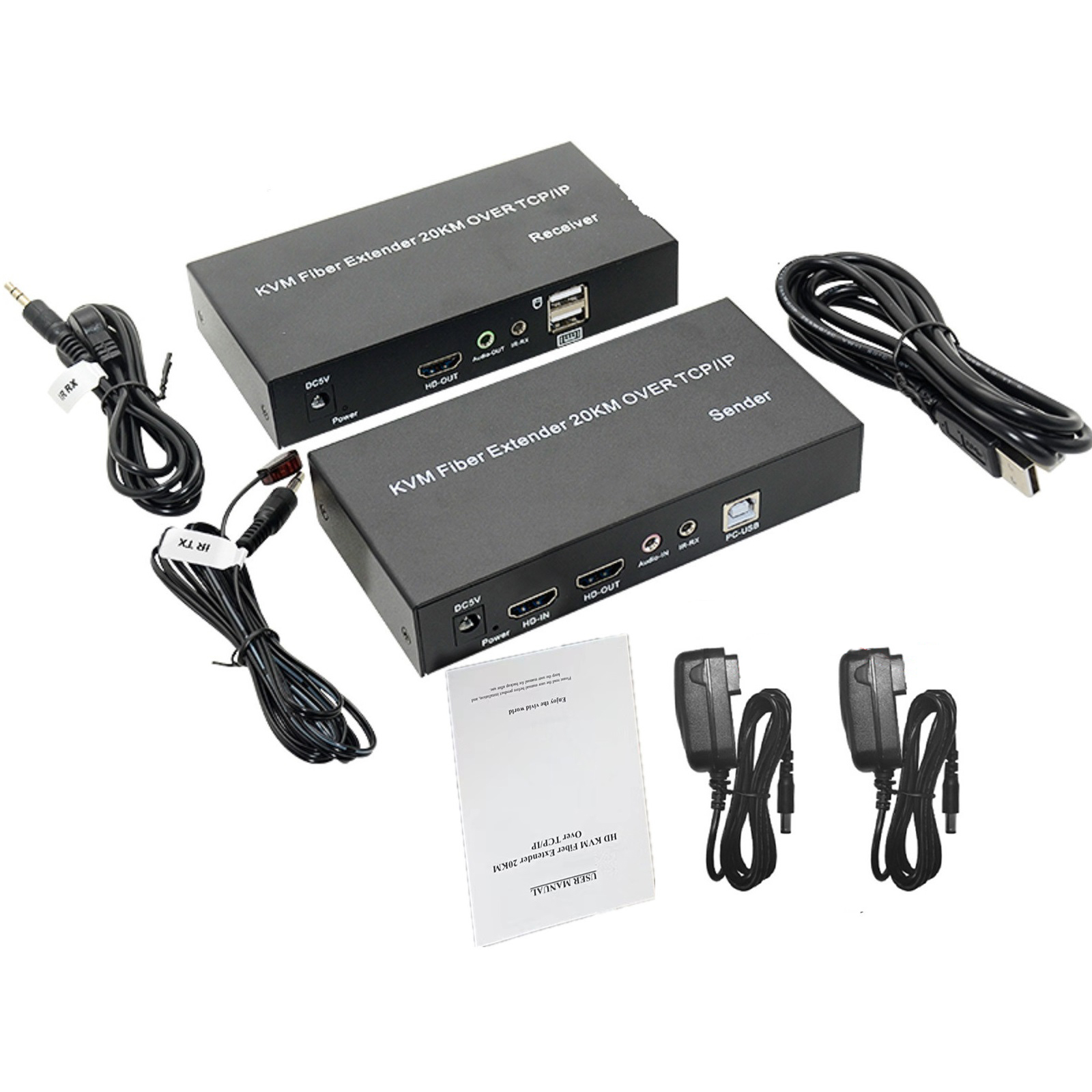

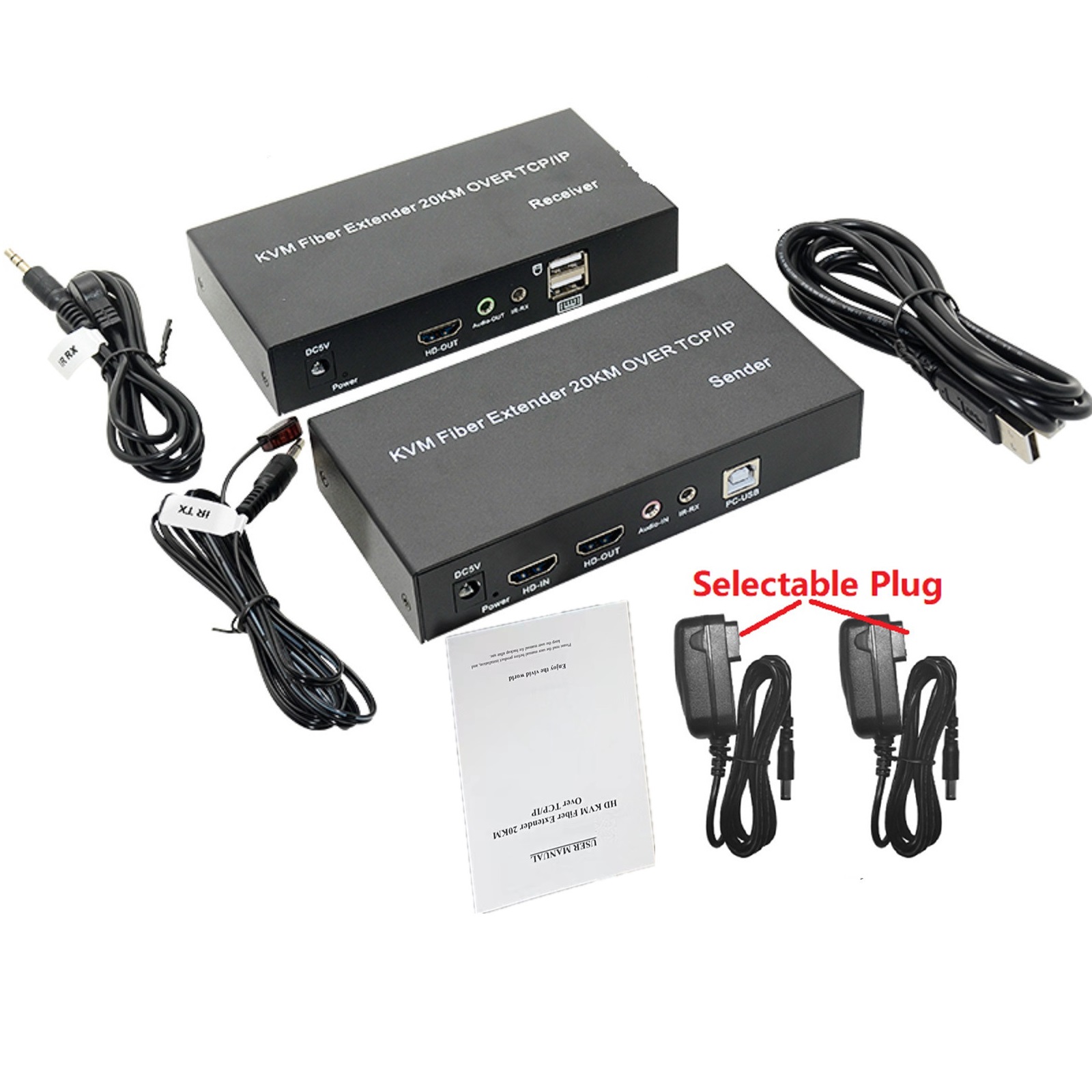

Package: 1 x HDMI transmitter 1 x HDMI receiver 1 x USB A/B cable 2x IR cable 2 x DC 5V selectable Power adapter 1 x User manual
1. Items sent from US warehouse.
2.Receiving time = Processing time + Shipping time 3. Processing Time: Around 1-2 business Days 4. Shipping Time: 3-5 business day
it may have a little delay during some holiday (such as Christmas),any problem ,please feel free to contact
1.30 days warranty from the purchased date. Please contact us via email before returning the defective item.
2.Our warranty does not extended to any product that are physically damaged or that are not under normal operating conditions as result of misuse or improper installation on the buyer/user's part.
3.Return items should include the original packaging and all accessories. buyers MUST contact us for the returning address.
4.In all cases, buyers pay shipping fees at their own cost to return products for exchange or refund. We will be responsible for the postage of replacements. Refund will be made upon receipt of the returned item.
Pls contact us if you have any problems,we will try our best to solve for you
