Description
Main Chip Parameters:
- Master chip model: XC7Z020-2CLG400I
- Chip level: industrial
- Clock recommended maximum speed: FPGA PLL/MMCM recommended maximum 628M
- PS application processor model: for ZYNQ onboard hardcore processor, dual core Cortex-A9, main frequency of 766M
- DDR specification model: 512MByte, 16 bit width, 1066M data rate, MT41K256M16TW-107
- Logic unit: 85K
- Lookup table: 53200
- DSP unit multiplier: 220
- Trigger (FlipFlops): 106400
- Ram: 4.9MBit
- Component temperature range; industrial -40 to 85â
- Speed level: -2

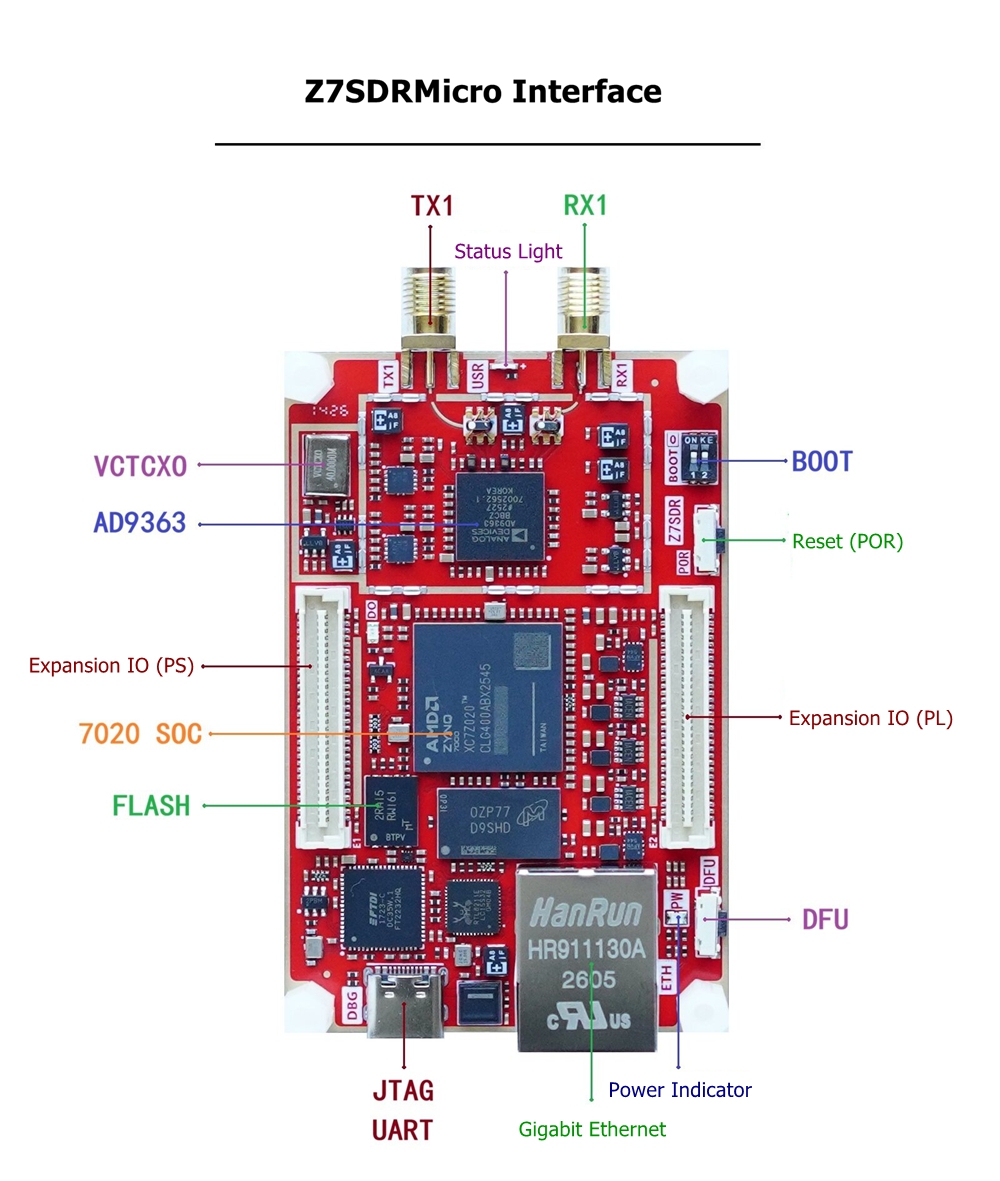

Z7SDRMicro functional interface description:
- Development board power supply: power supply through Type-C debugging interface, 5V input
- Development board clock: 33.33M (PS), 50M (PL), 40M VC-TCXO (0.5PPM)
- Ethernet interface: one RTL8211E-VB gigabit Ethernet port
- DEBUG/Serial port: based on FT2232HQ dual channel, JTAG+UART 2-in-1 Type-C
- Expansion IO port: one PS expansion IO port, led out SDO/USB, 1.8V standard; one PL expansion IO port, 32 x 1.8V single-ended IOs
- LED and button: reset button/DFU upgrade button, USR/PWR/DONE indicators
- Boot setting switch: one BOOT toggle switch for boot setting
- Onboard FLASH: 32MBytes, model of MT25QL256ABA1EW9-0SIT
- Note : The PL section extends 32 single ended IOs, which are single ended wiring and only support 1.8V, with differential support for 1.8V; The PS section has been extended with USB 2.0 (PHY) and SDO, supporting only 1.8V.
AD9363 Parameters:
- Master chip model: AD9363bbcz
- RF range: 325MHz - 3.8GHz
- Signal data bandwidth: 200K to 20MHz
- Channel number: 2 receiving and 2 transmitting/2x2; each channel support for IQ modulation
RF Functional Interfaces Parameters:
- Antenna interface: SMA female connector
- IQ data sampling rate: USB2.0 interface virtual RNDIS network port, 5MSPS
- Factory firmware drive: for ADI official libiio (based on official migration for PlutoSDR)
- Clock: 1pcs 40MHz/0.5ppm VC-TXCO
- Front-end balun: model of HT-TCM1-63AX+, bandwidth of 10M - 6GHz
- RF LDO linear power supply: wireless LO power supply 1.3V/1.5A power supply 2-channel RF LDO
- Impedance control: RF front-end to SMA antenna, control 50ohms microstrip line
Package Included:
- 1 x Development Board
- 1 x Type-C Data Cable
- 1 x SMA Cable
- 1 x FM Telescopic Antenna
