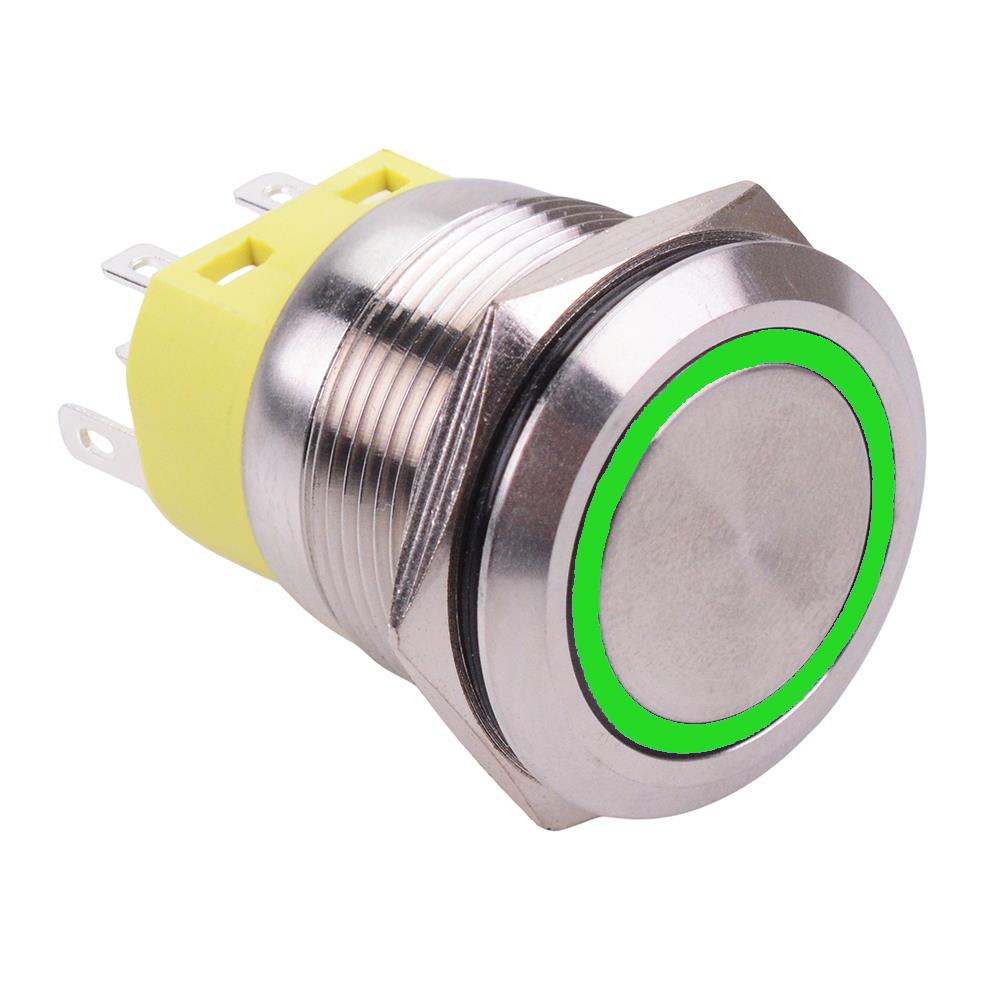

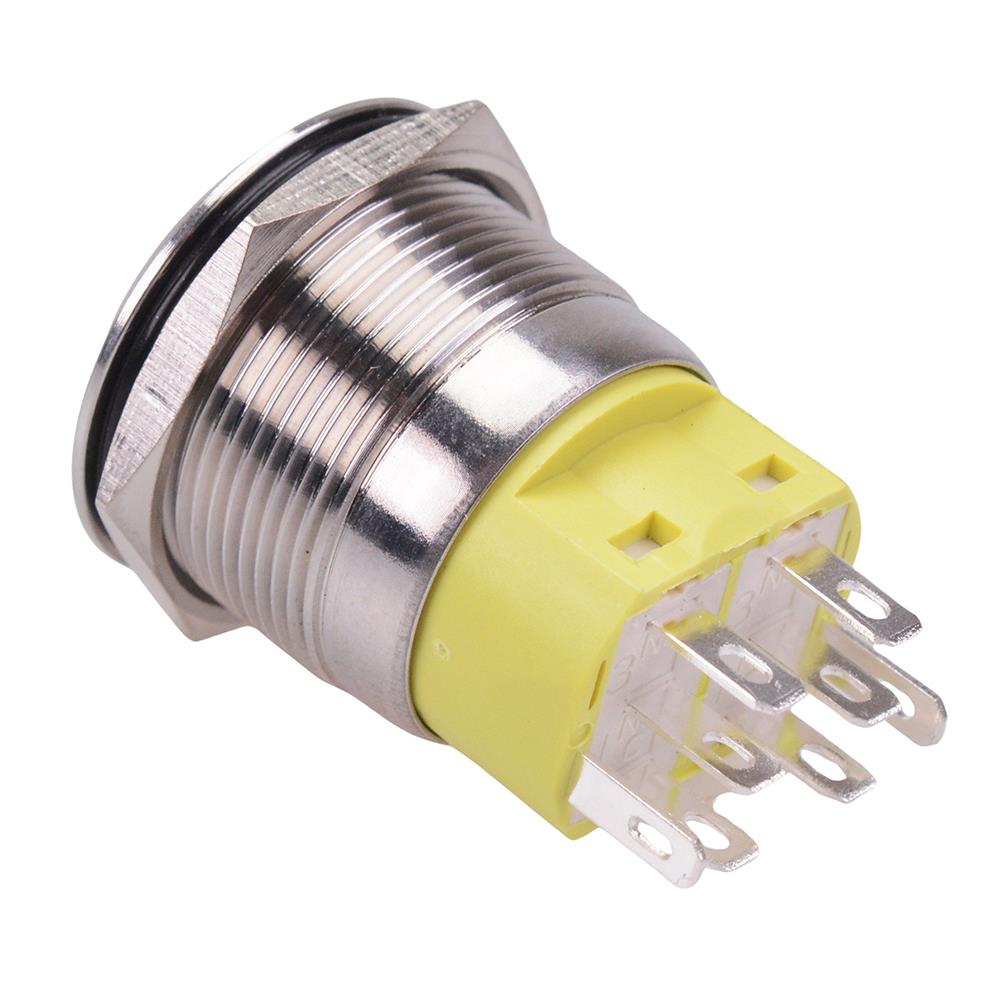

Green On-(On) Momentary 22mm Vandal Push Button Switch 2NO/2NC

Momentary vandal resistant 22mm push button switch featuring a green 12V LED and DPDT contacts. The switch is manufactured from stainless steel and features IP67 protection rating, making it suitable for a wide range of automotive and other 12V applications.

Momentary action

Green LED

12V illumination voltage

IP67 protection rating

22mm panel cut-out diameter

2NO/2NC contacts

2.8mm terminals

Rating: 5A 250VAC

Dimensions: 35.4 x 25mm (length x diameter)
