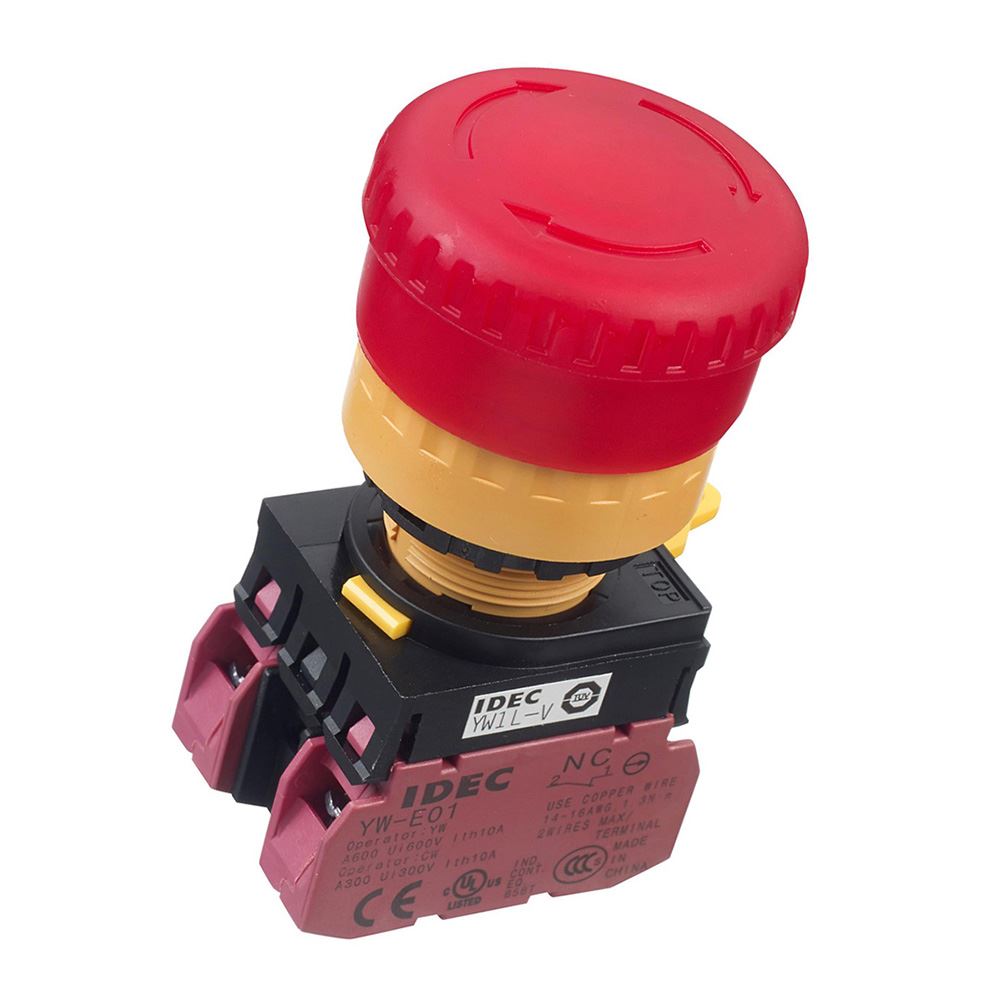

IDEC 24V illuminated 22mm Emergency Stop Switch E-Stop 2NC YW1L-V4E02Q4R

The YW1L-V4E02Q4R is a 24V illuminated 22mm E-stop switch manufactured by IDEC, featuring a 40mm mushroom head and 2NC contacts. The switch features an innovative space saving design and can be reset by either pulling or turning. The switch is suitable for a wide range of safety applications requiring a high quality solution.

2NC contacts

22mm panel hole diameter

IP65 protection level

24V AC/DC operating voltage

Screw terminals

40mm mushroom head

Contact rating: 10A 120V, 6A 240V, 2A 380V
