Generator Control Panel DSE701AS for Diesel Engines with Remote Start Function
DESCRIPTION

Features:
* DSE701AS is available in an version, providing an excellent range of engine monitoring and  for protection functions. The module is designed to monitor low oil pressure, high engine temperature, overspeed and user- for defined auxiliary inputs. The DSE701 module includes a remote start signal input. This input allows the module to be started from a predefined remote location.
* This generator controller is microcomputer controlled.
* Has the function of LED indicating fault information.
* Has LCD running accumulated time.
* Has the lubricating oil low pressure  for protection function, the module is designed to monitor low oil pressure.
* It is also able to monitor battery charging by utilizing the WL terminal on the charging alternator.
* When the module detects a fault condition, it automatically shuts down the engine.
* Has cold water temperature  for protection.
* Has engine overspeed  for protection.
* The hour counter provides accurate information for monitoring maintenance and period.
* Monitors multiple engine parameters simultaneously.

Specifications:
Part Name: Generator Controller
Model: 701K-AS
Material: ABS, Metal
Color: As shown
DC Power Supply: 8V to 35V DC Continuous
CranKing Drotoups: Capable of sustaining 50ms at 0V, provided the power supply was at least 10V before the voltage drop, and the power is restored to 5V. This is achieved without the use of an internal battery.
Max. Current: Operating 50mA Standby 10mA Alternator Input Range: 15V to 227V AC
Alternator Input Frequency: 50-60Hz at rated engine
Start Output: 1.2A DC at mains voltage
Fuel Output: 1.2A DC at mains voltage
Preheat Output: 1.2A DC at mains voltage
Size: 84mm x 72mm x 34.98mm
Operating Temperature Range: -30°C to +70°C
Applicable Standards;
Meets BS EN 60950 Low Voltage Directive
Meets BS EN 50081-2:1992 EMC Directive
Meets BS EN 61000-6-4:2000 EMC Directive

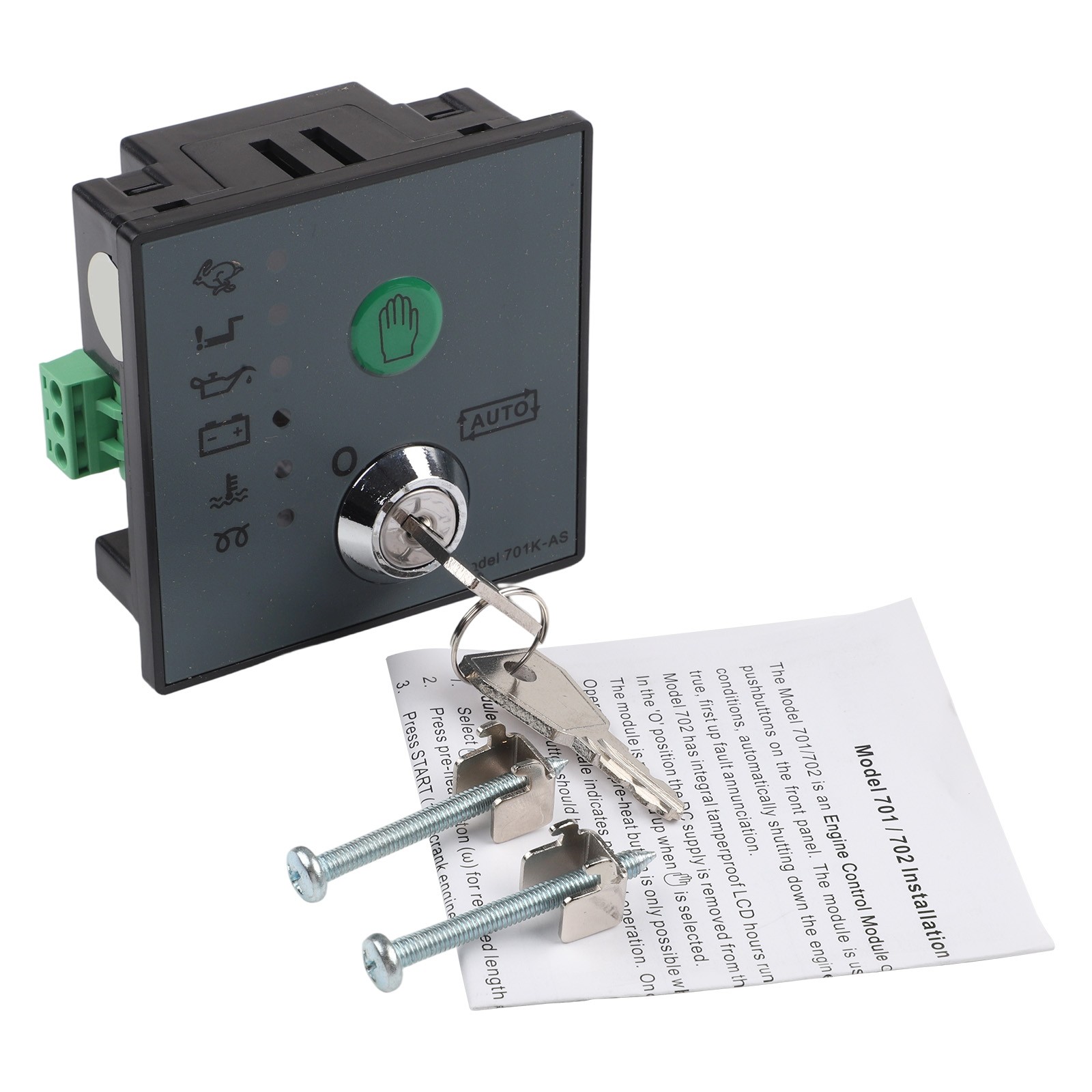

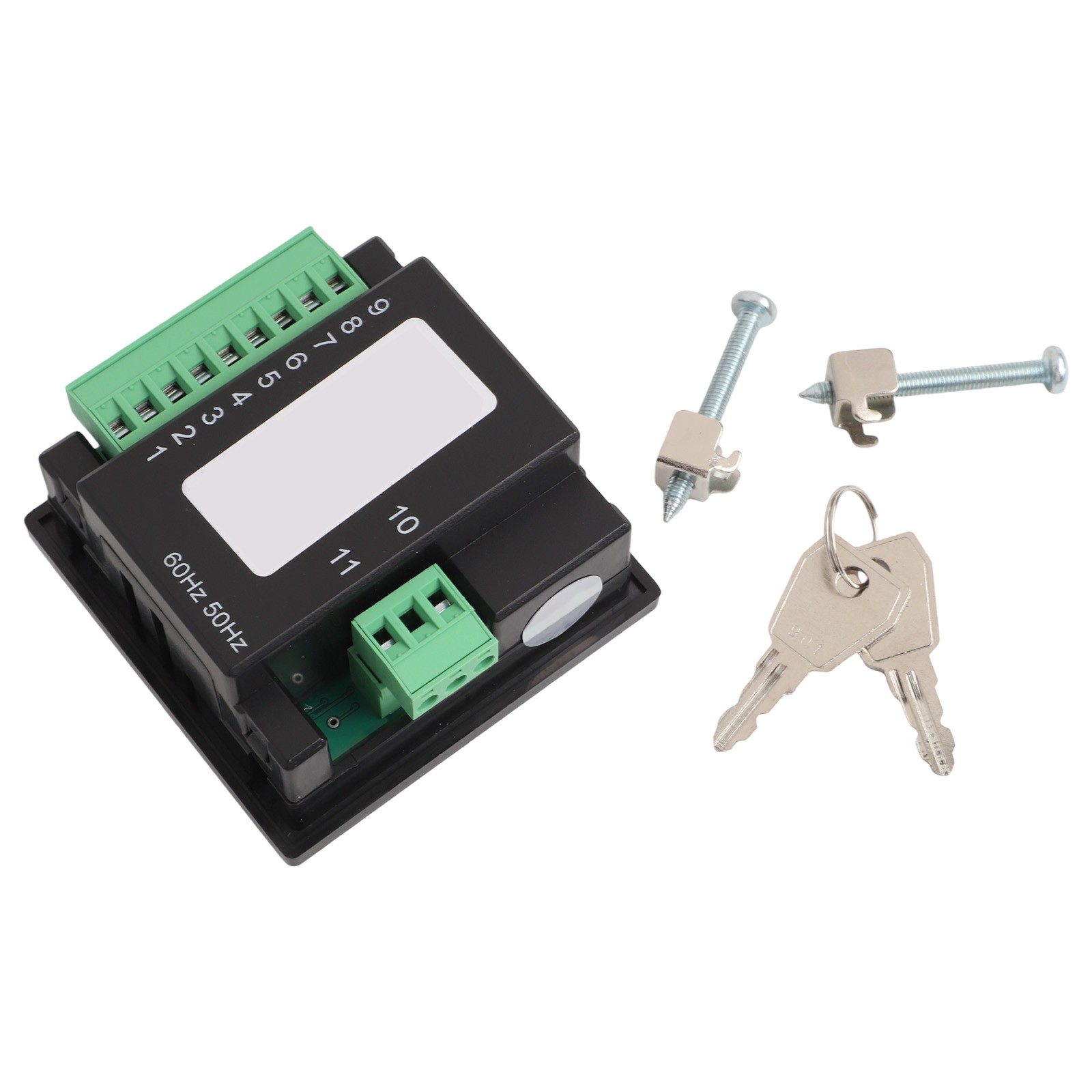

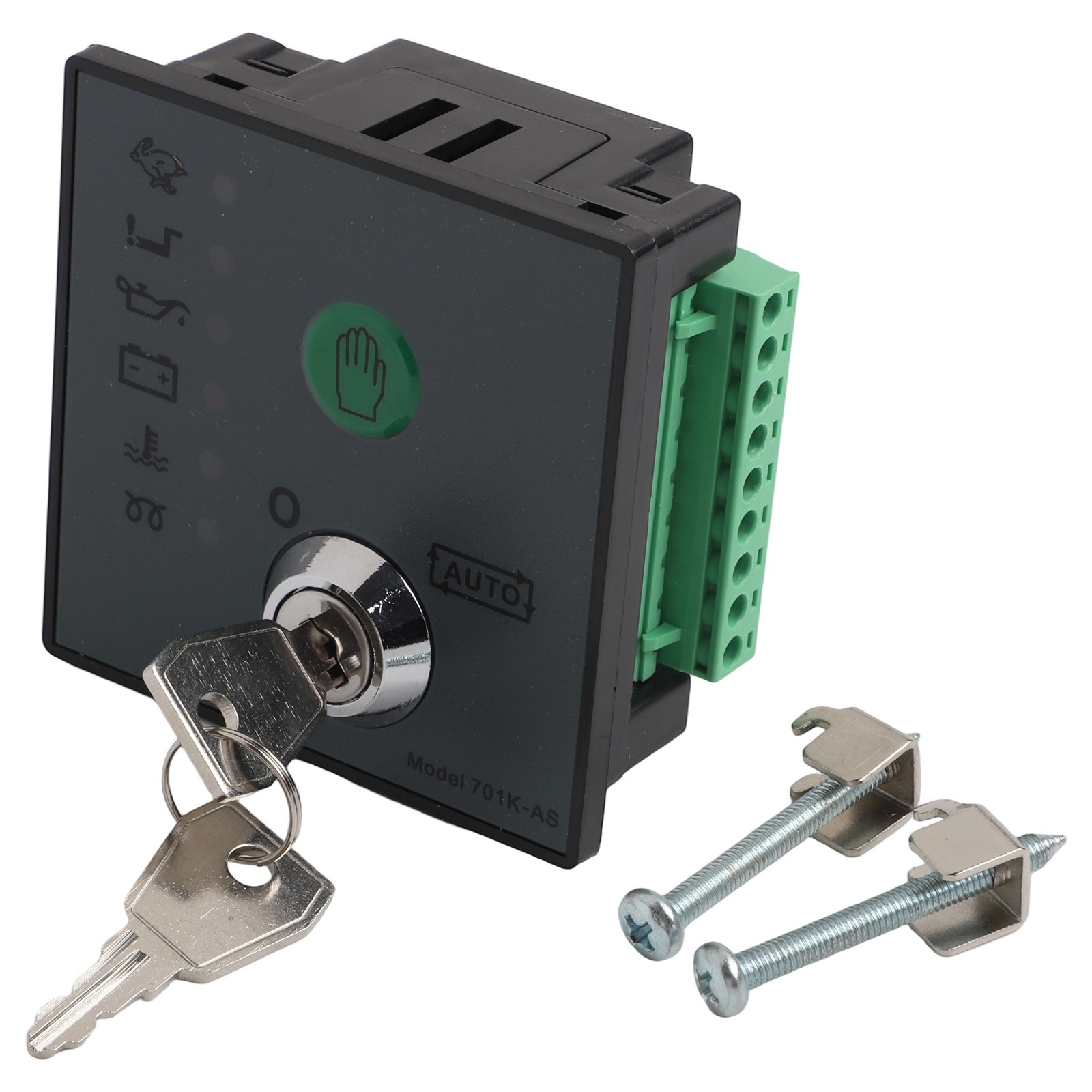

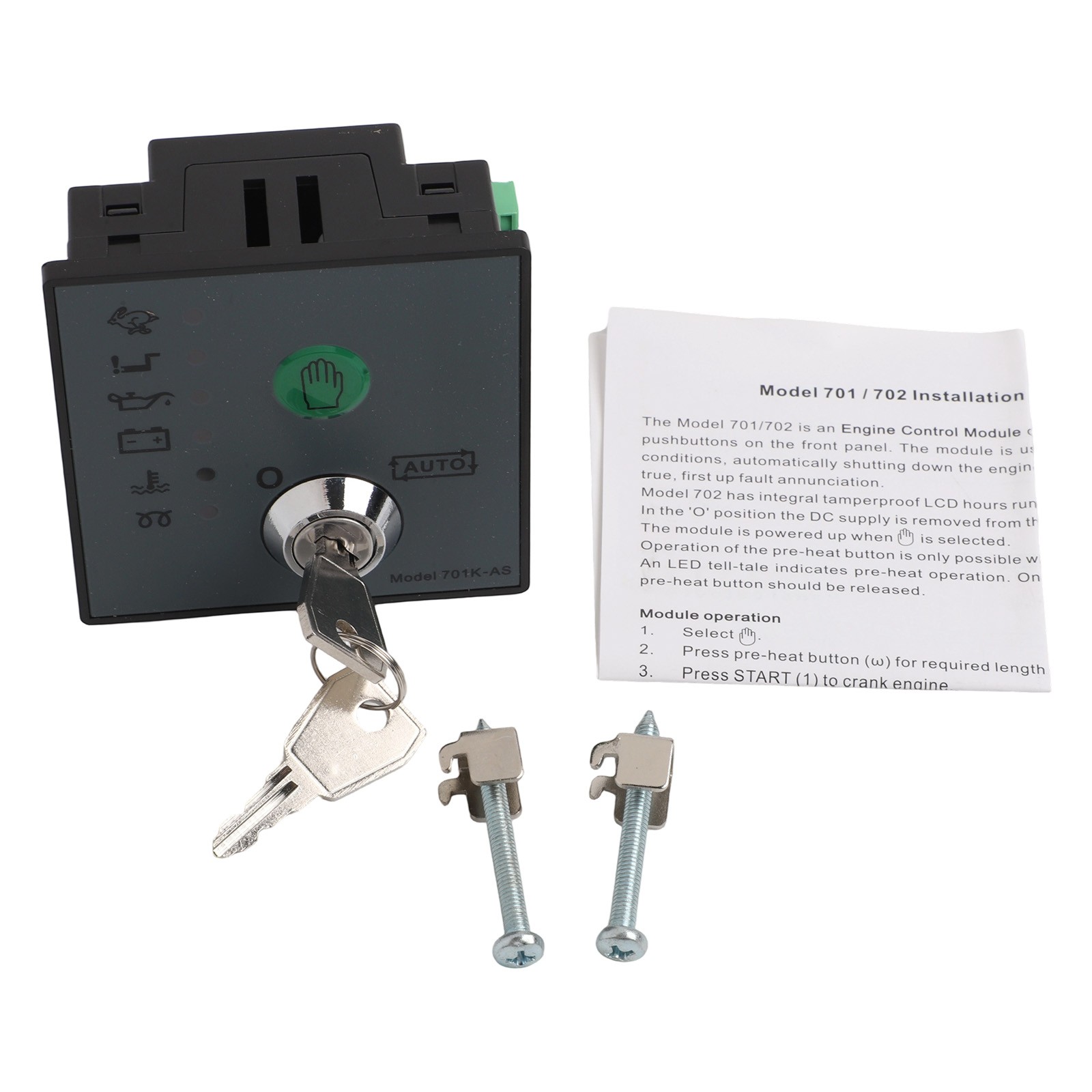

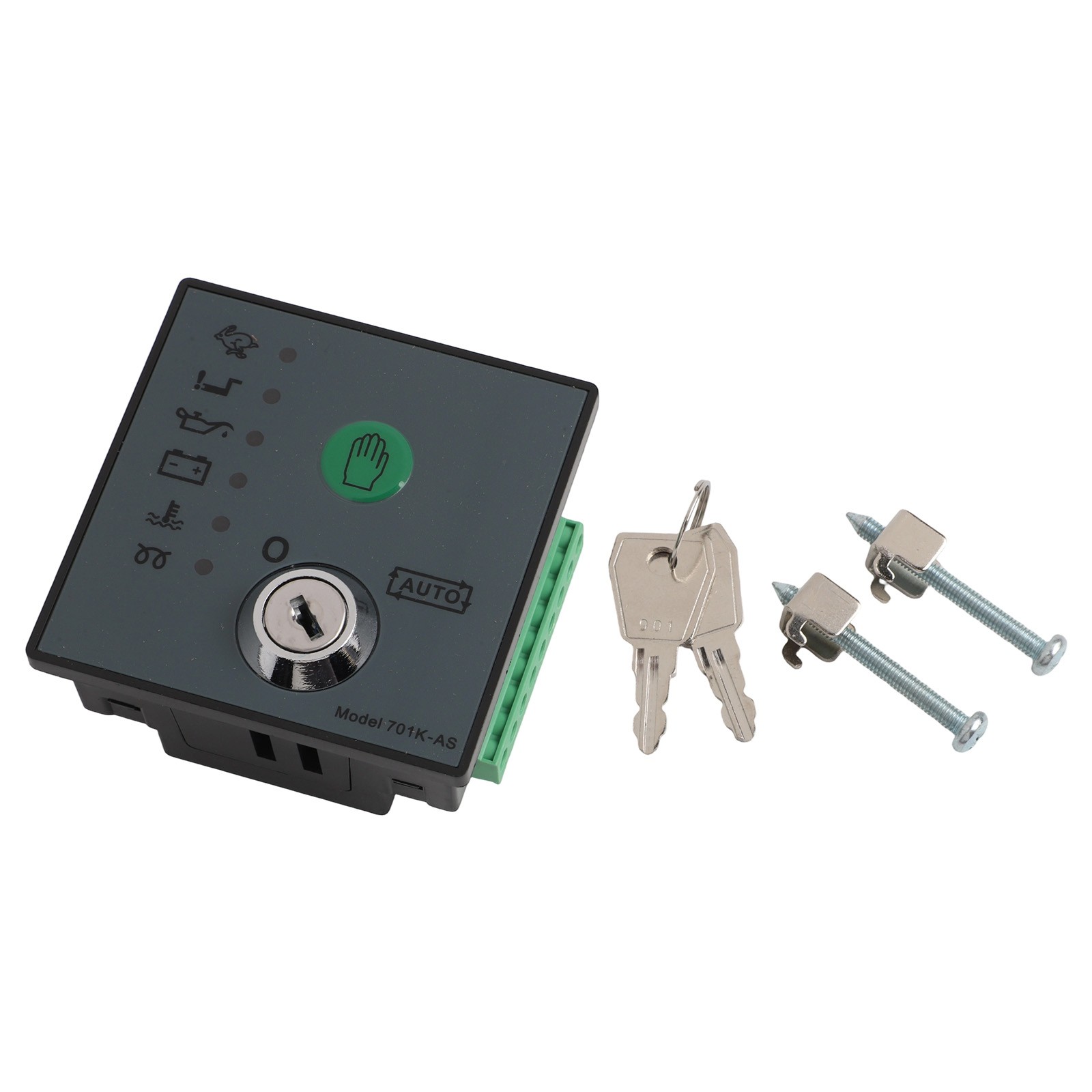

Package Contents:
1 x 701K-AS Generator Control Panel Panel
2 x Keys
2 x Clips
1 x Product Brochure

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
