Application

For Mercedes-Benz M274 2.0TE-Class GLK-Class C-Class SLK-Class GLC-Class
For Infiniti Q50 Q60 M274 2.0T

Details:
115 kW version：
2013–2016 W212 E200 Natural Gas Drive

135 kW version：
2013–2016 W212 E200
2013–present X204 GLK200
2014–2018 W205 C200
2015–present R172 SLK200
2016–present W213 E200

155 kW version：
2013–2016 W212 E250
2013–present X204 GLK250
2014–2018 W205 C250
2015–2018 W205 C350e
2015-present V37 Q50
2016–present W213 E250
2016–present W213 E350e
2016-present CV37 Q60

180 kW version：
2015–2018 W205 C300
2015–2018 W213 E300
2015–present X253 GLC300
2015–present R172 SLK300
--
Pin Type: Floating Pin Piston

Specification

*Type: Forged 4340 aircraft chrome moly quality steel for racing

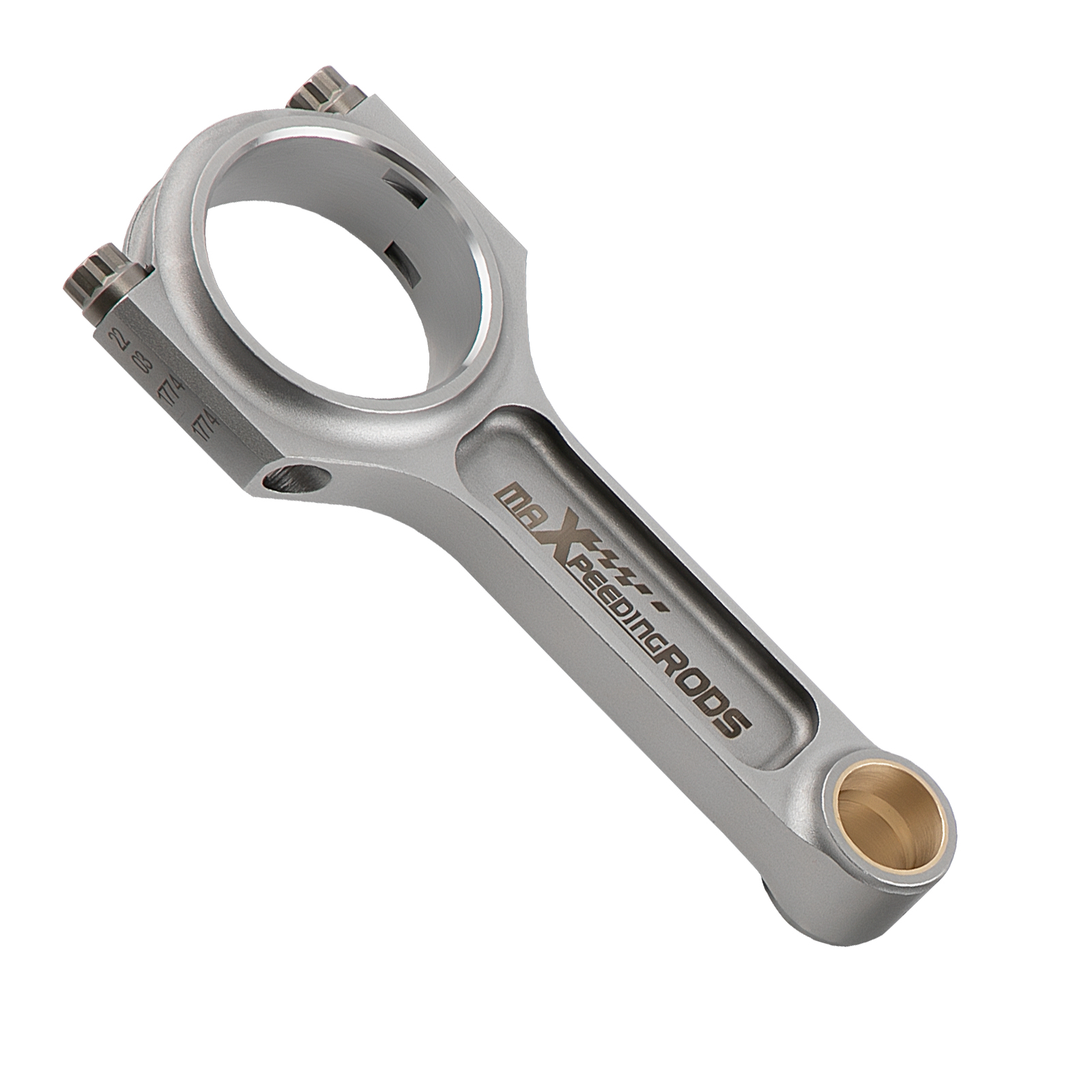

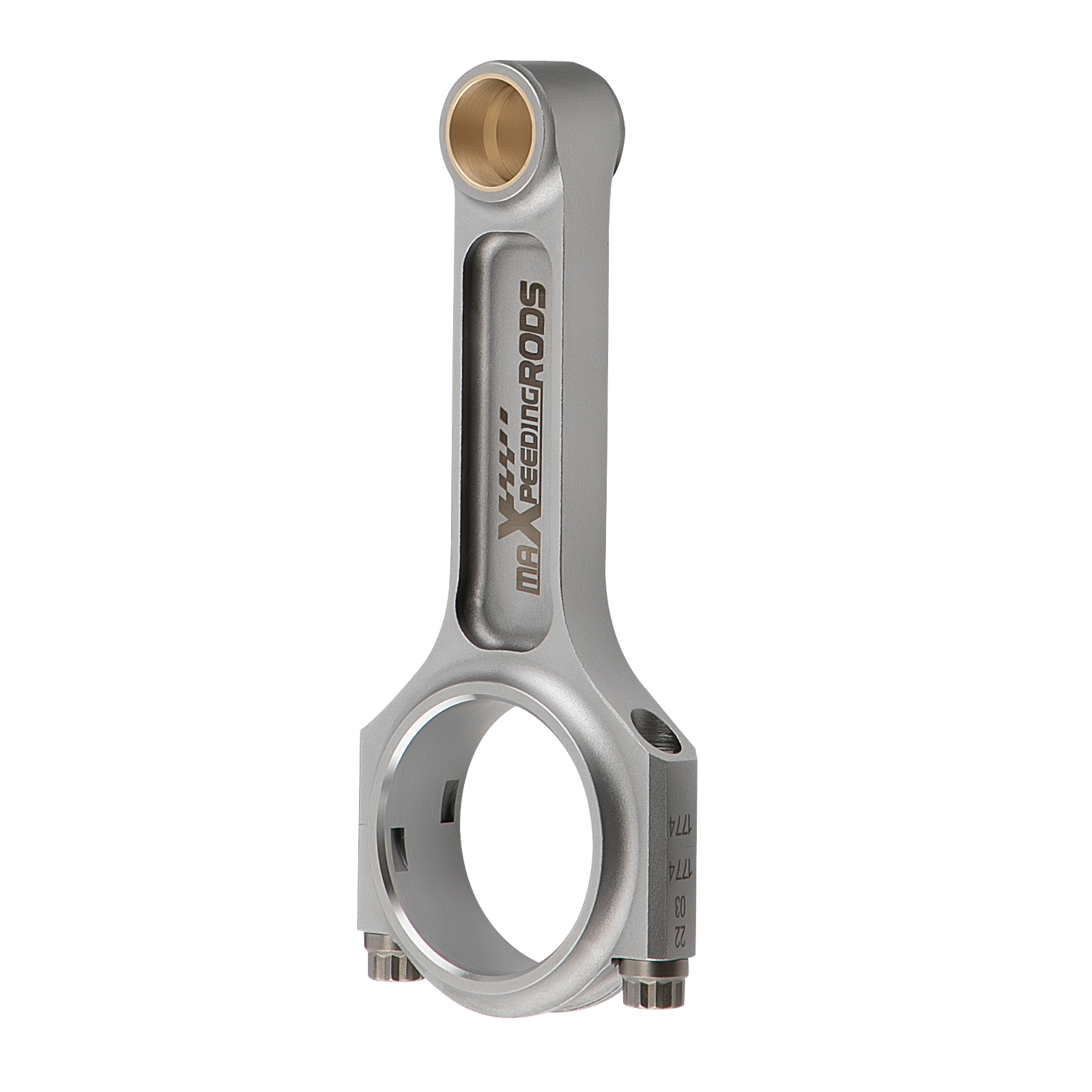

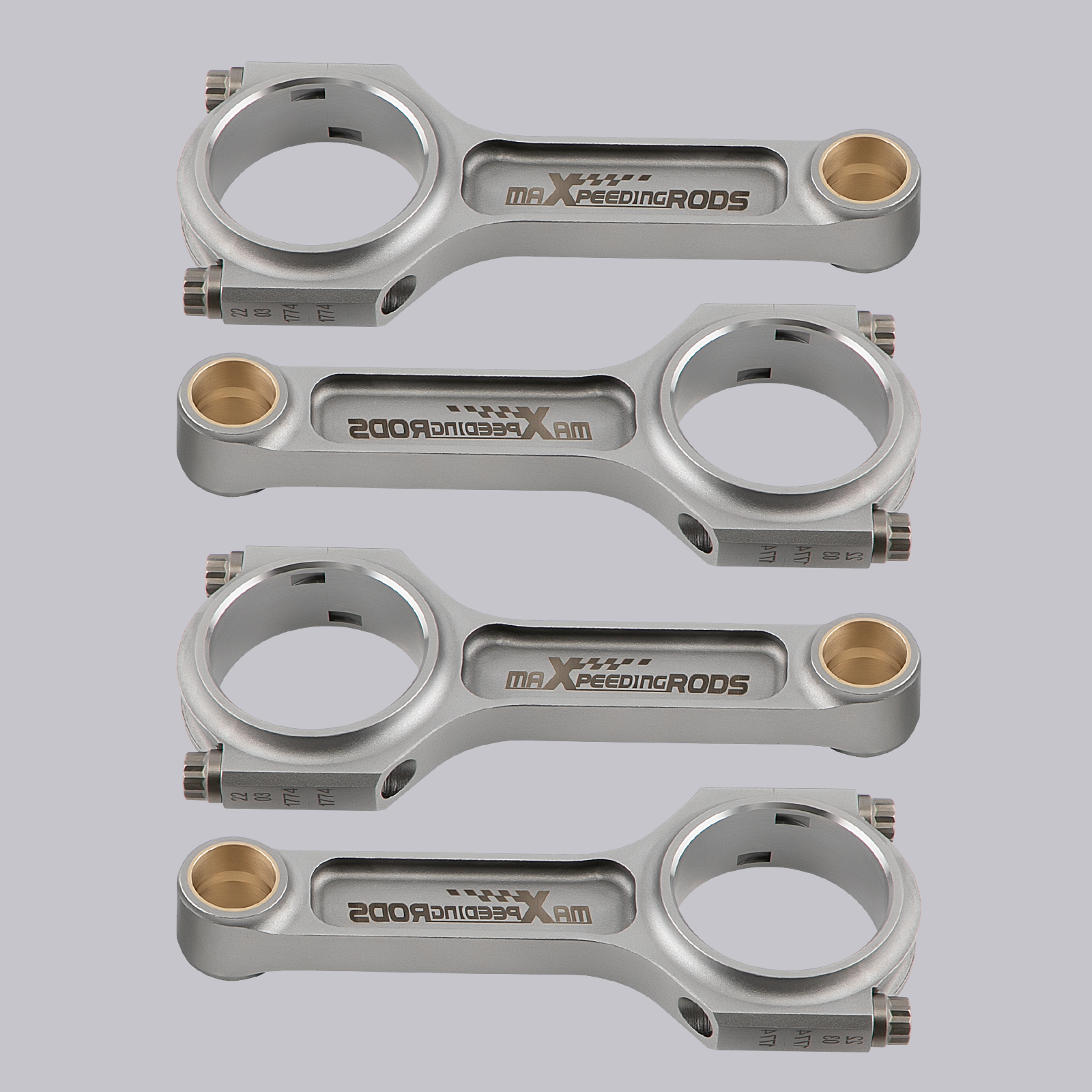

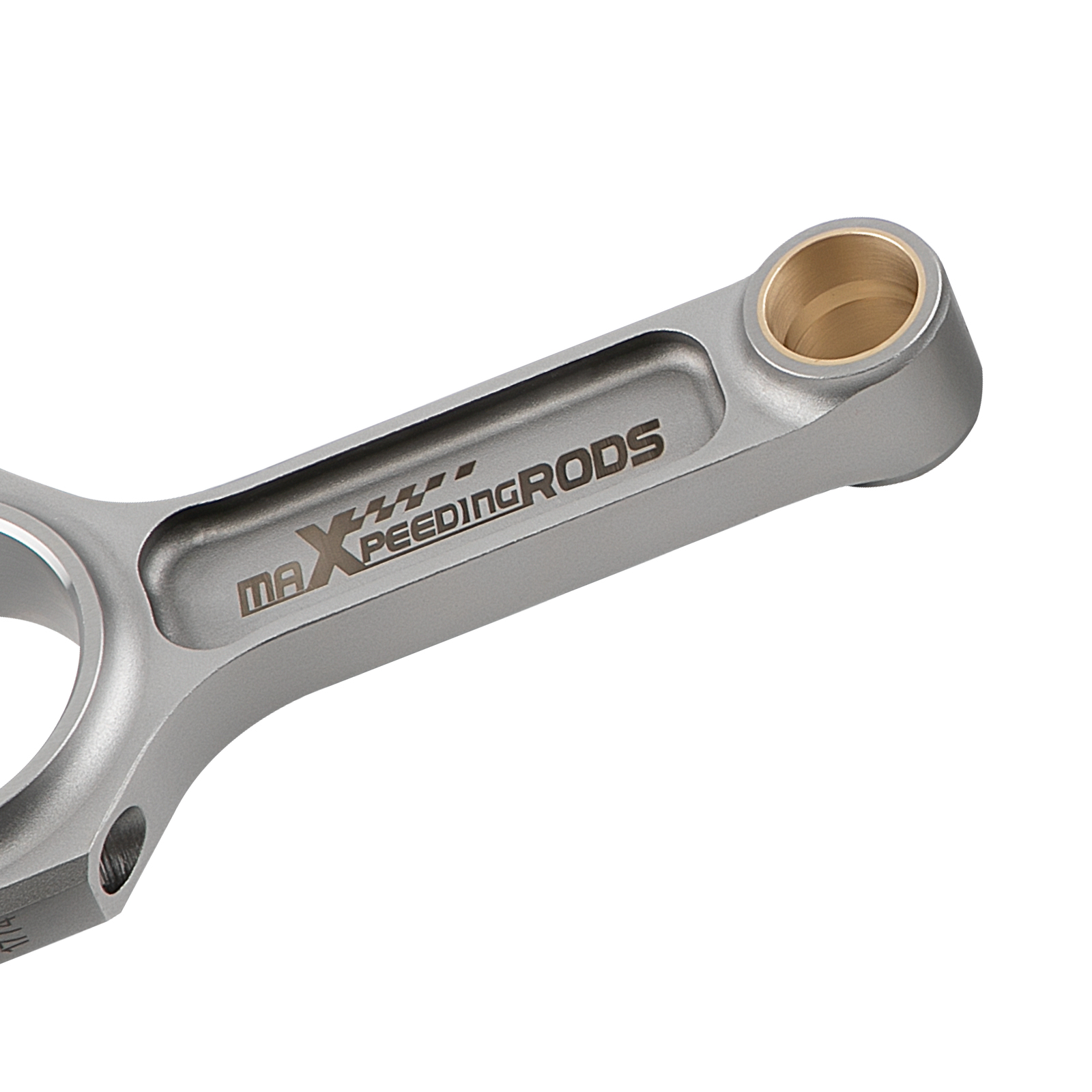

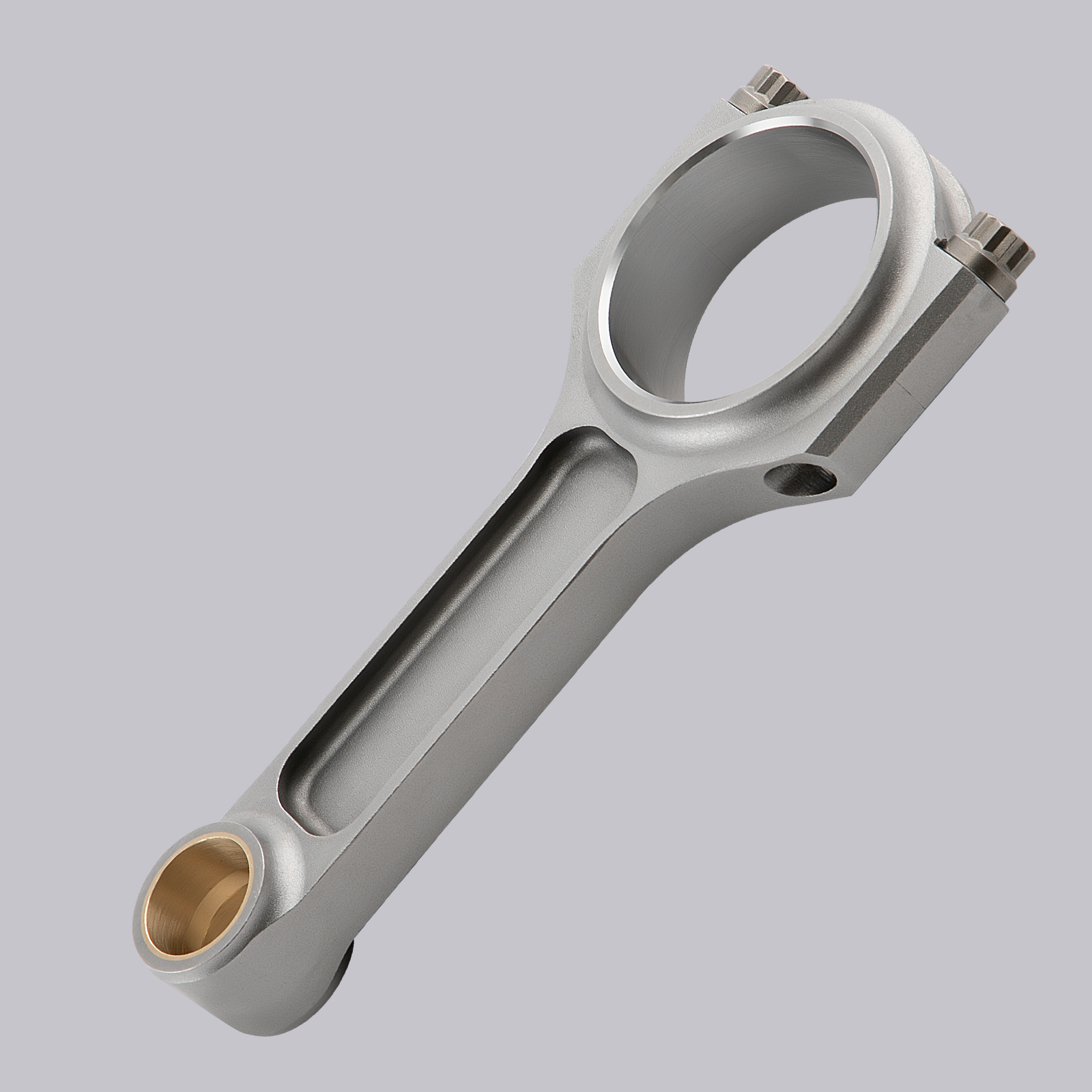

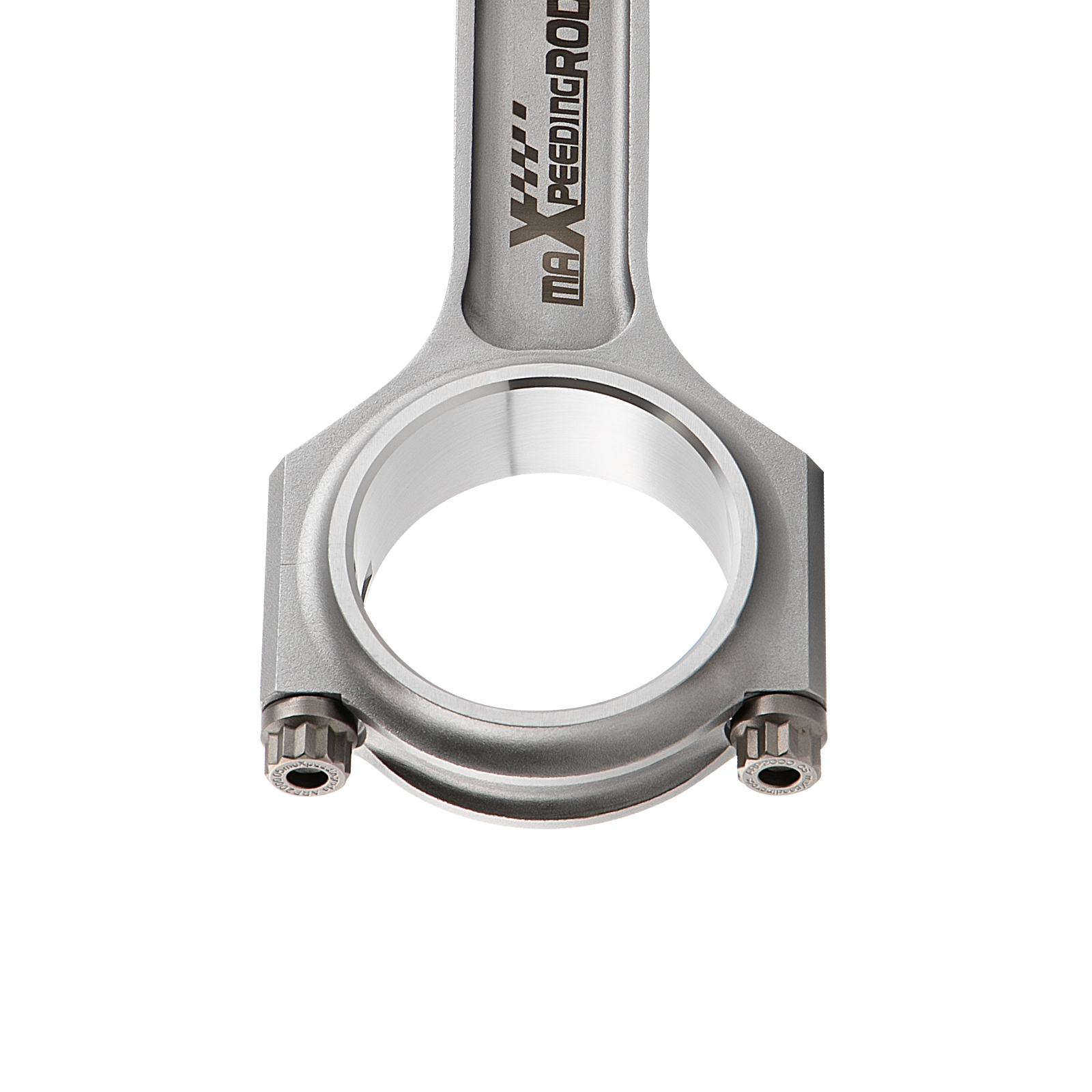

*I-beam Conrods Quantity: 4 Pieces as showing in picture
*Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*10CM

Dimension

Center to center length:138.6mm/5.457"
Big end diameter:51.6mm/2.031"
Small end diameter:20mm/0.787"
Big end width:20mm/0.787"
Small end width:20mm/0.787"

Feature

1.TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；
2.Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3.ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4.I-Beam reduce inertial force withstand the high gas pressure；
5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

Note

*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
