High-Flow Acid and Alkali-Resistant Self-Priming Pump, Corrosion-Resistant Chemical Pump, Laundry Detergent Pump, Acid and Alcohol Pump, Electric Diaphragm Pump

Name: Electric Diaphragm Pump

Model: FL-550

Power: 400W

Voltage: 220V

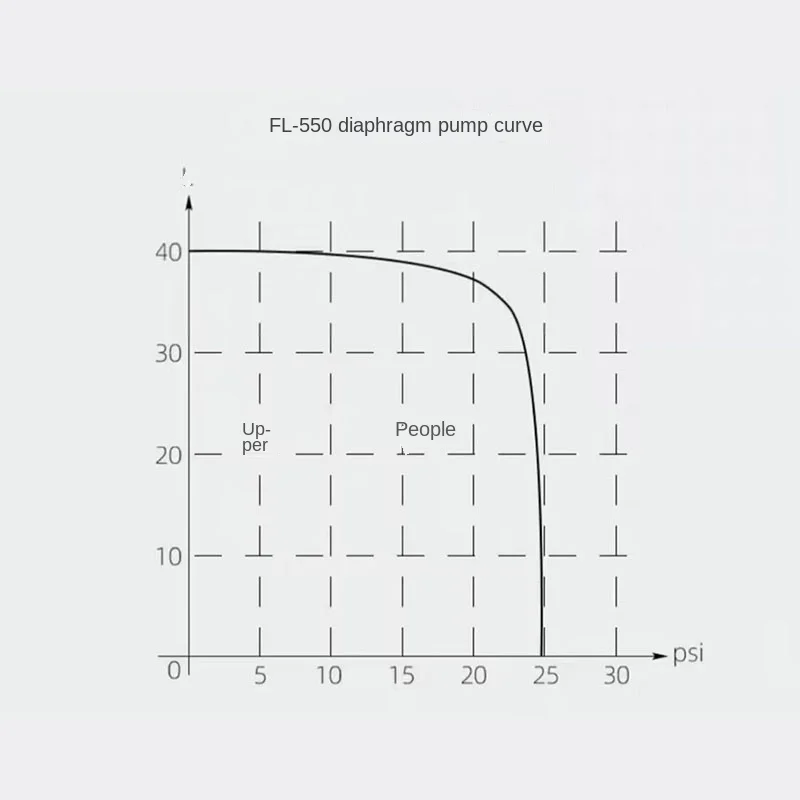

Flow Rate: 40 L/min

Pressure: 25 psi / 1.7 bar

Gross Weight: 6.5 kg

Current: 2.0A

Suction Head: 5 meters

Discharge Head: 10 meters

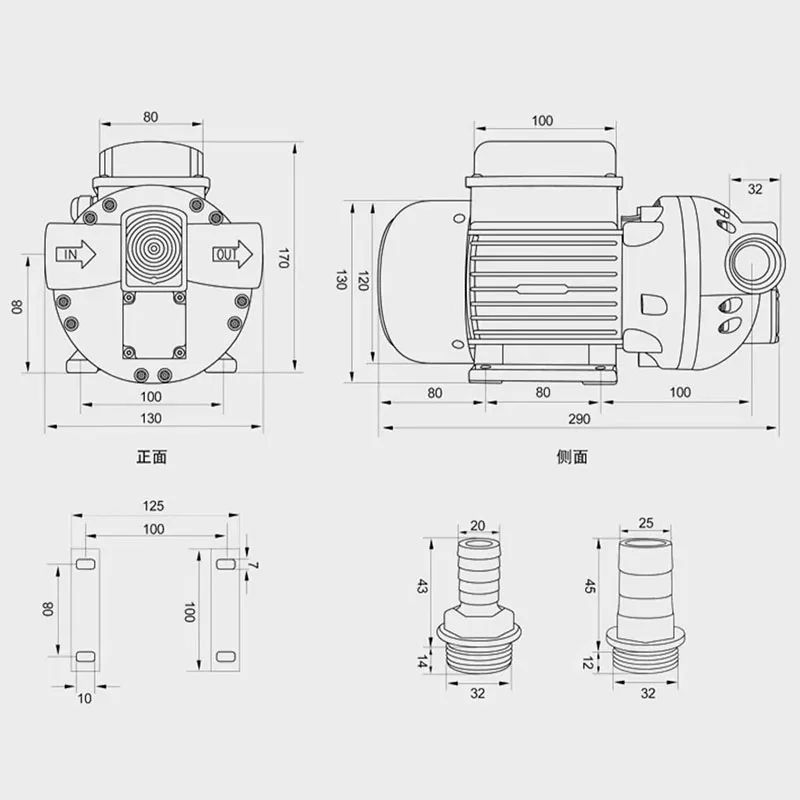

Connection: 20mm/25mm

Inlet/Outlet: 1 inch (32mm)

Pump Models and Compatible Liquids

1. Urea Model: Suitable for pumping automotive urea, clean water, seawater, motor oil, diesel, and other low-acidity/low-alkalinity liquids; withstands temperatures up to 60°C

2. Acid/Alkali-Resistant Model: Suitable for pumping laundry detergent, antifreeze, hydrogen peroxide, oxalic acid, citric acid, and other inorganic weak acids and weak alkalis; withstands temperatures up to 60°C

3. Acrylic Model: Suitable for pumping organic acidic and alkaline liquids such as acrylic acid, glacial acetic acid, acetic acid, and formic acid; withstands temperatures up to 60°C

4. Nitric Acid Model: Suitable for pumping inorganic strong acidic and alkaline liquids such as nitric acid, phosphite, sulfate, and phosphate; withstands temperatures up to 70°C

5. Hydrochloric Acid Model: Suitable for pumping hydrochloric acid, sulfuric acid, phosphoric acid, hydrofluoric acid, caustic soda, and other inorganic strong acids and strong bases; high-temperature resistance up to 70°C

6. Solvent Model: Suitable for pumping methanol, ethanol, corrosion inhibitors, benzene, and other organic solvents; high-temperature resistance up to 60°C

7. Alcohol Model: Suitable for pumping food-grade liquids such as edible alcohol, baijiu, wine, soy sauce, and beverages; withstands temperatures up to 60°C

8. Ultra-High-Resistance to Strong Acids and Alkalis Model: A multi-purpose unit capable of pumping mixed liquids from the Hydrochloric Acid, Nitric Acid, Acid/Alkali-Resistant, Acrylic Acid, and Urea models; in addition to the Solvent Model, it can handle all six liquid types listed above; withstands temperatures up to 70°C

9. PTFE Strong Acid and Alkali Resistant Model (Reinforced): Versatile for pumping mixed organic and inorganic strong acids and alkalis; features a newly upgraded three-layer PTFE valve disc assembly for enhanced protection! Temperature resistance: ≤70°C

II. Safety Precautions

- Strictly prohibited from pumping liquids containing particles

- Except for the Ultra-High-Resistance to Strong Acids and Alkalis model, due to differences in pump head materials, other models must not be used for multiple purposes or to pump liquids of different media
