Application

For Dodge Auto and Light Truck    Dakota 1997-1998    2.5L(153) L4
For Jeep Auto and Light Truck    Cherokee 1991 -1998    2.5L(150) L4
For Jeep Auto and Light Truck    Cherokee 1991 -1998    4.0L(242) L6
For Jeep Auto and Light Truck    Comanche Pickup 1991-1992    2.5L(150) L4
For Jeep Auto and Light Truck    Comanche Pickup 1991 -1992    4.0L(242) L6
For Jeep Auto and Light Truck    Grand Cherokee 1993 - 1998    4.0L(242) L6
For Jeep Auto and Light Truck    TJ Series 1997 -1998    2.5L(150) L4
For Jeep Auto and Light Truck    TJ Series 1997 -1998    4.0L(242) L6
For Jeep Auto and Light Truck    Wrangler 1991 -1998    2.5L(150) L4
For Jeep Auto and Light Truck    Wrangler 1991 -1998    4.0L(242) L6

OE/Part Number
13341N, 56005685, 56005685AB, 59005685
1210003450, 1210003452, 1210003600, AL6509X

Specification

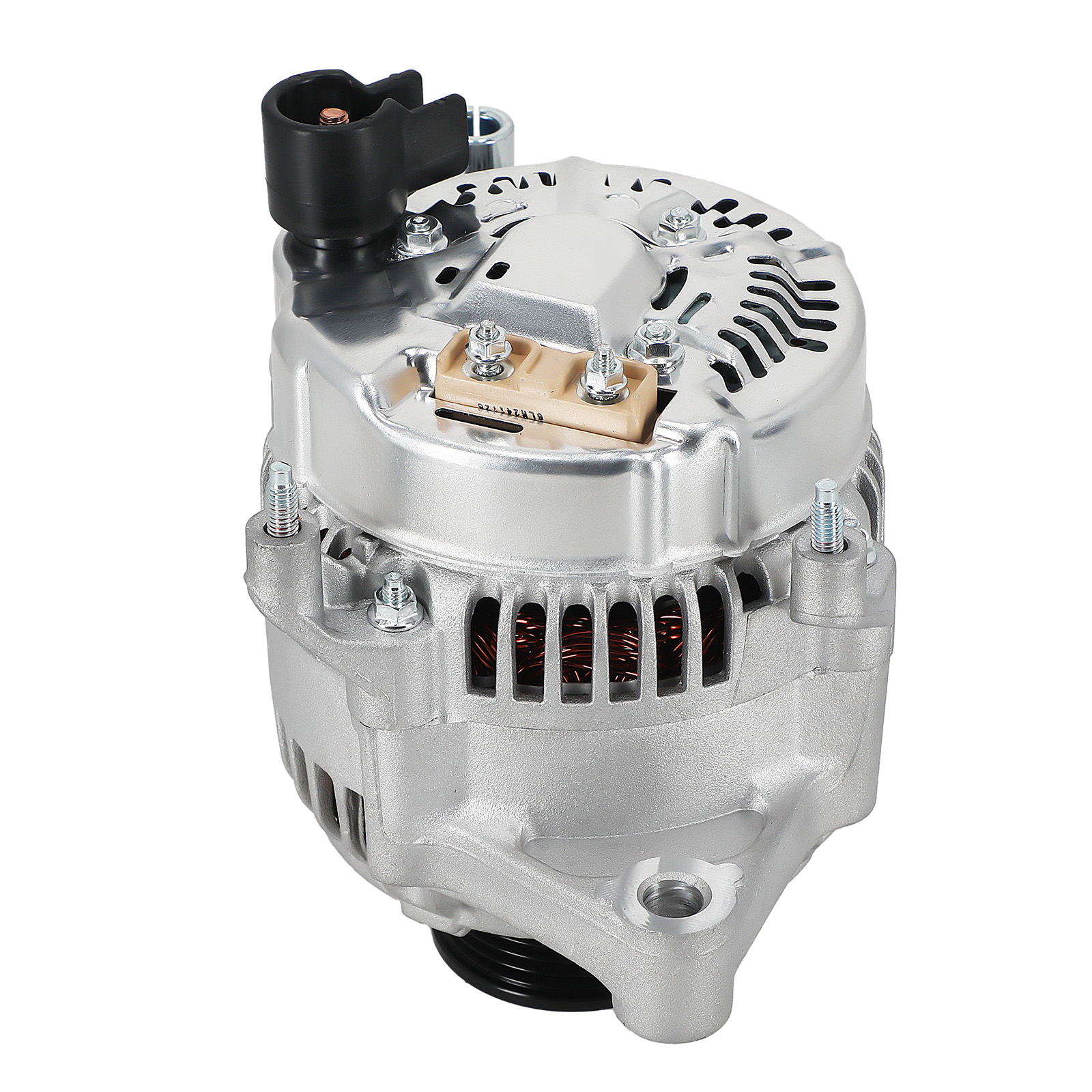

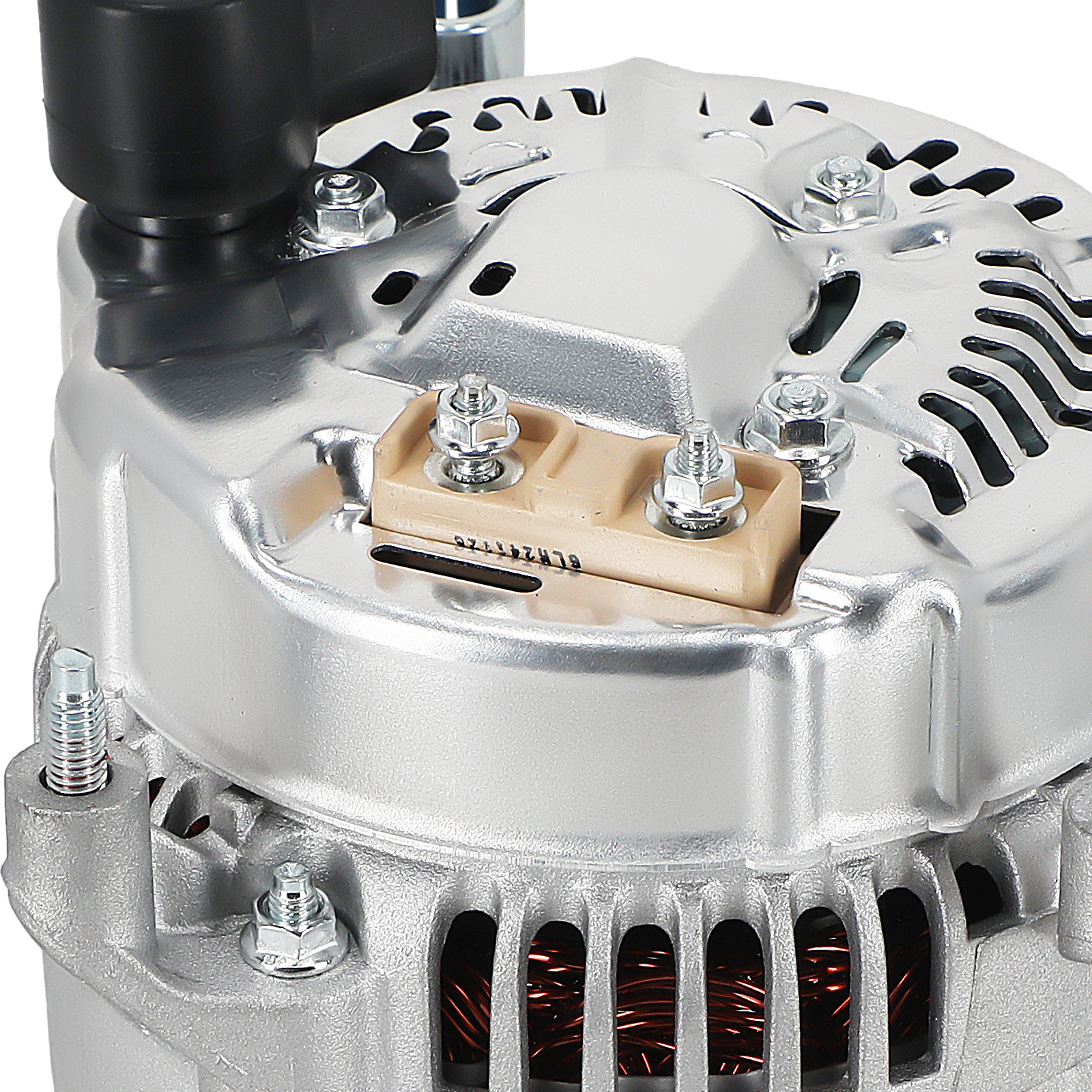

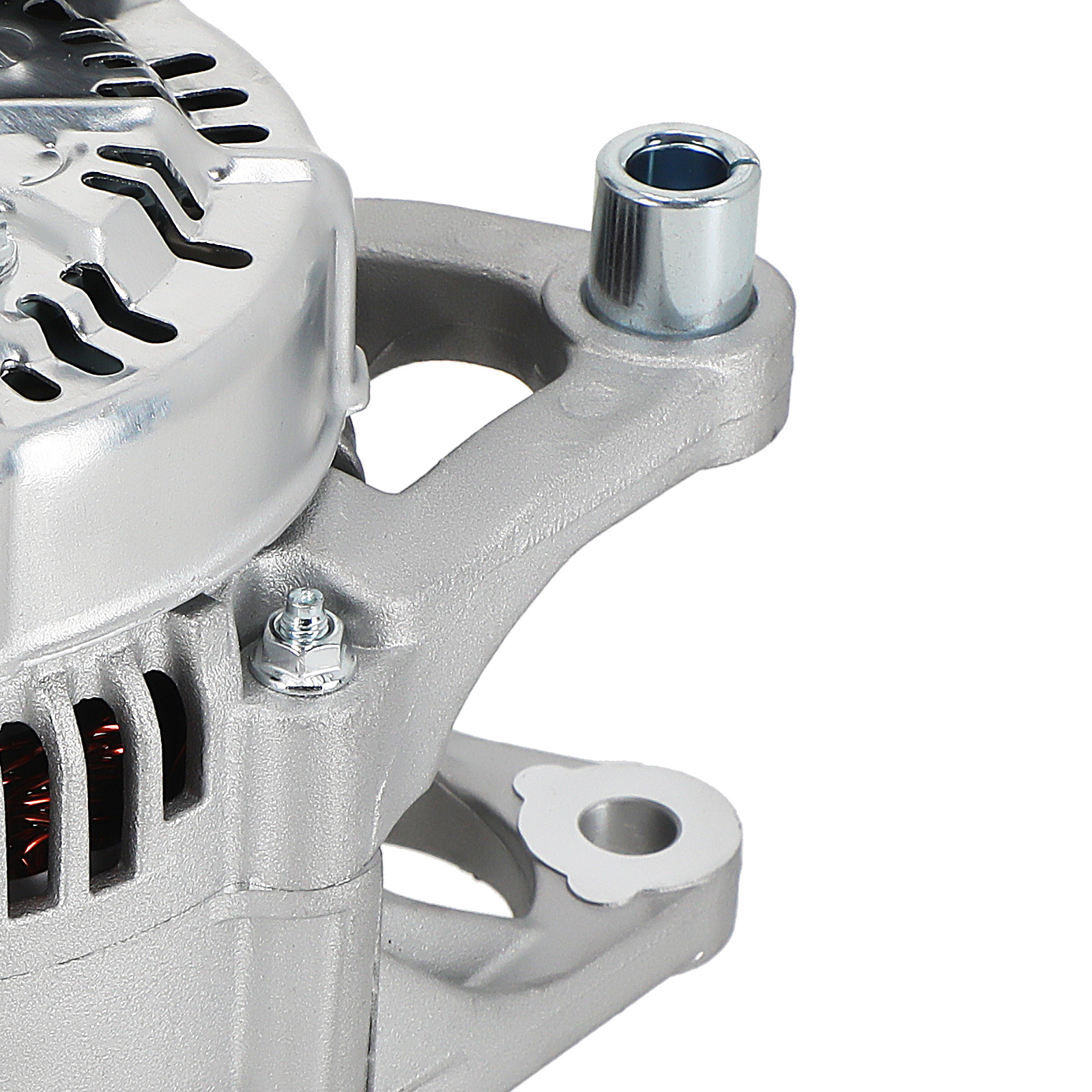

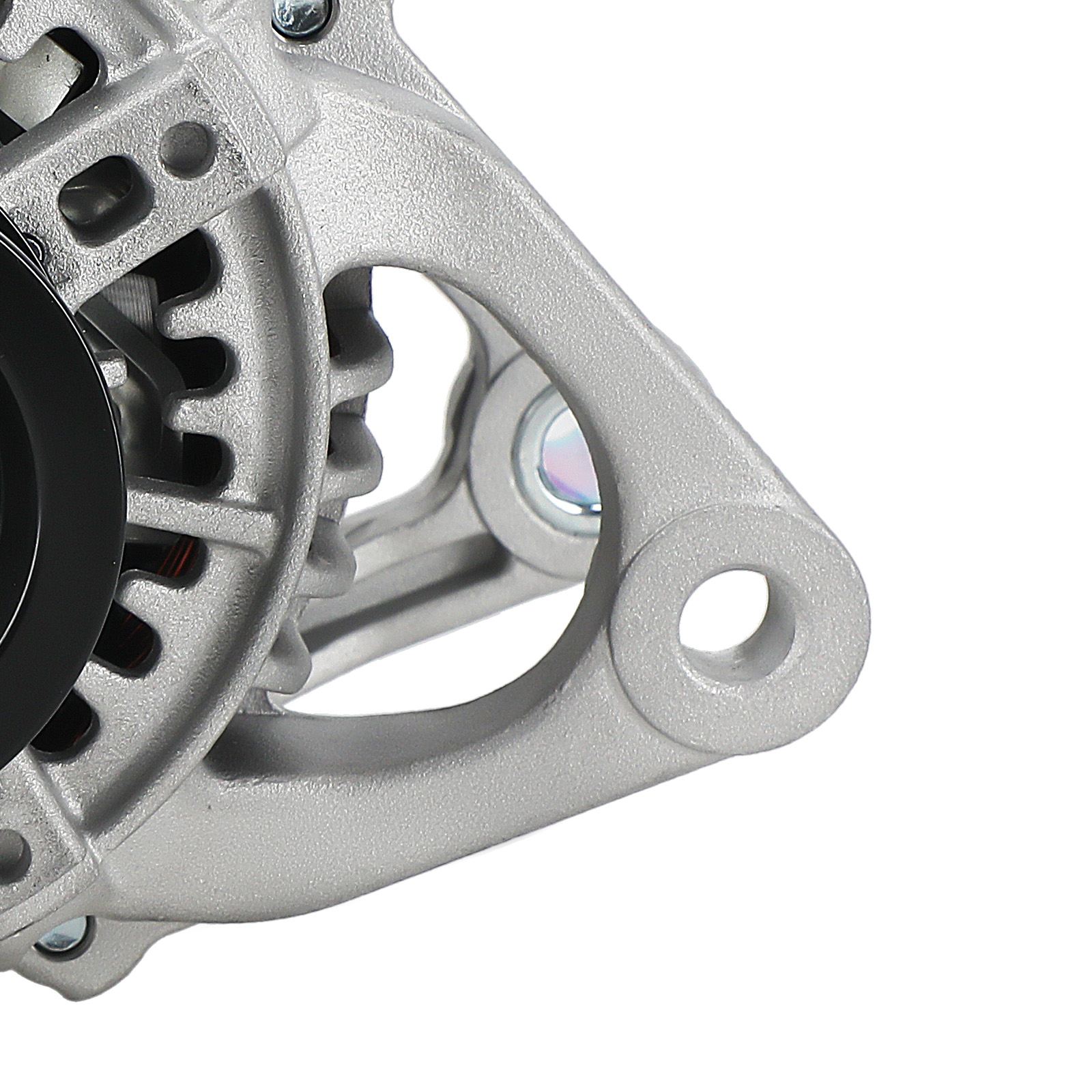

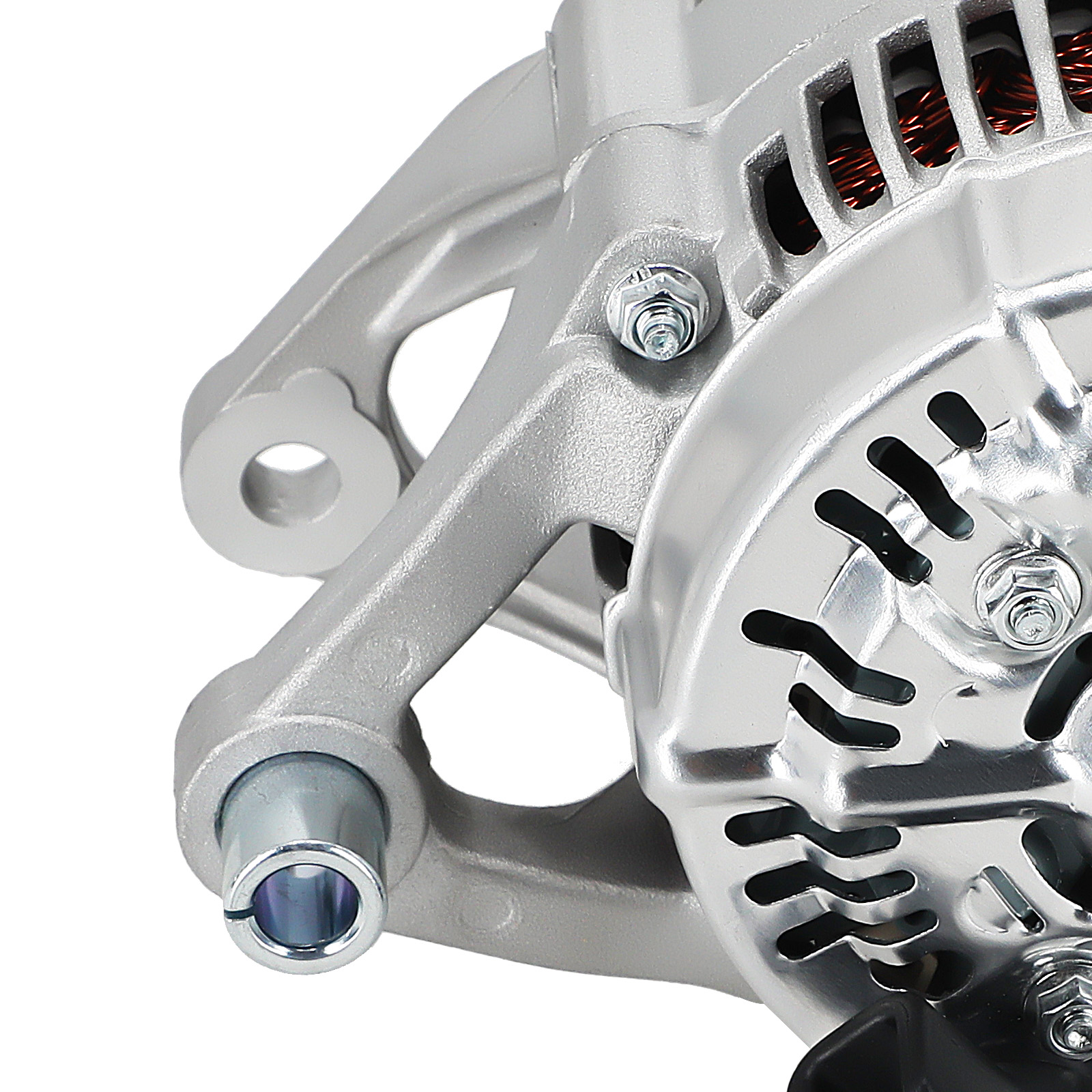

Unit Type: Alternator
Material: Aluminum
Voltage: 12V
Rotation:  CW
Amperage: 90 A
Pulley Class: S6
Number of Grooves: 6-Groove Pulley
Regulator:  IR
Fan Type: IF

Feature
1. MaXpeedingrods Alternator is made from 100% new components,  never Compromise on Used/Refurbished one.Our alternators provide reliable power for every journey—whether on main roads, country lanes, or remote tracks
2. This alternator provides high efficiency and reliability, ensuring stable power supply for your vehicle. It utilizes modern design and manufacturing technologies to deliver excellent performance and provide reliable power for various electrical equipment and charging systems.
3. The robust and precision CNC machined design to reduce friction, vibration and noise, reducing the need for frequent replacements. Rotors and stators are calibrated and then sealed with secondary insulating coating to help prevent shorts.
4. Built to strict quality control standards 100% factory tested, including load tests, voltage regulation, cycling tests, and heat resistance tests. Engineered with premium brushes and fault-resistant parts for significantly longer-lasting alternators.

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are for compatibility reference only.
