Air Suspension Compressor Pump Air Ride Compressor Pump Replace for 1643201204

Technical Specifications

Condition	New
Placement on Vehicle	Front Rear Left Right
Quantity	1x Air Suspension Compressor Pump (with Air Dryer)
Warranty	2 Years Warranty for Any Manufacture Defect
Compression Range	203-246 Psi / 13.8-16.9 Bar

Amperage	35 A
Voltage	DC 13 volts
Product Dimensions	138.37.9 inches
Item Weight	9.72 lbs

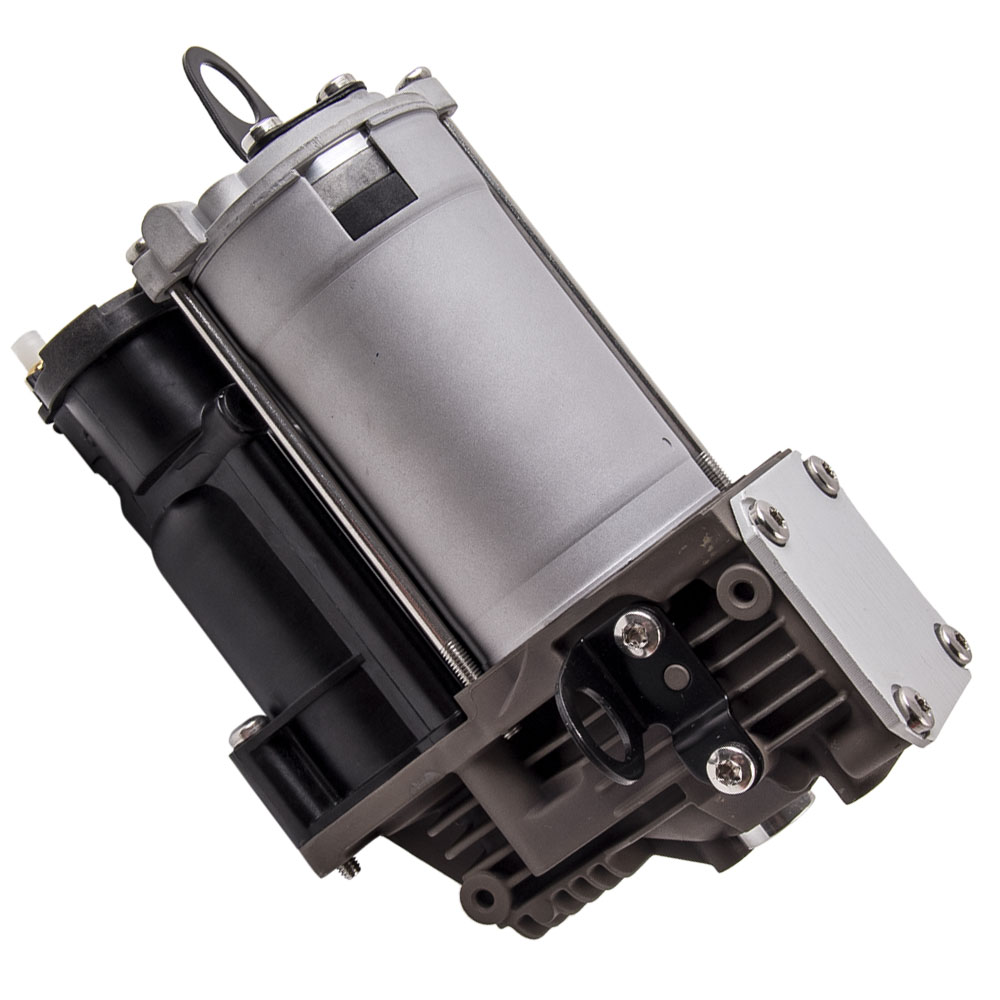

Air Suspension Compressor Pump For Mercedes-Benz M GL Class W164 X164 1643200304

Application

2007-09 for Mercedes Benz GL320

2010-12 for Mercedes Benz GL350

2007-12 for Mercedes Benz GL450

2008-12 for Mercedes Benz GL550

2007-09 for Mercedes Benz ML320

2006-11 for Mercedes Benz ML350

2010-11 for Mercedes Benz ML450

2006-07 for Mercedes Benz ML500

2008-11 for Mercedes Benz ML550

2007-09 for Mercedes Benz ML63 AMG

Platform:

GL & ML- Class W164 X164

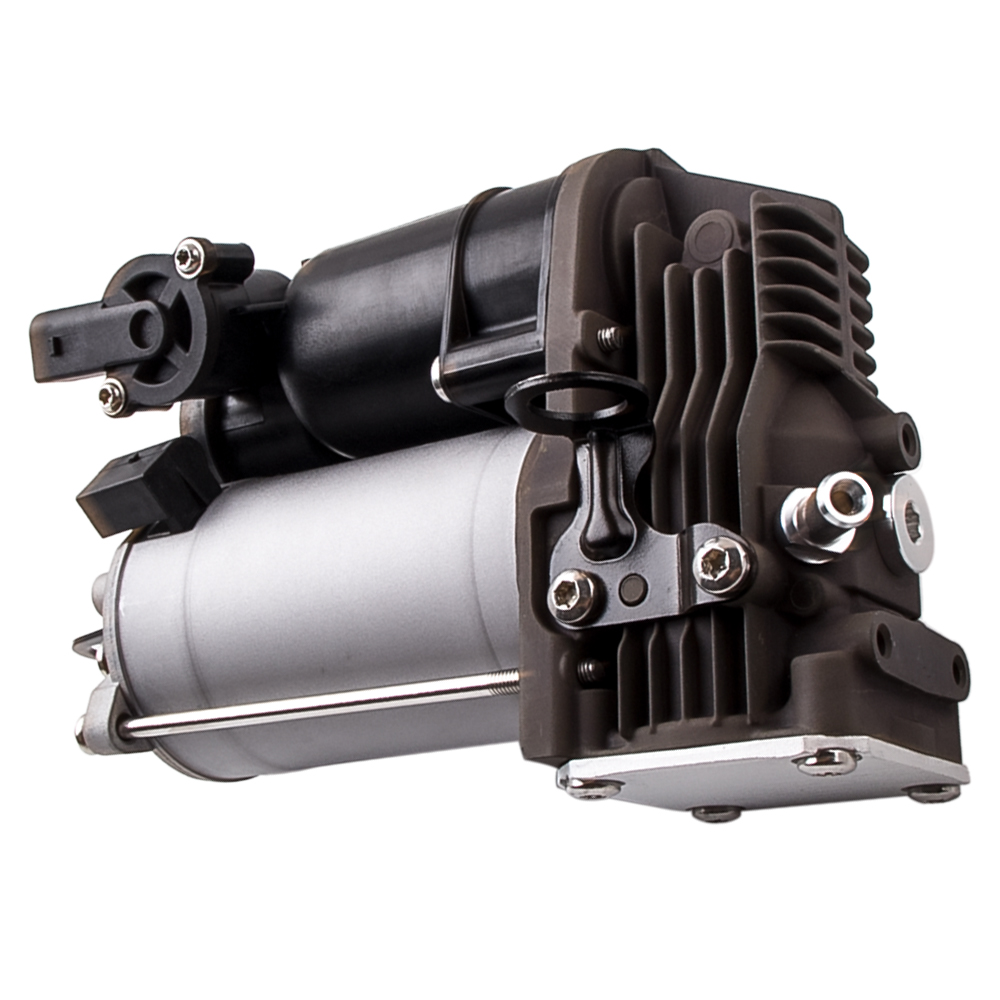

Air Suspension Compressor Pump For Mercedes Benz GL450 ML350 X164 2008-2011

Reference OEM Number

1643201204 / 164 320 12 04 / 164 320 1204

1643200304 / 164 320 03 04 / 164 320 0304

1643200504 / 164 320 05 04 / 164 320 0504

1643200904 / 164 320 09 04 / 164 320 0904

1643200204 / 164 320 02 04 / 164 320 0204

1643201104 / 164 320 11 04 / 164 320 1104

1643200004 / 164 320 00 04 / 164 320 0004

164320120480 / 164 320 12 04 80 / 164 320 1204 80

164320050480 / 164 320 05 04 80 / 164 320 0504 80

164320090480 / 164 320 09 04 80 / 164 320 0904 80

A1643201004

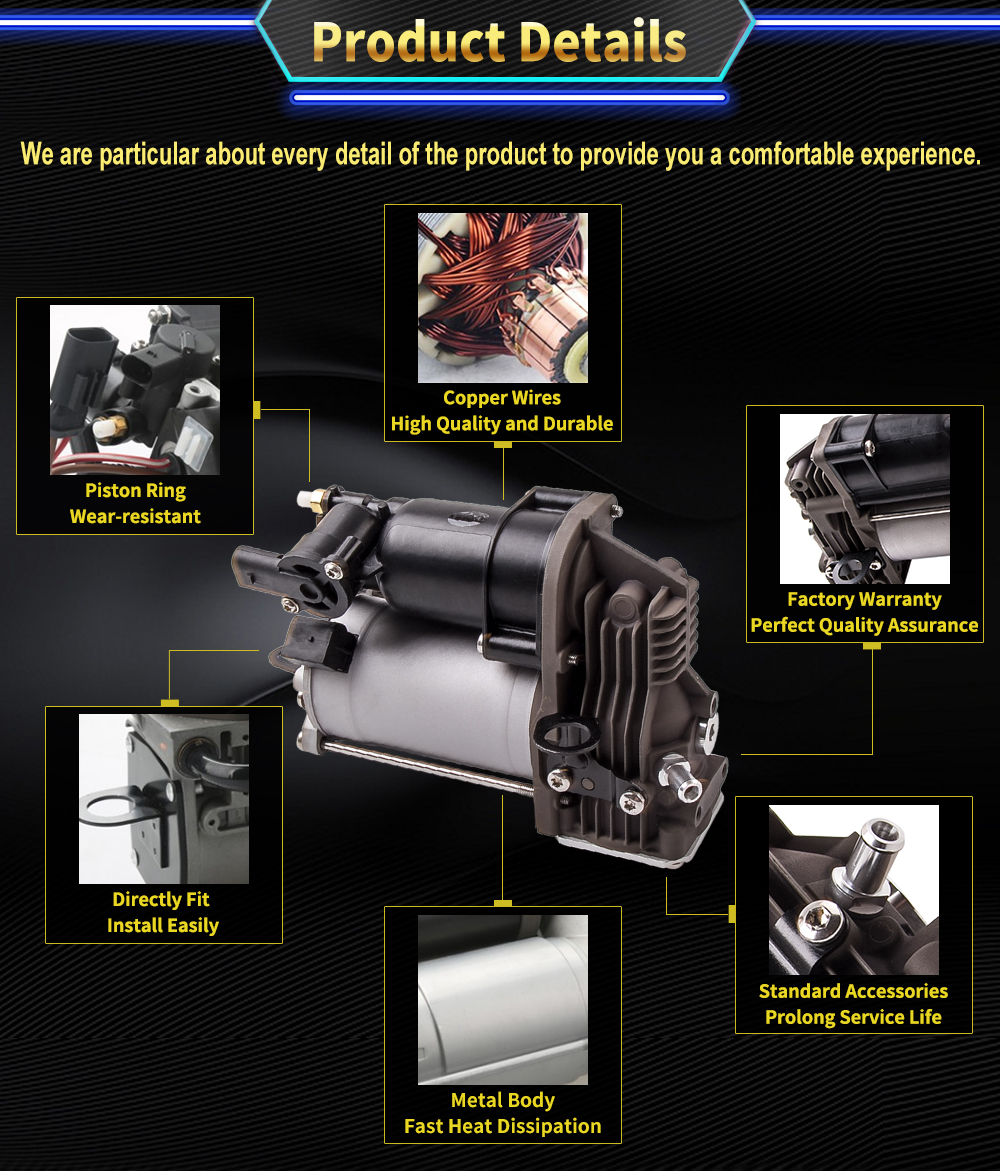

Air Ride Suspension Compressor Pump for Mercedes Benz 1643201204 1643200304

Feature

● Plug and play.

● 100% fully tested.

● Shipping immediately.

● Designed for a comfortable compressor and is of high quality.

● High-quality steel materials for high resilience and long service life.

● Replaces the car's original compressor,Original OE quality.

● Long-term tested (300h).

● Suitable for operation at an ambient temperature of -30°C to 80°C.

● IP protection class: IPX4

Before buying a compressor, please note the following :

1. The main reason a compressor fails is because there is a leak in the system.

2. This causes the compressor to run too long. This leads to the "burn out" of the compressor.

3. The most common cause of a leak in the system is an old, leaking air spring / strut.

4. The compressor guarantee is void if this error persists.

Notice

1. These compressor are aftermarket ones. They will replace the original air compressor. Please double confim the compatibility as well as the OEM number before purchasing.
2. Instruction is not included. Professional installation is recommended.
3. Contact us Please for whatever we can help.
4. To ensure that the new compressor works reliably, a new relay must be used before the compressor is installed.
