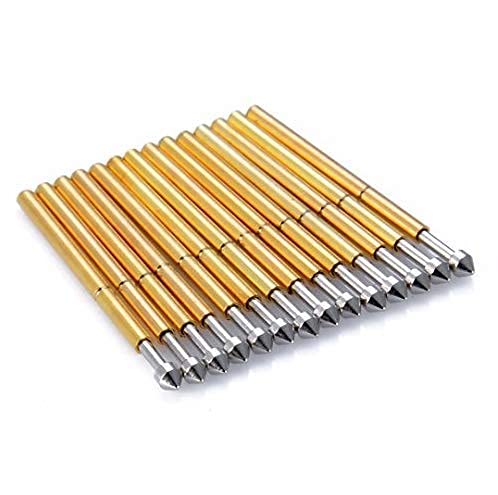

MEETOOT 100pcs P75-E2 Spring Test Probe Pogo Pin P75-E2, Gold + Silver

Product Details

• Type: 100pcs P75-E2 Spring Test Probe, E type conical head. Great replacement probes to extend the life of your test station.
• Specification: Head Diameter 1.3mm, Tube Diameter 1.02mm, Shank Diameter 0.74mm, Length 16.5mm, Drill Size: 1.4mm, Minimum Test Distance 1.91mm, Full Stroke 2.50mm, Spring Pressure 100g, Current 3A, Resistance 50m Ohm
• Made of high quality material, heat treated beryllium copper plunger, gold plated phosphor bronze barrel and gold plated stainless steel wire spring, good contact and durable to use.
• Necessary parts for PCB conductive testing to access components on printed circuit assemblies, and test stability and durability.
• Widely used for testing through-hole components, gold fingers(edge connectors) PCB and welding pads.

Specification:Type: Spring Test Probe Pogo PinModel: P75-E2Probe Head Diameter: 1.3mmProbe Tube Diameter: 1.02mmProbe Shank Diameter: 0.74mmProbe Length: 16.5mmProbe Sheath Diameter: 1.32mmDrill Size: 1.4mmMinimum Test Distance: 1.91mmFull Stroke: 2.50mmSpring Pressure: 100gCurrent: 3AResistance: 50m OhmColor: Gold + SilverPackage Includes:100 x Spring Test Probe Pogo Pin
