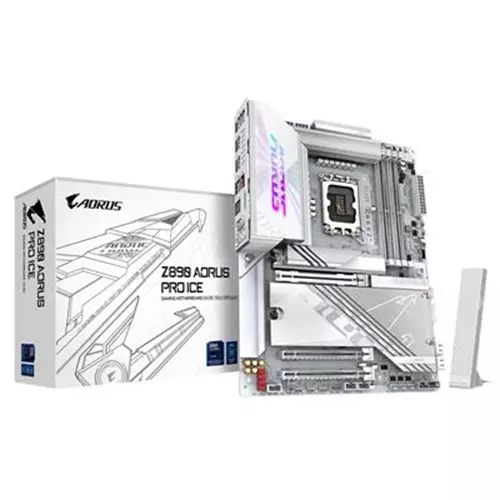

GIGABYTE Z890 AORUS PRO ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs 16+1+2 phases VRM up to 9500MHz DDR5 (OC) 1xPCIe 5.0 + 4xPCIe 4.0 Wi-Fi 7 5GbE LAN Thunderbolt 4

---

GIGABYTE Z890 AORUS PRO ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs 16+1+2 phases VRM up to 9500MHz DDR5 (OC) 1xPCIe 5.0 + 4xPCIe 4.0 Wi-Fi 7 5GbE LAN Thunderbolt 4 Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2) LGA

• Digital 16+1+2+1 Phases 90A SPS VRM with Tantalum Polymer Capacitor
• Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
• PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
• Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
• Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS AERO and GIGABYTE. Featuring innovative designs and advanced features these boards offer exceptional performance and reliability. Whether you're a gamer content creator or professional our series cater to your needs ensuring uncompromising quality and cutting-edge

Feature	Value
Brand	Gigabyte
Manufacturer Product Type	Gigabyte Motherboards
Manufacturer Product Type	Intel Motherboards
Product Type	Motherboards
Form Factor	ATX Motherboards
Form Factor	Standard ATX
Product Family	Gigabyte AORUS
Collection Model	Gigabyte Z890 AORUS PRO ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs 16+1+2 phases
Battery Type	CR2032
Video Inputs	DisplayPort
Motherboard chipset	Intel Z890
Year	2024
Bluetooth	V5.4
Connectivity	Wireless
MPN	Z890 AORUS PRO ICE
Wireless Technology	Intel Wi-Fi 7 BE200802.11a b g n ac ax be supporting 2.4/5/6 GHz carrier frequency bands
Country of origin	China
VGA (D-Sub) ports quantity	0
Bluetooth	Yes
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
DirectX version	12.0
Ethernet interface type	5 Gigabit Ethernet
Product colour	White
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 2.0 ports quantity	4
Ethernet LAN	Yes
DisplayPorts quantity	2
Number of storage drives supported	4
HDMI ports quantity	1
Motherboard form factor	ATX
On-board graphics card	No
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Processor socket	LGA 1851 (Socket V1)
Component for	PC
Motherboard chipset family	Intel
24-pin ATX Power	1
8-pin ATX Power	2
Back Audio Jack(s)	2
Back LAN Port(s)	1
Back Other Port(s)	2 x Antenna Connectors (2T2R)
Back S/PDIF Output Port(s)	1
Back Thunderbolt 4 Port(s)	2
Back USB 2.0 Port(s)	4
Back USB 3.2 Port(s) Type-A Gen 1	4
Back USB 3.2 Port(s) Type-A Gen 2	2
BIOS	1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0
Chipset	Intel Z890 Express
CPU Interface	Socket 1851
CPU Support	www.gigabyte/Motherboard/Z890-AORUS-PRO-ICE/support#support-cpu
Front panel audio connector	1
Gross weight	2.33Kg
HDMI Port(s)	1
Internal Button(s)	1 x Q-Flash Plus1 x Power1 x Reset
Internal Other Port(s)	3 x Addressable RGB Gen2 LED strip headers1 x RGB LED strip header1 x Noise detection header
Keywords	Motherboard1851Z890DDR5WiFIBluetooth
LAN Speed	Realtek 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
M.2 Socket(s)	1 x PCIe Gen 5.0 x43 x PCIe Gen 5.0 x41 x PCIe Gen 4.0 x4/SATA
Max. Memory Support	256GB
Model Number	Z890 AORUS PRO ICE
On-Board Audio	Realtek ALC1220 CODEC
On-Board Video	Processor with integrated graphics is required
Package height	8cm
Package length	34cm
Package Type	NA
Package width	27cm
PCI Express 4.0 x16	2
PCI Express 5.0 x16	1
Product Length	305mm
Product Width	244mm
RAID	Raid 0/1/5/10
RAM Slots	4 x 288-pin
RAM Speeds	Up to DDR5 9500 (O.C.)
RAM Technology	DDR5 (Dual Channel)
S-ATA 6Gb/s Port(s)	4
TPM Header(s)	1
USB 2.0 Header(s)	2
USB 3.2 Header(s) Gen 1	1
USB 3.2 Header(s) Gen 2x2	1
Web Address	www.gigabyte
Wireless NIC	Wi-Fi 7
Number of M.2 (M) slots	5
Products per shipping (inner) case	1 pc(s)
Maximum internal memory supported by processor	256 GB
Package depth	270 mm
Package height	80 mm
Package width	335 mm
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Bundled software	Norton Internet Security (OEM version)LAN bandwidth management software
Lithium weight per battery	0.07 g
RGB LED pin header	Yes
12V power connector	Yes
Battery weight	3 g
Desktop Management Interface (DMI) version	2.7
Height	35 mm
Package weight	2.55 kg
System management BIOS (SMBIOS) version	2.7
TPM connector	Yes
Warranty period	3 year(s)
Weight	2.27 kg
Batteries Included	Yes
Depth	244 mm
Width	305 mm
Memory channels	Dual-channel
Number of EPS power connectors (8-pin)	2
EPS power connector (8-pin)	Yes
Number of battery cells	1
WLAN controller model	Intel Wi-Fi 7 BE200
Supported memory module capacities	1GB 2GB 4GB 8GB 12GB 16GB 24GB 32GB 40GB 48GB 64GB
Supported memory clock speed (max)	9500 MHz
PC health monitoring	Fan Temperature Voltage
ATX Power connector (24-pin)	Yes
Non-ECC	Yes
PCI Express x16 (Gen 5.x) slots	1
PCI Express x16 (Gen 4.x) slots	2
Bluetooth Version	5.4
ECC ompatibility	Non-ECC
Clear CMOS button	Yes
Clear CMOS jumper	Yes
S/PDIF out port	Yes
Microphone in	Yes
ACPI version	5.0
BIOS memory size	256 Mbit
Wi-Fi standards	Wi-Fi 7 (802.11be)
Windows operating systems supported	Windows 11 x64
BIOS type	UEFI AMI
Memory slots type	DIMM
RAID levels	0 1 5 10
Number of HDDs supported	9
Supported storage drive interfaces	M.2 SATA III
Supported storage drive types	HDD & SSD
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Audio output channels	7.1 channels
Audio chip	Realtek ALC1220
Supported processor sockets	LGA 1851
Maximum internal memory	256 GB
mSATA ports quantity	0
Total number of SATA connectors	4
Number of SATA connectors	0
Number of SATA II connectors	0
Number of SATA III connectors	4
USB 3.2 Gen 2x2 connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 2.0 connectors	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt ports quantity	2
RAID support	Yes
DVI-D ports quantity	0
Ethernet LAN (RJ-45) ports	1
Wi-Fi	Yes
Compatible processor series	Intel Core Ultra (Series 2)
Processor manufacturer	Intel

Z890 AORUS PRO ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs 16+1+2 phases VRM up to 9500MHz DDR5 (OC) 1xPCIe 5.0 + 4xPCIe 4.0 Wi-Fi 7 5GbE LAN Thunderbolt 4

Z890 AORUS PRO ICE Motherboard - Supports Intel Core Ultra (Series 2) CPUs 16+1+2 phases VRM up to 9500MHz DDR5 (OC) 1xPCIe 5.0 + 4xPCIe 4.0 Wi-Fi 7 5GbE LAN Thunderbolt 4
