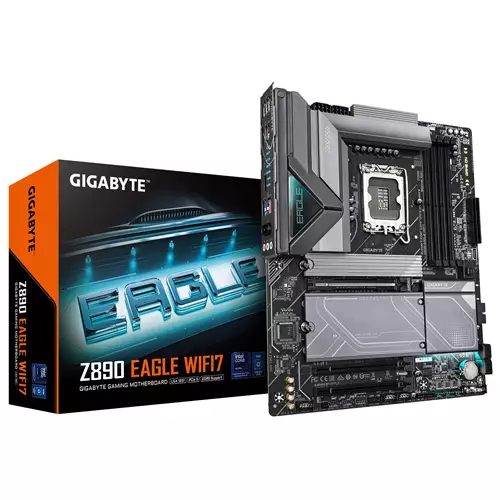

Gigabyte Motherboard Z890 LGA1851 ATX DDR5 Wi-Fi 7 PCIe 5.0 x16 Z890 EAGLE WIFI7
Fast & Free UK Mainland Delivery*
GIGABYTE Z890 EAGLE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs 14+1+2 phases VRM up to 8800MHz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4
GIGABYTE Z890 EAGLE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs 14+1+2 phases VRM up to 8800MHz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4 Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2) LGA 1851 25
- Digital 14+1+2+1 Phases 60A DrMOS VRM with Solid Capacitor
- Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
- PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
- Fully Covered MOSFET Heatsinks/M.2 EZ-Latch Click Design
- 2x2 Wi-Fi 7 with WIFI EZ-Plug Design
Supports Intel Core? Ultra processors (Series 2)
Digital twin 14+1+2 phases VRM solution
D5 Bionic Corsa for Infinite Memory Performance
AORUS AI SNATCH : Auto-Overclocking Software by AI models
AI Perfdrive : Provides optimal and customized BIOS preset profile for users
Premium Compatibility : 4*DDR5 with XMP Memory Module Support
WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
EZ-Latch Plus : PCIe and M.2 slots with
| Feature | Value |
|---|---|
| Brand | Gigabyte |
| Manufacturer Product Type | Gigabyte Motherboards |
| Manufacturer Product Type | Intel Motherboards |
| Product Type | Motherboards |
| Form Factor | ATX Motherboards |
| Product Family | Gigabyte AORUS |
| Collection Model | Gigabyte Z890 EAGLE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs 14+1+2 phases VR |
| Battery Type | CR2032 |
| Video Inputs | DisplayPort |
| Motherboard chipset | Intel Z890 |
| Features | RGB Lighting |
| Year | 2024 |
| Colour of product | Blue |
| Connectivity | Bluetooth |
| Connectivity | Wireless |
| MPN | Z890 EAGLE WIFI7 |
| Product colour | Multicoloured |
| Country of origin | China |
| VGA (D-Sub) ports quantity | 0 |
| Bluetooth | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| DirectX version | 12.0 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN | Yes |
| DisplayPorts quantity | 2 |
| Number of storage drives supported | 4 |
| HDMI ports quantity | 1 |
| Motherboard form factor | ATX |
| On-board graphics card | No |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Processor socket | LGA 1851 (Socket V1) |
| Product colour | Black |
| Connectivity technology | Wireless |
| Component for | PC |
| Motherboard chipset family | Intel |
| Number of M.2 (M) slots | 4 |
| Products per shipping (inner) case | 1 pc(s) |
| Maximum internal memory supported by processor | 256 GB |
| Package weight | 2.02 kg |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package width | 335 mm |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Bundled software | Norton Internet Security (OEM version)LAN bandwidth management software |
| Lithium weight per battery | 0.07 g |
| RGB LED pin header | Yes |
| 12V power connector | Yes |
| Battery weight | 3 g |
| Desktop Management Interface (DMI) version | 2.7 |
| Height | 35 mm |
| Number of HDDs supported | 8 |
| System management BIOS (SMBIOS) version | 2.7 |
| TPM connector | Yes |
| Warranty period | 3 year(s) |
| Batteries Included | Yes |
| Depth | 244 mm |
| Width | 305 mm |
| Memory channels | Dual-channel |
| EPS power connector (8-pin) | Yes |
| Number of battery cells | 1 |
| Supported memory module capacities | 1GB 2GB 4GB 8GB 12GB 16GB 24GB 32GB 40GB 48GB 64GB |
| Supported memory clock speed (max) | 8800 MHz |
| PC health monitoring | Fan Temperature Voltage |
| Supported memory clock speeds | 560058006000620064006600680070007200740076007800790079508000826684008600 MHz |
| ATX Power connector (24-pin) | Yes |
| Non-ECC | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Bluetooth Version | 5.4 |
| ECC ompatibility | Non-ECC |
| PCI Express x16 slots | 1 |
| Clear CMOS button | Yes |
| Clear CMOS jumper | Yes |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| ACPI version | 5.0 |
| BIOS memory size | 256 Mbit |
| WLAN controller model | MediaTek MT7925 |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Windows operating systems supported | Windows 11 x64 |
| BIOS type | UEFI AMI |
| Memory slots type | DIMM |
| RAID levels | 0 1 5 10 |
| Supported storage drive interfaces | M.2 SATA III |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC1220 |
| Supported processor sockets | LGA 1851 |
| Maximum internal memory | 256 GB |
| mSATA ports quantity | 0 |
| Total number of SATA connectors | 4 |
| Number of SATA connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Thunderbolt ports quantity | 2 |
| RAID support | Yes |
| DVI-D ports quantity | 0 |
| Weight | 1.78 kg |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor manufacturer | Intel |
Z890 EAGLE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs 14+1+2 phases VRM up to 8800MHz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4
Z890 EAGLE WIFI7 Motherboard - Supports Intel Core Ultra (Series 2) CPUs 14+1+2 phases VRM up to 8800MHz DDR5 (OC) 1xPCIe 5.0 + 3xPCIe 4.0 Wi-Fi 7 2.5GbE LAN USB 4
