Product View
Product Details
Features:

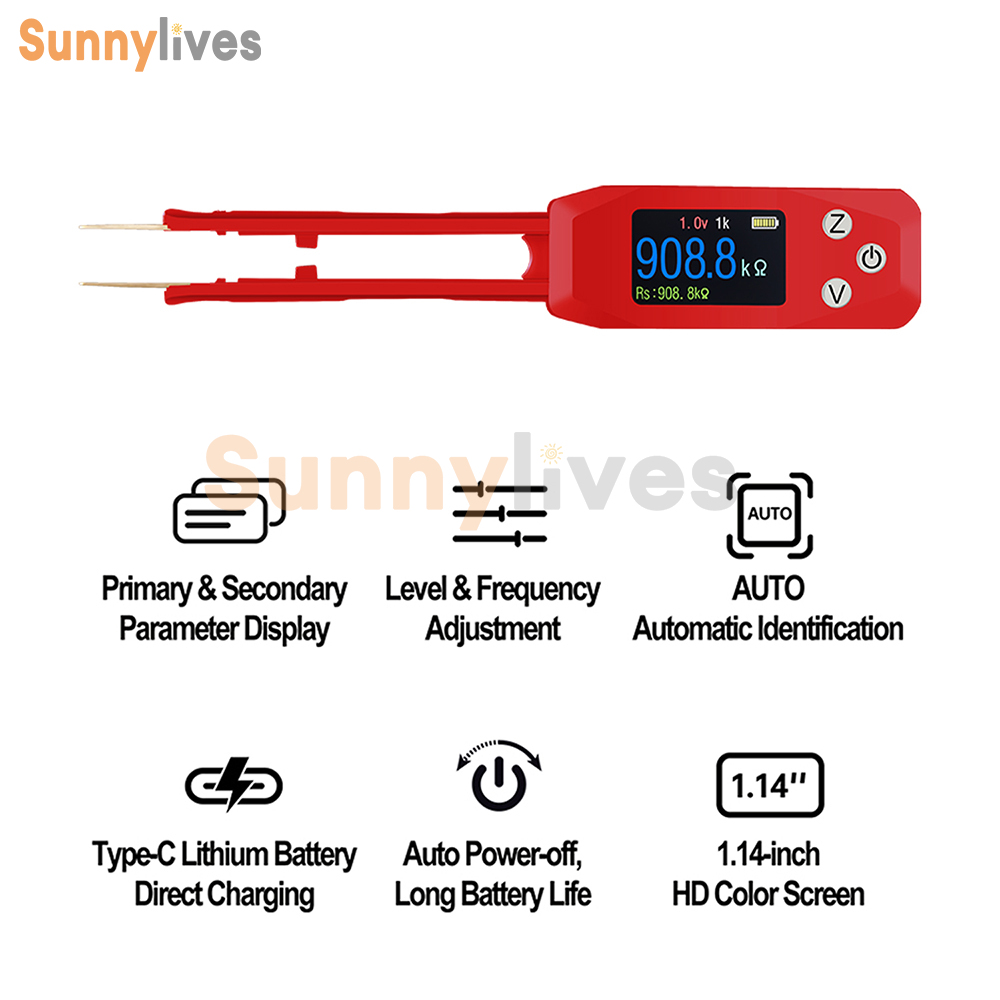

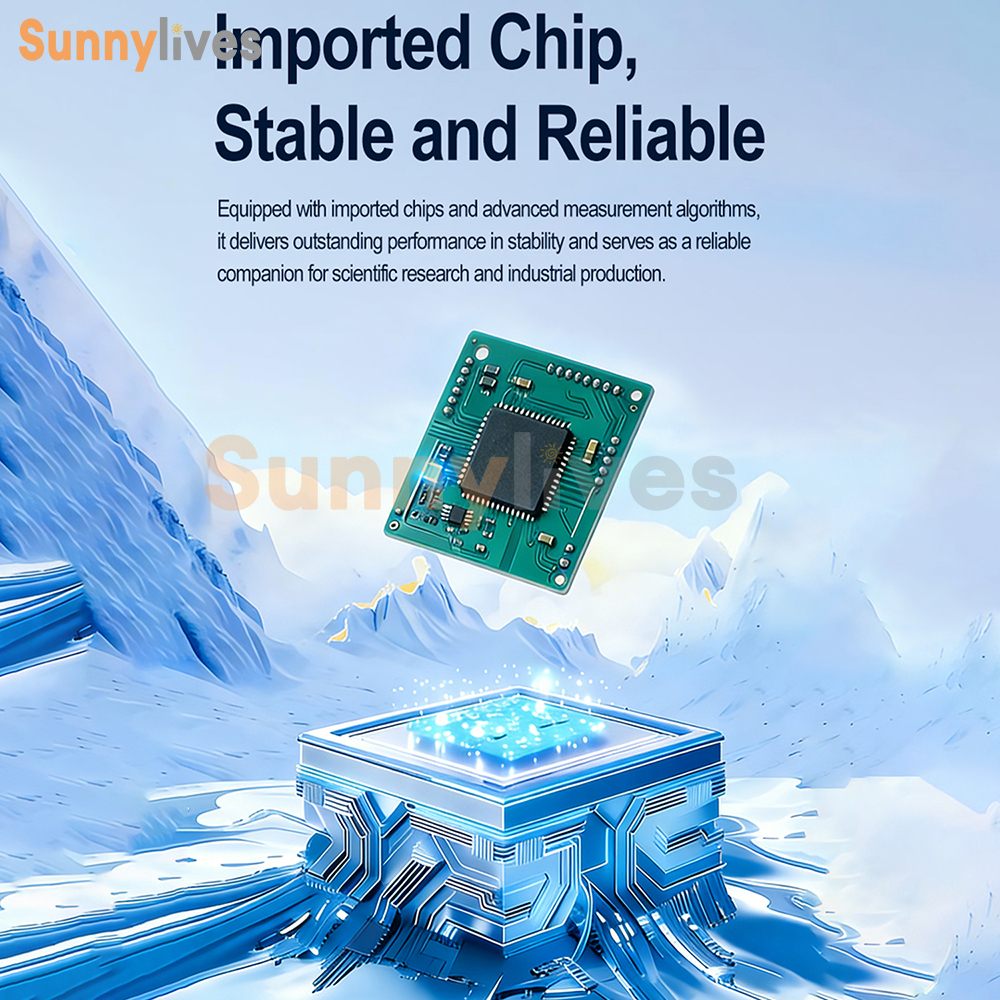

1. High-performance op-amp paired with a 1.14-inch HD color display. Type-C lithium battery direct charging with auto-shutdown for extended battery life.

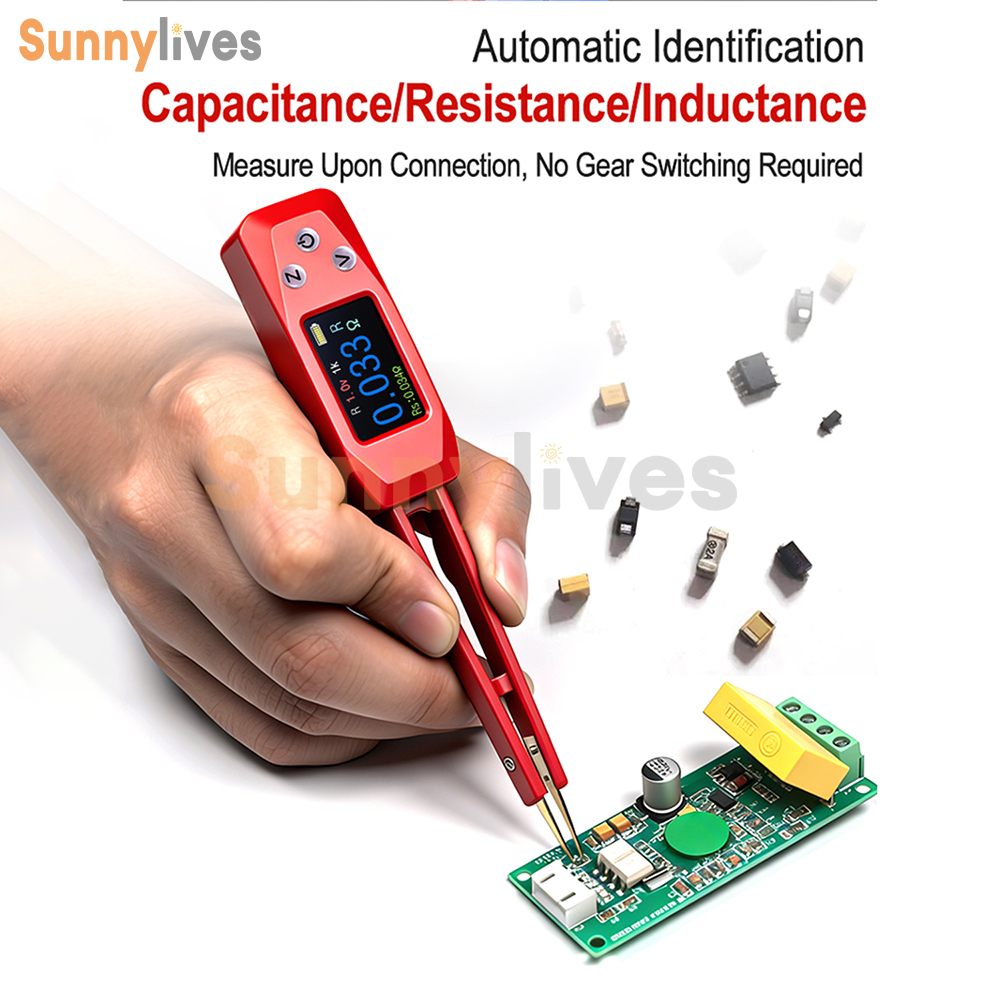

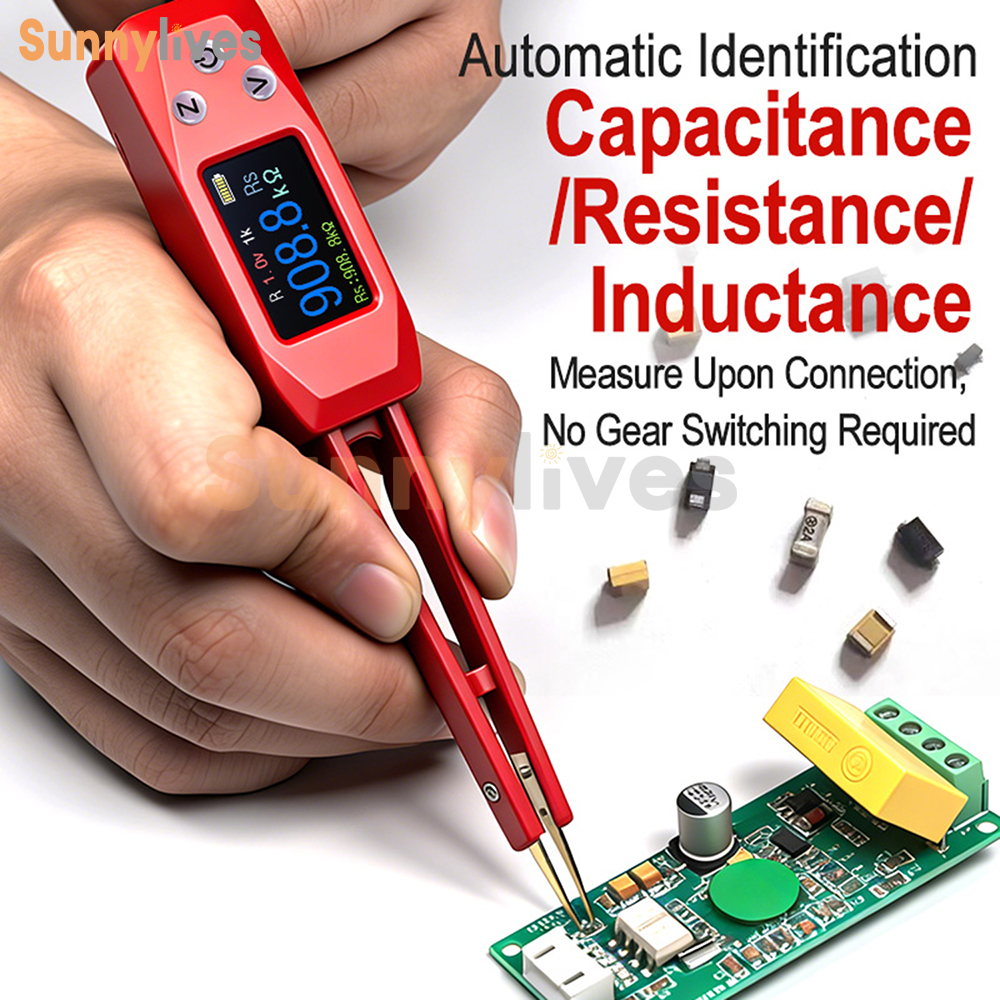

2. Automatic detection and measurement: Plug in capacitors/inductors/resistors for instant measurement. Auto-identification eliminates range switching.

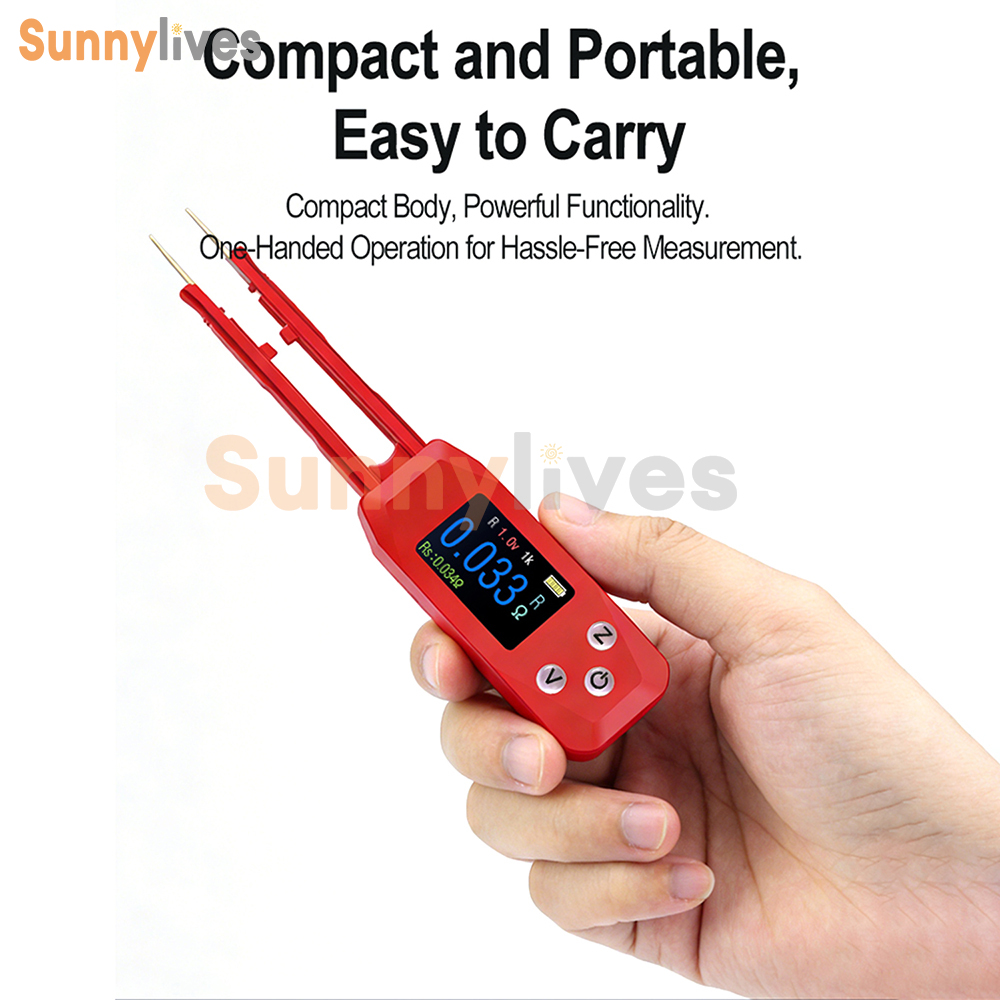

3. Rotatable design with screen tracking: Press Z key to flip display orientation for ambidextrous operation and optimal viewing.

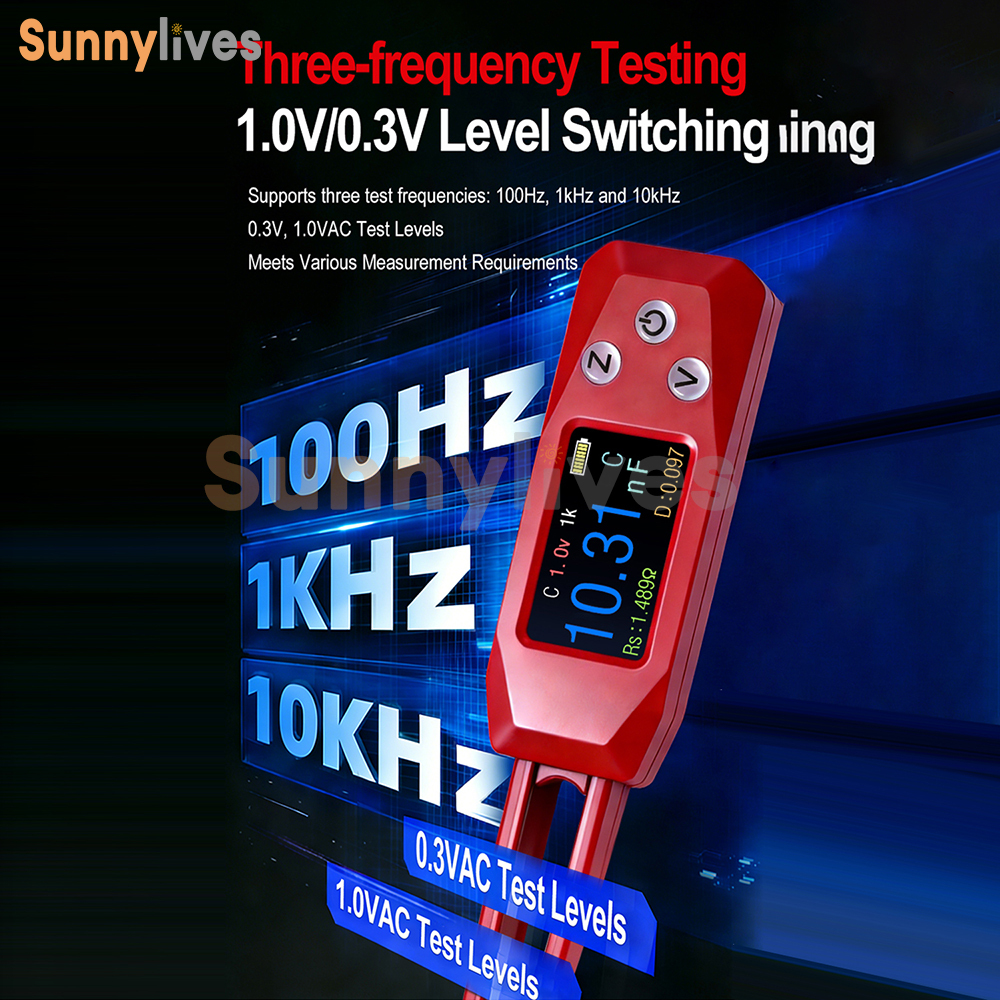

4. Supports three test frequencies (100Hz, 1kHz, 10kHz) and two test levels (0.3V, 1.0VAC) to meet diverse measurement requirements.
5. Applications: Suitable for electronic component R&D/production, PCB repair/testing, laboratory research, and education.
1. High-performance op-amp paired with a 1.14-inch HD color display. Type-C lithium battery direct charging with auto-shutdown for extended battery life.
2. Automatic detection and measurement: Plug in capacitors/inductors/resistors for instant measurement. Auto-identification eliminates range switching.
3. Rotatable design with screen tracking: Press Z key to flip display orientation for ambidextrous operation and optimal viewing.
4. Supports three test frequencies (100Hz, 1kHz, 10kHz) and two test levels (0.3V, 1.0VAC) to meet diverse measurement requirements.
5. Applications: Suitable for electronic component R&D/production, PCB repair/testing, laboratory research, and education.
Function Description:

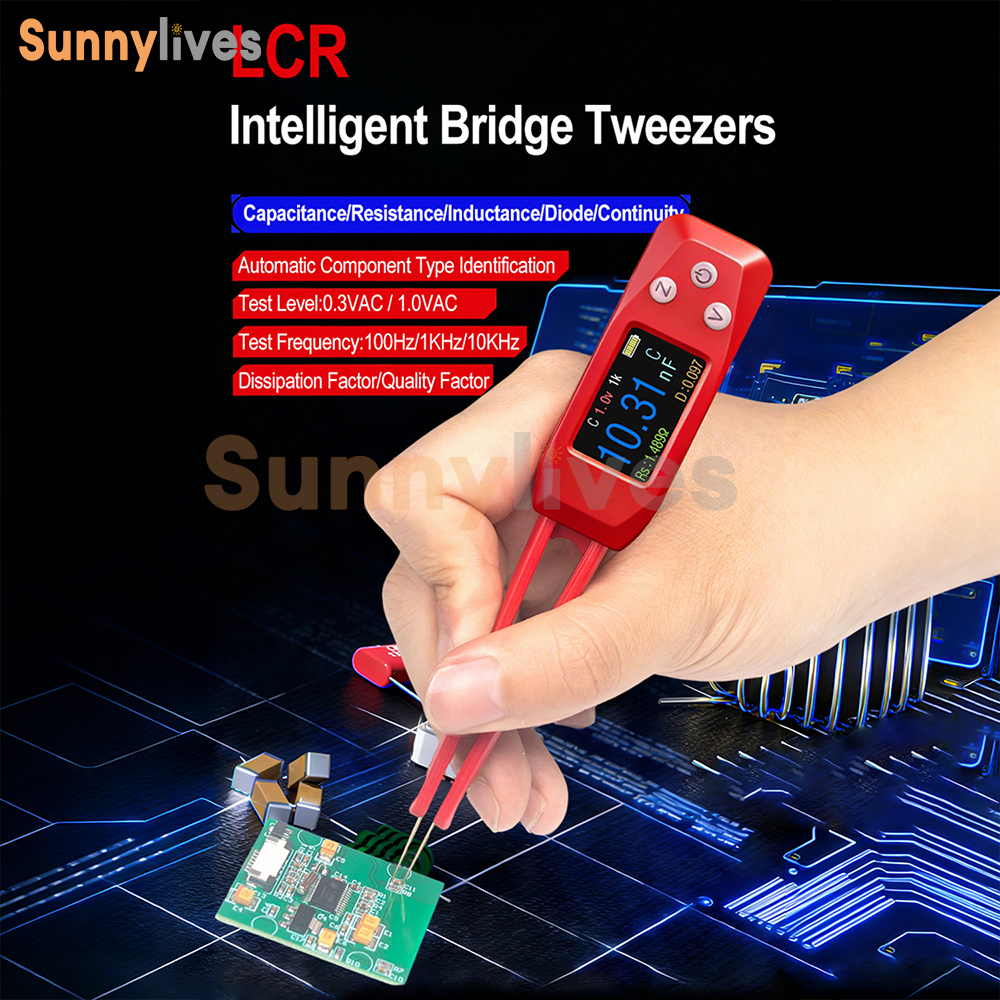

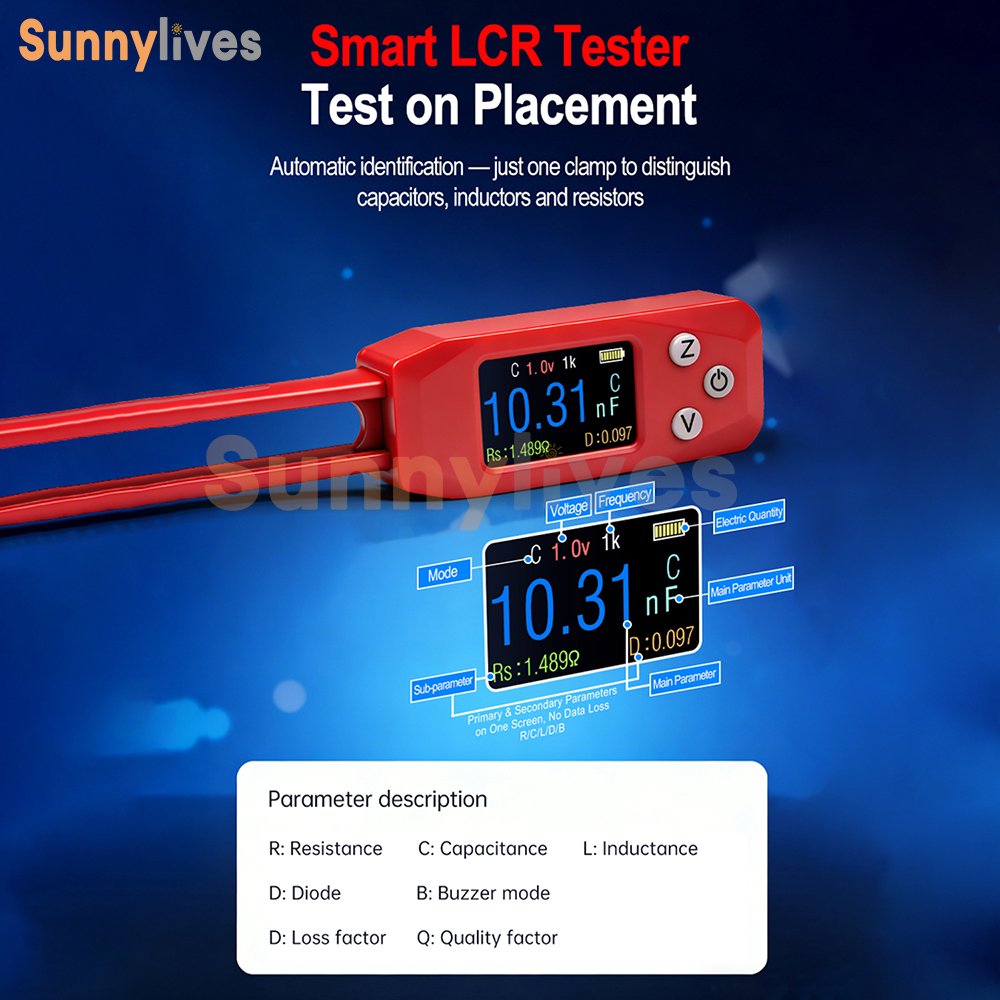

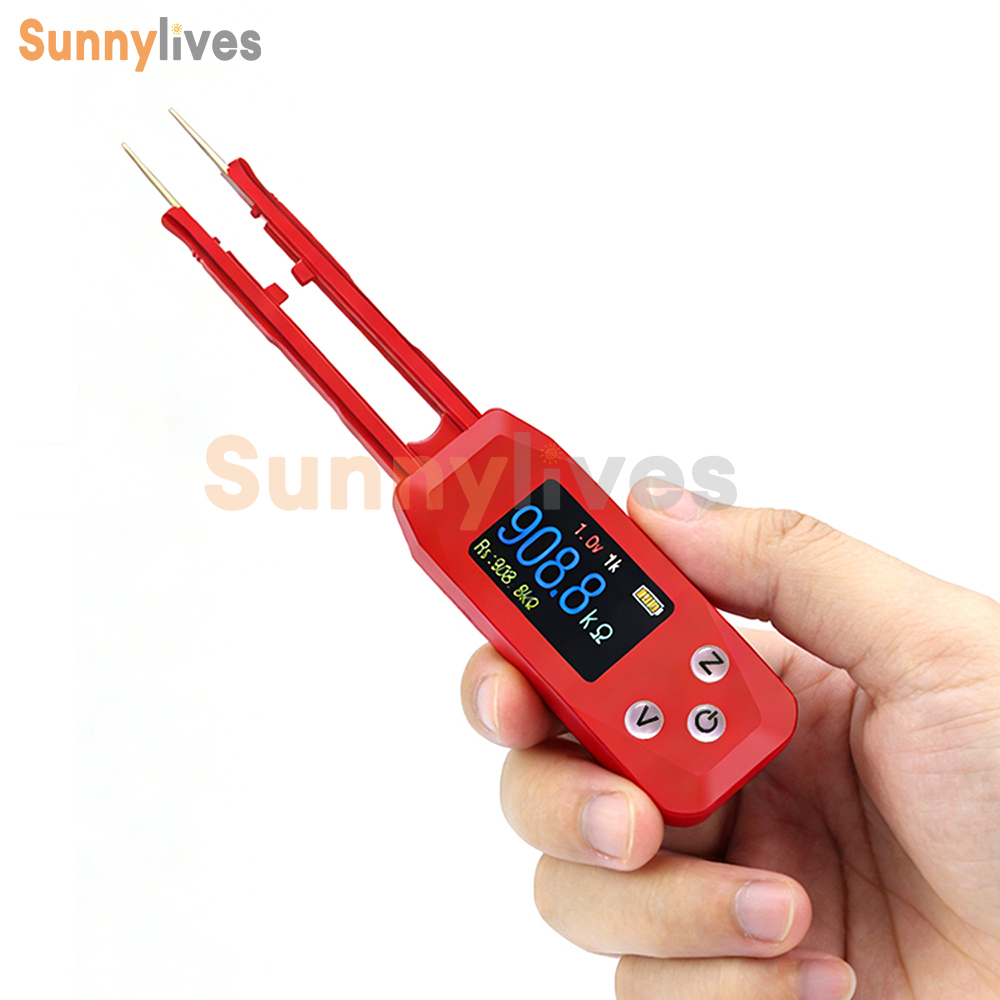

This bridge tester utilizes a high-performance operational amplifier with a full-color display for intuitive operation and precise measurement. Features automatic detection and measurement capabilities with multiple modes selectable. Measures Q factor and D loss factor, offering 100Hz/1kHz/10kHz frequency options and 1.0V or 0.3V level switching to accommodate diverse electronic component testing requirements.
This bridge tester utilizes a high-performance operational amplifier with a full-color display for intuitive operation and precise measurement. Features automatic detection and measurement capabilities with multiple modes selectable. Measures Q factor and D loss factor, offering 100Hz/1kHz/10kHz frequency options and 1.0V or 0.3V level switching to accommodate diverse electronic component testing requirements.

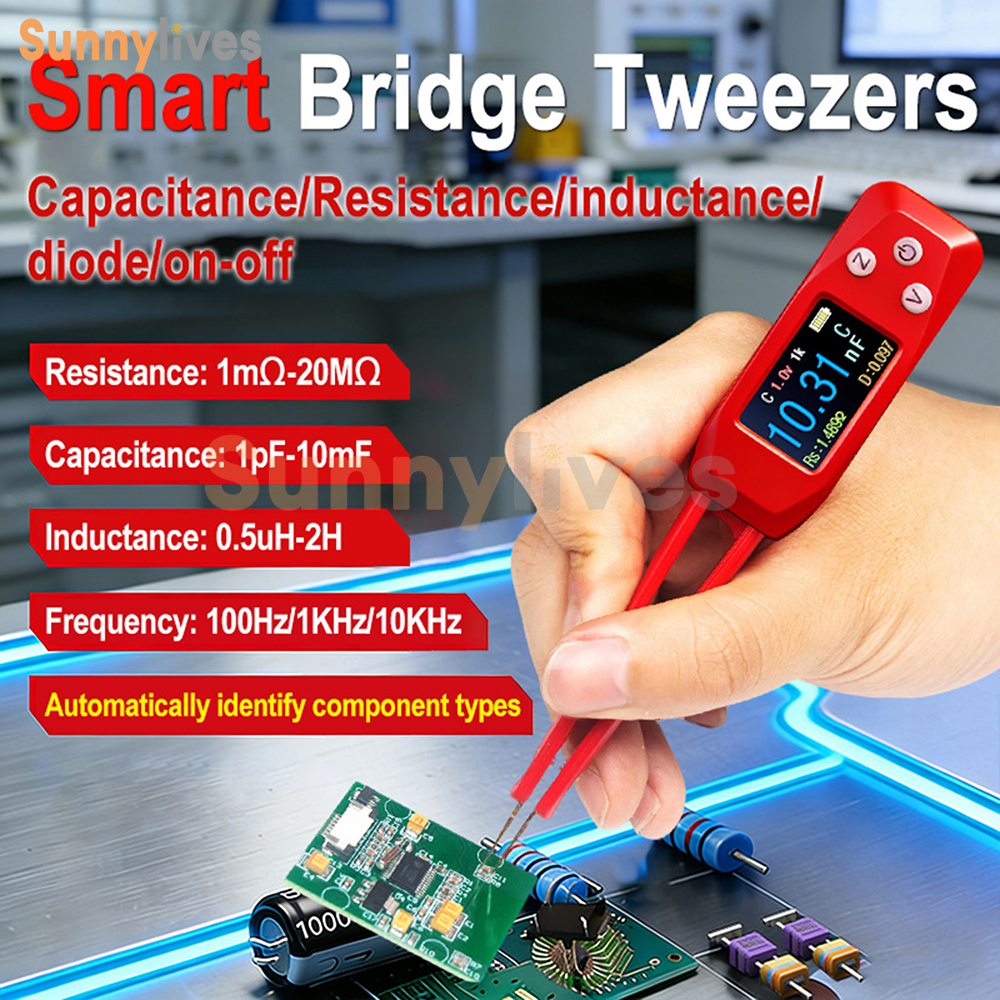

Specifications:
Resistance: 1mΩ–20MΩ
Accuracy: 1%
Capacitance: 1pF–10mF
Accuracy: 5%
Inductance: 0.5uH–2H
Accuracy: 10%

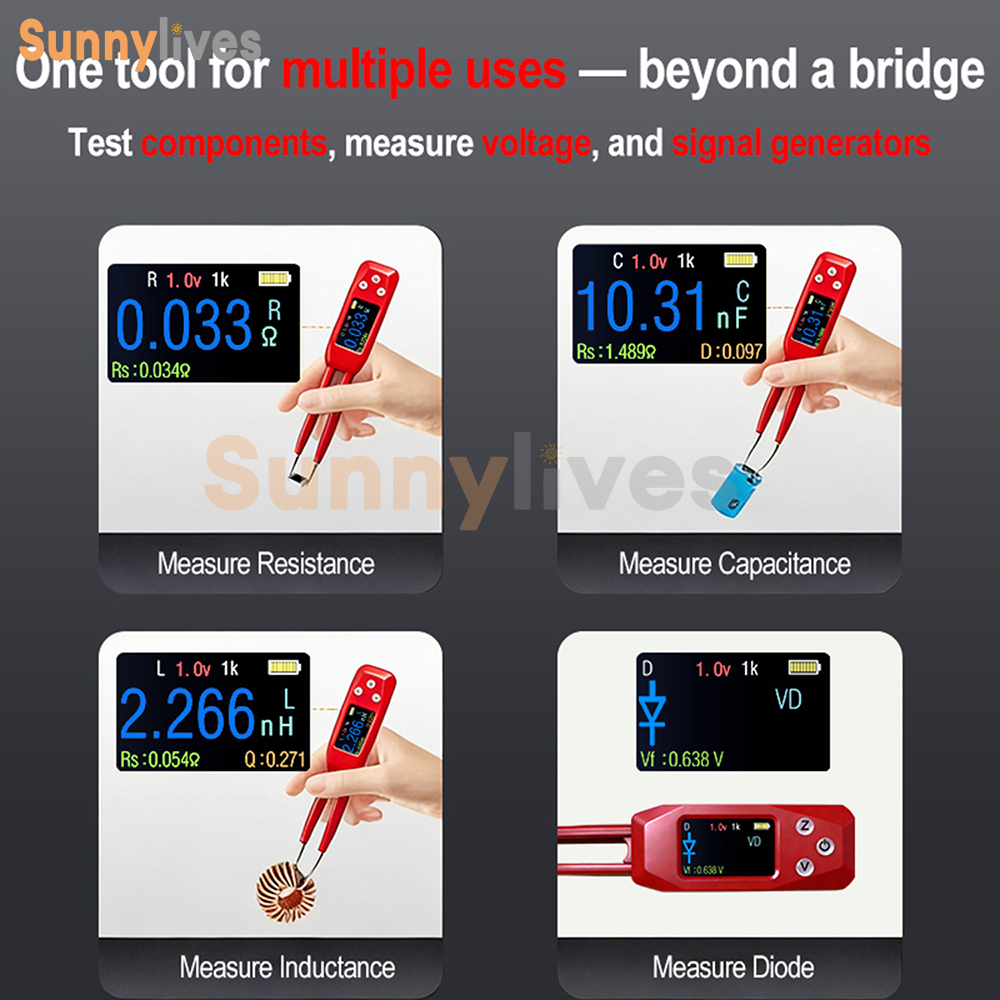

Measurement Types: Resistance (R), Capacitance (C), Inductance (L), Diode (D), Buzzer Test (B)
Measurement Frequencies: 100Hz/1kHz/10kHz
Measurement Level: 0.3V/1.0V
Battery Life: Approx. 6 hours (continuous use)
Charging Time: Approx. 2 hours
Charging Voltage: DC 5V 1A
Battery Capacity: 200mAh
Product Dimensions: 148*25mm
Resistance: 1mΩ–20MΩ
Accuracy: 1%
Capacitance: 1pF–10mF
Accuracy: 5%
Inductance: 0.5uH–2H
Accuracy: 10%
Measurement Types: Resistance (R), Capacitance (C), Inductance (L), Diode (D), Buzzer Test (B)
Measurement Frequencies: 100Hz/1kHz/10kHz
Measurement Level: 0.3V/1.0V
Battery Life: Approx. 6 hours (continuous use)
Charging Time: Approx. 2 hours
Charging Voltage: DC 5V 1A
Battery Capacity: 200mAh
Product Dimensions: 148*25mm
Package Contents:
Tester*1
Tester*1
