AEM 52mm X-Series Gauge Kit Wideband Air/Fuel UEGO & 7BAR Oil/Fuel Pressure

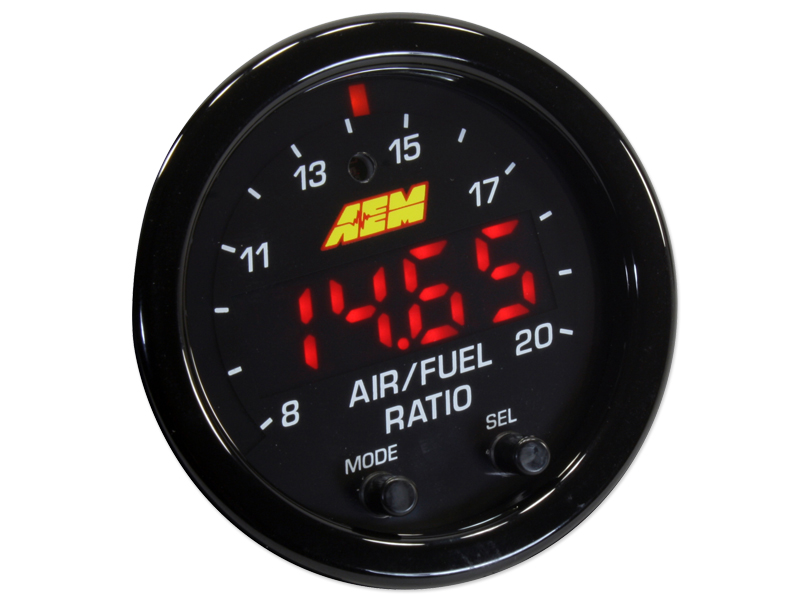

The X-Series Wideband UEGO AFR Sensor Controller Gauge (PN 30-0300) measures 2 1/16th-inch (52mm) in diameter, and features a modern, visually striking faceplate and new seven-segment center display that is 87% larger than the 30-4110 AEM Wideband Gauge’s center display. This creates the perception of a larger overall gauge, but in a common 52mm size for easy mounting. Its slim depth (less than one inch overall) and ultra slim cup depth of .200-inches dramatically increases its application base and potential mounting locations.

X-SERIES WIDEBAND UEGO CONTROLLER FEATURES:

• X-Series Wideband UEGO AFR Controller Gauge were fastest responding wideband air/fuel ratio controllers in an independent test vs. 17 competitor wideband AFR controllers
• Includes Bosch 4.9LSU wideband UEGO sensor
• Factory calibrated resistor does not require free-air calibration, but technology allows for free-air calibration as sensor ages if user desires
• Compatible with vehicle/system voltages up to 16V
• 0-5V & RS232 output for data logging and feedback control, AEMnet (CANbus) for data logging and daisy-chaining multiple controllers up to 16 cylinders
• Can display AFR values in hundredths of %
• 52mm gauge diameter and slim 0.825” gauge depth
• Gauge cup depth only .200” deep!
• Auto dimming feature
• User configurable display via buttons on the gauge face for changing AFR values, Lambda and O2%, and 3- or 4-digit display
• Black bezel and black dual faced faceplate included (gauge only, silver bezel/white gauge option sold separately, PN 30-0300-ACC)
• Locking connectors

AEM’s 30-0301 X-Series 100 PSI/7 BAR Digital Oil/Fuel Pressure gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate oil or fuel pressure readouts in their high performance vehicle.

• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825” overall gauge depth and 0.200” cup depth – mount them virtually anywhere!
• Programmable center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• User selectable standard or metric display (0-100 PSI/0-7 BAR)
• Peak/Recall via gauge face buttons
• User selectable threshold warnings
• Optional silver bezel and faceplate accessory kits available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
