TECHTONGDA

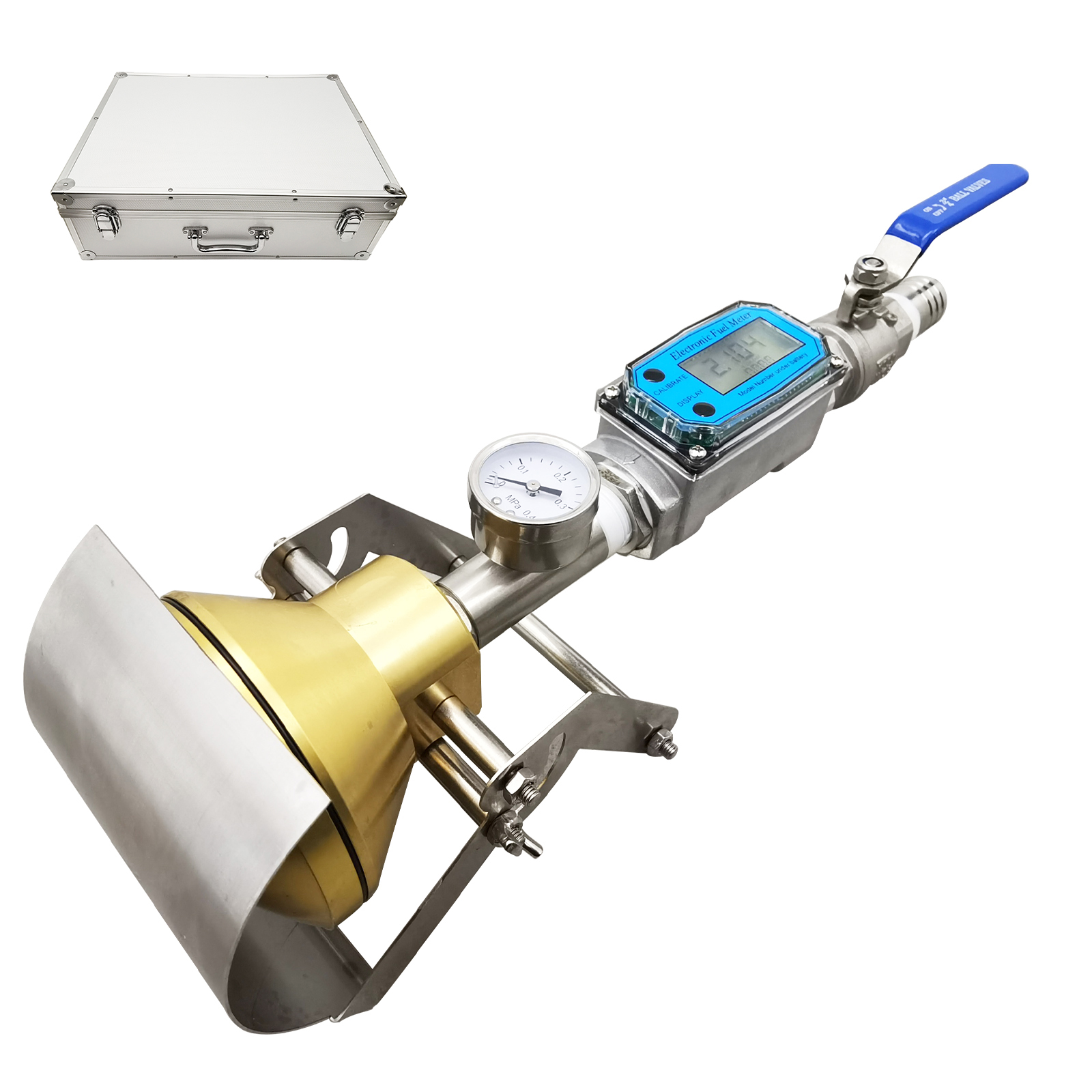

Handheld Drenching Device Waterproof Test Device IPX3/IPX4 Drenching Sprinkler

Product Overview

The handheld drenching device (IPX3/IPX4) is used to test the protective performance of appliances with anti-rain function according to the requirements of GB4706, GB4208 13.2.3GB2423 and other relevant standards. Test the waterproof performance of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under simulated rainy weather conditions. The difference between the two models: IPX3 is rain-proof and IPX4 is splash-proof.

Product Parameters

	Outer diameter of nozzle:	Φ102
	Inner diameter of nozzle:	Φ100
	Nozzle surface curvature:	78°
	Water spray volume:	10+5 L/min
	Shell surface spraying time:	1 min/m2
	Spray range:	±60° with vertical direction, OR ±180° with vertical direction
	Number of spray holes:	121
	Nozzle aperture:	Φ0.5, One in the center; Inside 2 circles, 12 holes/circle, spacing 30°; Outside 4 circles, 24 holes/circle, spacing 15°
	Material:	Brass & SUS304 stainless steel
	Pressure gauge:	0-0.25MPa, pointer gauge 6"
	Flow rate adjustment mode:	Manual adjustment
	Water pressure range:	50~150Kpa
	Package size:	20.5"16.9"8.7" (52cm43cm22cm)
	Net weight/Gross weight:	5.8lbs(2.6kg)/12.2lbs(5.5kg)

Product Features & Advantages


Pressure Gauge The pressure gauge can measure the pressure of water during the test to determine the waterproof performance of the product.	Flow Meter Visualization of the flow rate, which can clearly display the inflow and outflow of water size.	Ball Valve The ball valve can precisely control the flow of water, which can meet the test requirements of high precision and high reliability.

Nozzle The nozzle is used to simulate a natural rainfall environment to test the waterproof performance of the product.	Movable Baffle The movable baffle can be used to change the range and intensity of the water shower by covering part of the nozzle's spray holes to meet different waterproofing test standards.	*Carrying Case* Packaged in a convenient, organized, sturdy carrying case that protects the test device inside. Its portability also makes it easy to carry.

- CNC machined nozzle, made of pure brass material, mirror polished surface, beautiful and corrosion resistant.
- The surface of the brass nozzle is sprayed with antirust coating, which can effectively prevent the surface of the brass nozzle from generating copper green and affecting the appearance.
- All other parts are made of SUS304# stainless steel, durable and rust-proof.
- Water spray mode: handheld, can be directly connected to the tap water use.
- Simple operation: a baffle blocking 1/3 of a section from rain is IPX3; no baffle blocking is IPX4.

Product Presentation & Details

https://topseller365.com/data/prd/057/061/25.jpg

Item Included(057061)

Sprinkler / Protection Test Device *1

Carrying Case *1
