The 3D-Sensor is clamped into a tool holder and inserted into a milling spindle. Once clamped into the machine spindle, the run-out (T.I.R) is fully adjustable to Zero. Then, you are able to find exact positioning of the spindle axis on the edges of the workpiece. This allows for zeros to be set and the length to be measured quickly and easily. You may approach in any direction (X-, Y-, Z- axis – hence the name „3D-Sensor"). When the dial gage shows zero, the spindle axis is exactly on the workpiece edge.

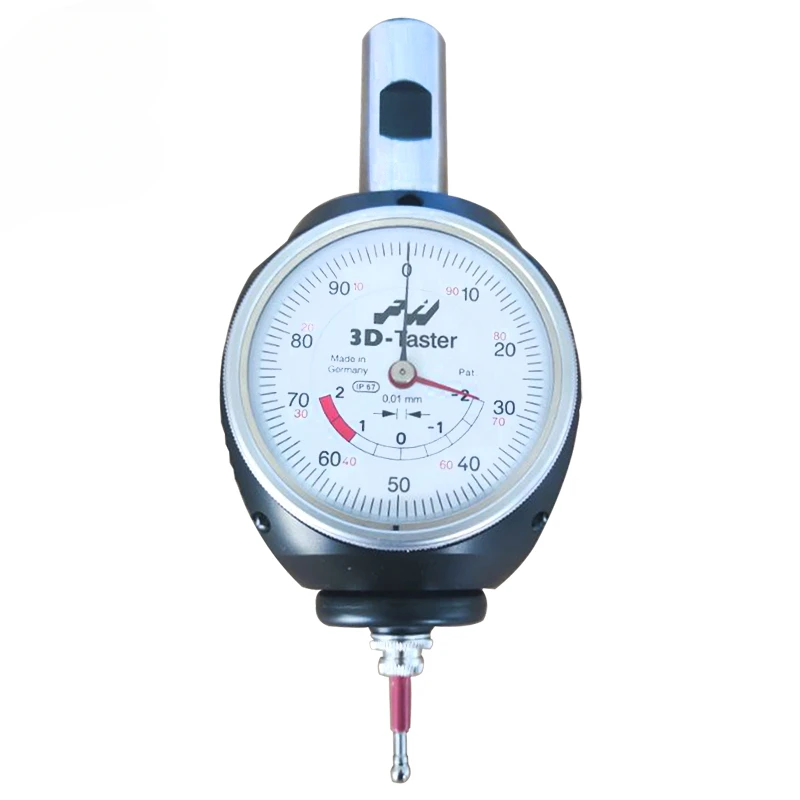

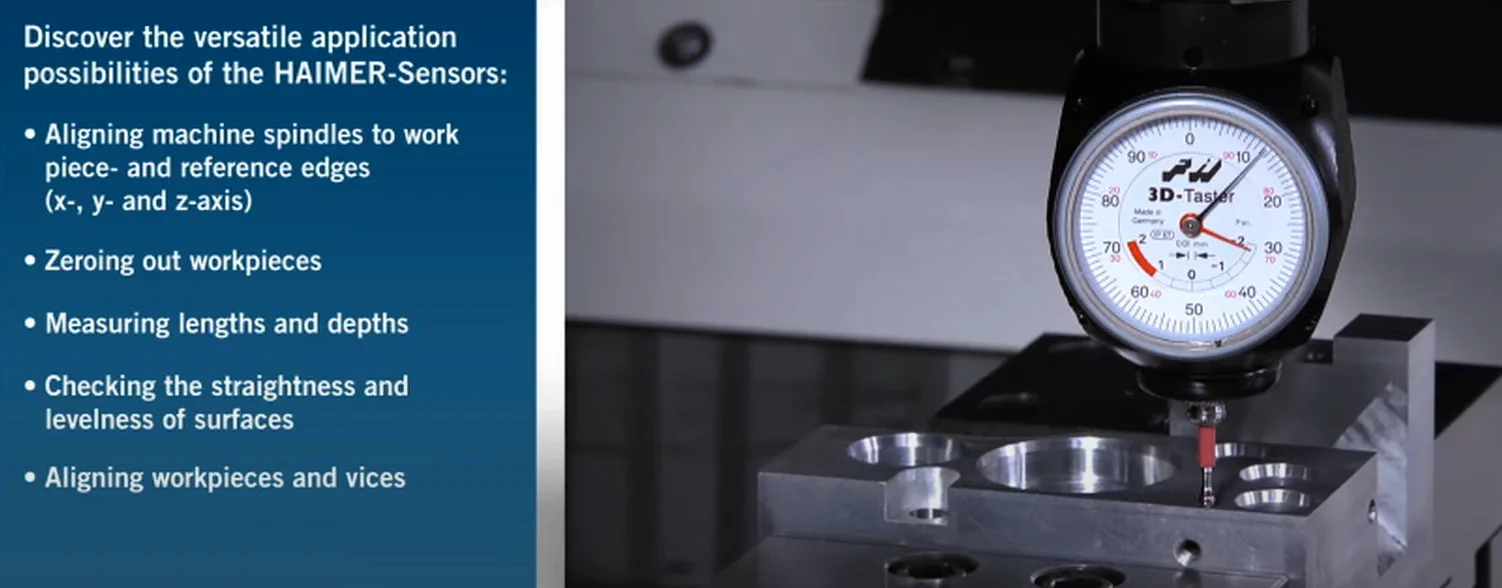

Simply bring the needle to Zero, and that is your edge with any probe. The accuracy is such that you are able to inspect your parts right on the machine. Tram vises, find the center of your bore, find your edge and inspect parts - it is all possible with the HAIMER 3D-Sensor. The unit has a large overrun distance in connection with the fully tested preset breaking points giving the sensor long life. All Universal 3D-Sensors are individually tested and adjusted when being assembled in order to achieve a maximum of measuring precision.
Details Images

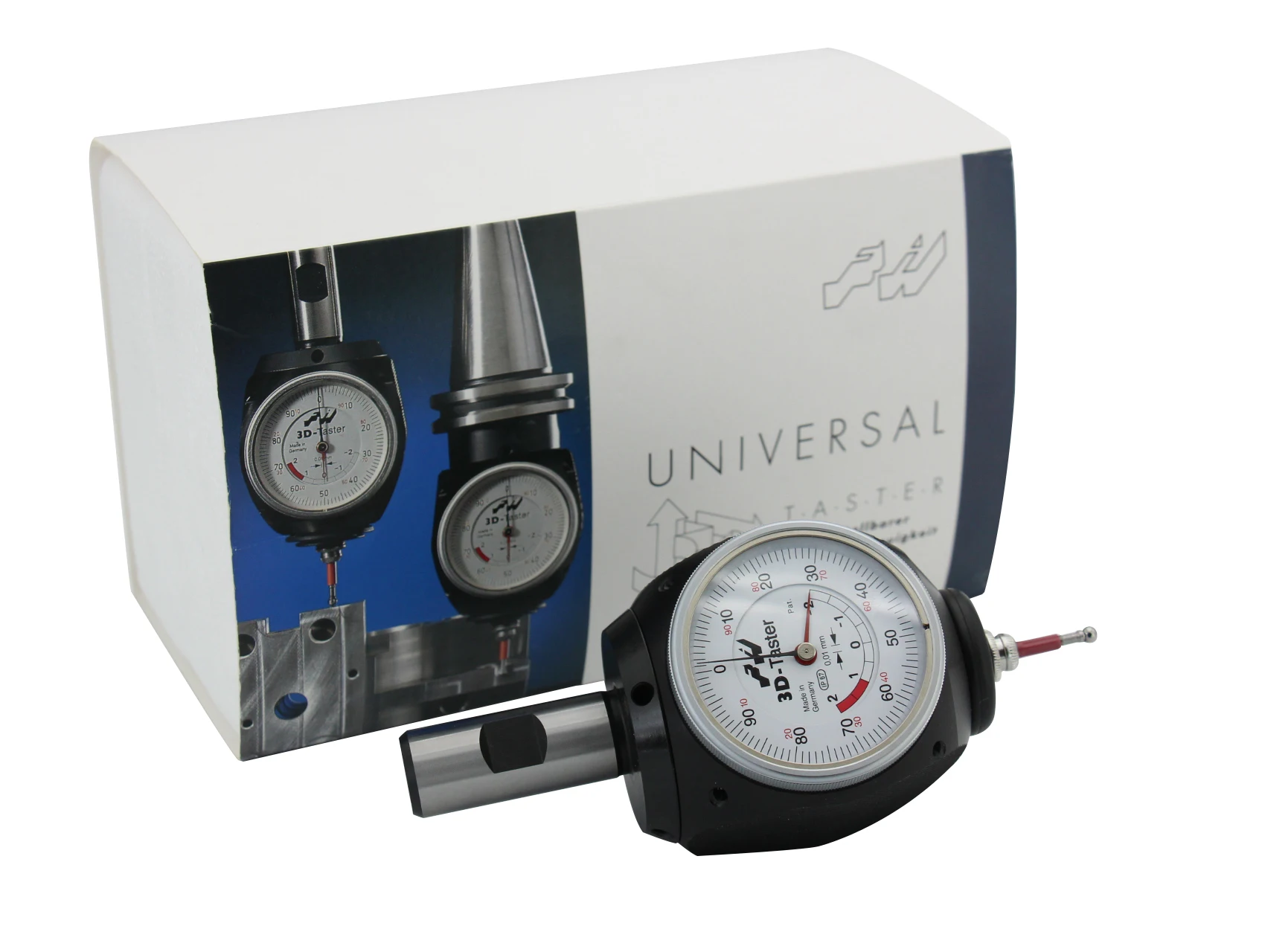

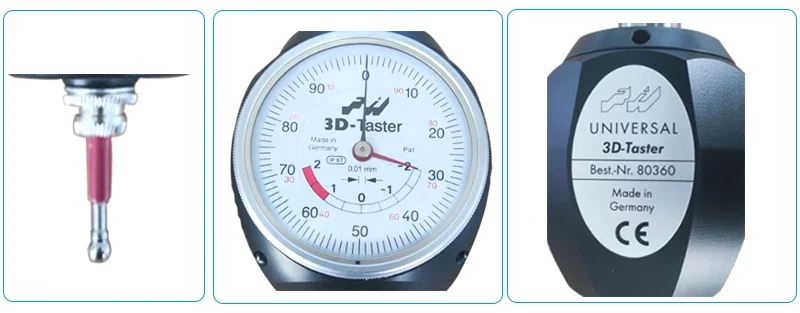

Probe tips

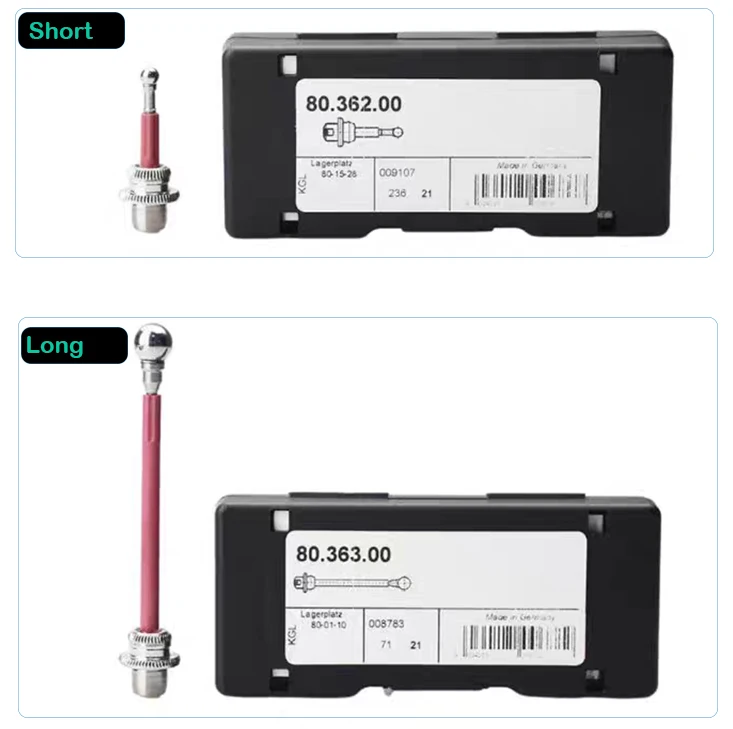

The sensors can be equipped with a short (ball Ø 4 mm) and a long (ball Ø 8 mm) probe tip. The probe tips may be changed without any tool, no re-calibration of the unit is needed.
The probe tips of course are compatible to all HAIMER 3D-Sensor
The probe tips of course are compatible to all HAIMER 3D-Sensor
|

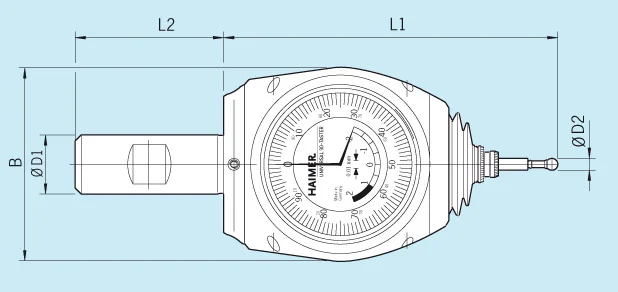

shank diameter
|
Φ20 mm
|
|
Accuracy
|
0.01 mm
|
|
Lenght without clamping shank
|
113 mm
|
|
Accessories
|
1 short probe included
|
|
Short probe tip
|
Φ4 mm, 25mm long
|
