Features:
1.DC 4-10V wide voltage input, output up to 15KV, strong ignition performance
2. Purple high-temperature arc stabilization, silent operation, easy to ignite paper and cigarette smoke
3. Resin encapsulated transformer design, high security, support long-term continuous work
4. Equipped with anti-reverse connection protection function, keypad/remote control operation is convenient, safe and reliable
5. The discharge needle adopts high temperature resistant iron metal, the tip structure concentrates the energy, and the discharge is highly efficient

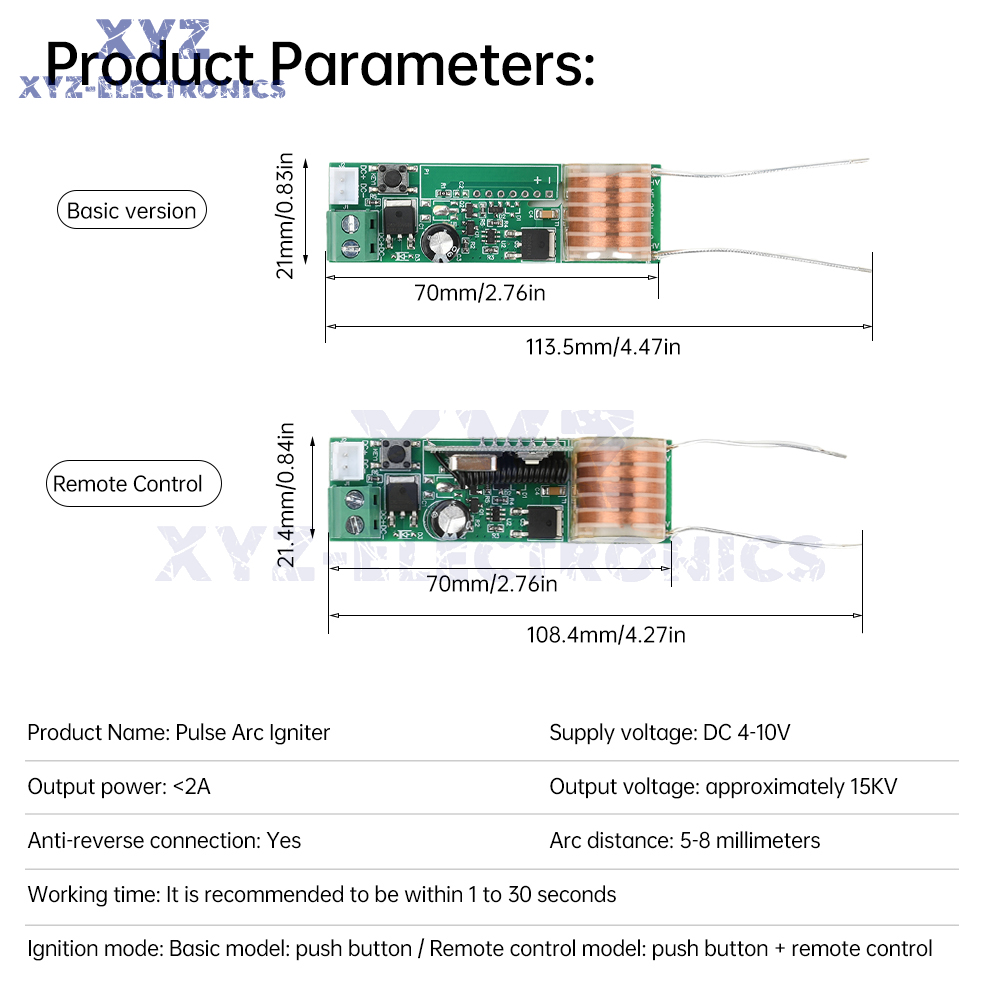

Parameter:
Product Name: Pulse Arc Igniter
Supply voltage: DC 4-10V
Output power: <2A
Output voltage: about 15KV
Working time: recommended within 1-30 seconds
Arc distance: 5-8mm
Ignition method:
Basic model: key

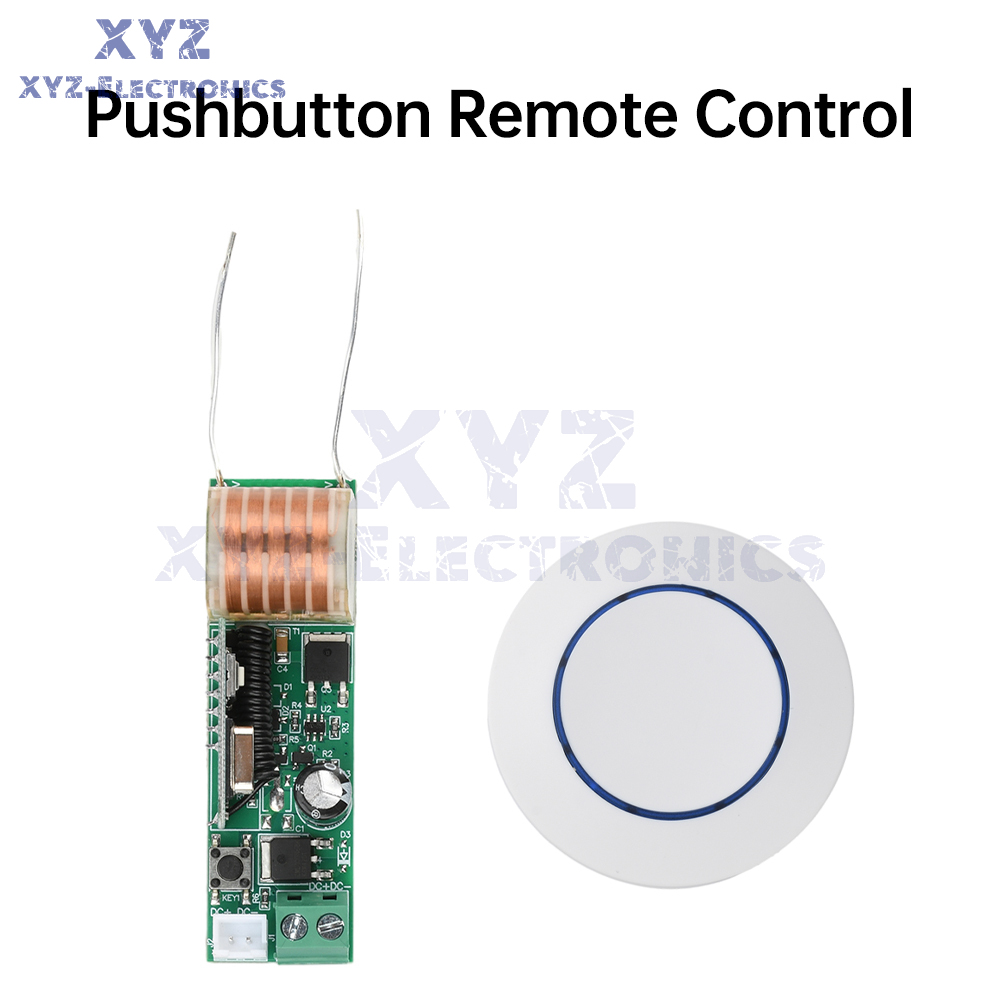

Remote control model: key + remote control
Anti-reverse connection: Yes

Description:
This product input terminal connected to DC 4-10V, secondary high-voltage output is not connected to high-voltage rectifier diodes and capacitors, the output of the two-stage line end can produce <0.8 cm long purple high-temperature arc, no crackling sound, but the temperature is very high, you can easily and instantly point the paper to point the smoke, and even a very fine wire burned sparks (such as junior high school chemistry test when a fine wire burning scene in oxygen, but not as intense as in oxygen). . The transformer has been encapsulated in resin, high security, can be long-term reliable continuous work, but it is recommended that each cigarette light energized not more than 1 minute, pay attention to heat dissipation.
Uses: secondary school science experiments, electronic instruments, negative ion generator, science small production. This circuit produces a stable high-frequency arc when working, the temperature is very high, can easily ignite combustible materials, so some people call it a plasma lighter.
Note: the use of the process need to pay attention to safety

Package include:
Package 1: Module x1
Package 2: Module x1+remote control x1
