JOHNSON/EVINRUDE V6 LOOP CHARGE OUTBOARD ENGINES (1993-2001):

V6 90-DEGREE LOOP CHARGE MODELS (3.640" BORE):
• 150HP V6 Loop Charge (1993-2001)
• 175HP V6 Loop Charge (1993-2001)
• 200HP V6 Loop Charge (1993-1998)

ENGINE SPECIFICATIONS:
• Configuration: 90-Degree V6 Loop Charge
• Standard Bore: 3.640"
• Engine Type: 2-Stroke Carbureted / VRO
• Piston Side: Port (Left)

IMPORTANT NOTES:
• Port and starboard pistons are DIFFERENT — this is the PORT side only
• Order matching starboard piston kit separately for complete rebuild
• V6 engines: order 3 port + 3 starboard pistons
• 3.640" bore — verify bore size matches your engine before ordering
• Fits carbureted and VRO models — does NOT fit Ficht or E-TEC
• Verify OEM part number before ordering

FITS / Replacement Part Numbers:

OEM CROSS-REFERENCE PART NUMBERS (PORT SIDE):
• 0433003 / 433003 (port .030 oversize piston)
• 5006677
• 0432072 (port standard reference)
• 5006671
• 5006675
• 5006684 (ring set)
• 5006685 (oversize ring set)
• 326764 (wrist pin)
• 326765 (circlip retainers)

SPECIFICATIONS:

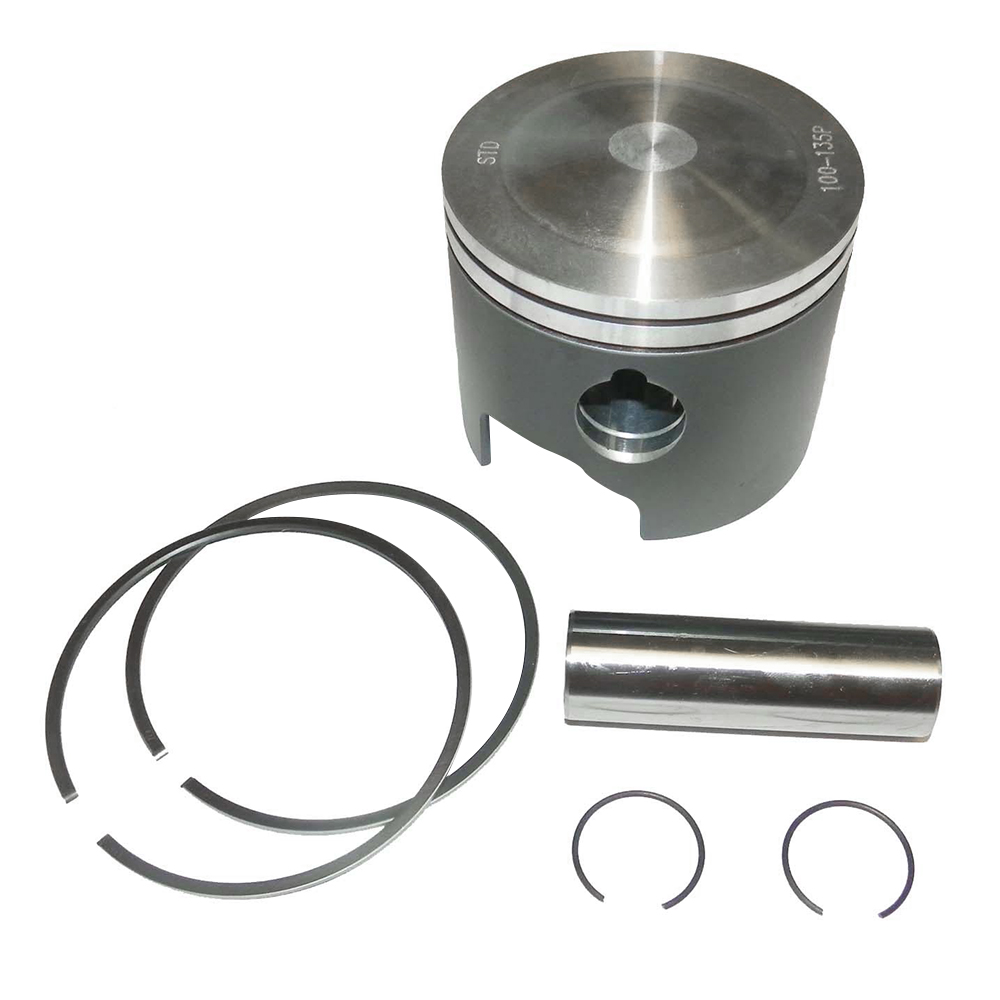

• Type: Port Side Piston Kit with Ring Set, Wrist Pin, and Circlip Retainers
• Size: .030 Oversize
• Bore: 3.670" (.030 oversize over 3.640" standard)
• Engine: V6 90-Degree Loop Charge 2-Stroke Carbureted / VRO
• Horsepower: 150HP, 175HP, 200HP
• Side: Port (Left)
• Material: Cast Aluminum
• Kit Quantity: 1 Cylinder

COMPATIBILITY:
• 1993-2001 Johnson/Evinrude 150HP V6 Loop Charge
• 1993-2001 Johnson/Evinrude 175HP V6 Loop Charge
• 1993-1998 Johnson/Evinrude 200HP V6 Loop Charge
• Port side pistons only — requires matching starboard pistons for complete rebuild
