YAMAHA HPDI 2.6L V6 2-STROKE OUTBOARD ENGINES (2000-2015):

150HP HPDI MODELS:
• Yamaha Z150 HPDI 150HP (2000-2015)
• Yamaha LZ150 HPDI 150HP (2000-2015)
• Yamaha VZ150 HPDI 150HP (2000-2015)
• All 15-inch, 20-inch, and 25-inch shaft lengths

175HP HPDI MODELS:
• Yamaha Z175 HPDI 175HP (2001-2012)
• Yamaha LZ175 HPDI 175HP (2001-2012)
• All 20-inch and 25-inch shaft lengths

200HP HPDI MODELS:
• Yamaha Z200 HPDI 200HP (2000-2012)
• Yamaha LZ200 HPDI 200HP (2000-2012)
• Yamaha VZ200 HPDI 200HP (2000-2012)
• All 20-inch and 25-inch shaft lengths

ENGINE SPECIFICATIONS:
• Configuration: 90-Degree V6
• Displacement: 2.6L (2596cc)
• Fuel System: HPDI (High Pressure Direct Injection)
• Engine Type: 2-Stroke
• Standard Bore: 3.544"
• Wrist Pin: 23mm O.D.

NOTES:
• This is a STARBOARD SIDE piston kit
• Kit is for ONE cylinder — order 3 for a complete starboard bank rebuild
• Order 6 total (3 port + 3 starboard) for a complete V6 powerhead rebuild
• Verify OEM part number before ordering: 68F-11631-00-85, 68F-11631-01-85

FITS / Replacement Part Numbers:

OEM CROSS-REFERENCE PART NUMBERS:
• 68F-11631-00-85
• 68F-11631-01-85 (supersedes 68F-11631-00-85)
• 68F-11642-00-85
• 68F-11642-01-85
• 68F-11645-00-00
• 68F-11645-01-00
• 68F-11635-00-00
• 68F-11635-01-00

SPECIFICATIONS:

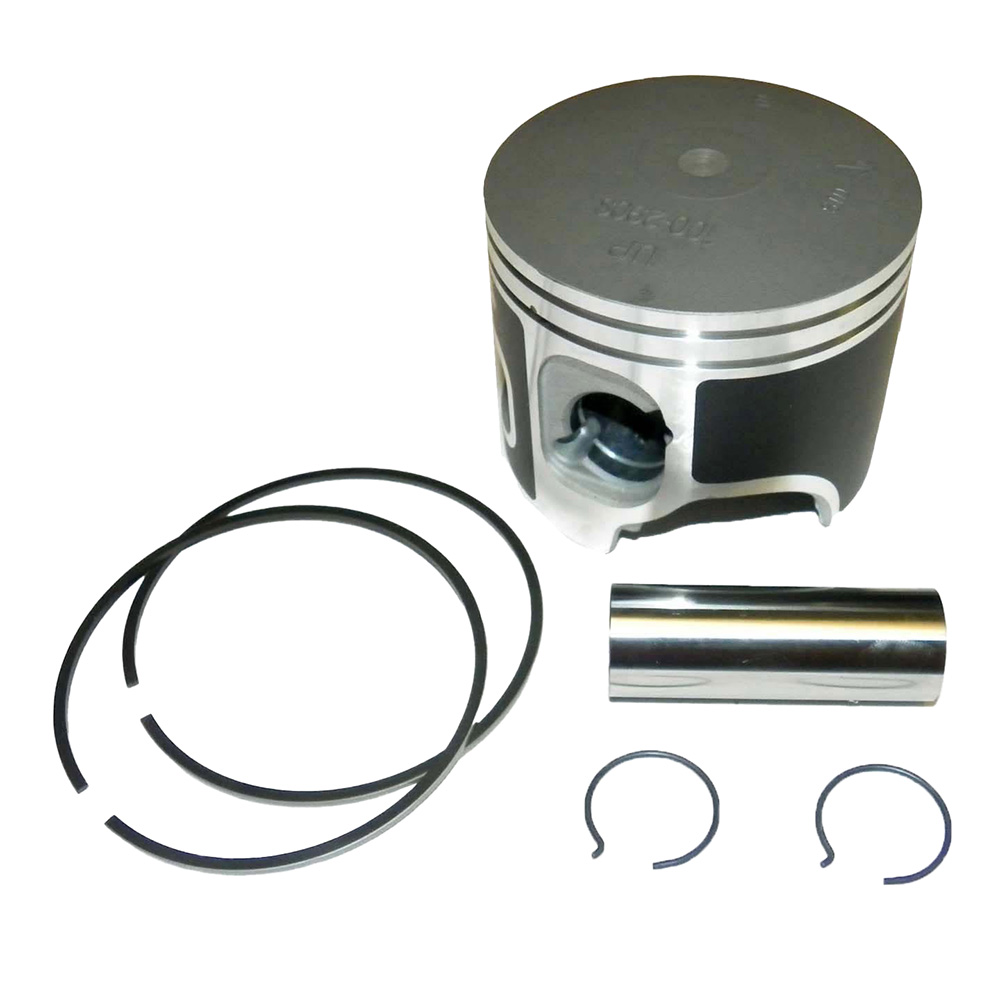

• Type: Starboard Platinum Piston Kit with Riken Rings, Wrist Pin, and Pin Clips
• Standard Bore: 3.544"
• Configuration: V6 90-Degree (Starboard Bank)
• Engine Type: 2-Stroke HPDI (High Pressure Direct Injection)
• Displacement: 2.6L (2596cc)
• Horsepower: 150HP, 175HP, 200HP
• Wrist Pin: 23mm O.D.
• Material: Cast Aluminum Alloy
• Ring Brand: Riken
• Kit Quantity: 1 Cylinder (order 3 for starboard bank, 6 for complete V6)

COMPATIBILITY:
• 2000-2015 Yamaha Z/LZ/VZ 150HP HPDI 2.6L V6
• 2001-2012 Yamaha Z/LZ 175HP HPDI 2.6L V6
• 2000-2012 Yamaha Z/LZ/VZ 200HP HPDI 2.6L V6
• All shaft lengths and control variants
