Features

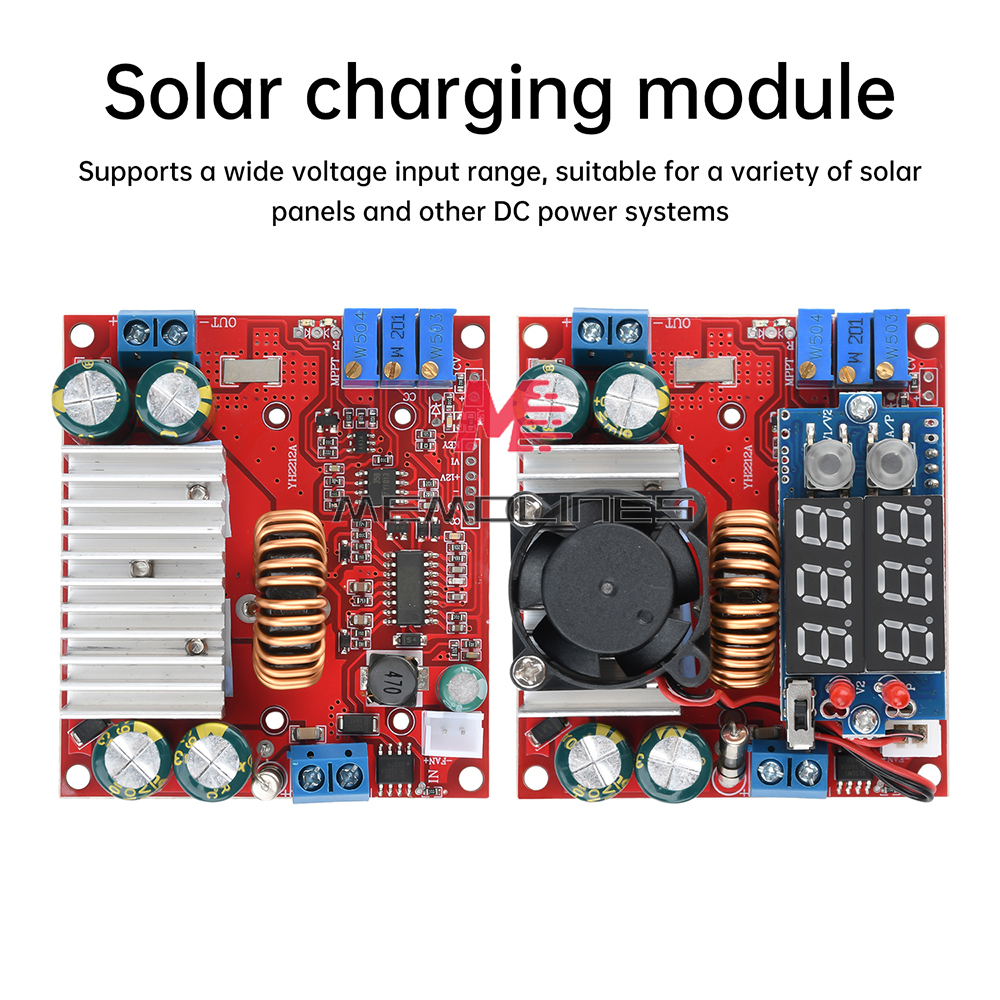

1.Wide voltage input range, suitable for a variety of solar panels and other DC power systems.

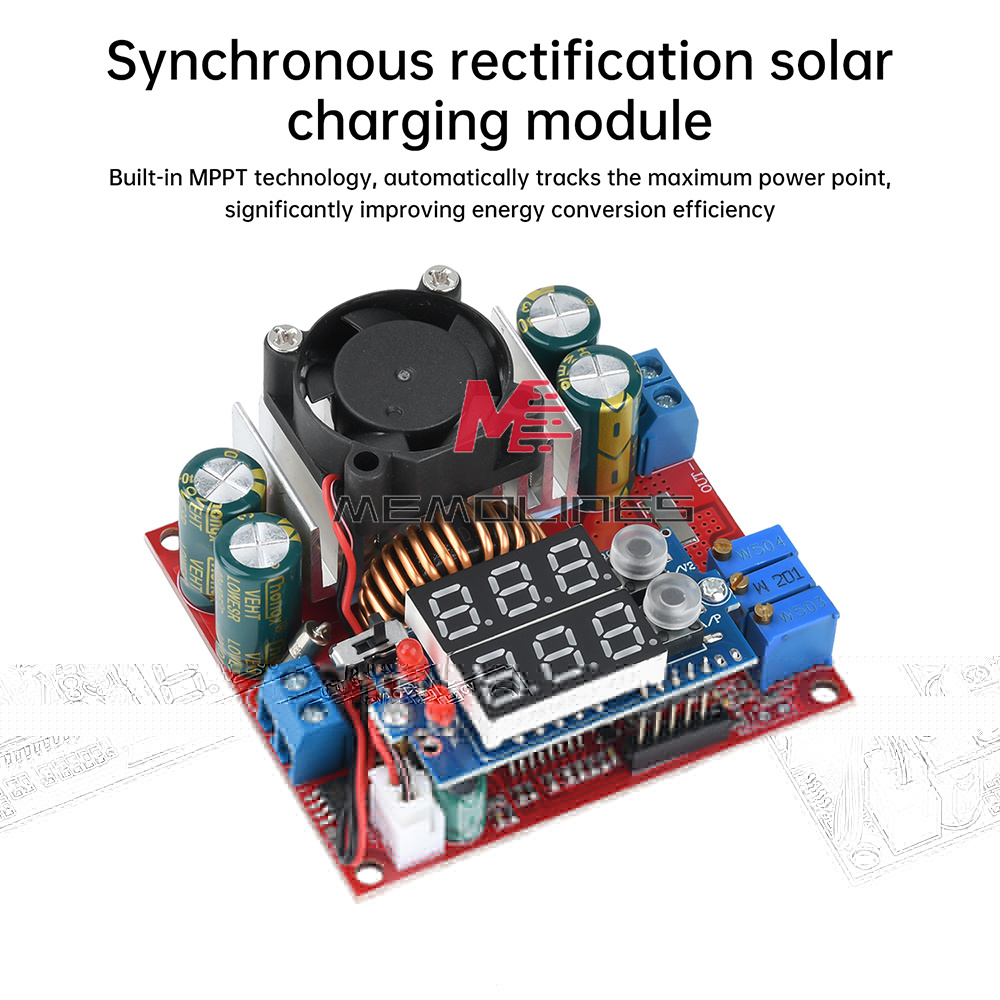

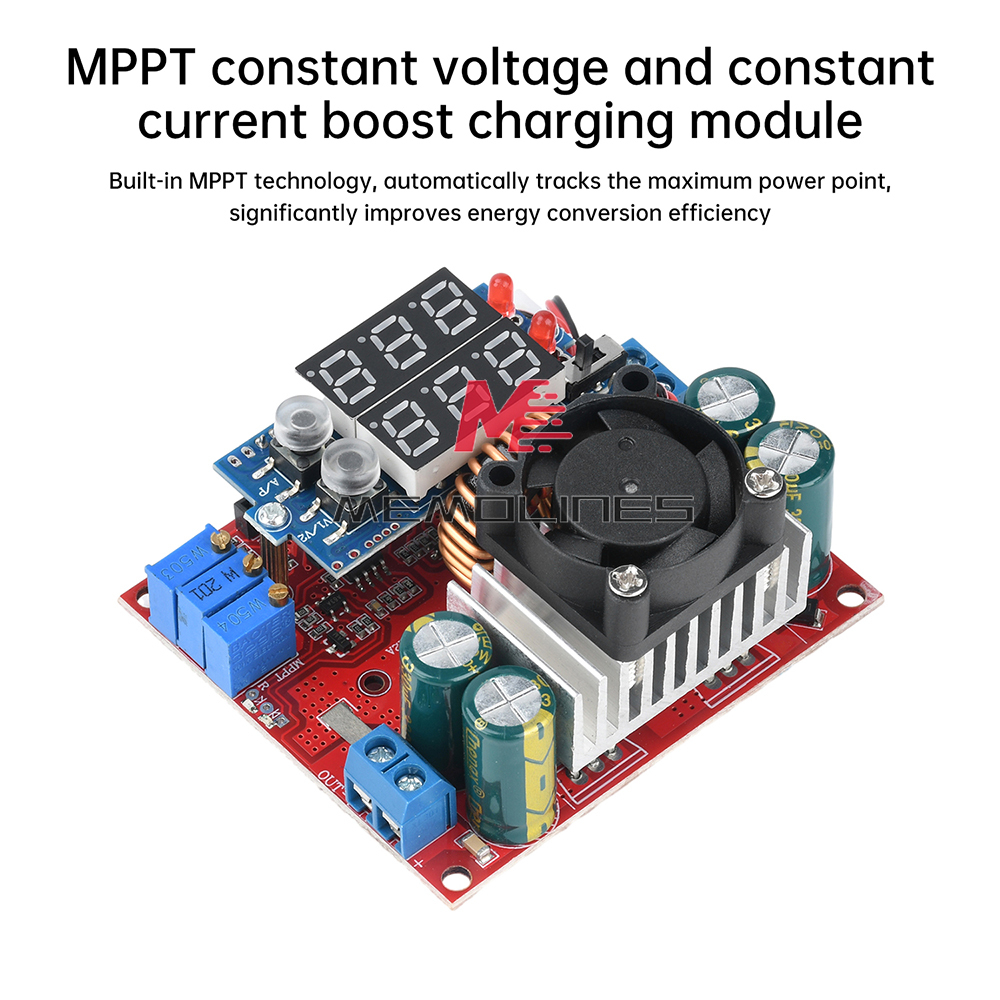

2.Built-in MPPT technology, automatically tracking the maximum power point, significantly improving the energy conversion efficiency.

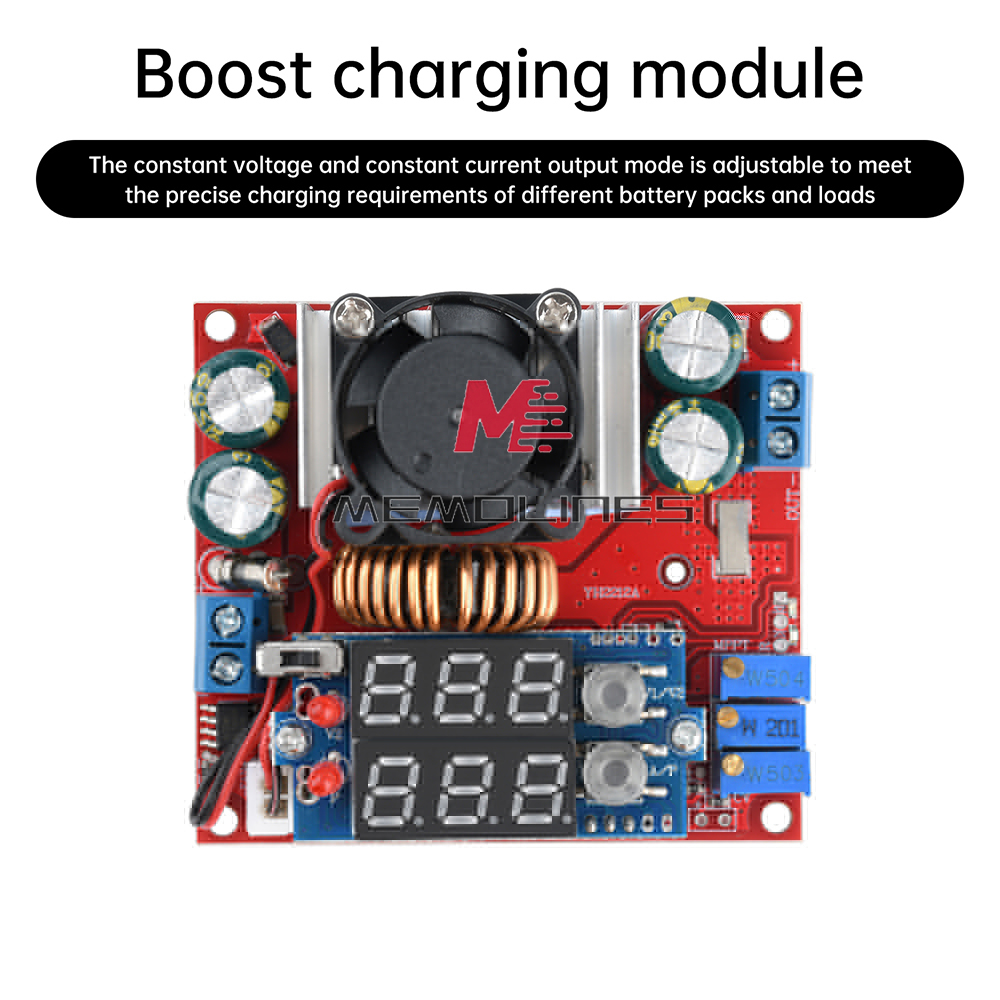

3. Constant voltage and constant current output modes are adjustable to meet the precise charging requirements of different battery packs and loads.
4. Synchronized rectification technology reduces energy consumption and improves overall charging efficiency and stability.

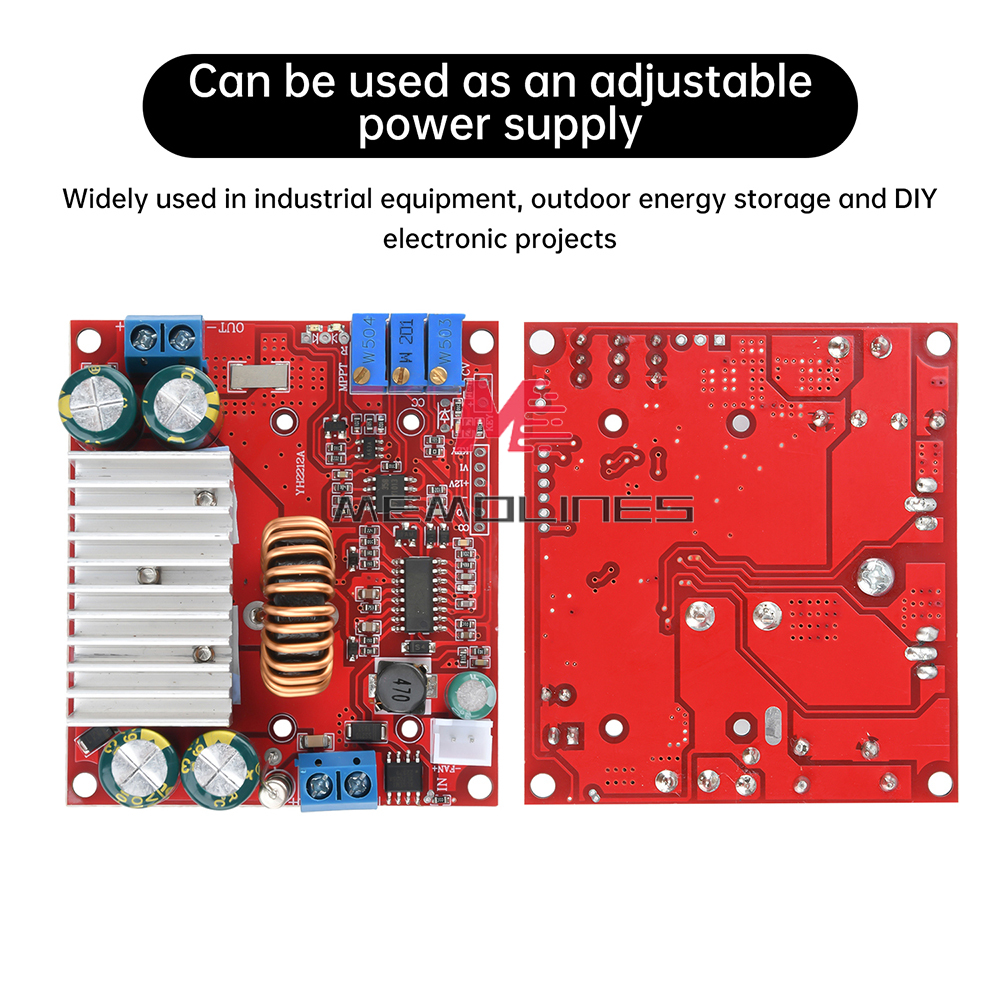

5. Can be used as adjustable power supply, widely used in industrial equipment, outdoor energy storage and DIY electronic projects.
Parameter

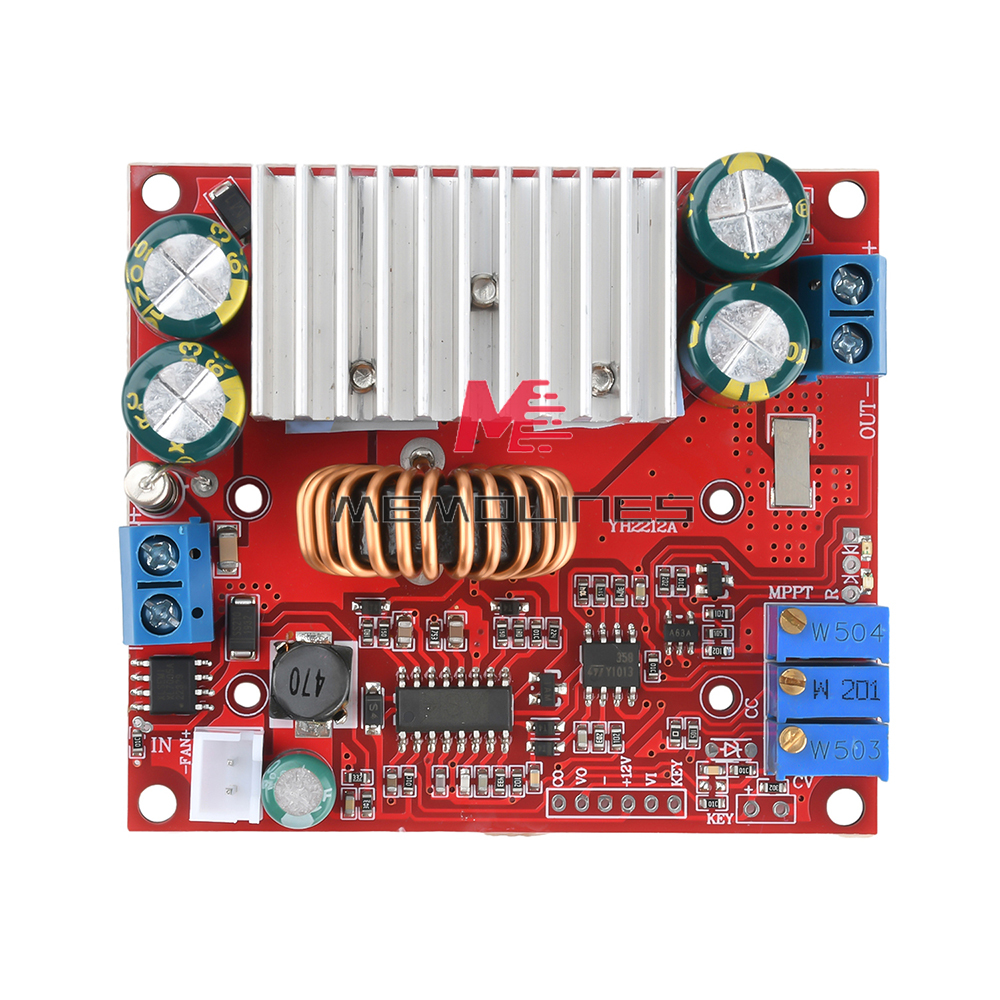

Module Type: Non-isolated Synchronous Rectifier Booster Module
Input Voltage Range: DC 6-50V
Output Voltage Range: DC 6-60V (Factory voltage is random, please adjust it by yourself after you receive it.)
Input Current: 15A MAX
Output Current Adjustable Range: 0.1-10A MAX (Maximum Output Current is different according to the Output Voltage, the higher the Output Voltage the lower the Output Current is, please strengthen heat dissipation for high temperature). (Please strengthen heat dissipation for high temperature.)
Minimum Differential Pressure between Input and Output: No Differential Pressure
MPPT Voltage Setting Range: 9-50V (MPPT function can be used as input under-voltage protection.)
Operating Frequency: 120KHz
Over-current Protection: 15A Fuse
Charging Indicator: Yes (Charging red, full green)
Input Reversed Connection Protection: No (Reversed connection burns the fuse and the protection diode.)
Output Anti-reverse Flooding Protection: No (Charging the battery without anti-reverse flooding.) Battery charging can not add anti-reverse irrigation diode, solar panel charging is recommended to add anti-reverse irrigation diode to prevent the consumption of battery power at night)
Conversion Efficiency: Maximum 96% (efficiency and input and output voltage difference, the size of the output current is related to)
Fan Interface: 12V 0.3A No temperature control
Operating Temperature: -20 ~ +85 ℃
Notes:
1. Module current detection is low-side detection, please do not short the module input negative and output negative directly with a wire. 2. non-isolated boost module to the power supply of valuable items, please confirm the output voltage. And add over-voltage protection module to the output to prevent the module from damaging and burning the load.

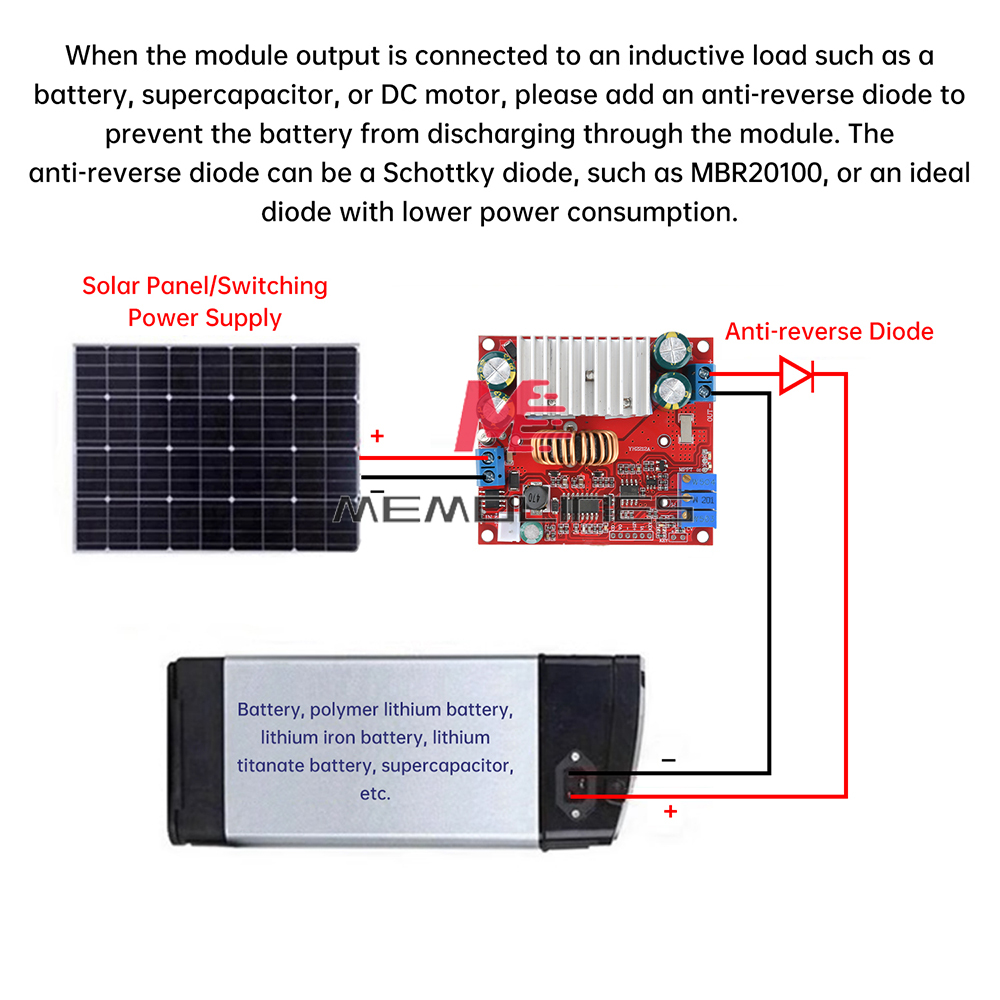

3. When connecting the output of this module to inductive loads such as batteries, supercapacitors, DC motors, etc., please add an anti-reverse filling diode to prevent the battery from discharging through the module. Prevent the battery from discharging through the module.
Package include

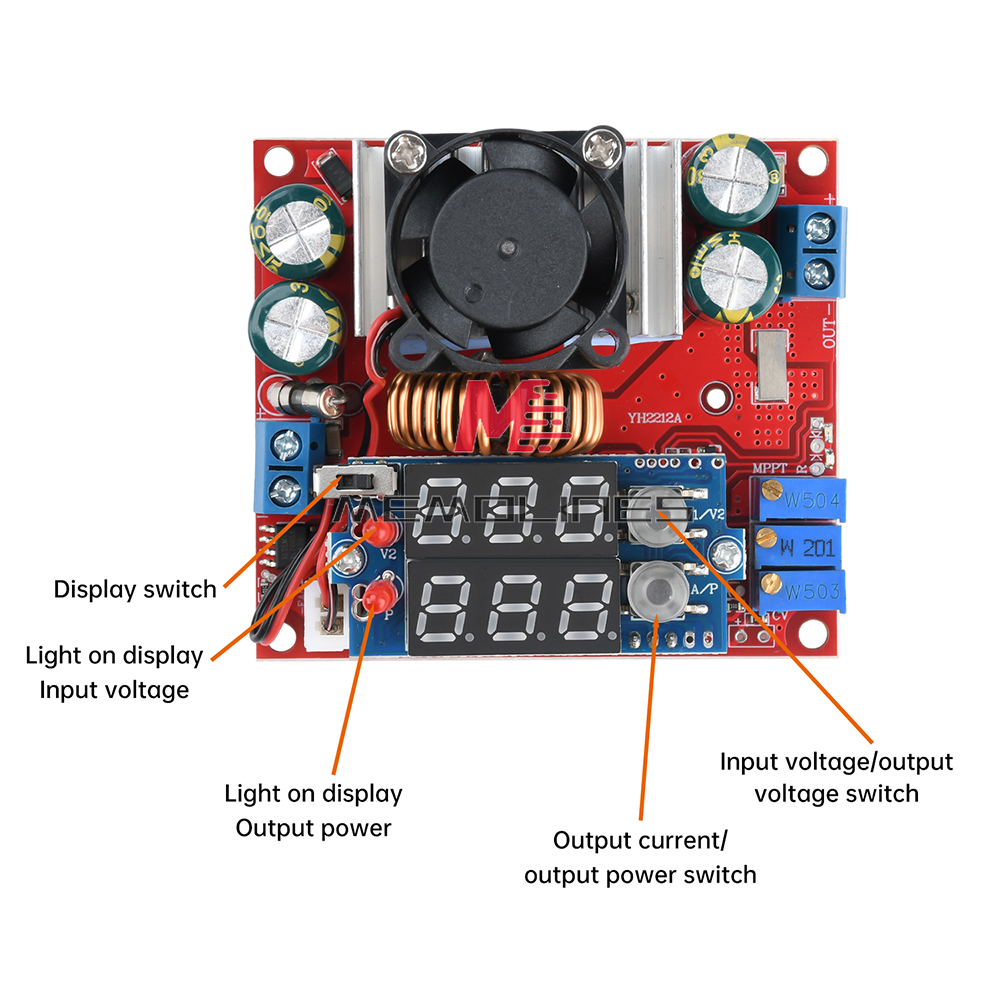

MPPT Booster Module*1 (style of your choice)
