Features

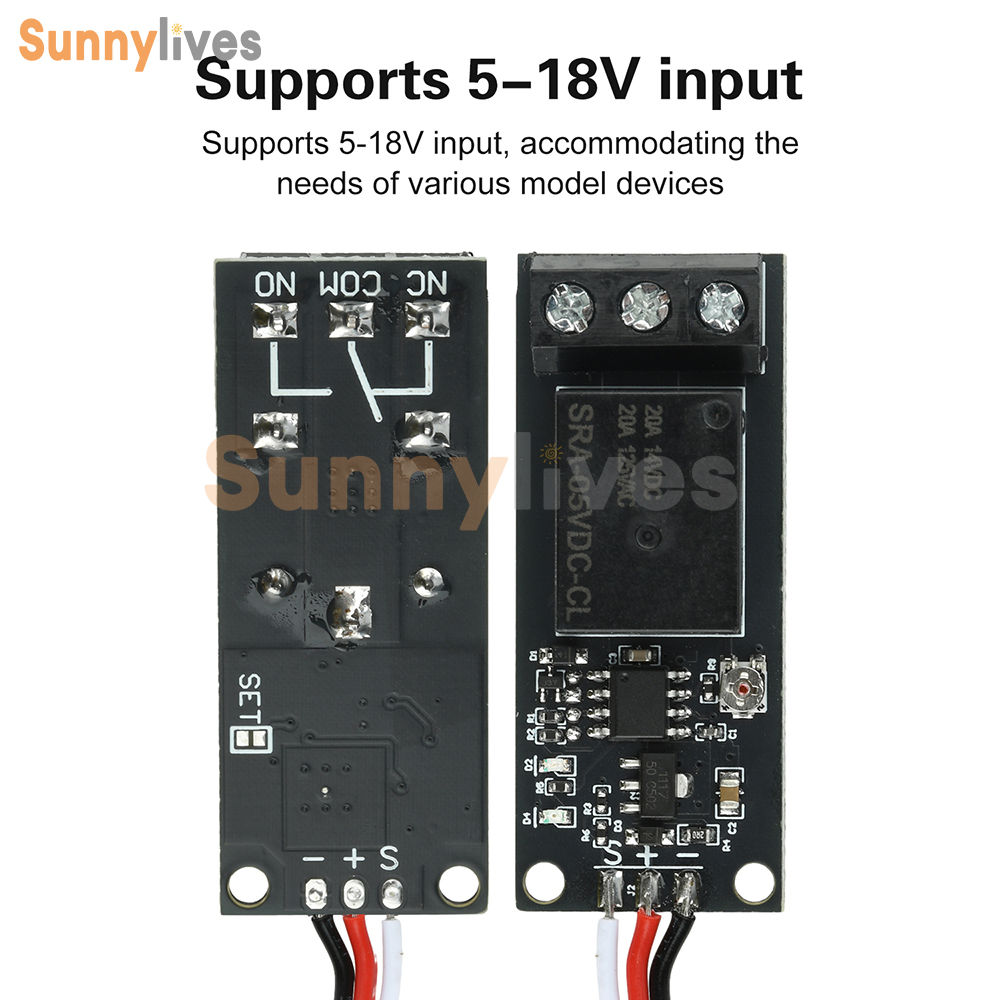

1. Supports 5-18V input, compatible with various model equipment needs

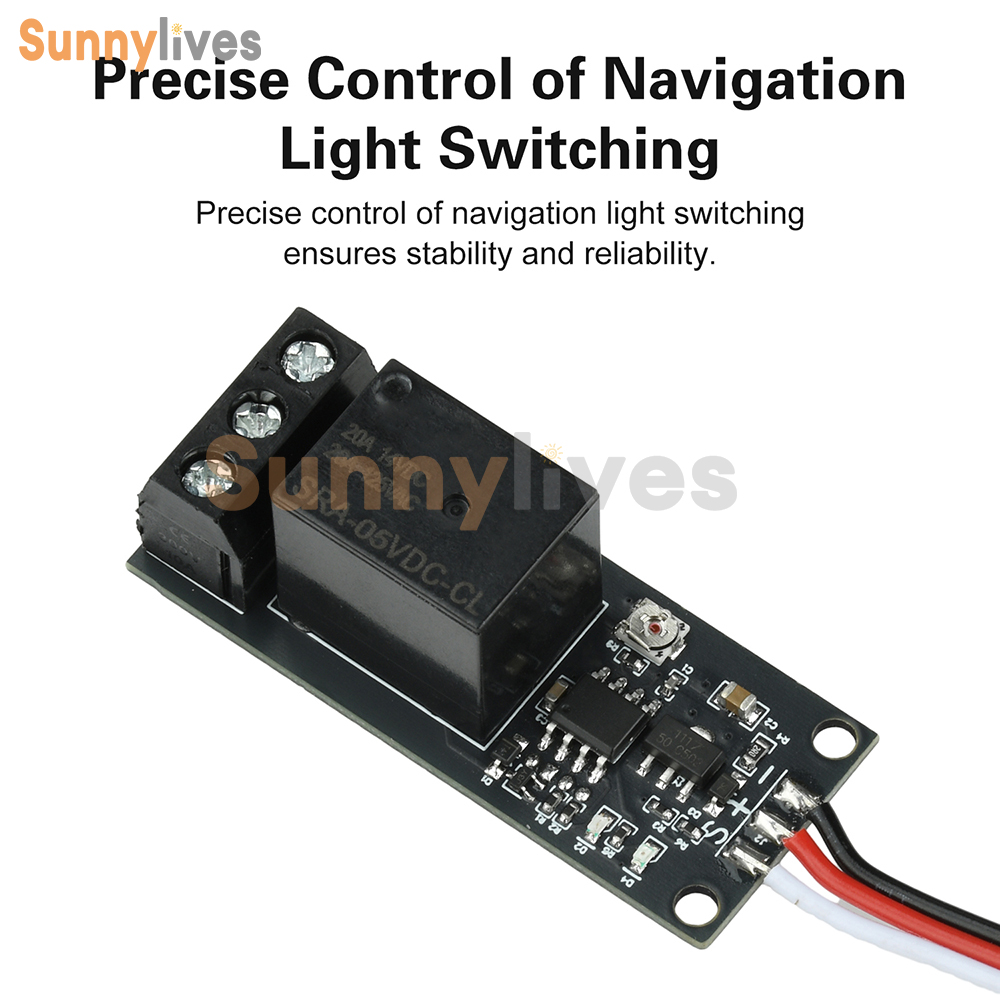

2. Precisely controls navigation light switching for stability and reliability
3. Customizable delay duration to meet diverse application requirements
4. Utilizes high-quality relays ensuring safe operation under heavy loads
5. Wide application range for controlling power on/off of various electrical devices
Parameter
Operating Voltage: 5-18V
PWM Recognition Range: 800μs-2200μs
Adjustable Delay-on-Close Duration: 200ms-30000ms
Relay Specifications: DC14V/20A; AC125V/20A
Interface Description:
3P Servo Cable:
White: PWM signal line, recognizes pulse widths 800μs-2200μs. Relay engages when PWM pulse width changes from <1300μs to >1700μs; disengages otherwise.
Red: Module power supply +, voltage range 5-18V
Black: Ground (negative terminal)
Relay Interface Terminals:
COM: Common terminal, typically connected to control signal input
NO: Normally Open output; opens from COM terminal when relay is energized
NC: Normally Closed output; closes to COM terminal when relay is energized
Package include
RC Switch*1
Heat Dissipation Film*1
