Product View
Product Details
Product Features:
1.The product is made of high quality PCB material, quality assurance
2.The product is shipped in an electrostatic bag, the row of pins has been welded, the product is lightweight and compact, easy and convenient to use
3. The product can be connected to three video sources, you can switch between different video sources, if you have more than one camera on the airplane, this is what you need to switch between multiple viewpoints of the product

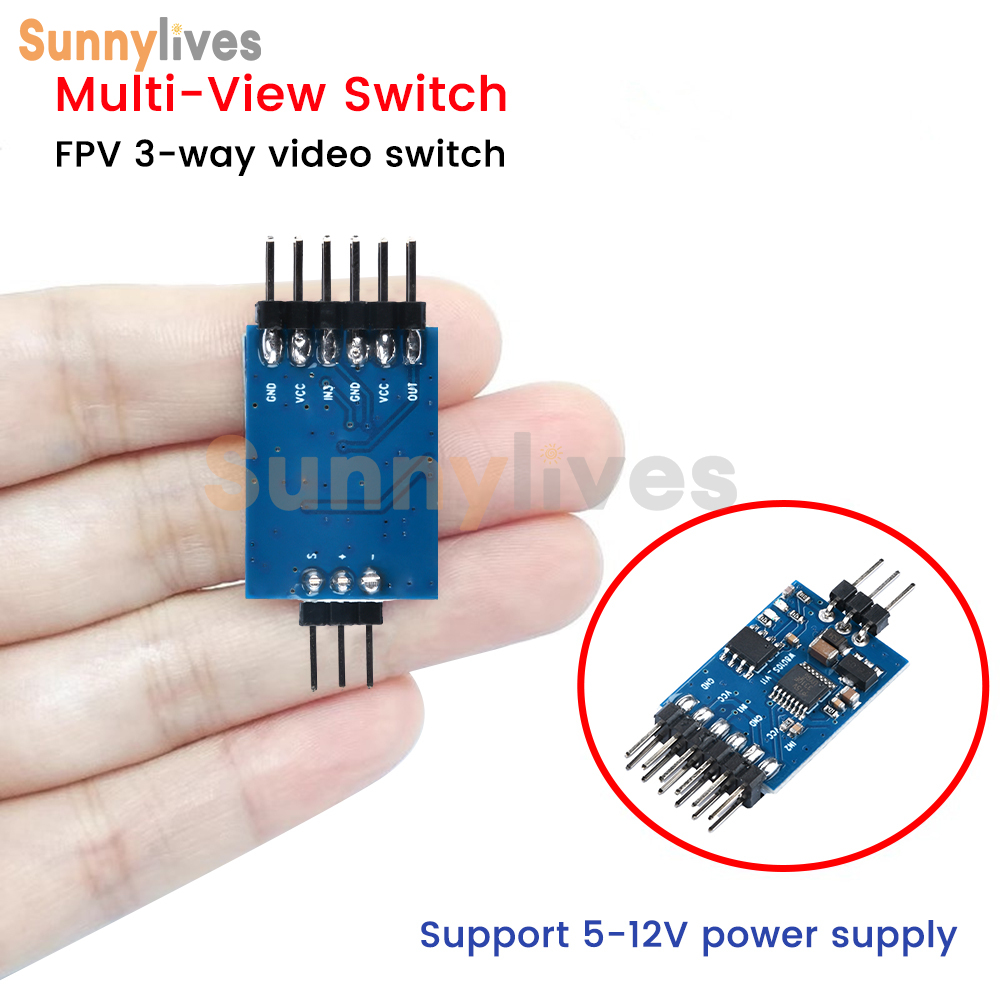

4. Support 5-12V power supply, control signal using PWM signals, stable performance
5. Using high-speed video switching chip, effectively reduce the vibration of the video image
1.The product is made of high quality PCB material, quality assurance
2.The product is shipped in an electrostatic bag, the row of pins has been welded, the product is lightweight and compact, easy and convenient to use
3. The product can be connected to three video sources, you can switch between different video sources, if you have more than one camera on the airplane, this is what you need to switch between multiple viewpoints of the product
4. Support 5-12V power supply, control signal using PWM signals, stable performance
5. Using high-speed video switching chip, effectively reduce the vibration of the video image
Parameters:

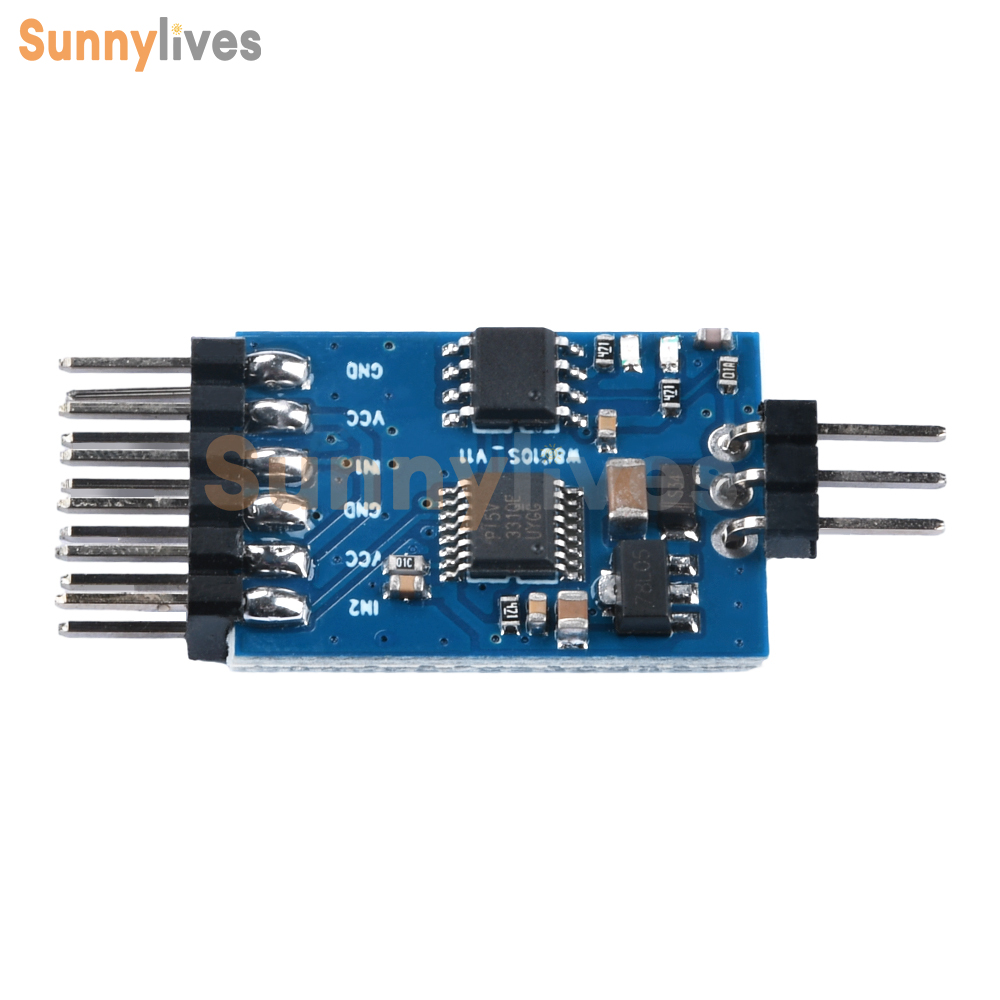

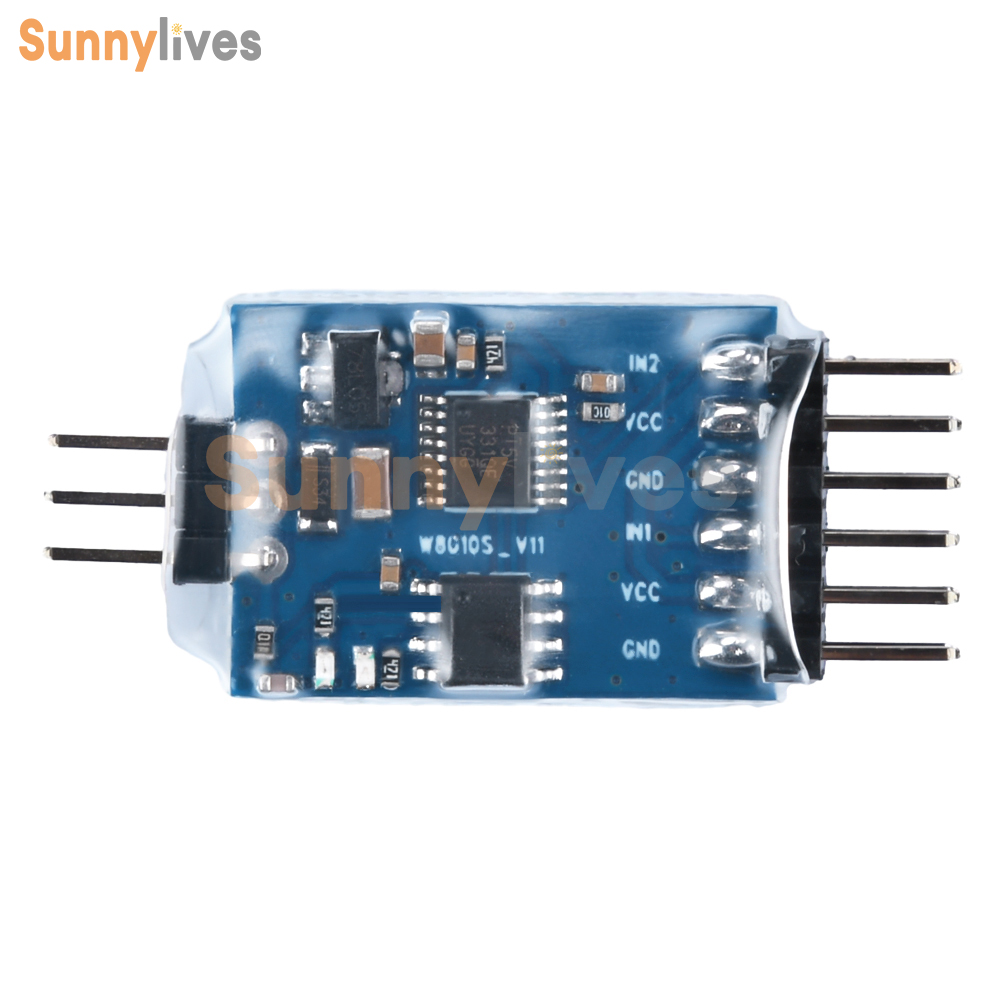

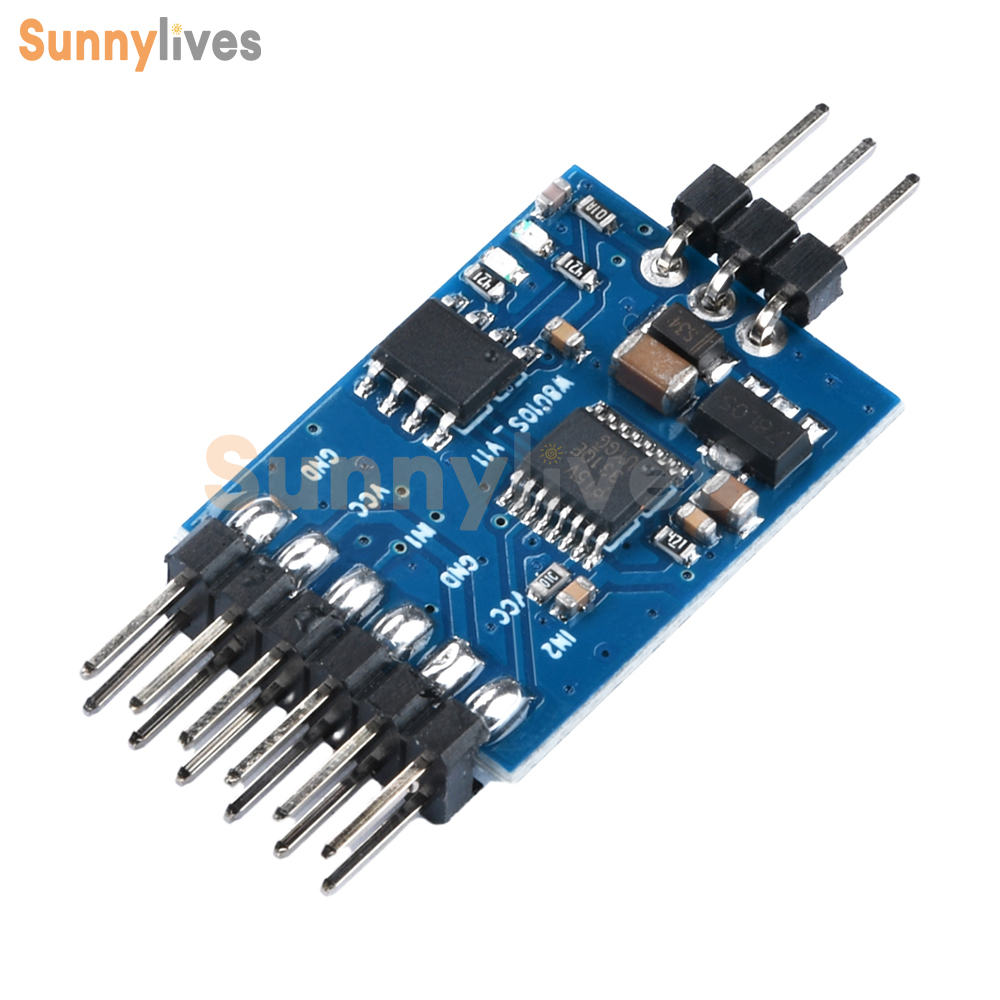

Name: 3-channel video switcher module
Color: blue
Input channels: 3
Voltage: DC5-12V
Video signal impedance: 75Ω
Control Signal:PWM
IN1:1000us±200
IN2:1500us±200
IN3:2000us±200
Name: 3-channel video switcher module
Color: blue
Input channels: 3
Voltage: DC5-12V
Video signal impedance: 75Ω
Control Signal:PWM
IN1:1000us±200
IN2:1500us±200
IN3:2000us±200
Product Description:

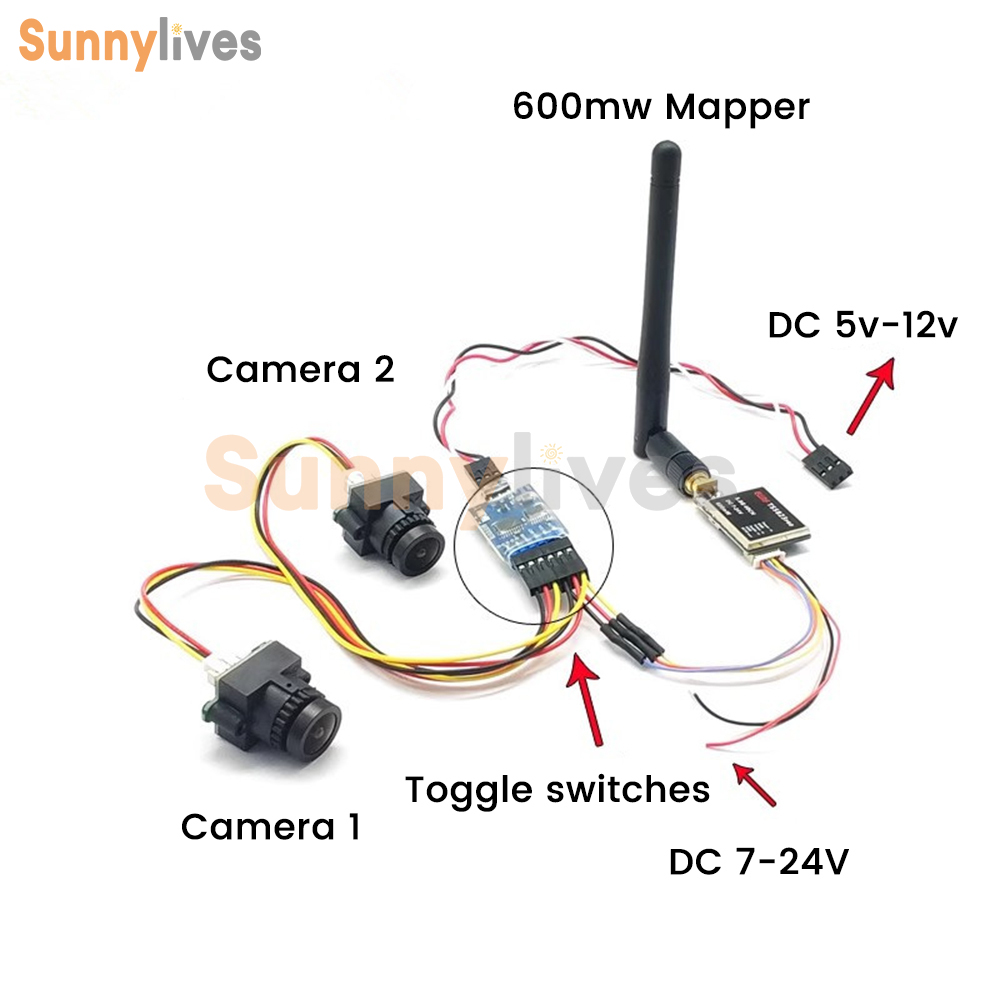

This module can be connected to 3 video sources, you can switch different video sources by 3-position switch, if you have more than one camera in your airplane, this is the product you need.
The control channel can be any proportional channel or 3-position switching channel, the 2-position switching channel can only switch between two video input signals.

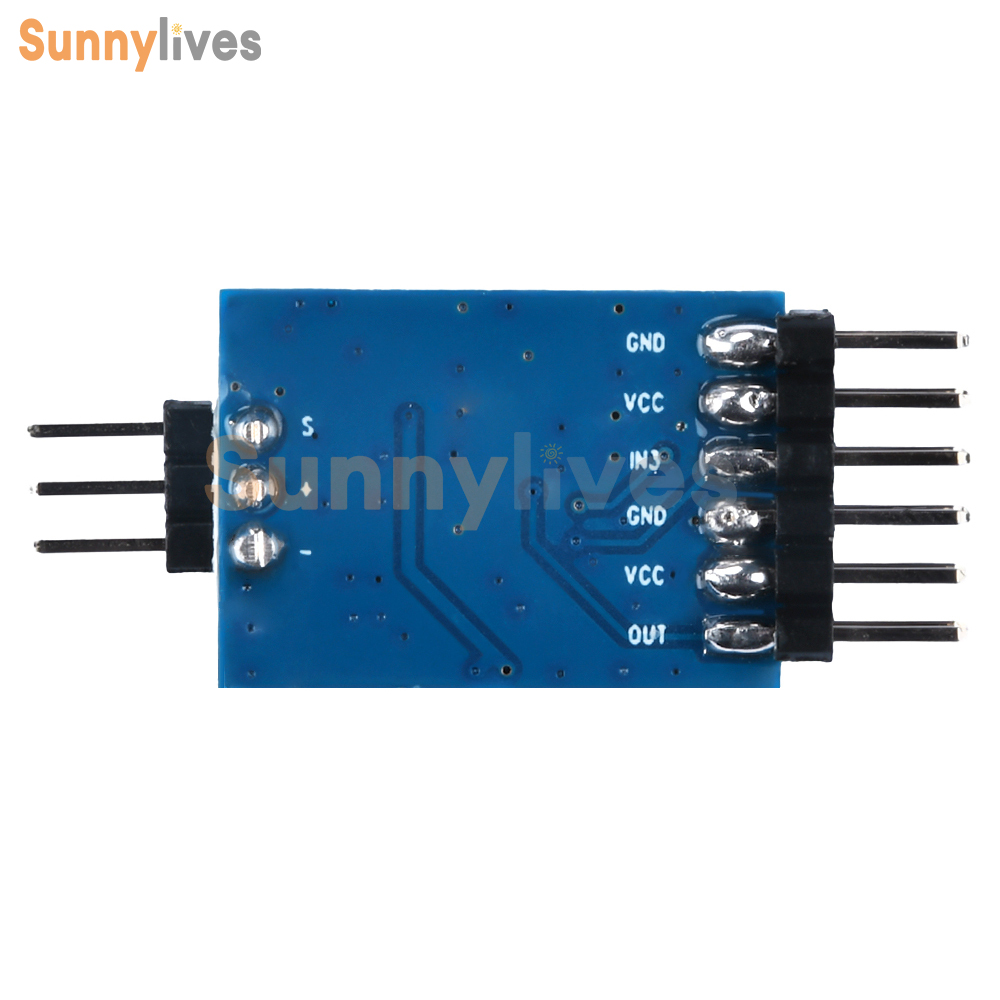

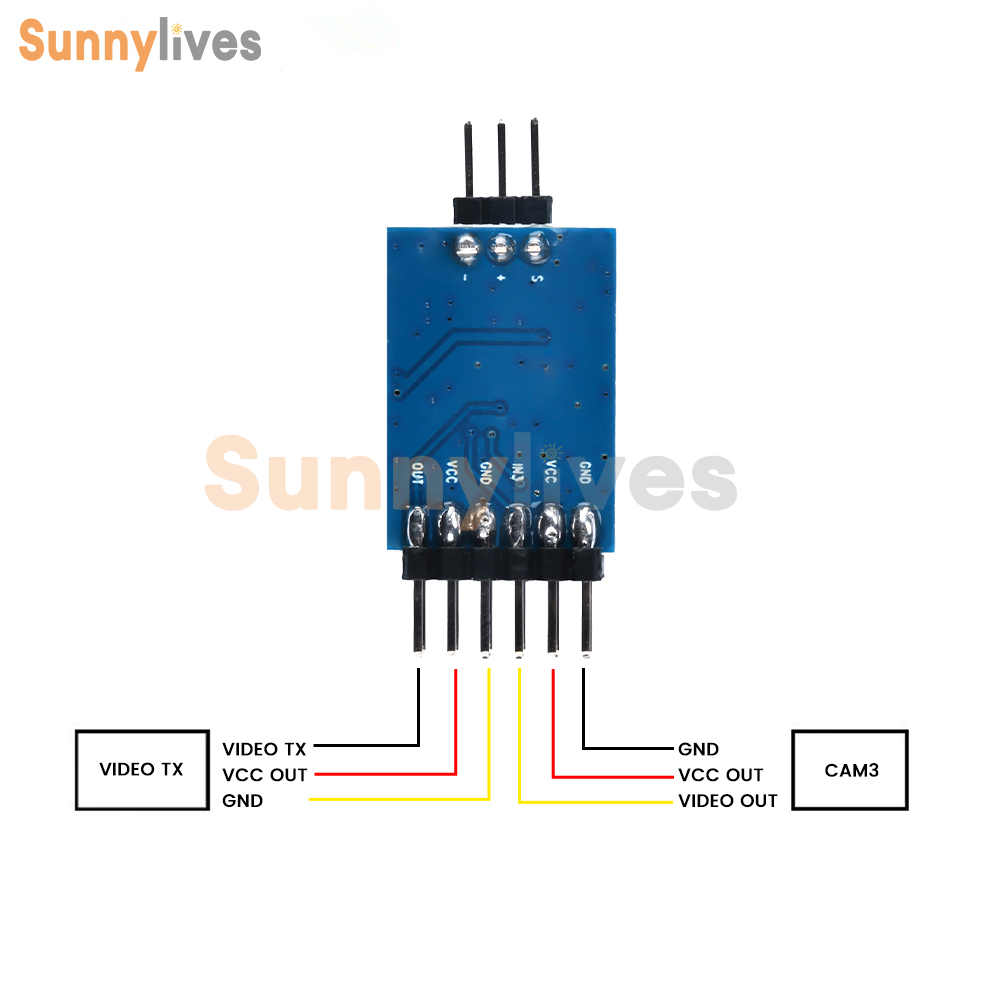

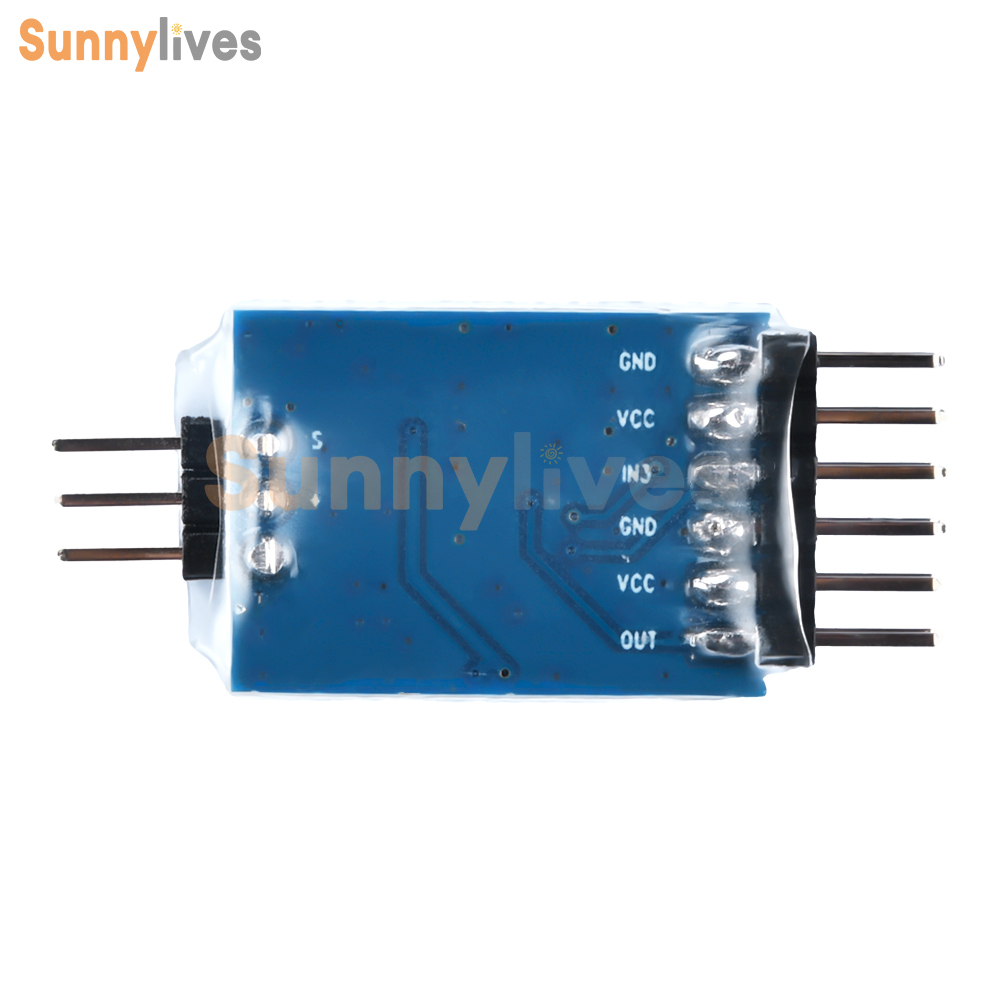

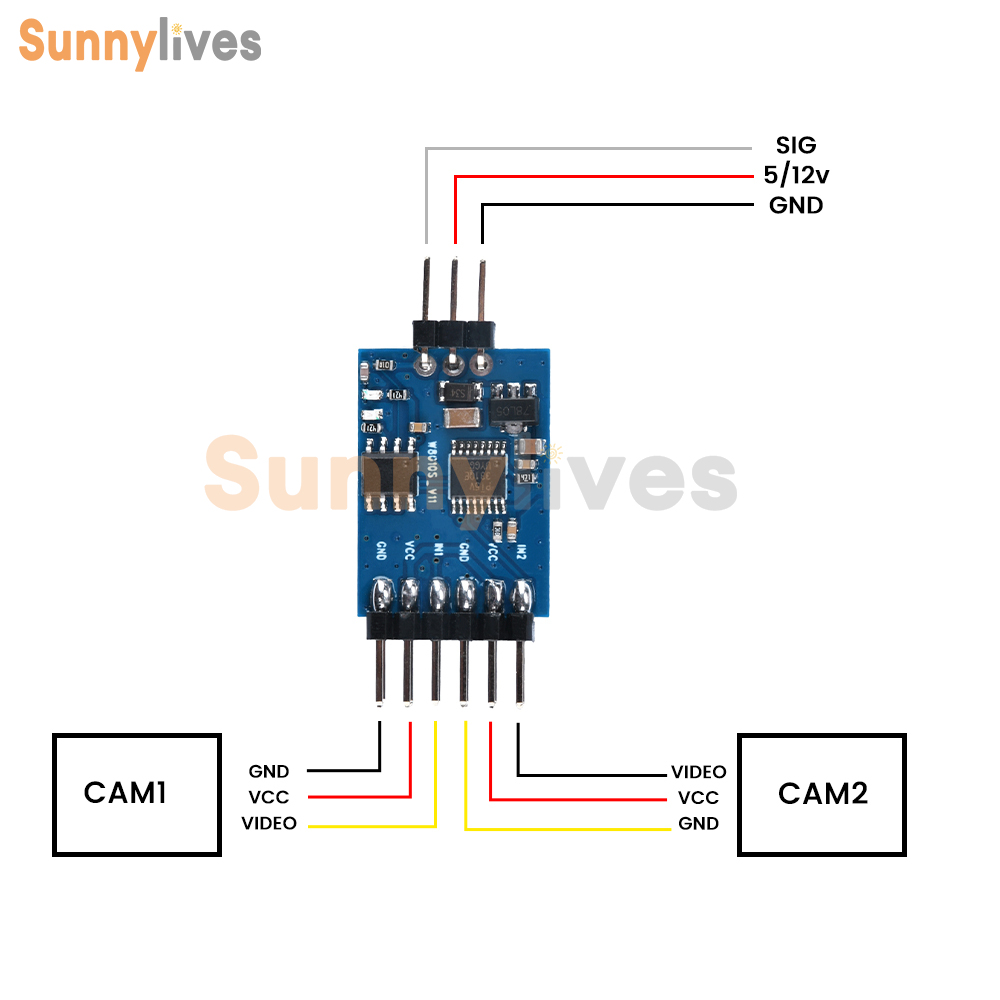

Port "in" is video signal input, IN1, IN2, IN3, OUT is video signal output, "-" is negative, "+" is pause, "S" is receive video signal.
This module can be connected to 3 video sources, you can switch different video sources by 3-position switch, if you have more than one camera in your airplane, this is the product you need.
The control channel can be any proportional channel or 3-position switching channel, the 2-position switching channel can only switch between two video input signals.
Port "in" is video signal input, IN1, IN2, IN3, OUT is video signal output, "-" is negative, "+" is pause, "S" is receive video signal.
Shipping list:
Switcher Module X1
Switcher Module X1
