Description:

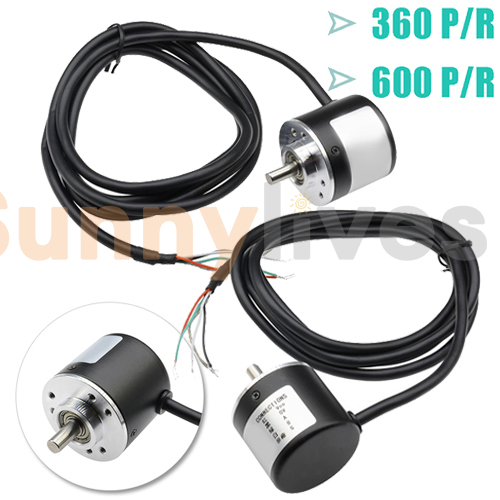

360 P/R (Single-phase 360 pulses /R, Two phase 4 frequency doubling to 1440 pulses)
600 P/R (Single-phase 600 pulses /R, Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V

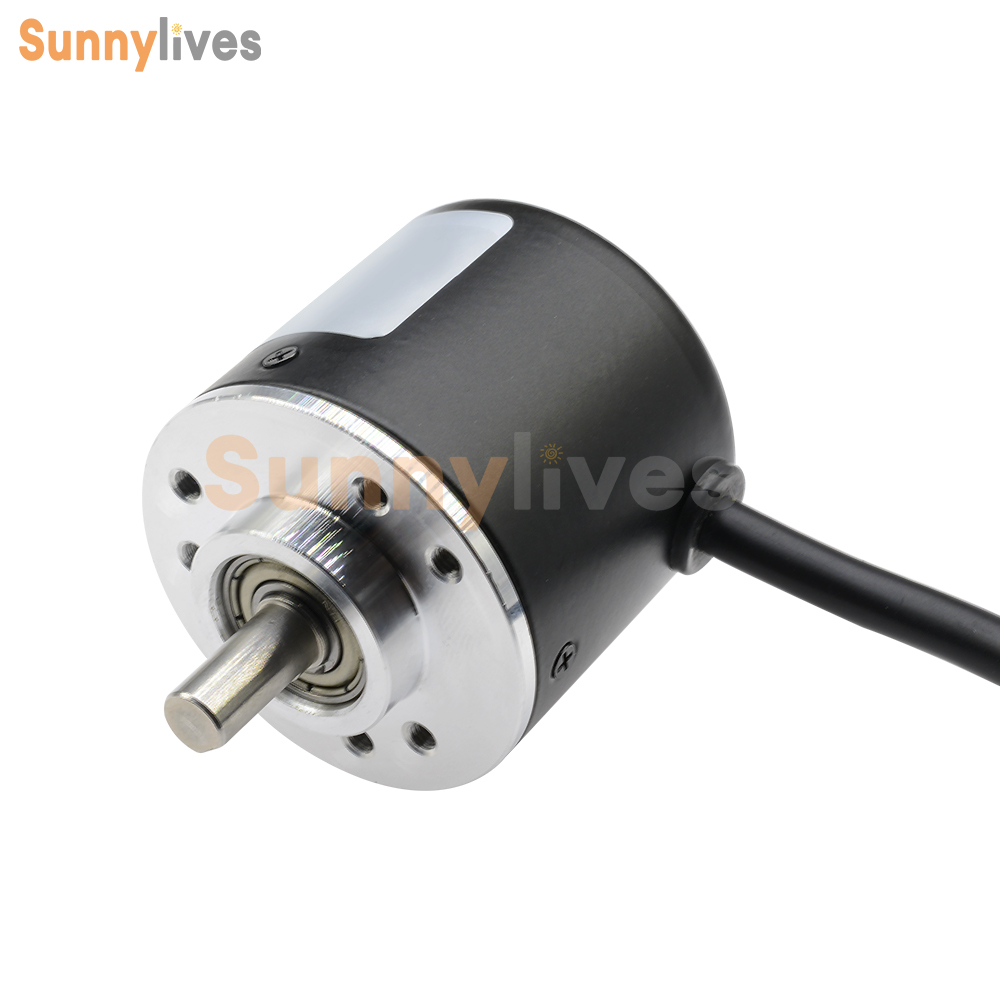

Shaft: 6*13mm / 0.23*0.51"
Size: 38*35.5mm / 1.49*1.39"
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
360 P/R (Single-phase 360 pulses /R, Two phase 4 frequency doubling to 1440 pulses)
600 P/R (Single-phase 600 pulses /R, Two phase 4 frequency doubling to 2400 pulses)
Power source: DC5-24V
Shaft: 6*13mm / 0.23*0.51"
Size: 38*35.5mm / 1.49*1.39"
Output: AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice: AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

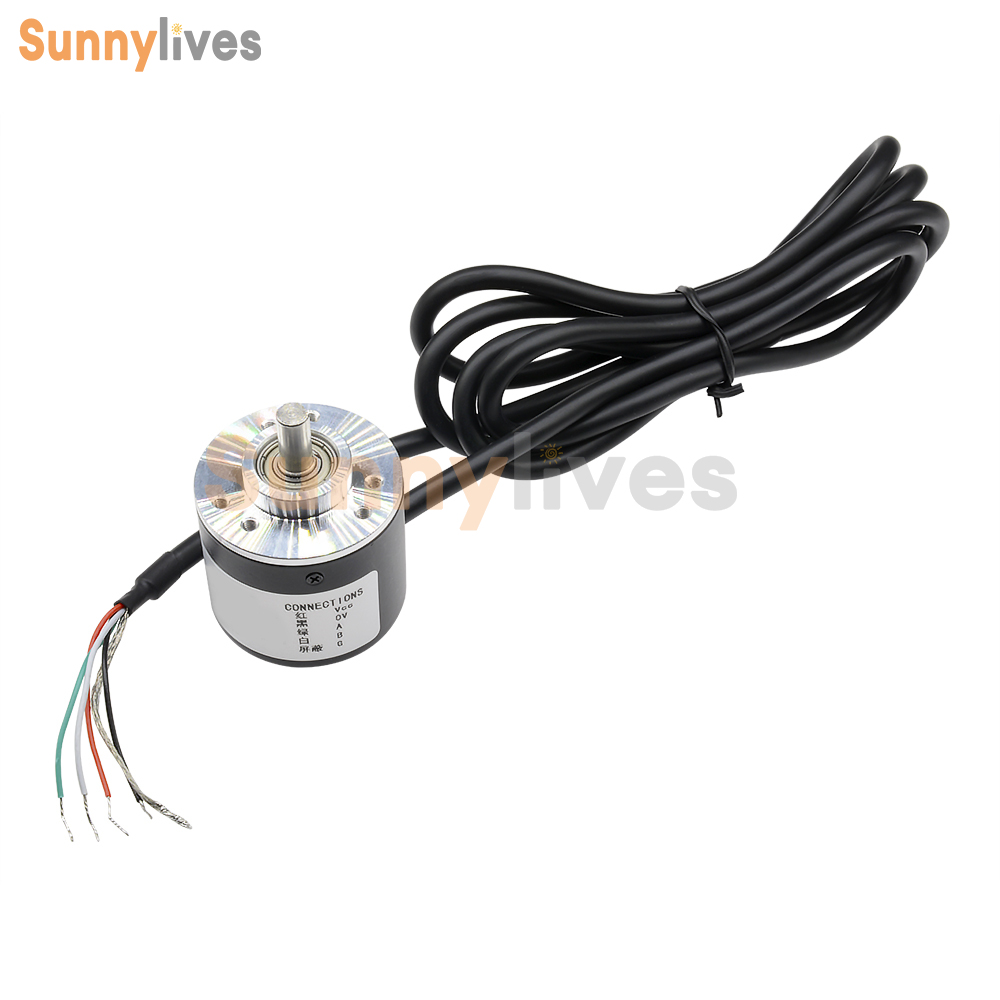

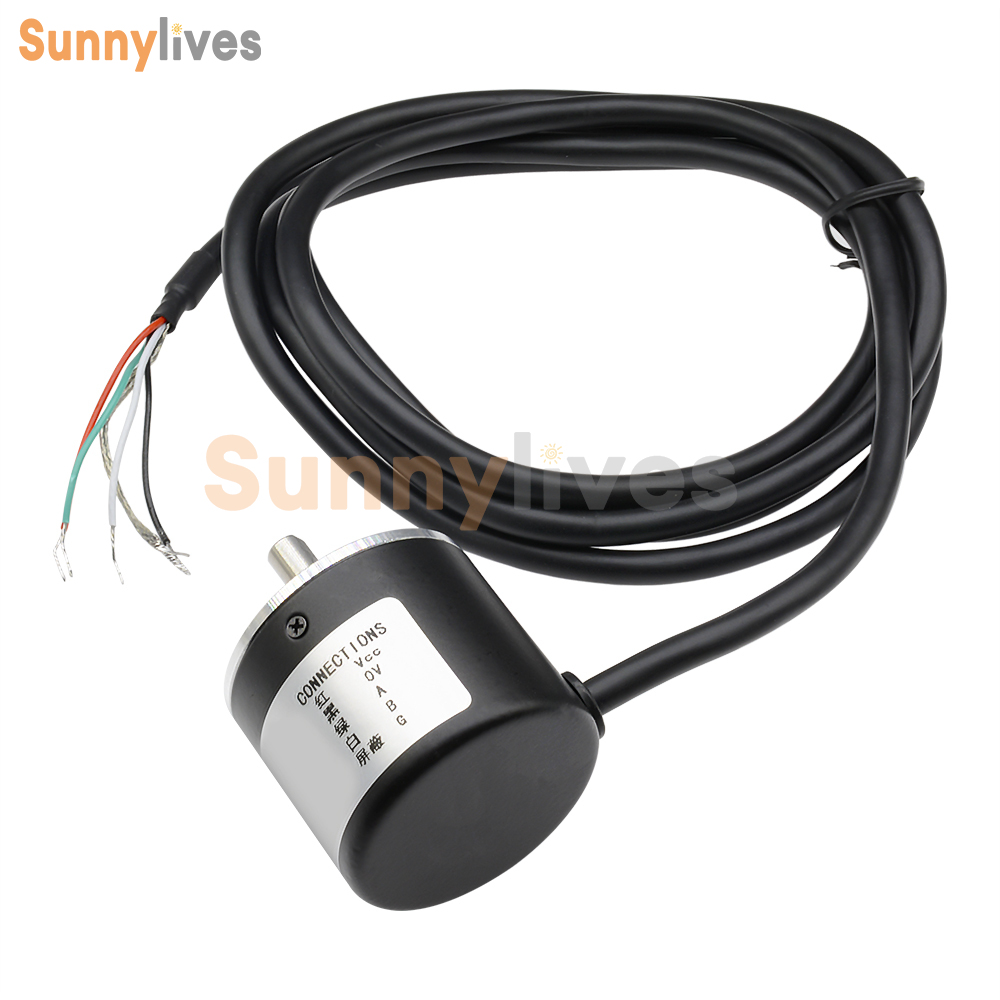

Connection:

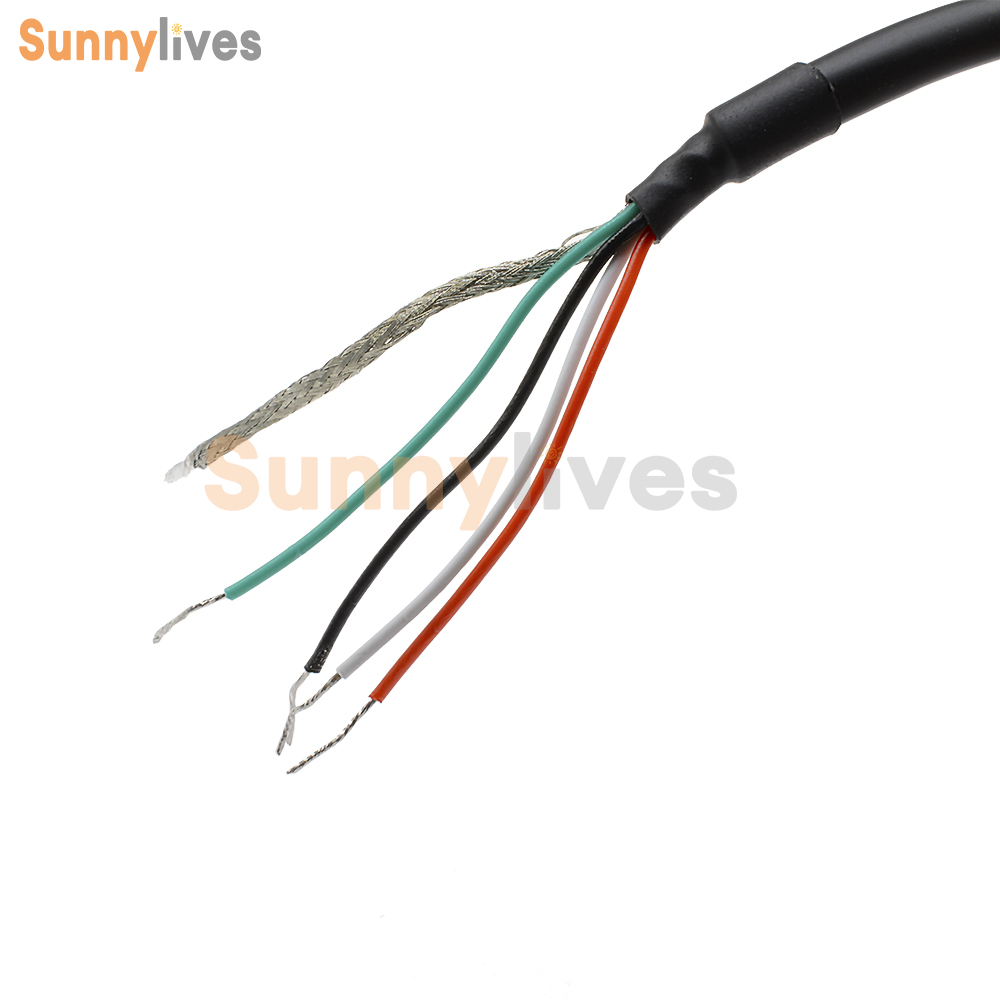

Green = A phase, white = B phase, red = Vcc power +, black = V0
Application:
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots
Package includes:

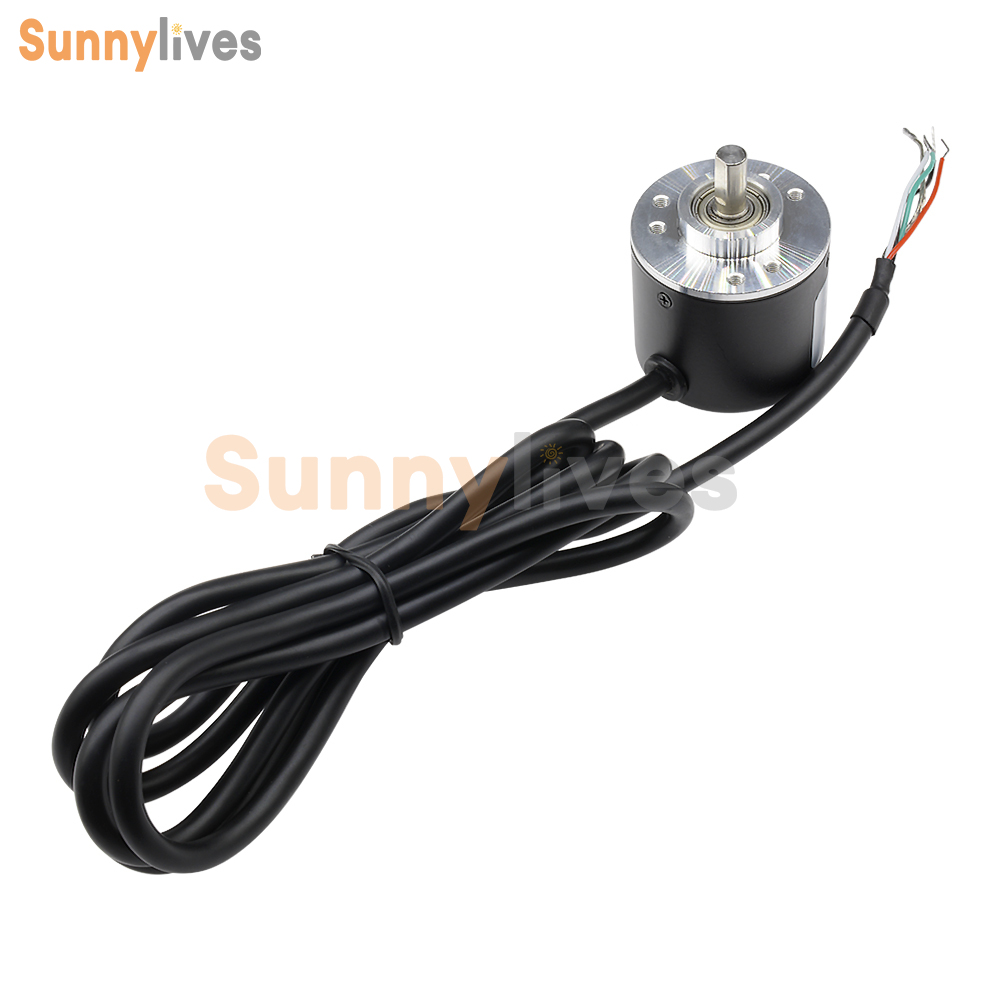

1 x Incremental Rotary Encoder
