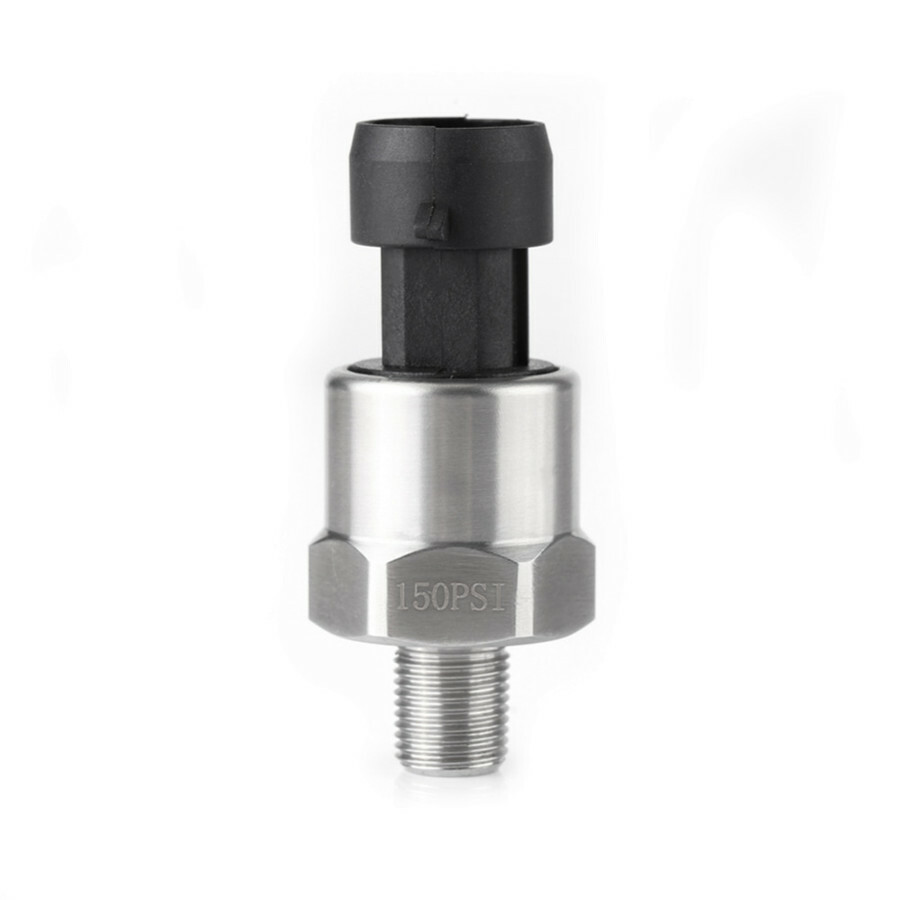

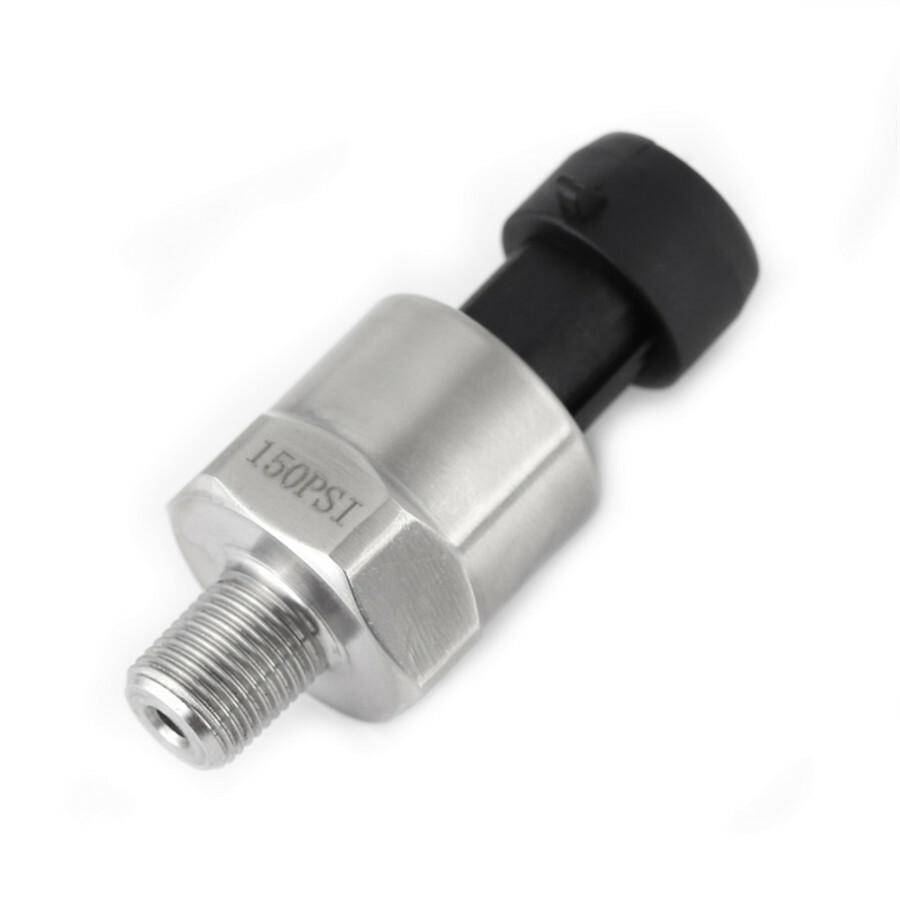

0-150 PSI Pressure Sensor Oil Fuel Stainless Steel Pressure Sender Gauge DC 5V
0-150 PSI Pressure Sensor Oil Fuel Stainless Steel Pressure Sender Gauge DC 5V
0-150 PSI Pressure Sensor Oil Fuel Stainless Steel Pressure Sender Gauge DC 5V
0-150 PSI Pressure Sensor Oil Fuel Stainless Steel Pressure Sender Gauge DC 5V
Features:
It's an advance pressure transducer than traditional mechanical pressure transducer.
±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.
Light weight and small size, convenient to install and operate.
It has complete surge voltage protection function.
Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.
Specifications:
Material: Stainless steel
Voltage: DC 5V
Pressure: 150 psi
Thread Type: 1/8" NPT
Input: 0-150 psi
Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V
Working Current: ﹤=10 mA
Thread: 1/8" NPT

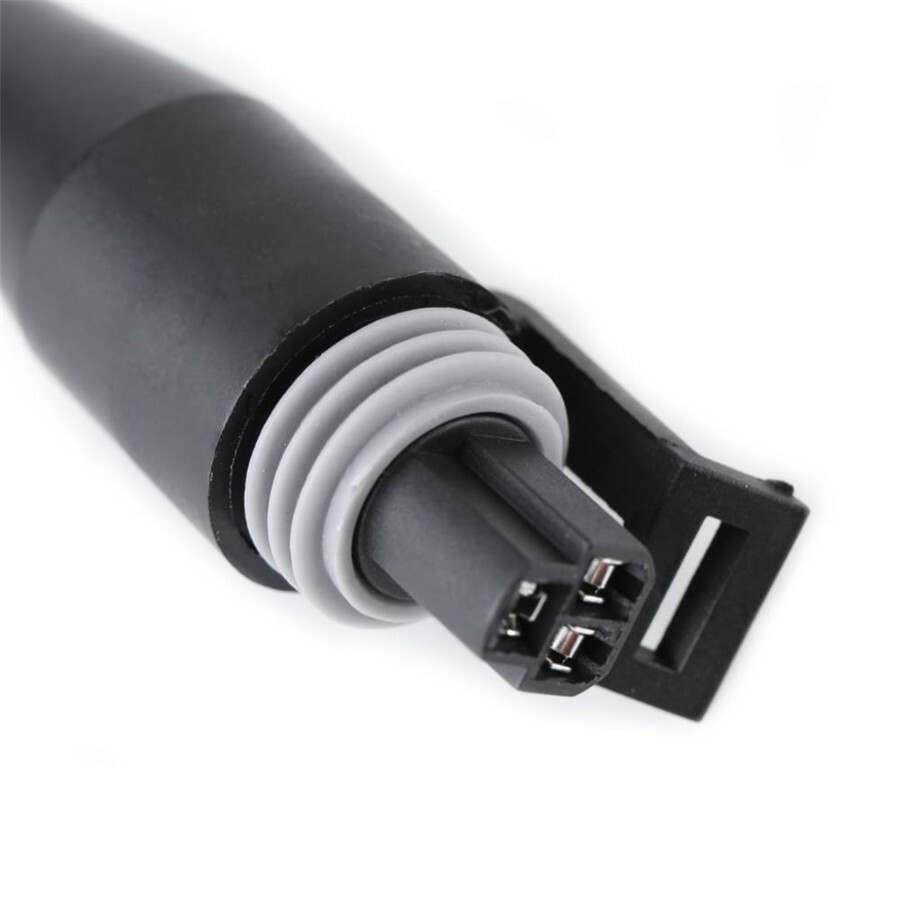

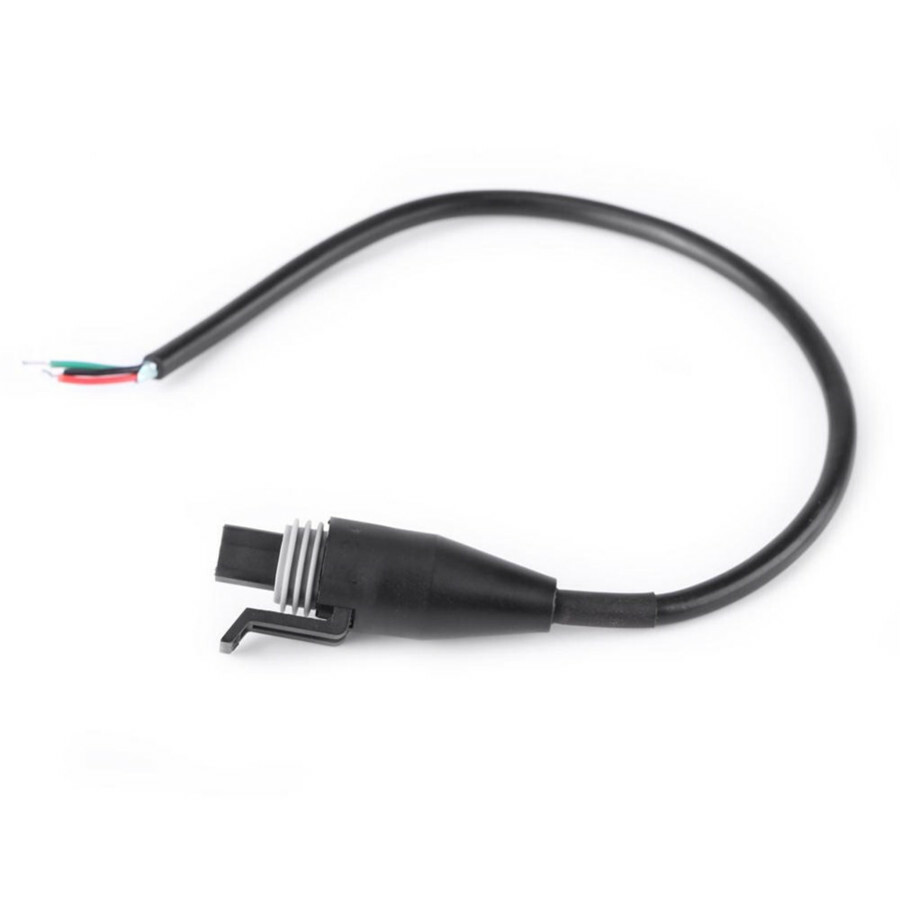

Wiring: Red for +5V; Black for ground; Green for signal output
The Biggest Pressure: Double the working pressure
Destroy Pressure: Triple the working
Measuring Error：+_ 1.5％FSO
Temperature Range Error: +_ 3.5％FSO
Protection Class: IP67
Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel
Load Resistance: ≤(supply power-6.5V/0.02A)Ω
Response Time: =2.0 ms
Insulation Resistance: >100mΩ 500VDC
Package Includes:

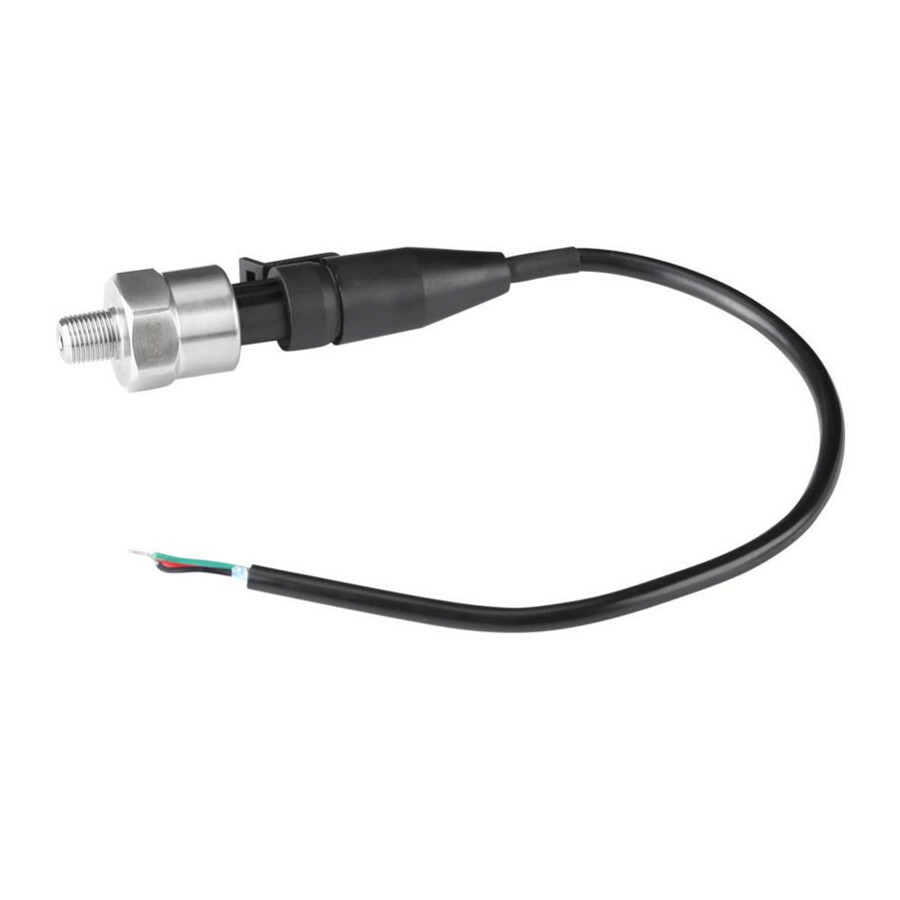

1 x Pressure Transducer (With cable)
