Mechanical Dimensions

Ha86ef2a3c5e04ca3b5b791c17ff9fb36X_页面_08

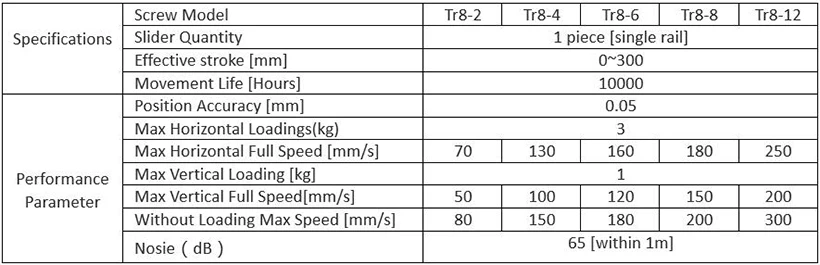

Specification

31

Motor parameters

QQ截图20201109152439

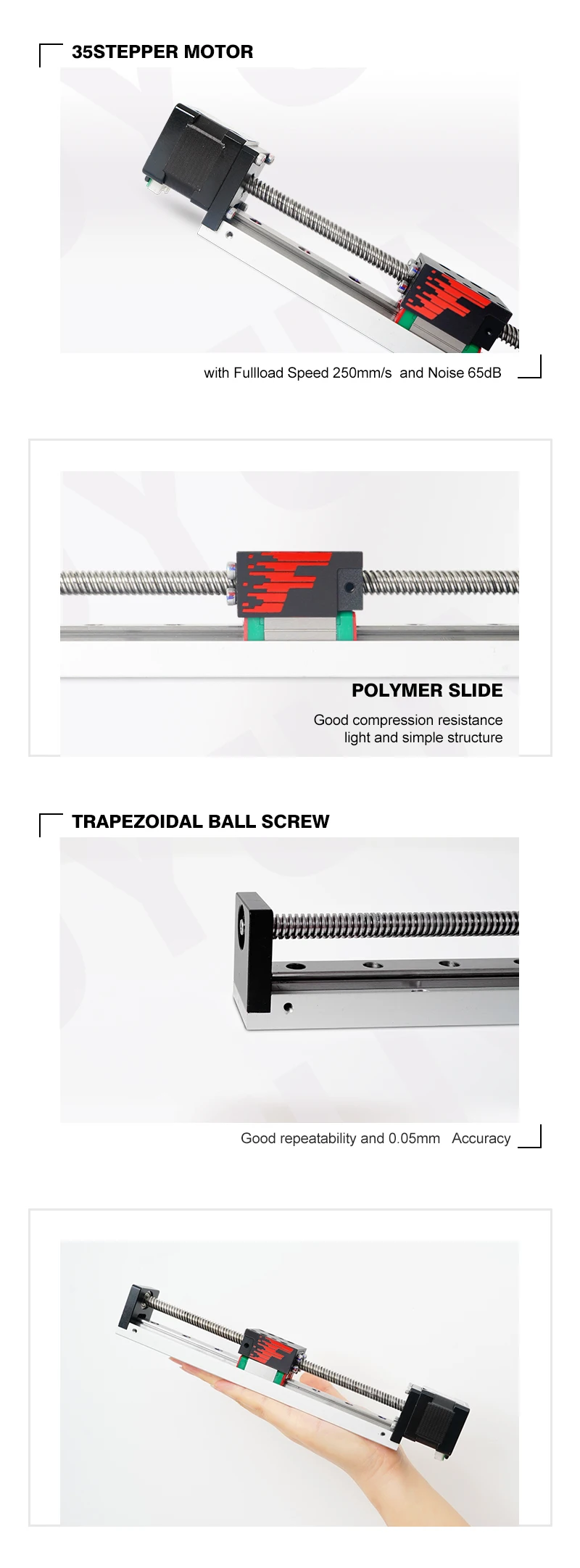

Detail Images

Wire Diagram



3

Working Environment

Working condition

Avoid dust and corrosive gases

Working Temperature

< 80℃

Moisture

< 85%RH  No condensation

Storage Temperature

-30℃~80℃


Use & Maintenance
  •    Suggest set acceleration and deceleration time of motor start and stop on controller, around 0.3s
  •    Recommended for regular lubrication (Monthly)
  •    Recommended lubrication grease # 3 lithium soap base oil.
  •    Recommended to clean up regularly (Monthly) dust and debris on linear guide surface
  •    This product is not suitable for work with collision sensor, strongly advised sensor work with: inductive, sensors, electromagnetic               sensors, photoelectric sensors, etc.
