The price tage is for 100x100x100mm XYZ table,if you want other stroke length,
please do as shown in the indication below
Click above items associated with this item you may need them
SPECIFICATIONS FOR FTS40XYZ-T LINEAR MOTION STAGE | |||

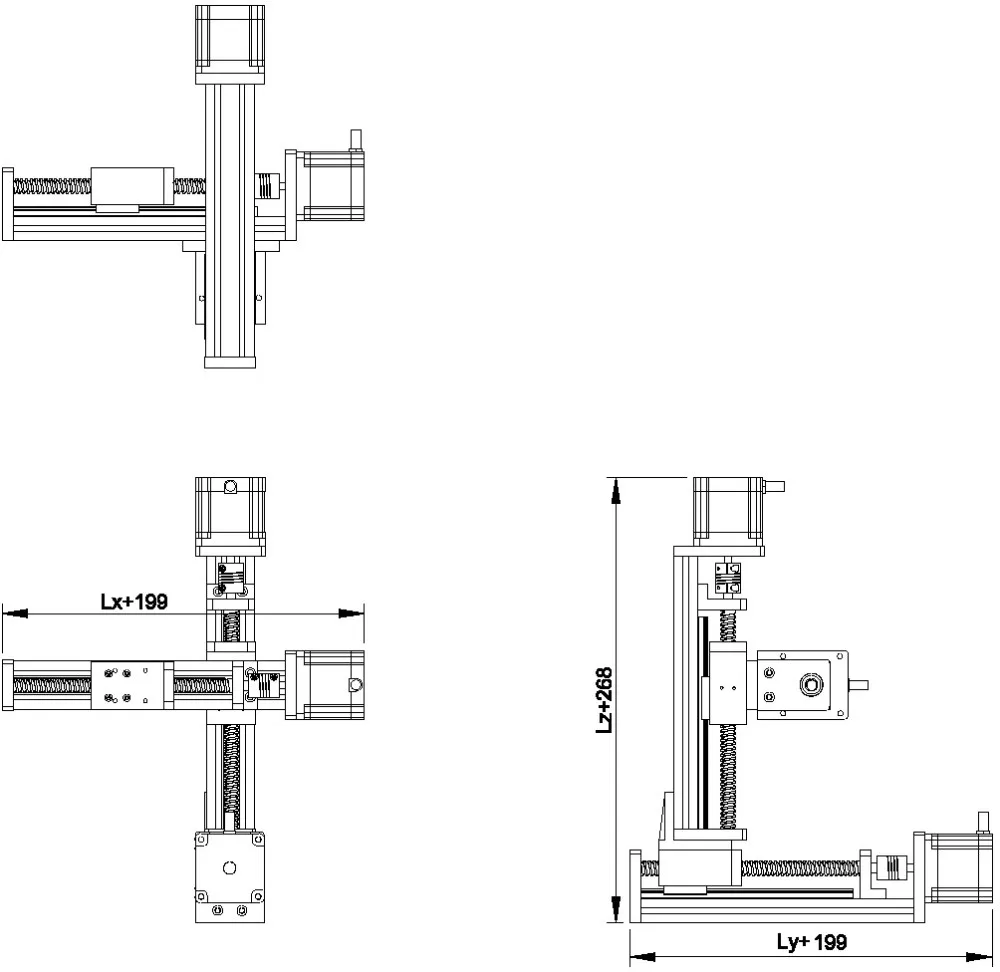

Mechanical Dimensions
| Stroke length Lx | mm | 100 -300 |
Stroke length Ly | mm | 100 -1000 | |
Stroke length Lz | mm | 100 -300 | |
Highly recommend you to tell us the load and speed you want for the XYZ table before your order,Please kindly leave messages to us and we will response asap!
Model No. | Dia.(mm) | Lead(mm) | Accuracy Class |
G1610 (100~500mm stoke) | 16 | 10 | C7 |
G1610(600~1000mm stroke) | 16 | 10 | C7 |
| Model | Step Angle | Flange Size | Body Length | Torque | Current | Resistance | Inductance | Rotor Inertia | Lead |
| (°) | (mm) | L (mm) | ( N.m) | (A) | ( Ω) | ( mH) | (g.cm⊃2;) | (No.) | |
| FM5756SSD04 | 1.8 | 57 | 56 | 0.93 | 2.0 | 1.32 | 3.19 | 188 | 4 |
1,Product sources
All the products sold in this store are FUYU brand, factory-direct sale, no branch.
2, Model selection
Before purchasing, please contact us to confirm the model no and specifications to avoid any misunderstanding. Before our production, we will offer drawings for you to confirm.
3,Payment
Sample fee should be fully paid before production, for bulk order, 50% advance is needed and balance before shippment. Paypal is accepted.
4,Delivery
Samples in stock will be delivered within 7 days and customized samples will be delivered within 30 days. Delivery date for bulk order depends on order quantity.
5,After-sale service
Any flaws found by customers within 30 days upon receiving the goods could be changed to new products. Free maintenance within 12 months. Lifetime technical support
