NOTE:

·If you decide to purchase, please choose from the following order spec template and tell us.

·LOGO Colour：NO【Default 】White, Black ,Silvery, Golden, Purple, Blue

·Spoke Hole Dia：4.5mm or 2.5mm(internal nipple)

·Rim Type : Outer holes or Not outer holes ( tapeless )

·If not specified, the Hole Type defaults to Outer holes, and the Nipples position defaults to External.

Detailed Informatica

·Size:700C

·Material: Toray T700 & T800 Premium Carbon Fiber

·Depth：75mm and 80mm

·Outer Width: 28mm

·Inner Width：21mm

·Profile：Symmetric (0mm)

·ERD：480-490

·Rim Type: Tubeless

·Weave：UD/3K/12

·Hole：24-24H

·Finish：Matte/Glossy

·Spoke Hole Dia：4.5mm

·Valve Hole Dia：6.5mm

·Assembly Hole Dia：7.5mm

·Spoke Tension：120~160kgf

·Max Cyclist Weight：110KG【Light Weight】，120KGNormal Weight

·Max Tire Pressure：120psi

·Warranty: 2 year

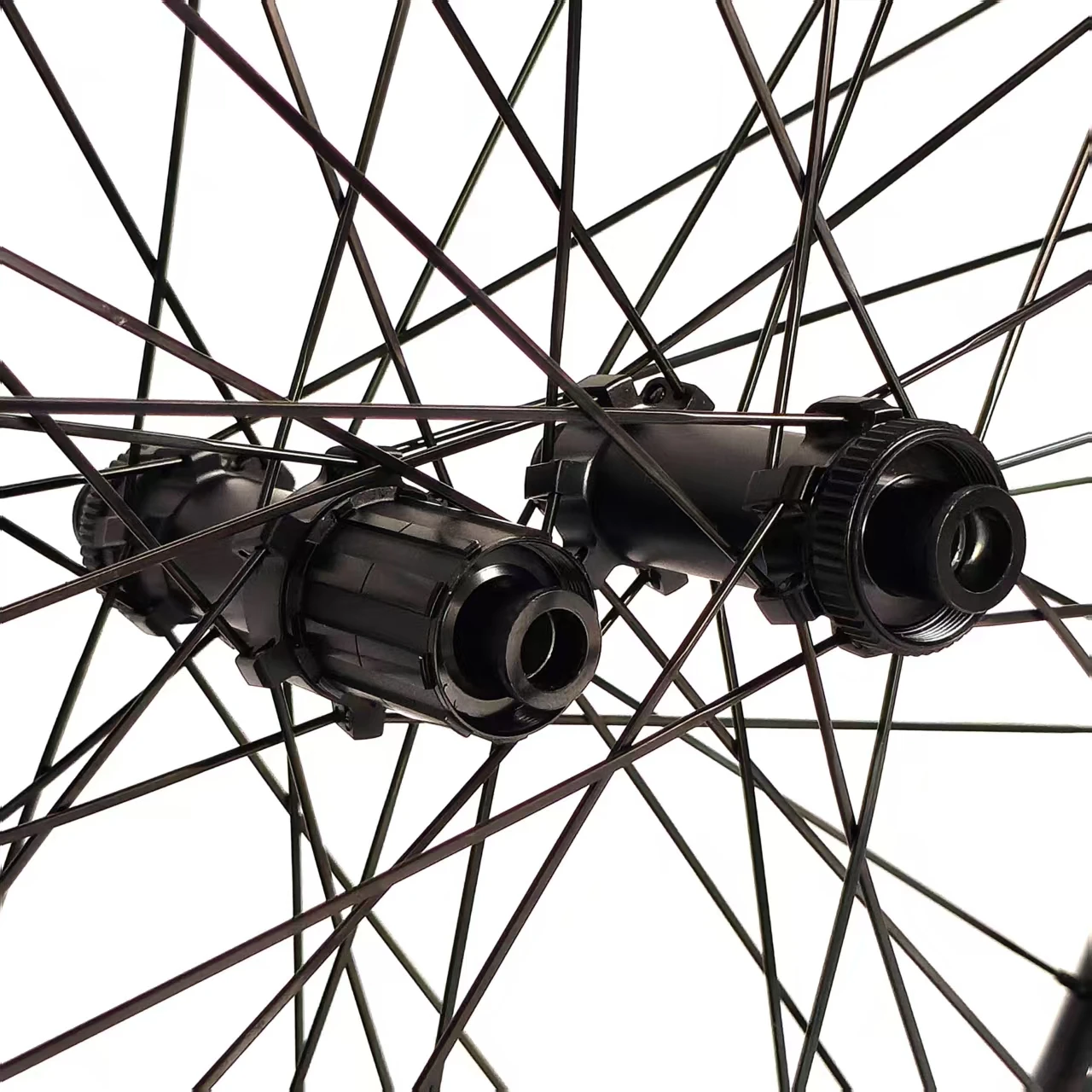

HUB

·Model name:RD01,RD02,RD03-Ceramic【If you want to use another brand of hub,please contact us】

·Front Axle Size：9*100mm/12x100mm

·Rear Axle Size：10*130mm/10*135mm/12*142mm

·Driver Body：Shimano 9/10/11/12S,SRAM XDR

·Brake System: V-Brake or Center Lock

·Hole: 24/24H

·Warranty: 1 year

SPOKE

·Model name: 1423Normal Weight】，1420【Light Weight

·Color：Black【Or other color】

NIPPLE

·Meterial：Pillar alloy

WeightTaking the central locking hub as an example

Normal Weight：1720+/-30g,  Light Weight: 1540+/-30g
