Board Size

E-ATX

304.8W x 330.2D mm

Processor Supported

4th Generation Intel® Xeon® Scalable Processors

Intel® Xeon® CPU Max Series

Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Silver Processor

Single processor, CPU TDP up to 350W

Socket

1 x LGA 4677

Socket E

Chipset Description

Intel® C741 Chipset

Memory Type

16 x DIMM slots

DDR5 memory supported only

8-Channel memory architecture

RDIMM modules up to 128GB supported

3DS RDIMM modules up to 256GB supported

Memory speed: Up to 4800 MHz (1DPC), 4400 MHz (2DPC)

Integrated Network

2 x 10Gb/s BASE-T LAN ports (Intel® X710-AT2)

NCSI function supported

1 x 10/100/1000 management LAN

Integrated Video Controller

Integrated in Aspeed® AST2600

2D Video Graphic Adapter with PCIe bus interface

1920x1200@60Hz 32bpp, DDR4 SDRAM

Integrated Audio Controller

N/A

Integrated SAS Controller

N/A

Integrated SATA Controller

2 x SlimSAS with 8 x SATA 6Gb/s ports

2 x 7-pin SATA 6Gb/s ports

Support RAID Function

Intel® SATA RAID 0/1/10/5

Expansion Slot

Slot_7: 1 x PCIe x16 (Gen5 x16 bus) slot, from CPU_0

Slot_6: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU_0, shared with Slot_5

Slot_5: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU_0

Slot_4: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU_0, shared with Slot_3

Slot_3: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU_0

Slot_2: 1 x PCIe x16 (Gen5 x16 or x8 bus) slot, from CPU_0, shared with Slot_1

Slot_1: 1 x PCIe x16 (Gen5 x8 bus) slot, from CPU_0

1 x M.2 slot:

- M-key

- PCIe Gen3 x4, from PCH

- Supports 2280/22110 cards

On-Board Connector

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x 6-pin ATX 12V power connector

2 x MCIO 8i connectors (For system integration only)

1 x M.2 slot

2 x CPU fan headers

5 x System fan headers

1 x USB 3.2 Gen1 header

1 x TPM header

1 x VROC connector

1 x Front panel header

1 x HDD backplane board header

1 x PMBus connector

1 x IPMB connector

1 x Clear CMOS jumper

1 x BIOS recovery jumper

1 x Buzzer

Rear I/O Connectors

2 x USB 3.2 Gen1

1 x VGA

1 x COM

2 x RJ45

1 x MLAN

1 x ID button with LED

TPM

1 x TPM header with SPI interface

Optional TPM2.0 kit: CTM010

OS Driver Supported

Please refer to OS compatibility table in support page

Additional certifications:

Windows Server 2022 (x64)

Server Management

Aspeed® AST2600 management controller

GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

· Dashboard

· HTML5 KVM

· Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)

· Sensor Reading History Data

· FRU Information

· SEL Log in Linear Storage / Circular Storage Policy

· Hardware Inventory

· Fan Profile

· System Firewall

· Power Consumption

· Power Control

· LDAP / AD / RADIUS Support

· Backup & Restore Configuration

· Remote BIOS/BMC/CPLD Update

· Event Log Filter

· User Management

· Media Redirection Settings

· PAM Order Settings

· SSL Settings

· SMTP Settings

PSU Connector

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x 6-pin ATX 12V power connector

Operating Properties

Operating temperature: 10°C to 40°C

Operating humidity: 8-80% (non-condensing)

Non-operating temperature: -40°C to 60°C

Non-operating humidity: 20%-95% (non-condensing)

Packaging Bundle

1 x MS33-AR0

1 x I/O shield

1 x Quick start guide

3 x Carrier clips

1 x SlimSAS to 4 x SATAIII 6Gb/s cable

Single Box dimensions: 409 x 355 x 78 mm

Carton dimensions: 729 x 415 x 432 mm

Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MS33-AR0

10 x I/O shields

30 x Carrier clips

Carton dimensions: 600 x 473 x 517 mm

Ordering Information

Retail: 9MS33AR0MR-000-1*

Bulk: 9MS33AR0NR-000-1*

Part Numbers:

- I/O shield: 12AIO-MU92TU-00R

- SlimSAS to 4 x SATA cable: 25CFM-600700-A4R

CPU

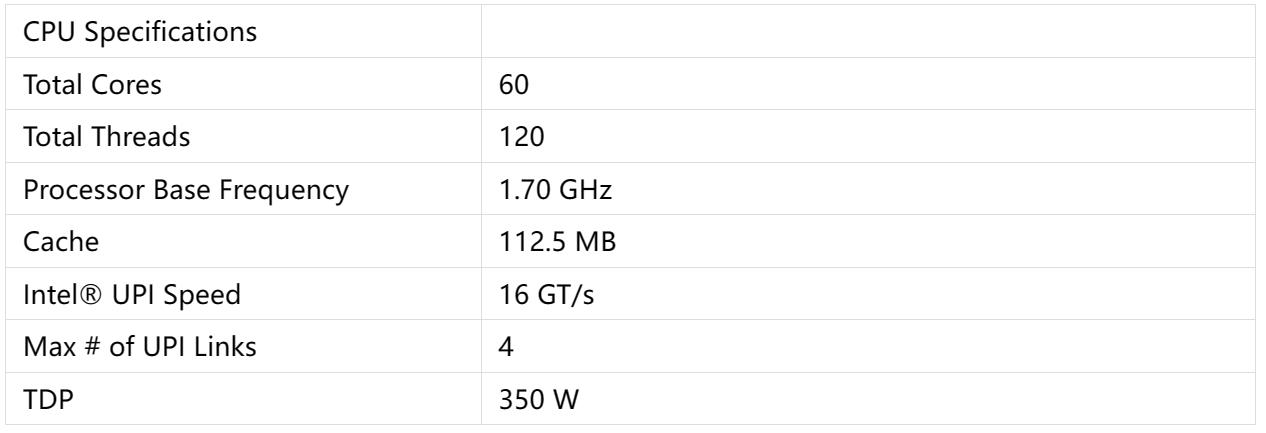

 Intel Xeon Platinum 8490h Processor ES

This is the ES version of the CPU, not the official version
