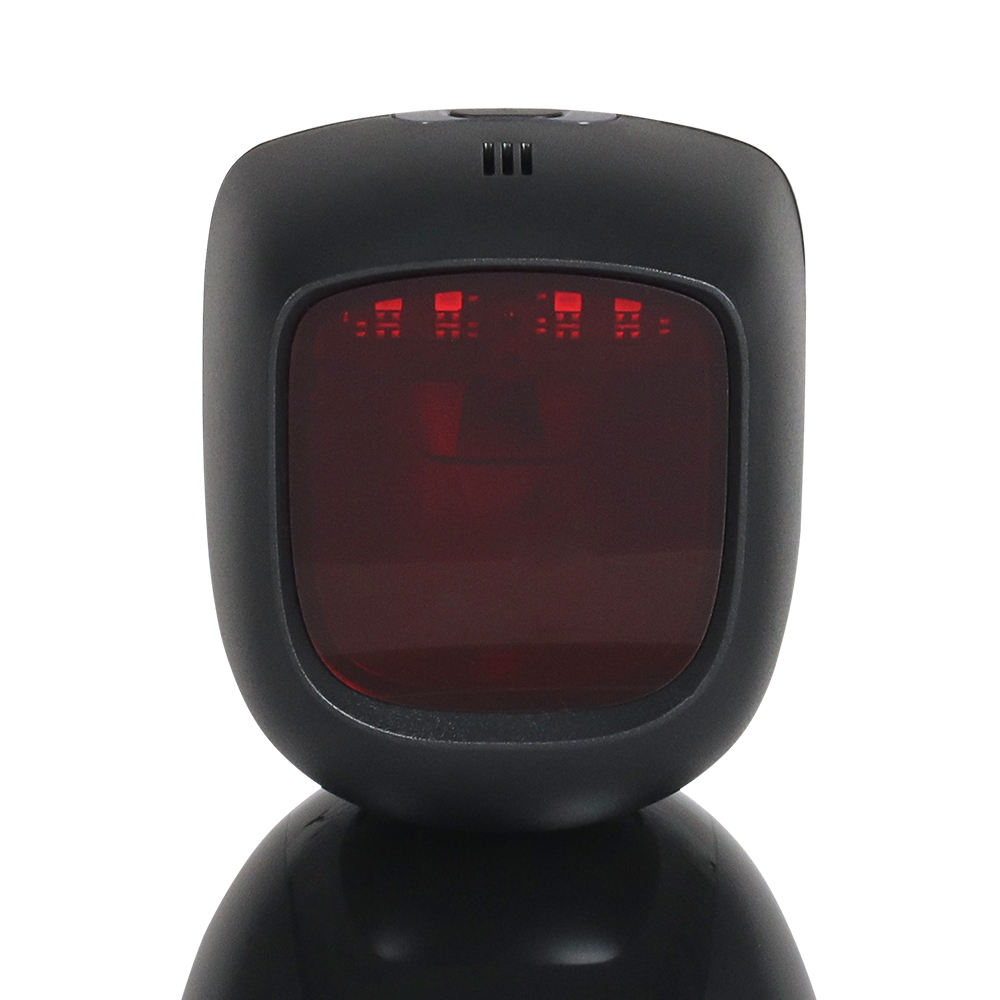

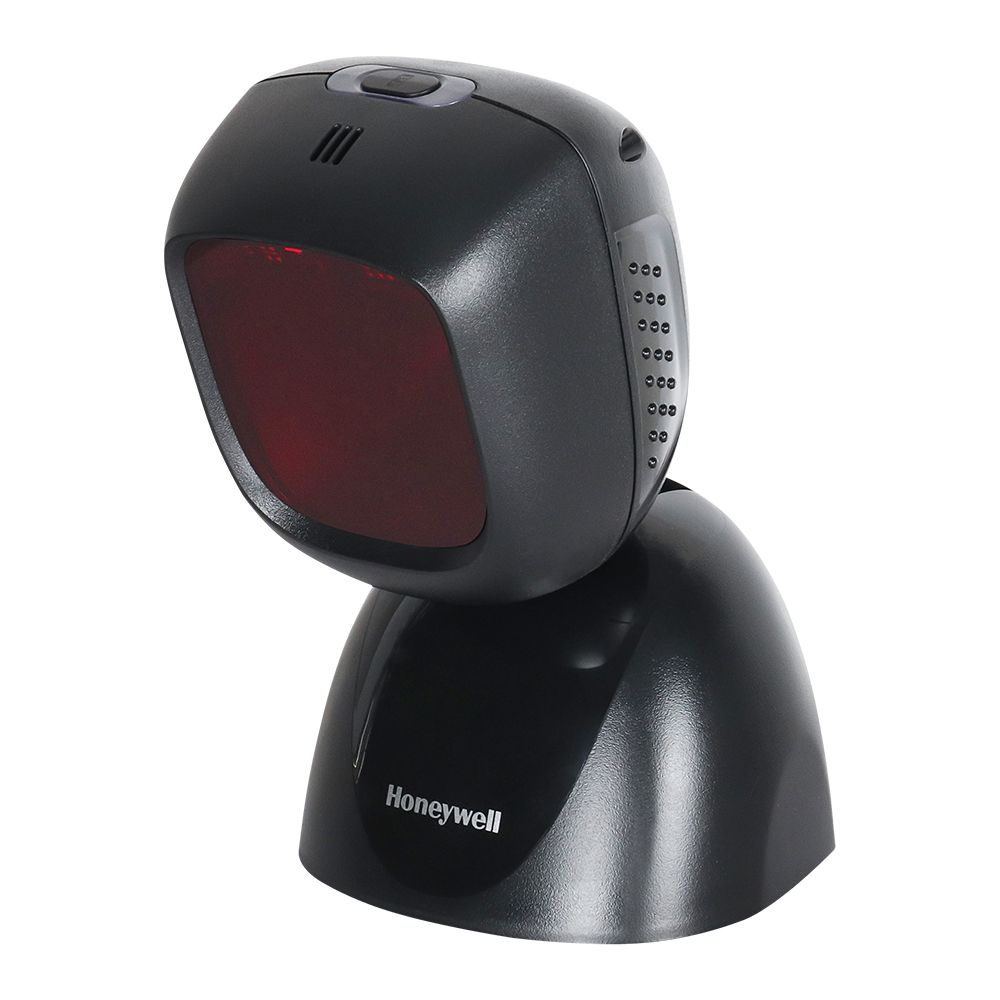

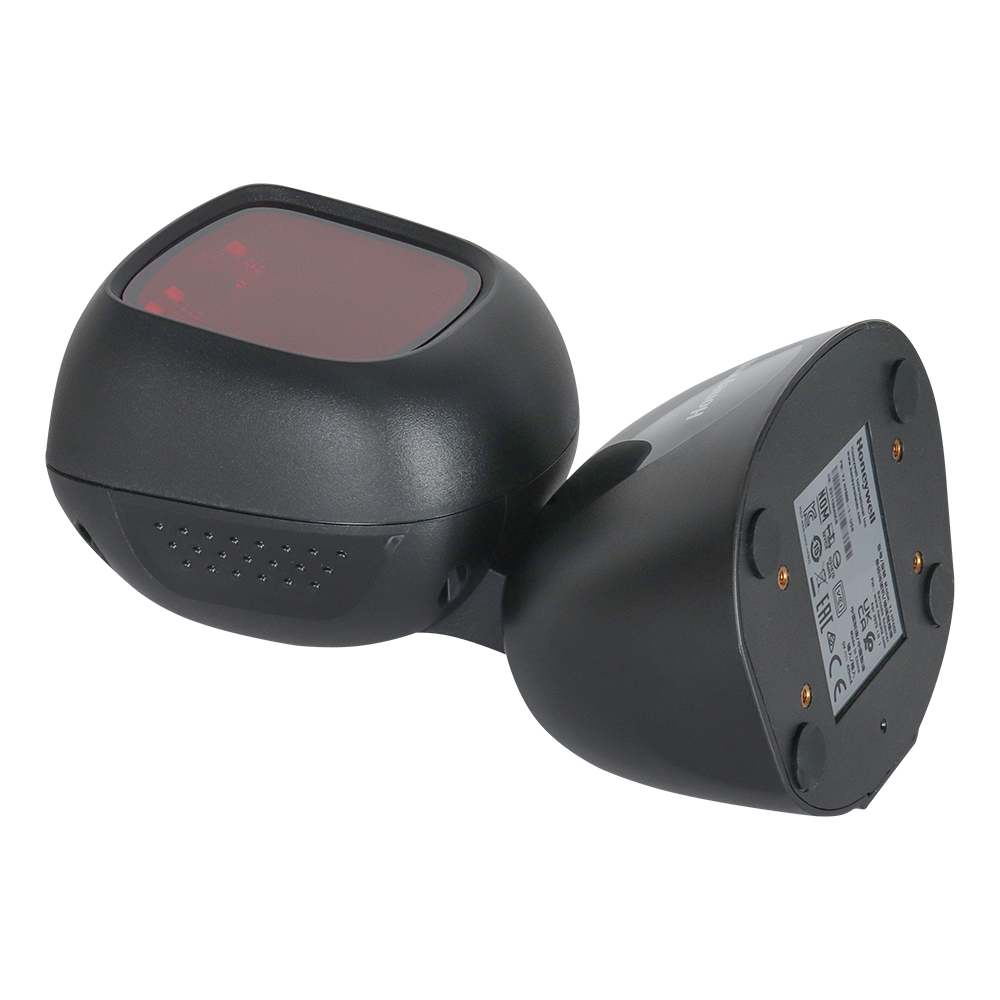

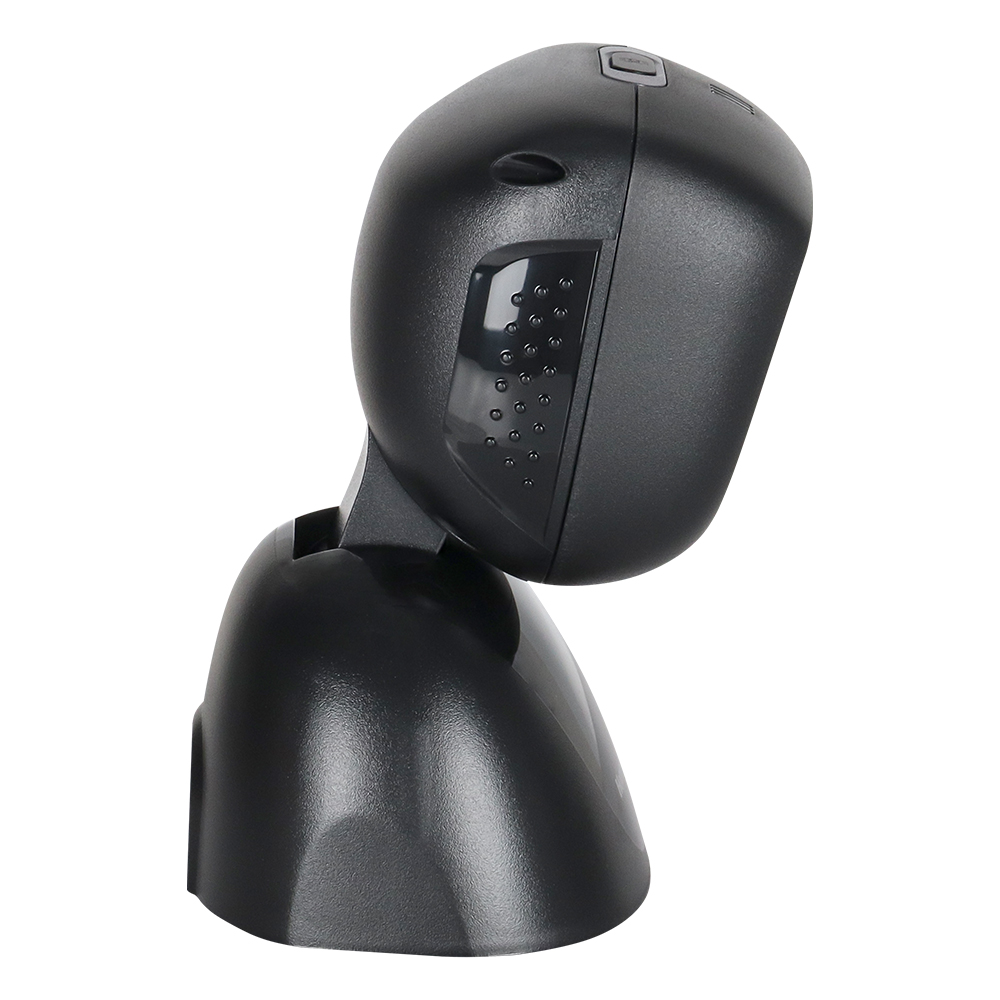

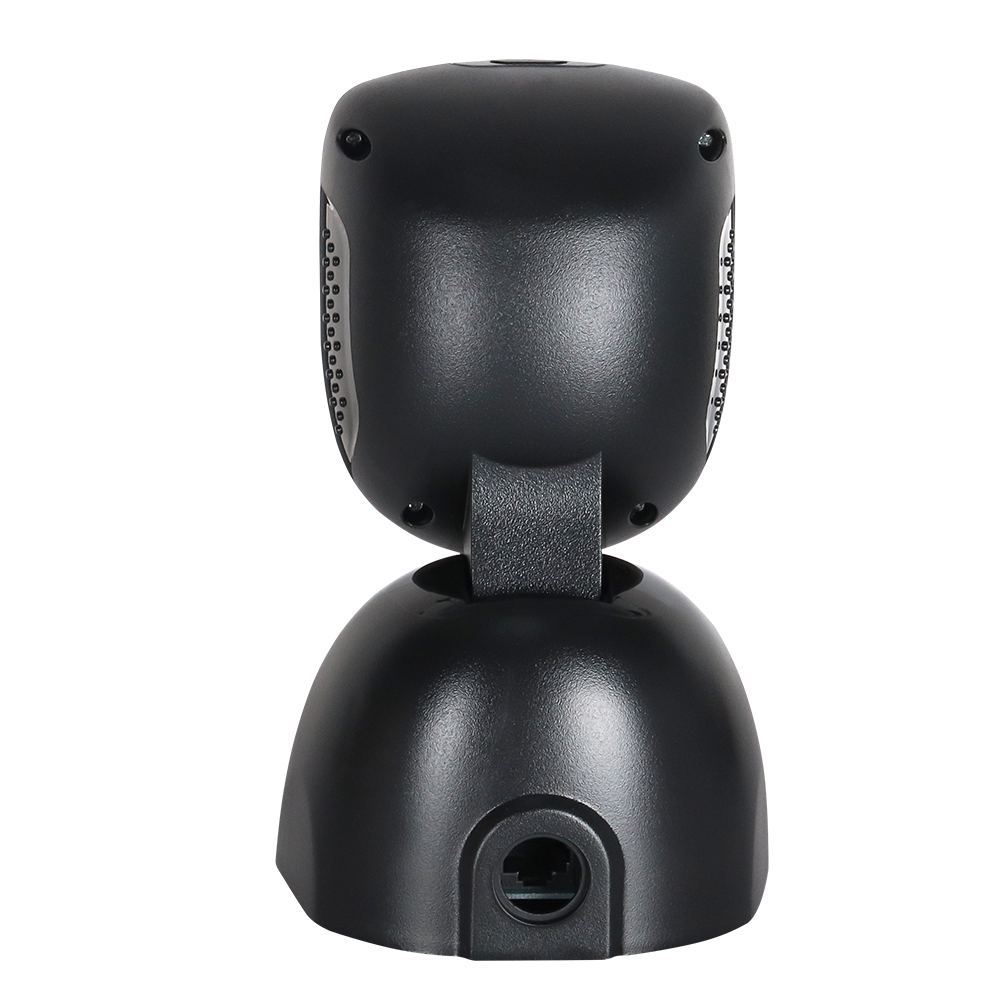

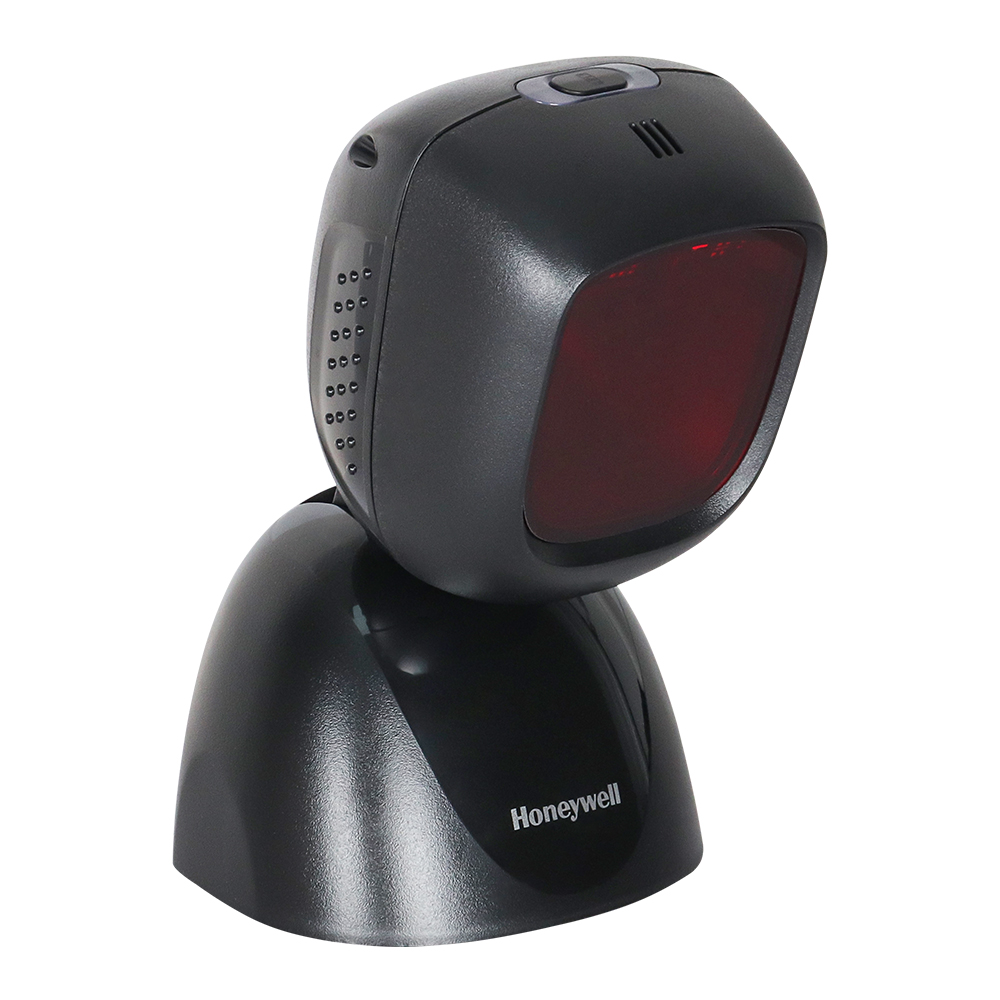

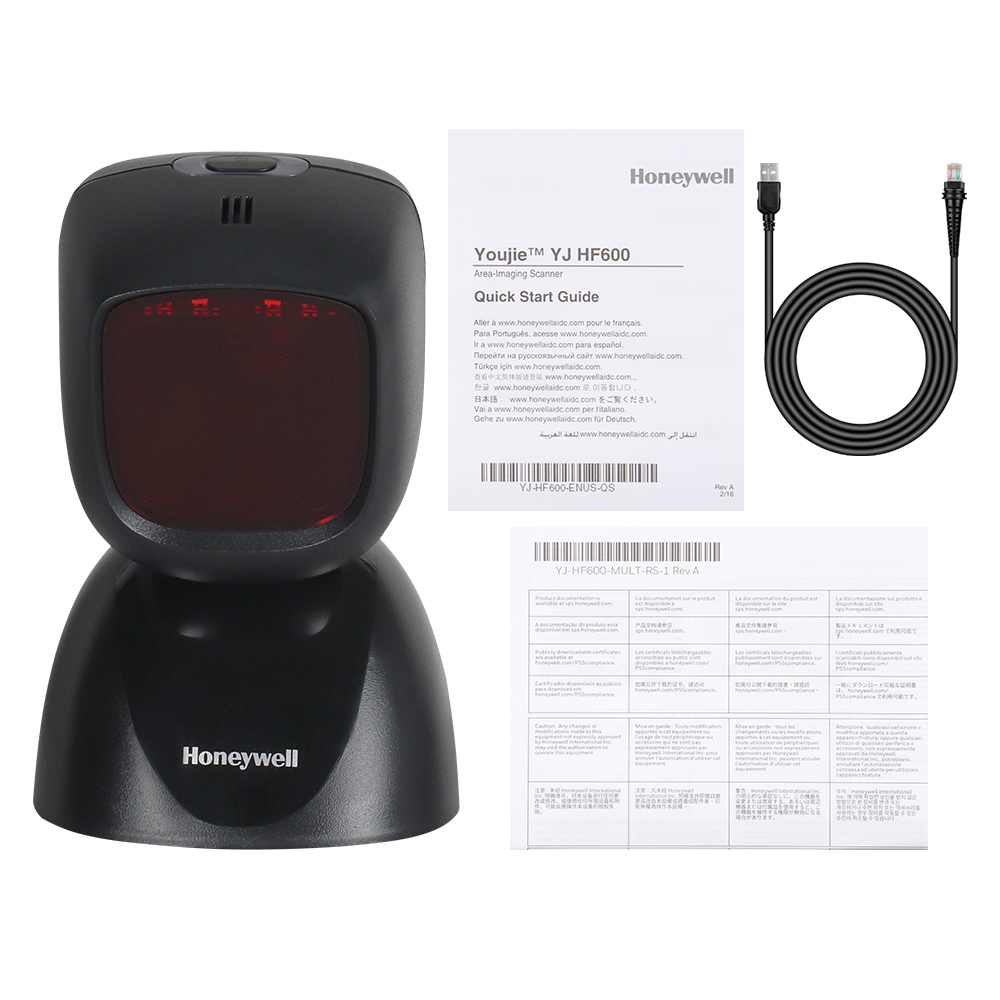

Honeywell Youjie HF600 2D CMOS Area-imaging desktop omnidirectional wired handfree USB barcode scanner, with 2D barcode getting increasingly popular in various applications, customers are looking for affordable high-performance 2D barcode scanners. Designed with leading technology and superior performance, Youjie launches a new hands-free areaimaging scanner HF600, which can be widely used in multiple applications, such as retail POS, logistics tracking, pharmacy and office automation.
Features:
-Ergonomic Design: 2-modular body design with large window can easily meet various scanning needs.
-Switch for Mobile Scanning: a single button enables the optimal scanning of 2D barcodes on mobile phones,improving efficiency and customer satisfaction.
-Sleep Mode With IR Activation: effectively reduces power consumption, extends product life and lowers operating costs.
-Intelligent Lighting Technology: with 3 adjustable lighting options, scanner illumination is optimized for superior 2D scanning performance and high motion tolerance.
Specification
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| Linear (1D) barcodes supported | Code 39 |
| 2D (matrix & stacked) barcodes supported | Data Matrix, PDF417, QR Code |
| Yaw reading angle | 0 - 70° |
| Wavelength | 620 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | Photo diode |
| Scanner type | 1D/2D |
| Pitch reading angle | 0 - 60° |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Ports & interfaces | |
| Connectivity technology | Wired |
| USB 2.0 ports quantity | 1 |
| Standard interfaces | RS-232, USB, Keyboard wedge |
| Performance | |
| LED indicators | Yes |
| Product colour | Black |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Design | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| Product colour | Black |
| Power | |
| Power consumption | 400 mA |
| Power source type | DC |
| Power consumption (typical) | 2 W |
| Power consumption (standby) | 0.45 W |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 98.2 mm |
| Depth | 87.4 mm |
| Height | 170 mm |
| Weight | 340 g |
| Technical details | |
| Type | Fixed bar code reader |
| LED indicators | Yes |
| USB 2.0 ports quantity | 1 |
| Product colour | Black |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Light levels (direct sunlight) | 0 - 100000 lx |
| Other features | |
| USB 2.0 ports quantity | 1 |
