DESCRIPTION:

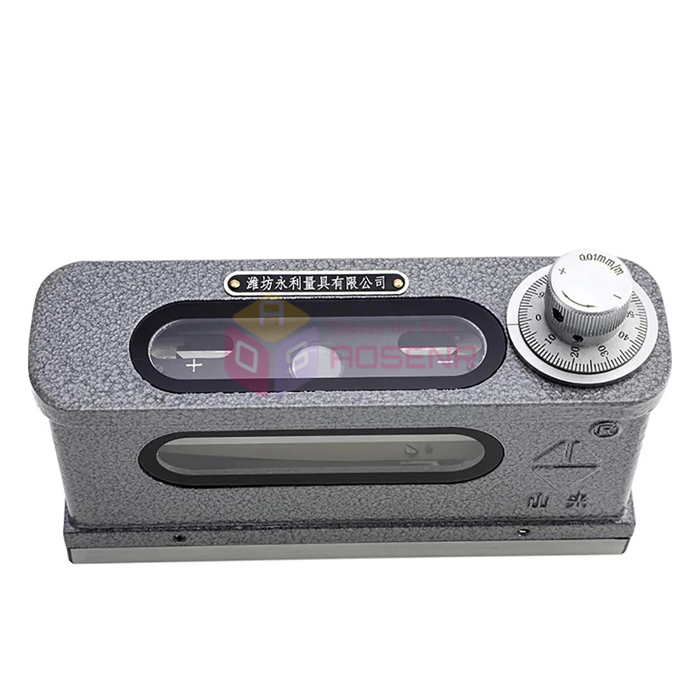

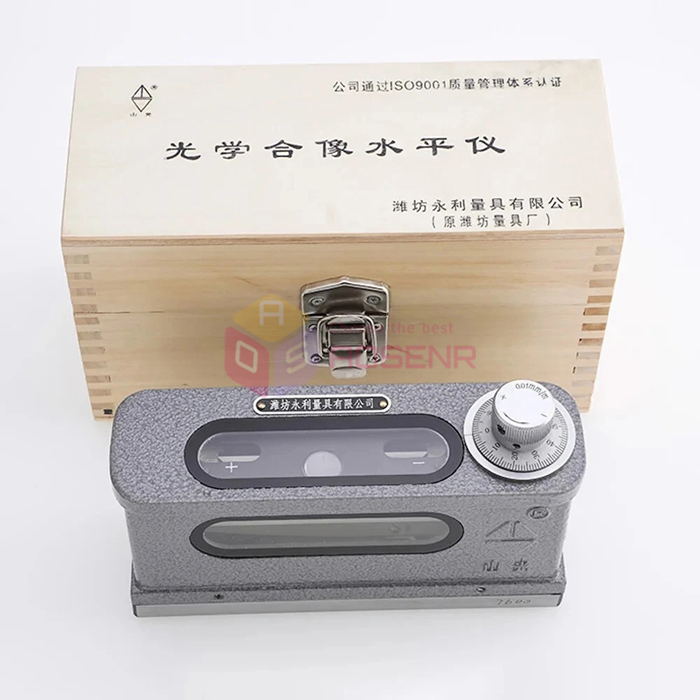

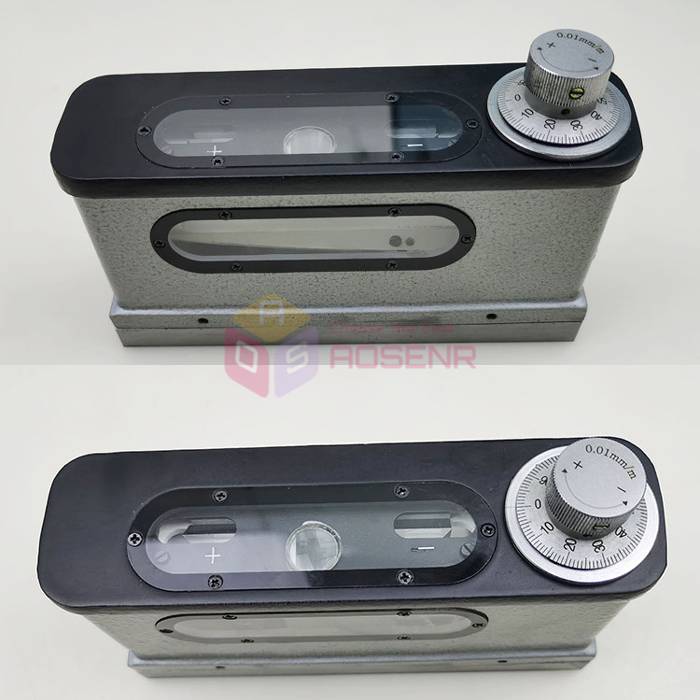

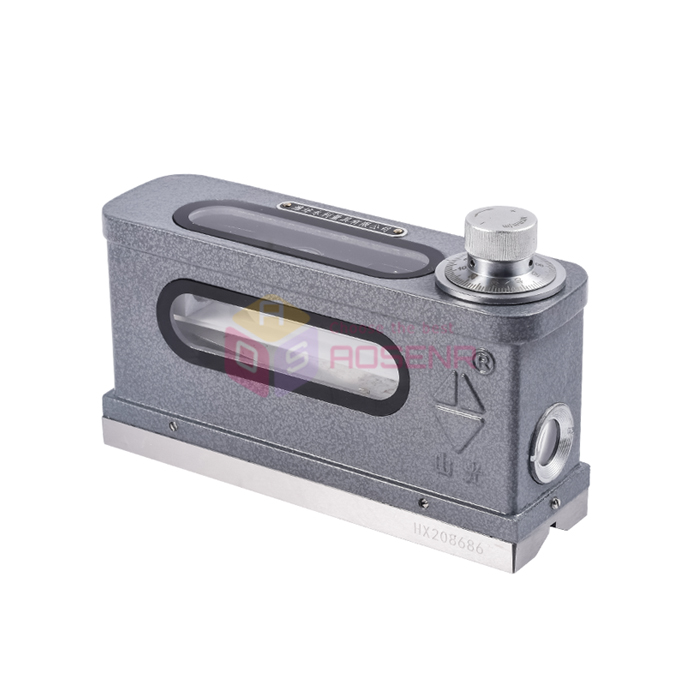

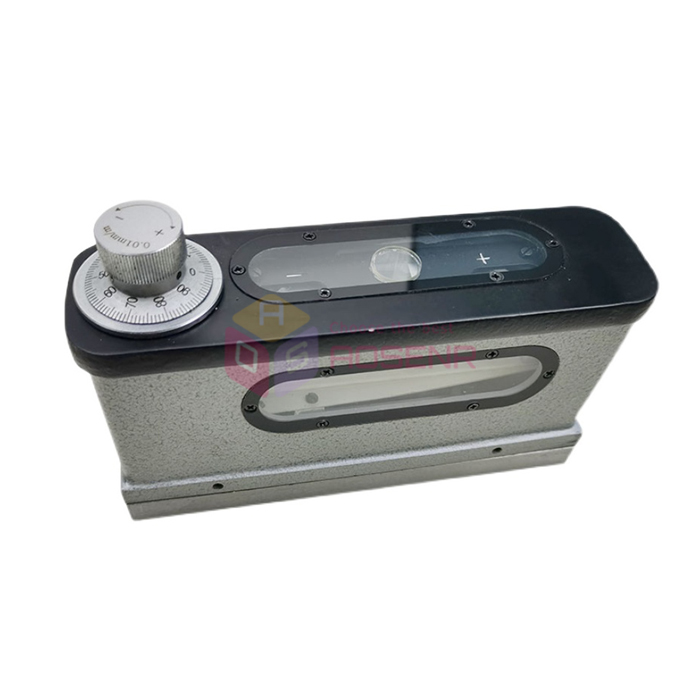

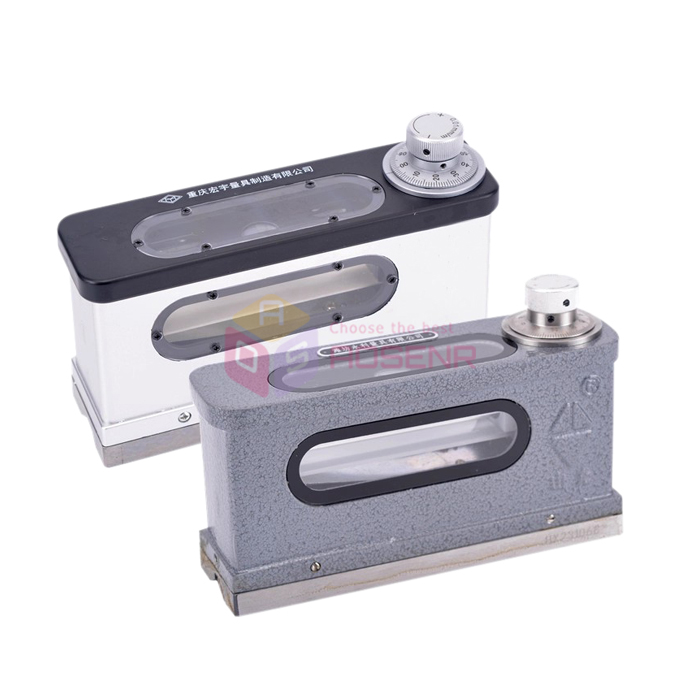

Optical Composite Image Level
Applications:
◆The optical composite image level is widely used in measuring the gradients of flat surface and cylindrical to horizontal direction, the planeness and straightness of slideway or base of machine tool or optical mechanical instrument as well as the correctness of installing position of installing of equipment.
Working Principle:

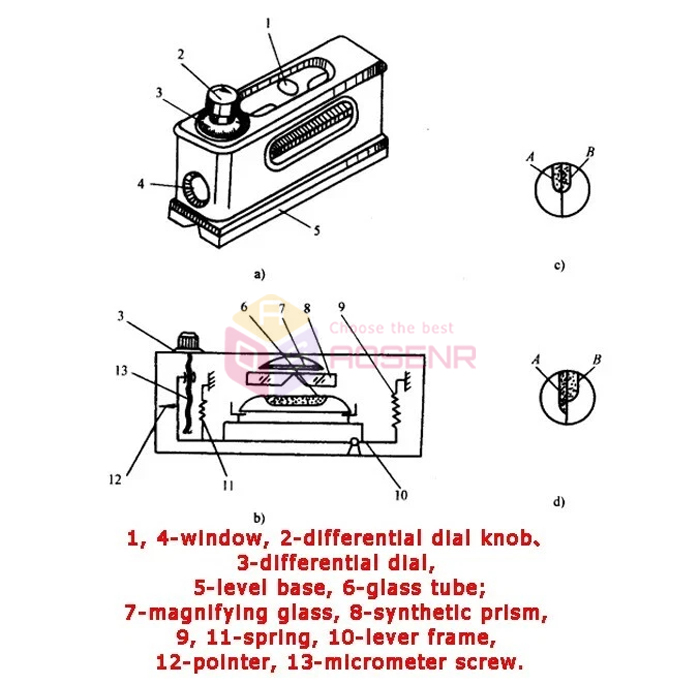

◆The composite image level uses prism to get the air bubble images in the spirt level composite and magnified to enhance reading accuracy and uses lever and miero- screw transmitting system to enhance reading sensibility. Therefore if the work piece with a gradient of 0. 01mm/m, it can be accurately read in the composite image level(the spirit level in the composite image level mainly plays the role of indicating zero).
Features:
Accurate measurement and stable performance
Industrial grade material, wear-resistant and easy to use
After cold and hot treatment, the material is more stable and the indication accuracy is high
Micrometer screw knob, manual adjustment, reduce errors
V-groove design is widely used to measure the inclination of planes and cylindrical surfaces to the horizontal direction
Specifications:
Name: Optical Image Level
Graduation Value: 0.01mm
Working Surface Flatness Deviation: 0.003mm
V-Type Working Angle: 120°
Indication Error: ±0.01/0.02mm/M
Level Value: 0.1mm/M
Package includes:
1 x Optical Image Level
|
