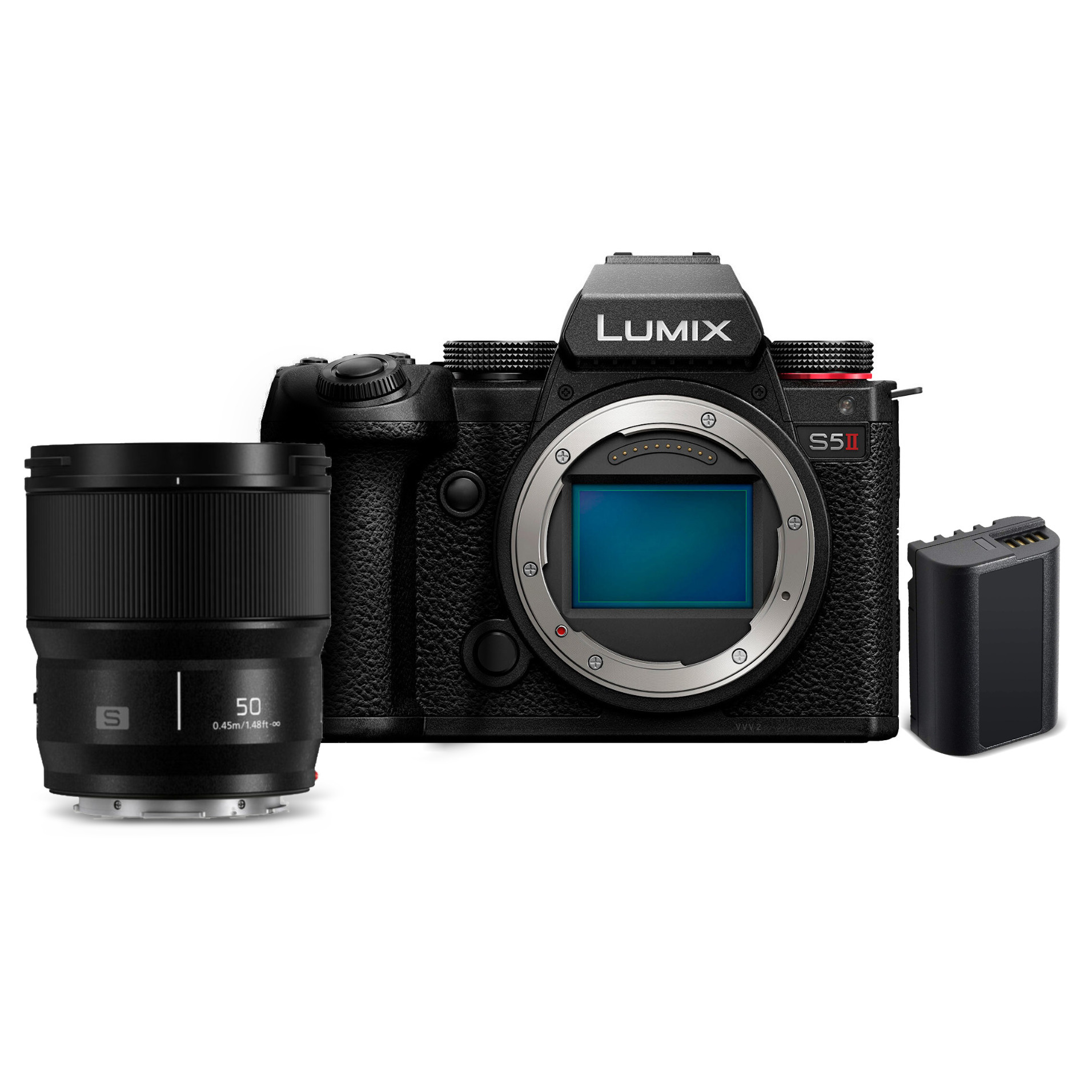

Panasonic LUMIX S5II 24.2MP Full Frame Mirrorless Camera w/Lens Bundle
Panasonic LUMIX S5II 24.2MP Full Frame Mirrorless Camera w/Lens Bundle
24.2-Megapixel 35mm Full-Frame: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L Technology.
Fast, Accurate: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects.
Powerful Image Stabilization: LUMIX's newly developed Active I.S., which supports walking shots, further enhances image stabilization in video recording.
Unlimited Video Recording: The heat dispersion mechanism combines a small fan and a high-efficiency heat sink to achieve unlimited video recording while keeping the camera size compact.
">Bundle Includes: Panasonic LUMIX S5II 24.2MP Full Frame Mirrorless Camera with Hybrid AF and Active I.S Technology, Panasonic LUMIX S 50mm f/1.8 L-Mount Lens (Full-Frame Format), and Panasonic DMW-BLK22 7.4V 3050mAh Lithium-ion Battery Pack for LUMIX S5, GH5, G9, GH5s
24.2-Megapixel 35mm Full-Frame: Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L Technology.
Fast, Accurate: Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects.
Powerful Image Stabilization: LUMIX's newly developed Active I.S., which supports walking shots, further enhances image stabilization in video recording.
Unlimited Video Recording: The heat dispersion mechanism combines a small fan and a high-efficiency heat sink to achieve unlimited video recording while keeping the camera size compact.
- Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera Body (DC-S5M2BODY)
- Body Cap
- Hot Shoe Cover
- Cover for the Battery Grip Connector
- Shoulder Strap
- Battery Pack
- AC Adaptor
- USB Connection Cable (A-C)
- Limited 3-Year Warranty
- Panasonic LUMIX S 50mm f/1.8 L-Mount Lens (Full-Frame Format)
- Lens cap
- Lens rear cap
- Lens hood
- Panasonic 1-year limited warranty
- Panasonic DMW-BLK22 7.4V 3050mAh Lithium-ion Battery Pack for LUMIX S5, GH5, G9, GH5s
- Limited 90-Day Warranty

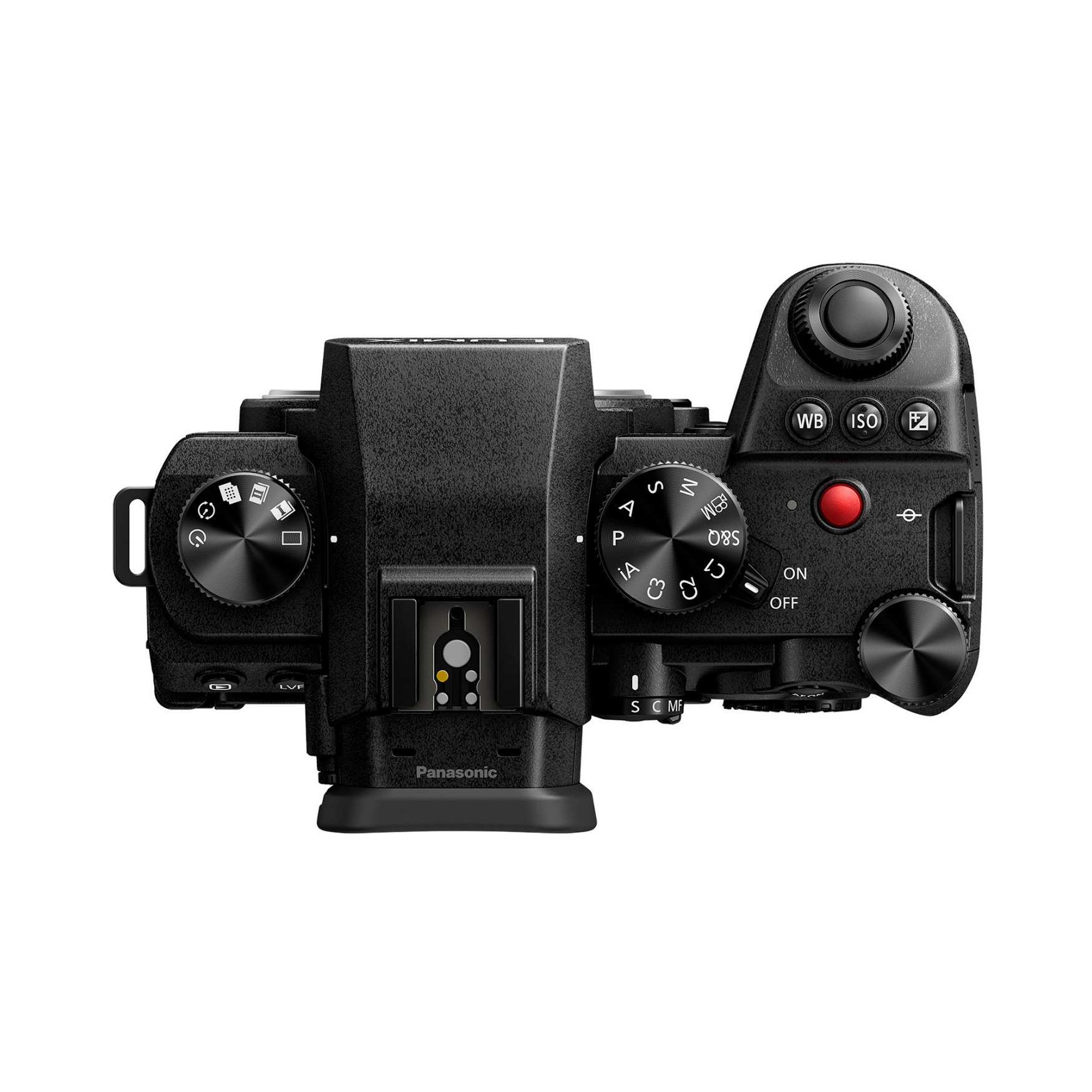

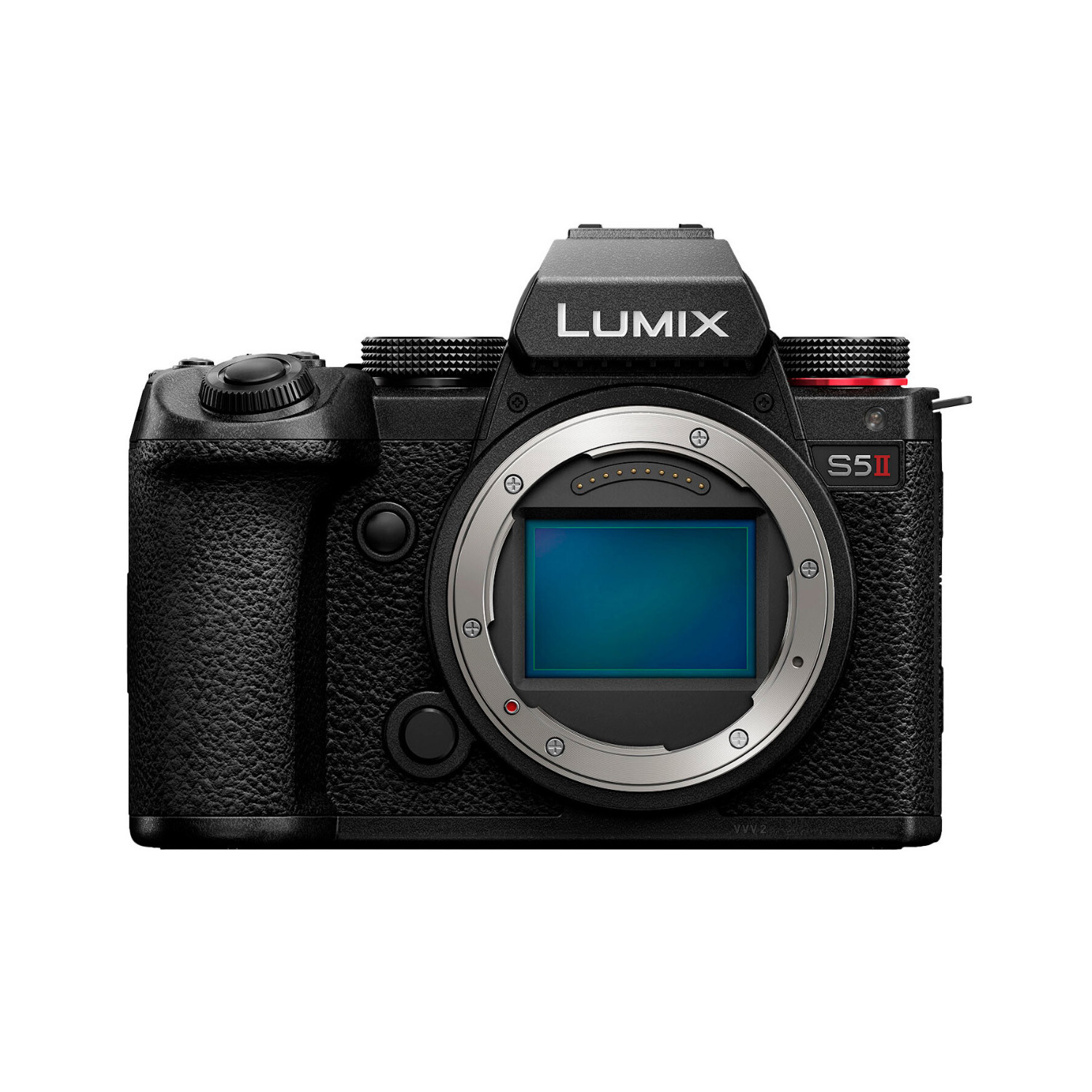

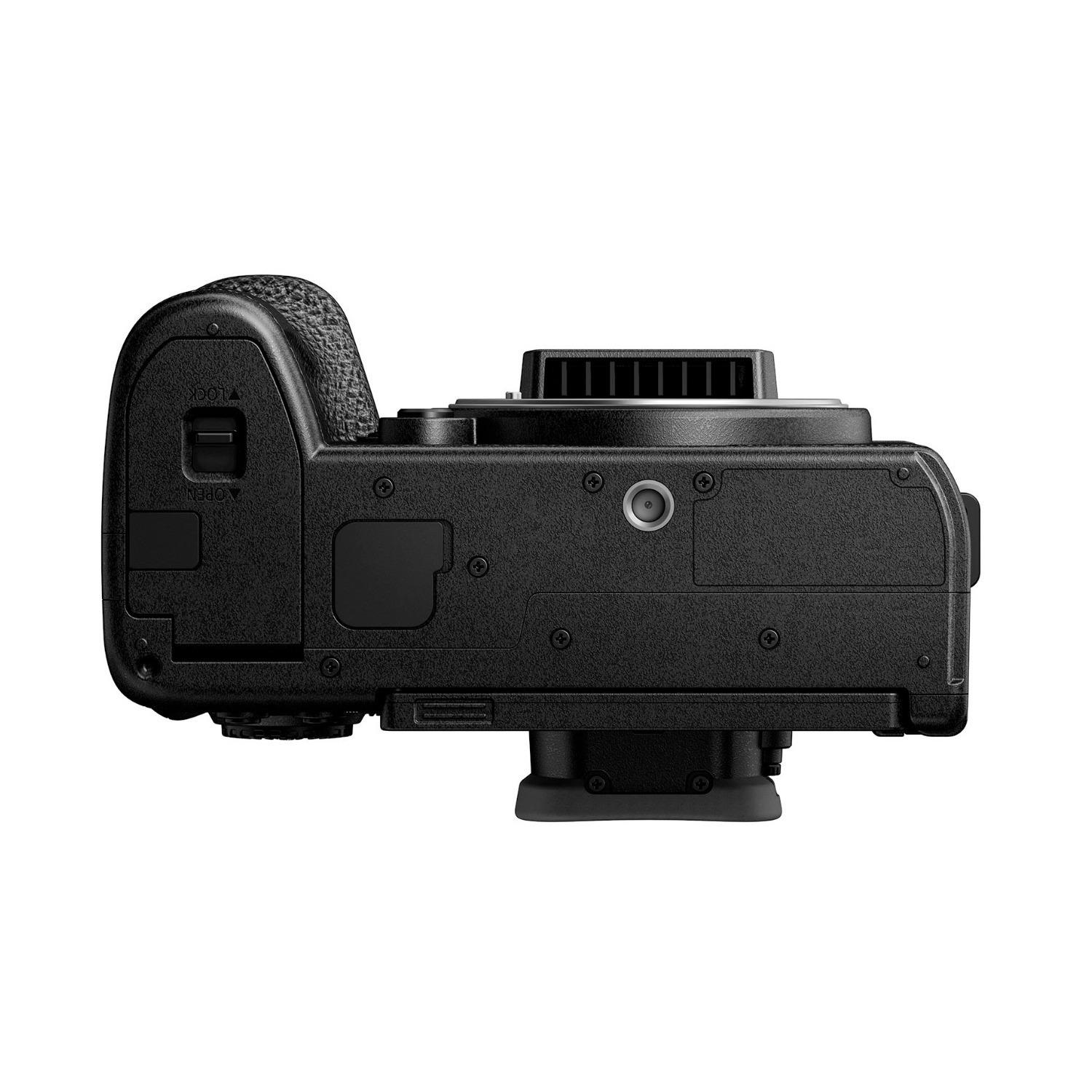

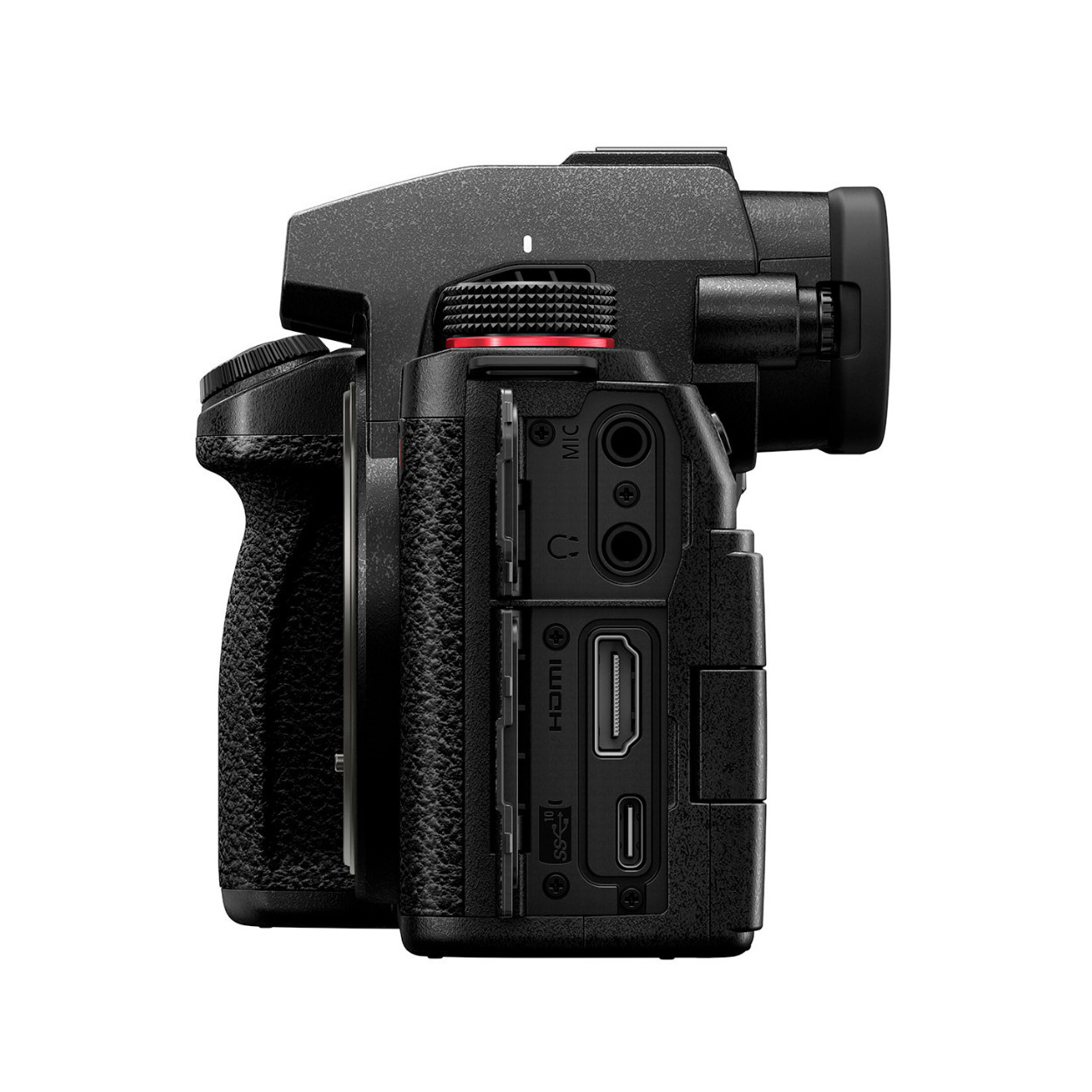

Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera Body
Offering fast, accurate phase hybrid autofocus, the LUMIX S5II mirrorless camera is designed to deliver excellent performance in both photo and video. The 24.2-megapixel 35mm full-frame CMOS sensor complies with PDAF (Phase Detection Auto-Focus) with 5-axis Dual I.S. 2 image stabilization and an imaging engine that's been developed to achieve high resolution, natural description, and approximately 2x higher-speed signal procession for high bit-rate video recording. With the high dynamic range and broad colors of a 14 plus stop V-Log and V-Gamut capture, and an advanced heat dispersion mechanism for unlimited video recording and live streaming, the S5II is developed to meet the demands of ambitious creators with an assertive shooting style.
Firmware Update
Listening to creators’ needs, S5II Firmware V3.0 and S5IIX Firmware V2.0 deliver efficiency in both production and post-production workflows, providing important time (and therefore cost) saving benefits. The firmware updates improve the shooting experience and enhances sharing functionality - compatibility with Adobe Camera to Cloud (Frame.io) and Proxy video recording; improved basic performance with improved real-time AF recognition system (animal eye, car, and motorcycle recognition); enhanced E.I.S. performance by adding HIGH mode in the E-stabilization (video) and a perspective distortion correction.
24.2-Megapixel 35mm Full-Frame CMOS Sensor
Developed to achieve high resolution, natural description, and approximately 2x higher-speed signal processing, powered by L Technology.
Fast, Accurate Phase Hybrid Autofocus
Advanced subject detection and metering technologies capture the target subject in focus even in adverse lighting conditions; once locked on the subject, it keeps tracking even with multiple moving objects.
Powerful Image Stabilization
LUMIX's newly developed Active I.S., which supports walking shots, further enhances image stabilization in video recording.
Expressive Video Functionality
14 plus stop V-Log and V-Gamut capture delivers a high dynamic range and broad colors, plus a REAL TIME LUT function is provided to enable in-camera photo and video color grading, with LUT6K 30p Open Gate unlimited recording.
Unlimited Video Recording
The heat dispersion mechanism combines a small fan and high-efficiency heat sink to achieve unlimited video recording while keeping the camera size compact.
- 24.2-megapixel 35mm full-frame CMOS sensor
- Fast, accurate phase hybrid autofocus
- 96MP high-resolution mode
- Dynamic range and broad colors with 14 plus stops
- Dual native ISO, cooling fan, and double SD slot
- Compatibility with adobe camera to cloud (Frame.io)
- Proxy video recording
- Real-time auto-focus recognition (animal eye, car, motorcycle)
- Enhanced E.I.S. performance
- SH Pre-burst shooting
- Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera Body with 24.2-Megapixel 35mm CMOS Sensor
- Body Cap
- Hot Shoe Cover
- Cover for the Battery Grip Connector
- Shoulder Strap
- Battery Pack
- AC Adaptor
- USB Connection Cable (A-C)
- Limited 3-Year Warranty

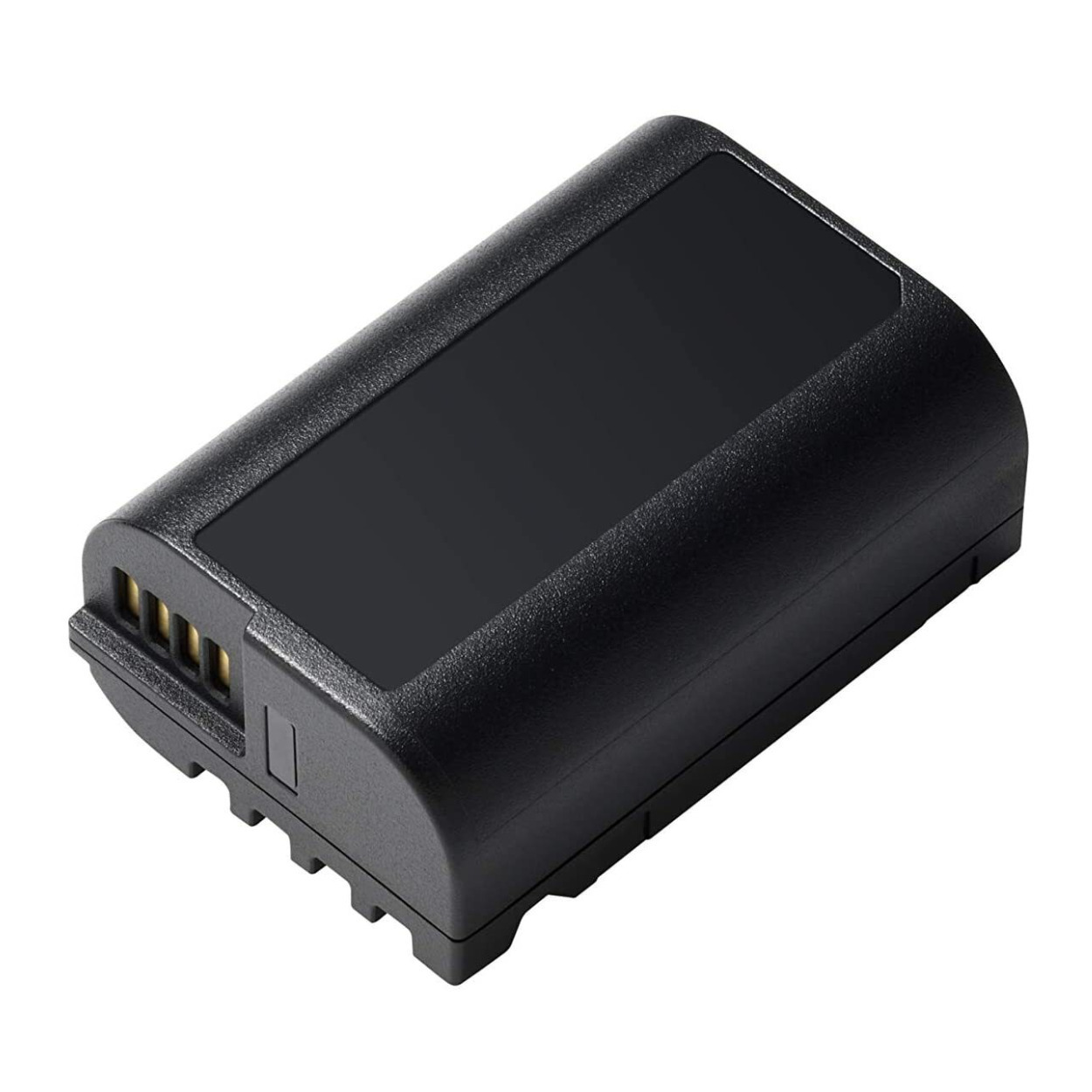

Panasonic DMW-BLK22 Lithium-ion Battery Pack for LUMIX S5, GH5, G9, GH5s
The Panasonic DMW-BLK22 is a 7.4V 2200mAh rechargeable lithium-ion battery pack designed for powering the LUMIX S5, GH5, G9, GH5s cameras. It can be easily charged using a DMW-BTC15 battery charger kit (not included).
- For Panasonic LUMIX S5, GH5, G9, GH5s cameras
- 7.4V, 3050mAh, 23Wh capacity
- Works with DMW-BTC15 battery charger kit (not included)
- Panasonic DMW-BLK22 7.4V 3050mAh Lithium-ion Battery Pack for LUMIX S5, GH5, G9, GH5s
- Limited 90-Day Warranty

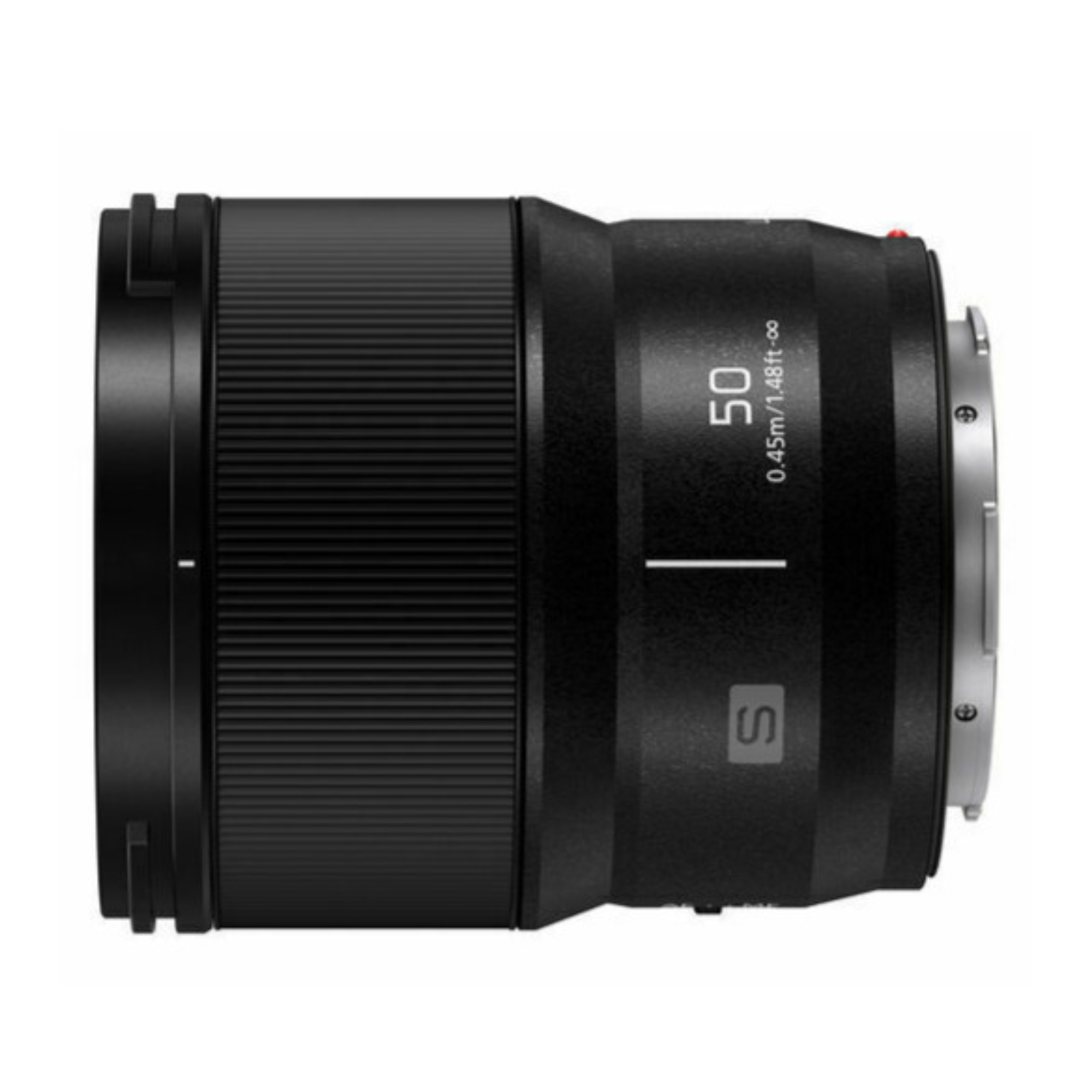

Panasonic LUMIX S 50mm f/1.8 L-Mount Lens (Full-Frame Format)
The LUMIX S 50mm F1.8 is a large-diameter standard lens compatible with all L-mount cameras for maximum versatility, yet it has a compact size and weight. Ideal for a wide range of photography, from landscape to portraits and snapshots, this lens uses three aspherical lenses to achieve both high depiction performance and beautiful bokeh. An excellent choice for video, it suppresses breathing during focus and realizes smooth exposure change by micro step control of the aperture, enabling high-quality video expression. By using one ED lens, chromatic aberration is well suppressed.
This compact, lightweight, and dust, splash, and low-temperature resistant lens is easy to carry and dependable even when shooting outdoors.
The LUMIX S 50mm F1.8 is comprised of nine lens elements in eight groups including three aspherical lenses, one ED (Extra-Low Dispersion) lens, and one UHR (Ultra-High Refractive Index) lens. The use of three aspherical lenses realizes both high descriptive performance and beautiful bokeh, which are common advantages to the series of all F1.8 lenses. It is suitable for snapshots including portrait to landscape.
The ED lens effectively suppresses chromatic aberration. The LUMIX S 50mm F1.8 also excels in video recording performance with a mechanism that suppresses focus breathing, which was a fatal problem of all interchangeable lenses designed for still image photography. Together with a micro-step aperture control for smooth exposure change, professional-quality video can be recorded.
With its compact, approximately 300g of lightweight, the LUMIX S 50mm F1.8 features stunning mobility. The rugged dust/splash-resistant* design withstands use under harsh conditions even at 10 degrees below zero for high mobility. The filter diameter is 67 mm, with a 9-blade circular aperture diaphragm.
- Focal Length: 50mm
- Aperture Range:F1.8-22
- L-Mount
- 9 elements in 8 groups
- 3 aspherical lenses with 1 ED lens & 1 UHR lens
- 9 diaphragm blades
- Circular aperture diaphragm
- 67mm Filter Size
- Light, portable and easy-to-carry lens
- Dust/splash/freeze-resistant design
- Panasonic LUMIX S 50mm f/1.8 L-Mount Lens (Full-Frame Format)
- Lens cap
- Lens rear cap
- Lens hood
- Panasonic 1-year limited warranty
Specifications
Panasonic LUMIX S5II Hybrid Full Frame Mirrorless Camera Body
Type
- Type: Digital single-lens mirrorless camera
- Lens mount: L-mount
- Type 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
- Camera effective pixels/total pixels: 24.20 megapixels/25.28 megapixels
- Anti Reflection coating: Yes
- Aspect ratio/color filter: 3:2/primary color filter
- Dust reduction system: Image sensor shift type
Latitude
- Latitude: 14+ stops (V-log)
Still Image
- Recording file format: JPEG (DCF, Exif 2.31), RAW
- Aspect ratio: 4:3/3:2/16:9/1:1/65:24/2:1
- File size (pixels):
- When using full-frame lenses:
- 3:2: 6000 x 4000(L)/4272 x 2848(M)/3024 x 2016(S)/12000 x 8000(XL)*/8496 x 5664(LL)* *High Resolution mode.
- 4:3 5328 x 4000(L)/3792x2848(M)/2688x2016(S)/10656 x 8000(XL)*/7552 x 5664(LL)* *High Resolution mode.
- 16:9: 6000 x 3368(L)/4272 x 2400(M)/3024 x 1704(S)/12000 x 6736(XL)*/8496x4784(LL)* *High Resolution mode.
- 1:1: 4000 x 4000(L)/2848 x 2848(M)/2016x2016(S)/8000 x 8000(XL)*/5664x5664(LL)* *High Resolution mode.
- 65:24: 6000 x 2208(L)
- 2:1: 6000 x 3000(L)
- When using APS-C/super 35mm lenses:
- 3:2: 3984 x 2656(L)/2880 x 1920(M)/2064 x 1376(S)
- 4:3: 3536 x 2656(L)/2560 x 1920(M)/1840x1376(S)
- 16:9: 3984 x 2240(L)/2880 x 1624(M)/1920 x 1080(S)
- 1:1: 2656 x 2656(L)/1920 x 1920(M)/1376 x 1376(S)
- Image quality: RAW/RAW+fine/RAW+standard/fine/standard (high-resolution mode: combined/RAW/RAW+fine/fine)
- Color space: sRGB, AdobeRGB
Motion Picture
- Recording file format:
- MOV: H.264/MPEG-4 AVC, H.265/HEVC
- MP4: H.264/MPEG-4 AVC, H.265/HEVC
- Audio format:
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
- MP4: AAC (2ch 48kHz/16-bit) When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
- System frequency: 59.94Hz/50.00Hz/24.00Hz
- Image area of video: Full/APS-C/PIXEL/PIXEL
- MOV:
- 59.94Hz full:
- 6K 5952 x 3968 (3:2):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 6K 5952 x 3136 (17:9):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 5.9K 5888 x 3312 (16:9):
- 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- C4K 4096 x 2160:
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 4K 3840 x 2160:
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- FHD 1920 x 1080:
- 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- APS-C/pixel/pixel:
- C4K 4096 x 2160:
- 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 4K 3840 x 2160:
- 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 3.3K 3328 x 2496 (4:3):
- 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- FHD 1920 x 1080:
- 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
- 100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
- 50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- 25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- *When the image area of the video is set to APS-C.
Viewfinder
- Type: OLED live viewfinder
- Pixels: Approx. 3.68 million dots
- Field of view/magnification: Approx. 100%/Approx. 0.78x with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 3:2
- Eye point/diopter adjustment: Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +2.0 (dpt)
- Eye sensor: Yes
- Display speed: 120fps/60fps

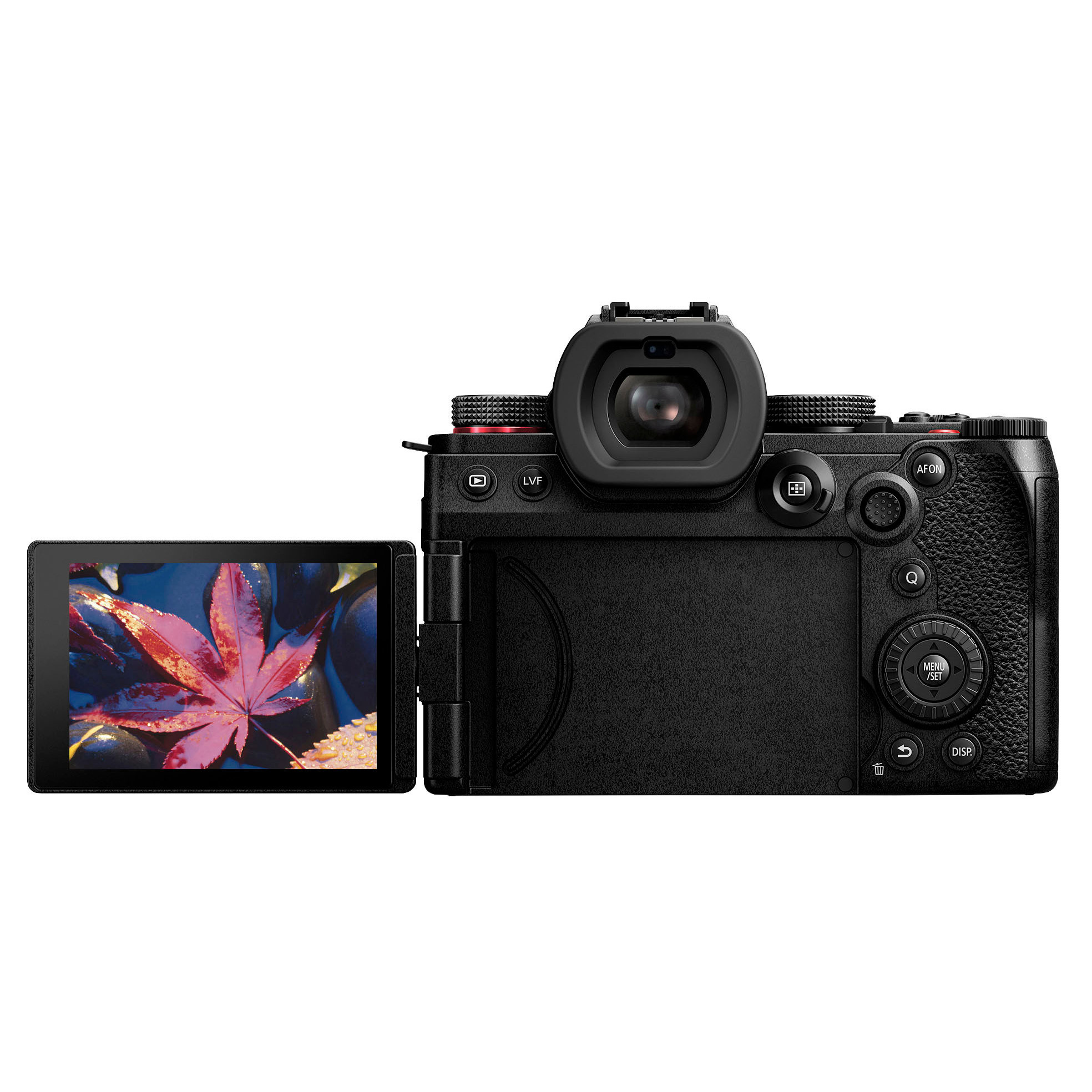

Rear Monitor
- Type: TFT LCD monitor with static touch control
- Monitor size: Free-angle, 3.0-inch (7.6cm), 3:2 aspect
- Pixels: Approx. 1.84 million dots
- Field of view: Approx. 100%
Status LCD
- Status LCD: -
Focus *3
- Type: Phase detection AF system/Contrast AF system
- DFD technology Yes
- Focus mode: AFS (Single)/AFC (Continuous)/MF
- AF mode: Tracking/Full Area AF/Zone (Horizontal/Vertical)/Zone/1-Area+/ 1-Area/Pinpoint. *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
- AF detective range: EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
- AF custom setting: AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
- AF assist light: Yes
- AF lock: Set the Fn button in the custom menu to AF lock
- Focus ring control: Nonlinear/Linear (90-degree/ 120-degree/ 150-degree/180-degree/210-degree/240-degree/270-degree/300-degree/330-degree/360-degree/720-degree/1080-degree/maximum)
- Others: AF-ON, AF-ON: near shift, AF-ON: far shift, focus limiter, focus peaking, 1-area AF moving speed, AF micro adjustment, continuous AF (during motion picture recording), focus/shutter priority, focus switching for vert/hor, AF/AE lock hold, AF+MF, MF assist, MF guide, focus ring lock, show/hide AF mode, shutter AF, half press shutter, quick AF, eye sensor AF, loop focus frame, enlarged live display (video), touch shutter, touch AF/AE function, touchpad AF, lens focus resume
Exposure Control
- Light metering system: 1,728-zone multi-pattern sensing system
- Light metering mode: Multiple/center weighted/Spot/Highlight
- Weighted metering range: EV0-18 (F2.0 lens, ISO100 equivalent)
- Mode dial: Program AE (P)/aperture priority AE (A)/shutter priority AE (S)/manual exposure (M)/creative video(P/A/S/M)*/slow and quick/custom 1, 2, 3/intelligent auto *The same exposure operations as P/A/S/M mode is available.
- Exposure compensation: 1/3 EV step ±5EV (±3EV for motion picture)
- ISO sensitivity (Standard output sensitivity) Normal
- Auto/50*/100-51200/102400*/204800* (1/3 or 1 EV step) *Extended ISO
- V-Log
- Auto/320*/ 640-51200 (1/3 or 1 EV step) Extended ISO
- HLG
- Auto/400-51200 / 102400/ 204800 (1/3 or 1 EV step) *Extended ISO
- Dual native ISO:
- Normal
- Native ISO: 100, 640
- Auto: Auto/ 50/100-51200/102400/ 204800 extended ISO
- Low: Auto/50*/100-800 *extended ISO
- High: Auto / 320/640-51200 / 102400/ 204800* *Extended ISO
- V-Log
- Native ISO: 640, 4000
- Auto: Auto/320/640-51200 extended ISO
- Low: Auto/320/640-5000 extended ISO
- High: Auto/2000/4000-51200 extended ISO
- HLG
- Native ISO: 400, 2500
- Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
- Low: Auto / 400-3200
- High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO
- Cinelike D2/Cinelike V2
- Native ISO: 200, 1250
- Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
- Low: Auto /100* / 200-1600 *Extended ISO
- High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
- AE lock: Set the Fn button in the custom menu to AE lock
Image Stabilization System
- Image stabilization system:
- B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.)
- Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard (Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.)
White Balance
- White balance: AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
- White balance adjustment: Blue/amber bias, magenta/green bias
- Color temperature setting: 2500-10000K in 100K
Shutter
- Type: Focal-plane shutter
- Shutter speed:
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
- Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
- Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
- Motion picture: 1/16,000 - 1/25
- Creative video M mode/MF mode: 1/16,000 - 1/2
- Self timer: 10sec, 3 images/2sec/10sec/custom time
- Remote control: Remote control by DMW-RS2 (sold separately)
- Silent mode/shutter type: Yes/Yes (Auto/mechanical/electronic front curtain/electronic/electronic+NR)
Bracket
- AE bracket: 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
- Aperture bracket: 3, 5 or all positions
- Focus bracket: 1 to 999 images, focus steps can be set in 10 levels
- White balance bracket: 3 images in blue/amber axis or in magenta/green axis, color temperature setting
Burst Shooting
- Burst speed:
- Mechanical shutter/electronic front curtain shutter:
- H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with live view)
- M: 5 frames/sec (AFS/MF) (with live view), 5 frames/sec (AFC) (with live view)
- L: 2 frames/sec (AFS/AFC/MF) (with live view)
- Electronic shutter:
- SH30: 30 frames/sec (AFS/AFC/MF)
- H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with live view)
- M: 5 frames/sec (AFS/MF) (with live view), 5 frames/sec (AFC) (with live view)
- L: 2 frames/sec (AFS/AFC/MF) (with live view)
- Number of recordable images:
- H/M/L*
- RAW+JPEG: More than 200 images
- RAW: More than 200 images
- JPEG: More than 300 images
- *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
- *When using a card with SD speed class with UHS-II UHS speed class 3 (U3).
- SH
- RAW / RAW+JPEG / JPEG: 200 images
Flash
- Flash type: TTL External Flash (sold separately)
- Synchronization speed: Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
- Flash mode: Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
- Flash synchronization: 1st Curtain Sync, 2nd Curtain Sync.
- Flash output adjustment: 1/3EV step ±3EV
- Wireless control: Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), wireless channel: 1ch/2ch/3ch/4ch
Extra Tele Conversion
- Extra tele conversion: L 2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.
Color Setting
- Photo style:
- Photo style: Standard/Vivid/Natural/L. Classic Neo/Flat/ Landscape/Portrait/Monochrome/L. Monochrome/L. Monochrome D/L. Monochrome S/Cinelike D2/Cinelike V2/Like709/V-Log/REAL TIME LUT/Like2100 (HLG)/Like2100 (HLG) Full Range*/My Photo Style 1-4 (5-10)*
- *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment: Contrast/Highlight/Shadow/Saturation/Color Tone/Hue/Filter Effect/Grain Effect/Color Noise/Sharpness/Noise Reduction/ISO/WB/LUT
- *Adjustable settings vary depending on the Photo Style mode.
- Filter: Expressive/Retro/Old Days/High Key/Low Key/Sepia / Cross Process / Bleach Bypass
- LUT library: Vlog_709 / Set 1-10 *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.
Motion Picture Function
- Time lapse shot: Yes
- Stop motion animation: Yes
- Live cropping: Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
- SS/Gain operation: Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
- Luminance level: 8-bit: 0-255 / 16-235 / 16-25510-bit: 0‒1023 / 64‒940 / 64‒1023
- Synchro scan: Yes Master pedestal level 31 steps Color bars / 1kHz test tone Yes (SMPTE / EBU / ARIB) / Yes
- LUT view assist: Supported file types- .vlt, .cube
- Monitor / HDMI
- HLG view assist: Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
- Anamorphic de-squeeze display: 2.0x/1.8x/1.5x/1.33x/1.30x/OFF Waveform monitor / Vectorscope Selectable
- Knee control: Yes (in Like709 mode)
- Red REC frame indicator: ON / OFF
Vertical Position Information
- Vertical position information: Still image/motion picture (ON/OFF)
Level Gauge
- Level gauge: Yes
Function Button
- REC: Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow and Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
- Play: Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic De-squeeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default
OSD Language
- OSD language: P: Refer to the OSD sheet
Interface
- USB: USB type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
- HDMI*2:
- HDMI:
- HDMI TypeA
- Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When 4ch Mic Input) is set to OFF.), 4ch (When 4ch Mic Input) is set to ON.)
- Monitor-through: 4:2:2 10bit (When Rec Quality) is set to 4:2:2 10bit) or 4:2:0 10bit.)
- 4:2:2 8bit (When Rec Quality) is set to 4:2:0 8bit.)
- Playback:
- 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
- 50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
- 24.00Hz: C4K/24p / 4K/24p / 1080p *Only for playback
- Remote input: 2.5mm
- Audio:
- Built-in microphone:
- Stereo
- Wind noise canceller: OFF / Standard / High
- External microphone/External audio device input: 3.5mm for external microphone / external audio device
- MIC (Plug-in Power) / MIC / LINE
- Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
- Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone: Yes with DMW-XLR1 (sold separately)
- 4ch mic input: Yes with DMW-XLR1 (sold separately)
- Speaker: Monaural
- Headphone output: 3.5mm
- SD card slot: Slot 1, Slot 2 SD Memory Card / SDHC Memory Card* / SDXC Memory Card* *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
TC IN /OUT
- Count up: Rec run/free run
- Time code mode: Drop frame/non-drop frame (When system frequency 59.94Hz is selected.)
- HDMI time code output: ON / OFF
Fan
- Fan: Auto1 / Auto2 / Fast / Normal / Slow* / OFF***Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p. **OFF can be set when in iA/P/A/S/M mode.
Wireless
- Wi-Fi:
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
- 5GHz bands (STA) (IEEE 802.11a/n/ac)
- Security: WPA/WPA2/WPA3 Please refer to Wi-Fi sheet
- Bluetooth: Bluetooth v5.0 (Bluetooth Low Energy (BLE))
Dust and Splash Resistant
- Dust and splash resistant: Yes. *Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.
Power
- Battery:
- Li-ion battery pack (7.2V, 2200mAh, 16Wh) (bundled)
- USB power supply, USB power charging, USB power delivery
- Battery life (CIPA standard): Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
- Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
- *Under the test conditions specified by Panasonic based on CIPA standards. When the time to get in the sleep mode is set to 1 sec.
- Continuous recordable time (Motion picture) (*1) MP4 4K/60p: Approx. 90 min (APS-C), MP4 FHD/60p: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
- Actual recordable time (Motion picture) (*1) MP4 4K/60p: Approx. 45 min (APS-C), MP4 FHD/60p: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
- Battery grip DMW-BGS5 (sold separately)
Dimensions and Weight
- Dimensions:
- Approx. 5.29 x 4.03 x 3.55 inch ((134.3 x 102.3 x 90.1 mm) (Body only, excluding protrusions)
- Approx. 5.29 x 4.03 x 6.19 inch (134.3 x 102.3 x 157.0 mm) (with S-R2060, excluding protrusions)
- Approx. 5.29 x 4.03 x 5.98 inch (134.3 x 102.3 x 151.8 mm) (with S-S50, excluding protrusions)
- Weight:
- Approx. 1.64 lb (740g) (Body, hot shoe cover, battery, SD memory card x 1) (excluding body cap)
- Approx. 1.45 lb (657g) (Body, hot shoe cover) (excluding body cap)
Operating Environment
- Operating temperature: 0 to 40-degree-C (32 to 104-degree-F)
- Operating humidity: 10%RH to 80％RH
Standard Accessories
- Software
- Recording: LUMIX Tether. This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software. LUMIX Sync. This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
- Playback and editing: The software to process RAW files on the computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using a computer connected to the Internet.
*Note: (*1) About motion picture recording
- Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.
- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes
- A new file will be created to continue recording if the file size exceeds the following conditions.
(MP4) in (FHD): 4GB
(MP4) in (4K): 96GB
(MOV): 192GB
(*2) High-res audio is selectable only when attaching 3.5mm microphone or DMW-XLR1 (sold separately).
Panasonic LUMIX S 50mm f/1.8 L-Mount Lens (Full-Frame Format)
- Lens Construction: 9 elements in 8 groups (3 aspherical lenses, 1 ED lens, 1 UHR lens)
- Mount: L-Mount
- Optical Image Stabilizer : No
- Focal Length: f=50mm
- Aperture Type: 9 diaphragm blades / Circular aperture diaphragm
- Maximum Aperture: F1.8
- Minimum Aperture: F22
- Closest Focusing Distance: 0.45m/1.48ft
- Maximum Magnification : 0.14x
- Diagonal Angle of View: 47°
- Dust and Splash Resistant: Yes*
- Recommended Operating Temperature: -10℃ to 40℃ (14℉ to 104℉)
- Filter Size: φ67mm
- Max. Diameter: φ73.6mm / 2.90inch
- Overall Length: Approx. 82.0mm / 3.23inch (from the tip of the lens to the base side of the lens mount)
- Weight: Approx. 300g / 0.66lb (excluding lens cap, lens rear cap and lens hood)
- Standard Accessories: Lens cap, Lens rear cap, Lens hood
Panasonic DMW-BLK22 7.4V 3050mAh Lithium-ion Battery Pack
- Compatibility: Panasonic LUMIX S5, GH5, G9, GH5s
- Type: Lithium-ion
- Capacity: 7.4V, 3050mAh, 23Wh
Shipping
Shipping is free within the continental United States (lower 48 states only). Rates include handling and insurance.
Domestic Shipping
Lower 48 States: Free shipping, including handling and insurance.
Alaska, Hawaii, Puerto Rico, U.S. Territories, APO & FPO:
Additional shipping charges may apply, and some items cannot be shipped to these locations.
Please use the Shipping and Payments tab with your ZIP code to confirm availability and view exact costs.
Free shipping applies only to the lower 48 states.
International Shipping
All international orders are processed through eBay’s Global Shipping Program. Please see the Shipping tab for detailed costs and available options.
Restrictions
Orders cannot be shipped to hotel addresses at this time.
Payment
We accept major credit cards and PayPal; however, American Express is not supported on this platform. All payments are securely processed through eBay’s managed payment system. Immediate PayPal payment is required for all Buy It Now purchases, while payments for Best Offers are due within 3 days. If you need special payment arrangements, please contact us via eBay messages.
Please note that payments cannot be modified once an order is submitted or fulfilled, so any issues must be resolved beforehand. For payment-related questions or assistance, contact eBay customer support directly
Returns
We want you to be happy with your purchase. If you're not satisfied, you may return your item within 30 days of delivery. Please contact us via eBay messages or the returns link to obtain an RMA number.
Domestic Purchases
- If you wish to return an item, please contact us via eBay messages or the returns link to obtain a Returned Merchandise Authorization (RMA) number. This ensures proper handling of your return or replacement.
- To qualify for a full refund (less shipping expenses), the item must be in its original new condition, with all packaging, manuals, and paperwork intact and unaltered. Opened items are eligible for return but may be subject to a restocking fee.
- Customers are responsible for the shipping and handling costs incurred in sending the item. If your order included Free Shipping, the shipping expenses we paid on your behalf will be deducted from your refund. If an item is refused, the carrier charges for both ways will be deducted from your refund.
- All returns are subject to inspection. Items must be in brand new condition as described above. If not, the return may be deemed non-refundable or subject to a restocking fee of at least 15%. Missing accessories or signs of wear may result in higher restocking fees. For specific fee details, please contact us via eBay messages.
- Returns must be packed in an outer shipping carton (not just the original product box), with the RMA number clearly marked on the shipping label. Include a copy of your invoice and order number, and insure your return shipment with prepaid shipping. We do not accept COD shipments.
- Certain product categories are not eligible for return due to hygienic or sanitary reasons, as required by manufacturers. Consumable goods or items locked by manufacturers (such as Apple or HP) are not returnable.
Promotional Items
- If you received a free item as part of a “Buy 1, Get 1 Free” promotion, the free item must be returned with your original return request to receive a full refund. If the free item is not returned, its value will be deducted from your refund amount.
Other Issues
- For warranty claims, lost merchandise, transit issues, or order cancellations, please contact us via eBay messages. In the event of a price or description error, we will notify you promptly. You will have no obligation to proceed with the purchase, and any amount charged will be fully refunded.
 |
