Application

For Chrysler 200  L4 2.4L 2015-2017
For Fiat 500X  L4 2.4L SOHC 2016-2018
For Jeep Cherokee L4 2.4L  2014-2019
For Jeep Compass  L4 2.4L 2017-2022
For Jeep Renegade  L4 2.4L SOHC 2015-2021
For Ram ProMaster City  L4 2.4L 2015-2022

OE/Part Number

11554N, 11554, 56029624AB, 56029624AC, 56029624AA

A002TX3581ZC, A002TX3581ZE, 5602-9624AB, 5602-9624AC

203-5359, 400-48257R, 20024, 90-27-3456, 89216034

Specification

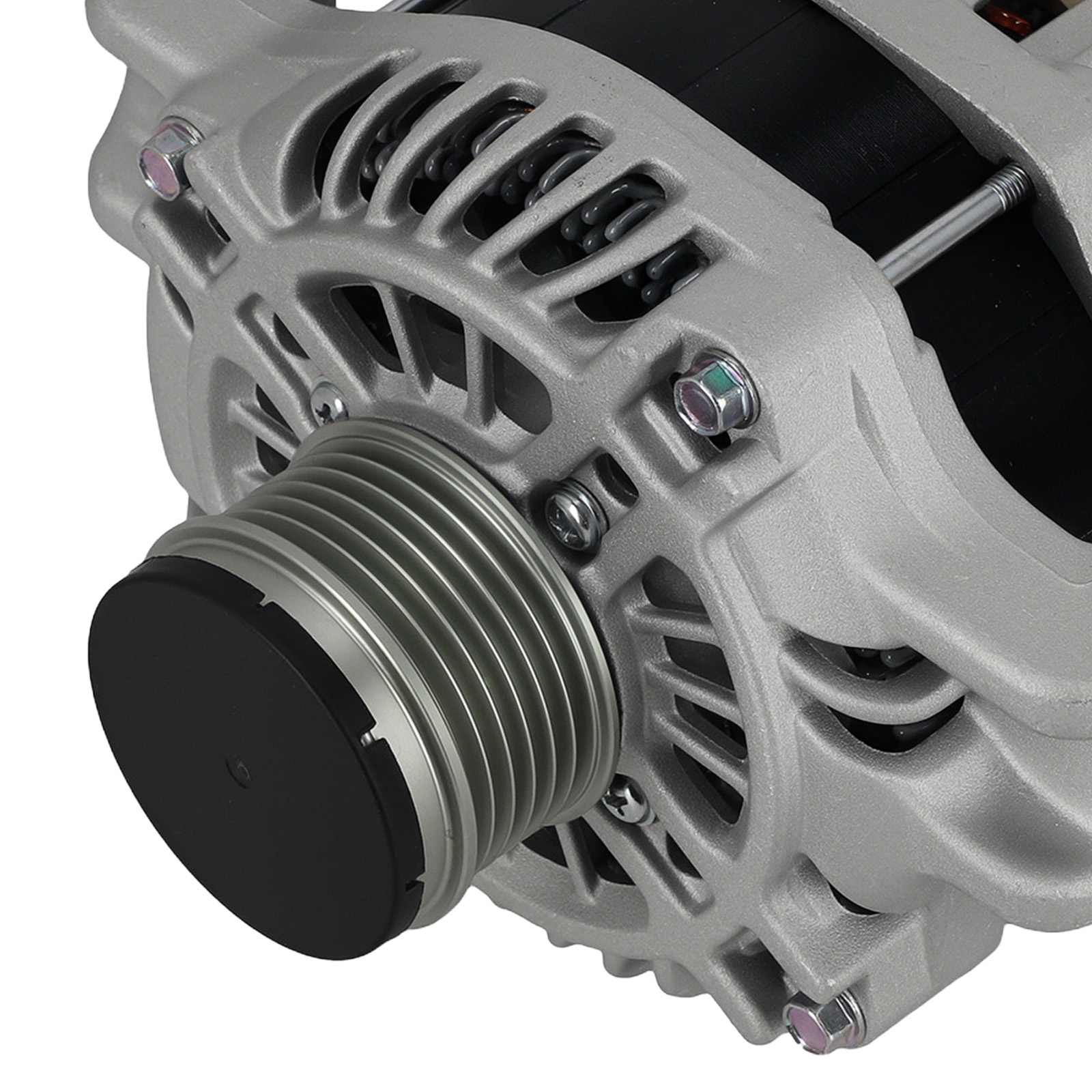

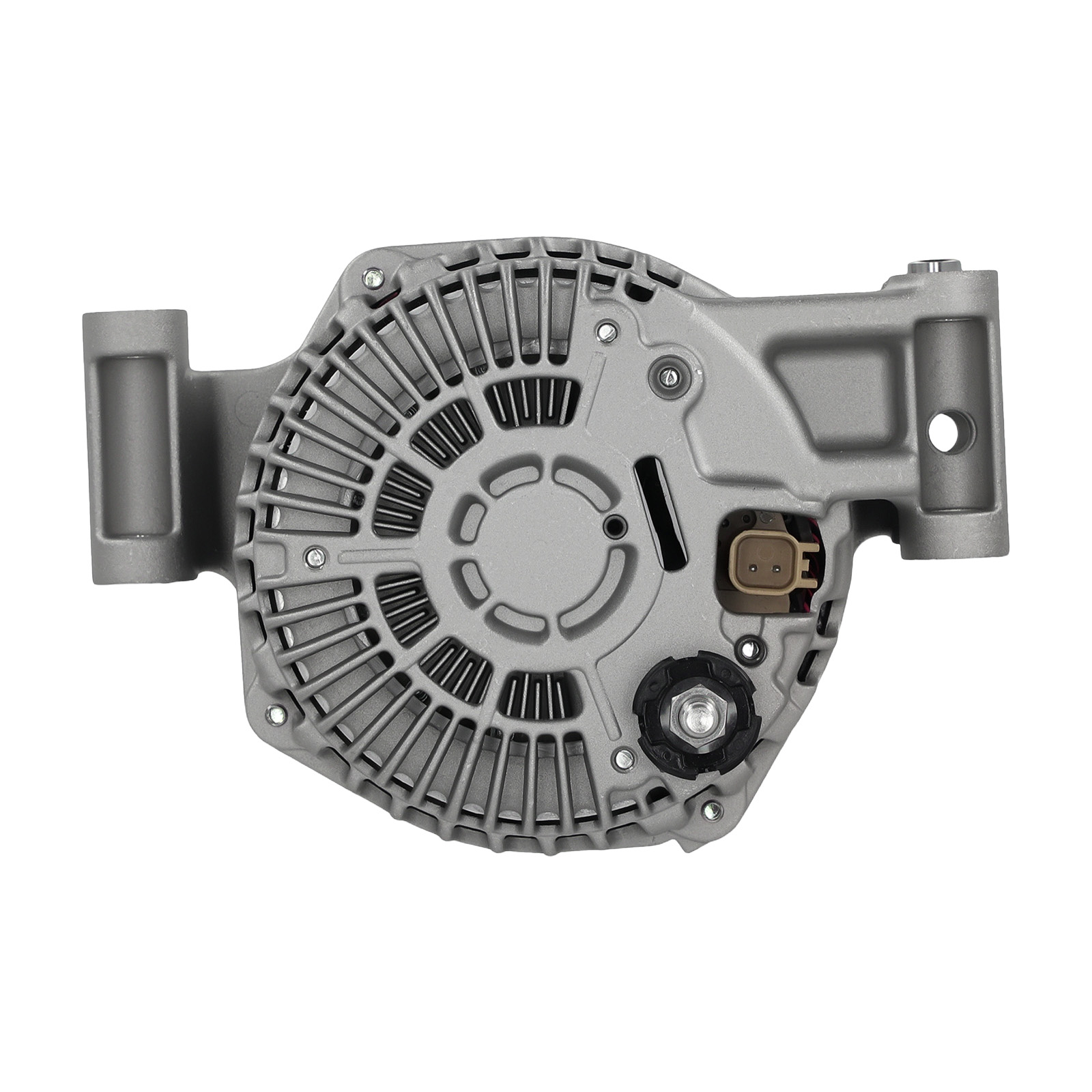

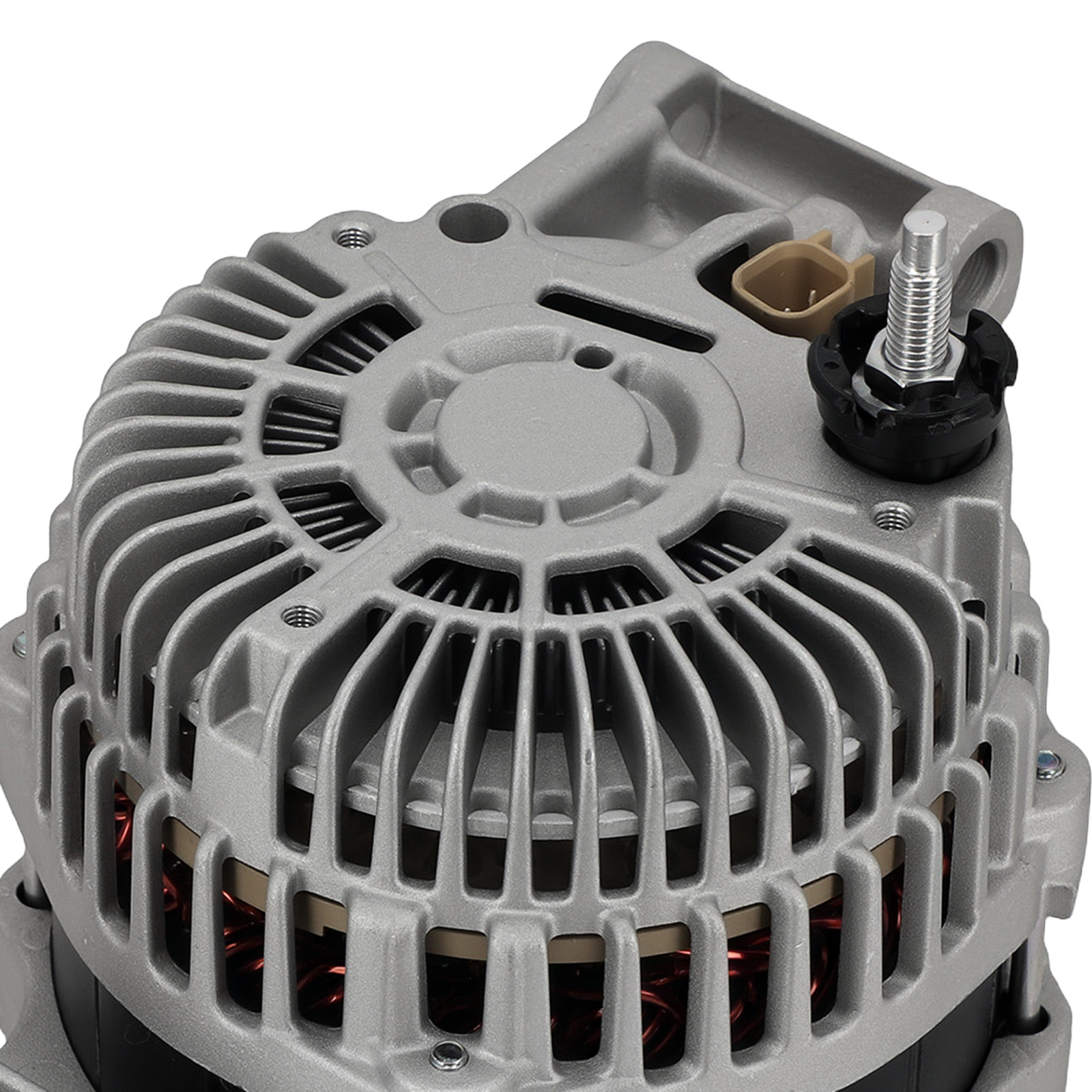

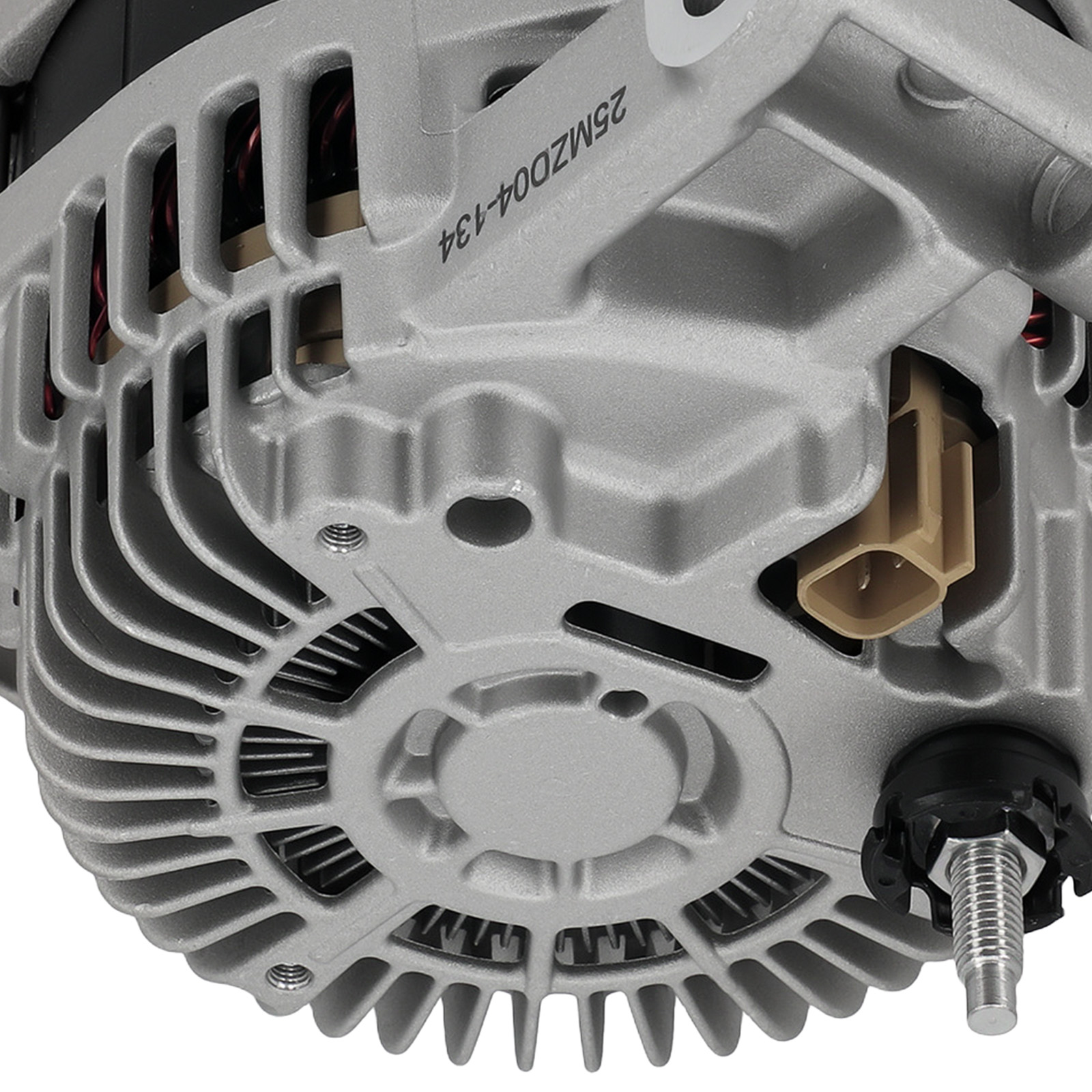

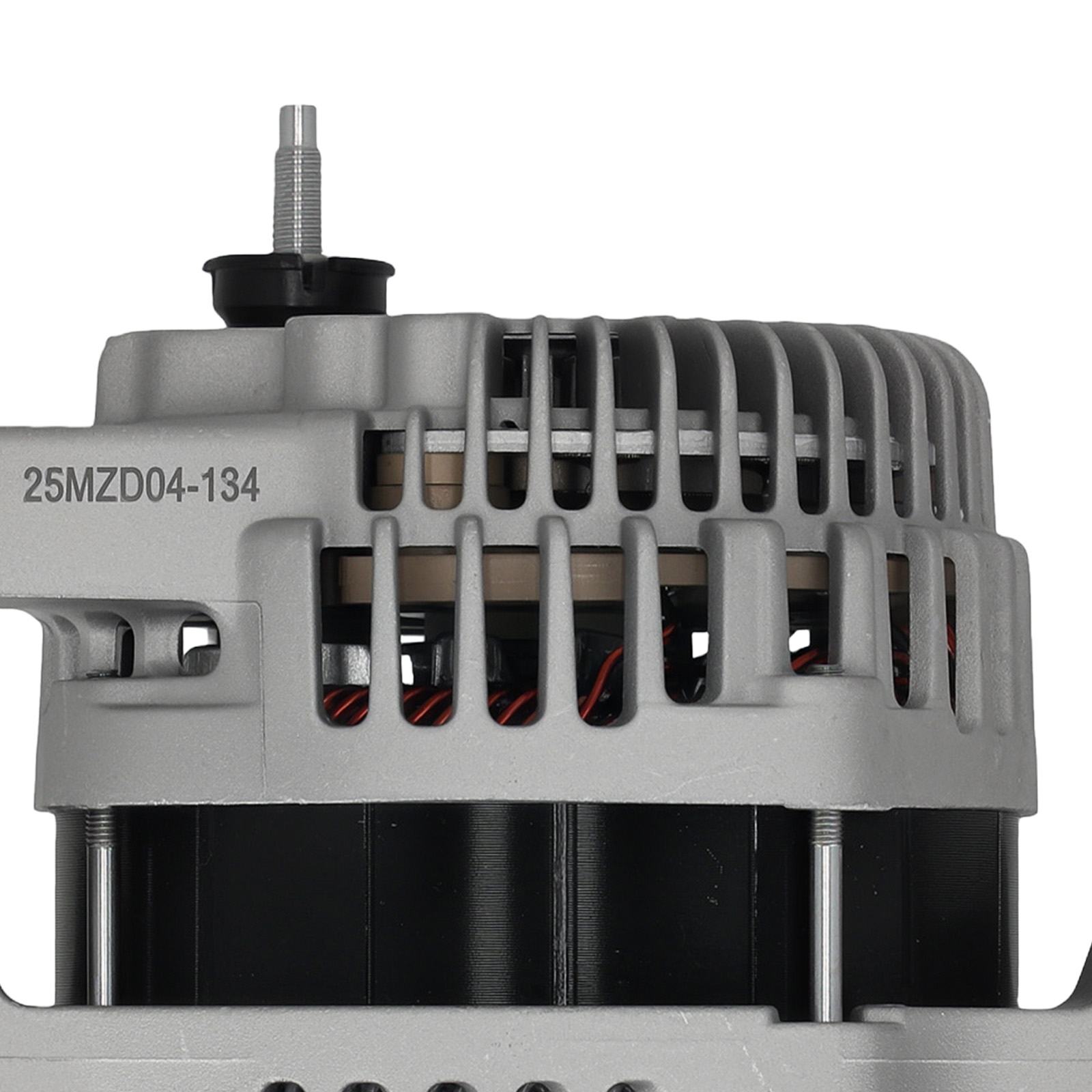

Unit Type:    Alternator
Pulley Groove Quantity: 6
Voltage:    12V
Rotation:    CW
Amperage:   160A
Pulley Class: SD6
Regulator:    IR
Fan Type:    IF

Package Included
1 *Alternator

HOW TO REPLACE AN ALTERNATOR?
1. Disconnect the negative battery cable
2. Take off the intake hose, mass airflow sensor, and air filter.
3. Loosen the belt tensioner.
4. Remove the belt from the pulley.
5. Loosen and remove the alternator.
6. Remove dust and oil from the installation position.
7. Install the new alternator.
8. Replace the bolts, and reattach all connections.
9. Reinstall the belt.
10. Connect the intake hose and reinstall the mass airflow sensor
11. Reconnect the negative battery cable

When The Alternator Makes A Noise, You Need to Operate
1. If  the noise of the alternator is mainly concentrated in the speed change  stage of the automobile alternator, check the alternator belt first, and  adjust or replace it.
2. If  the noise mainly occurs in the front and rear parts of the automobile  alternator, it may be that the bearing lubrication of the alternator has  a problem.
3. If  the noise mainly appears in the middle of the automobile alternator and  obvious vibration sense can be observed,there is friction between the  stator and rotor of the automobile alternator.The alternator can be  disassembled for adjustment or component replacement.

Note
* Please check your model and part number carefully before ordering.
* The brand names used above are for compatibility reference only.
