Note:
This product can not be used directly, for ESP8266 secondary development and learning.

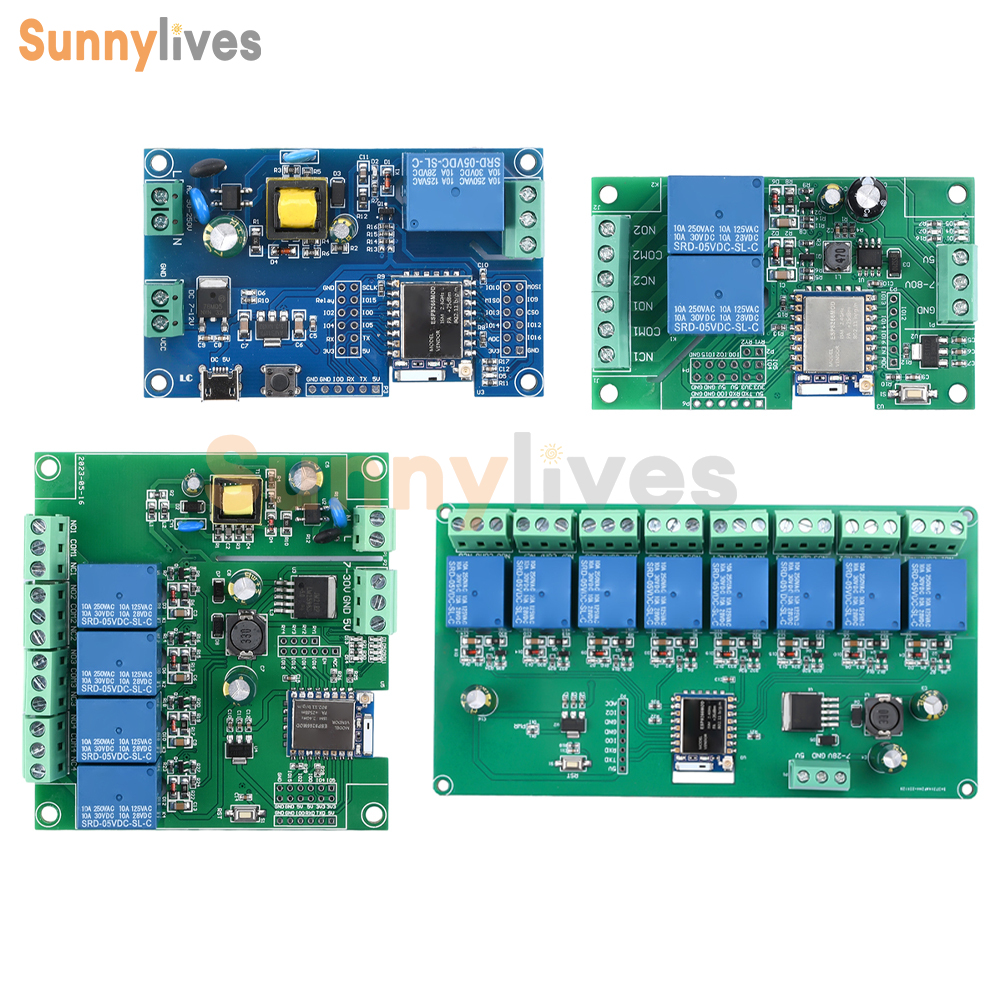

Features:
1. On-board mature and stable ESP-07 WiFi module, high-capacity 4M Byte Flash;
2. Easy to use, on-board WiFi module RST reset button, WiFi module I / O port and UART program download port all lead out, to facilitate secondary development;
3. A variety of specifications can be selected, you can choose the appropriate product according to the actual needs;
4. With indicator, on-board power indicator and relay indicator;
5. Wide range of applications, suitable for ESP8266 secondary development and learning, smart home wireless control and other occasions;
1. On-board mature and stable ESP-07 WiFi module, high-capacity 4M Byte Flash;
2. Easy to use, on-board WiFi module RST reset button, WiFi module I / O port and UART program download port all lead out, to facilitate secondary development;
3. A variety of specifications can be selected, you can choose the appropriate product according to the actual needs;
4. With indicator, on-board power indicator and relay indicator;
5. Wide range of applications, suitable for ESP8266 secondary development and learning, smart home wireless control and other occasions;

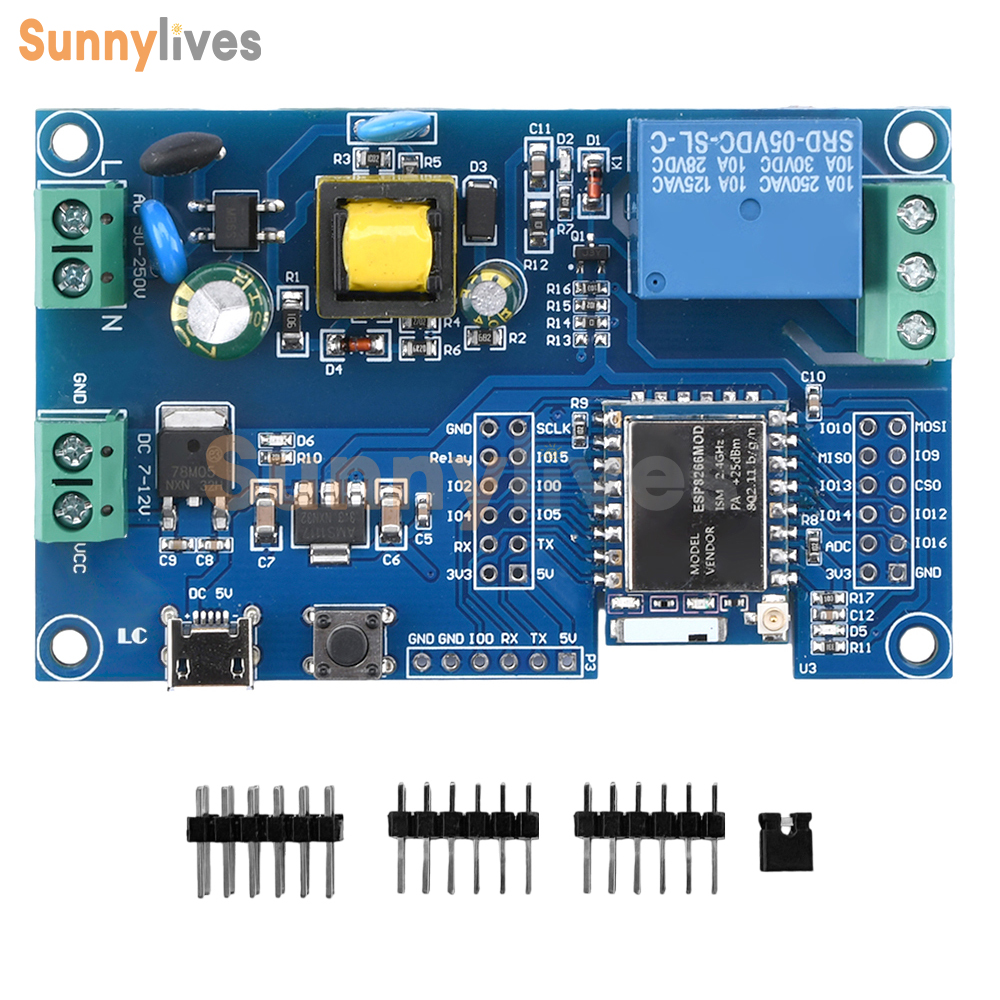

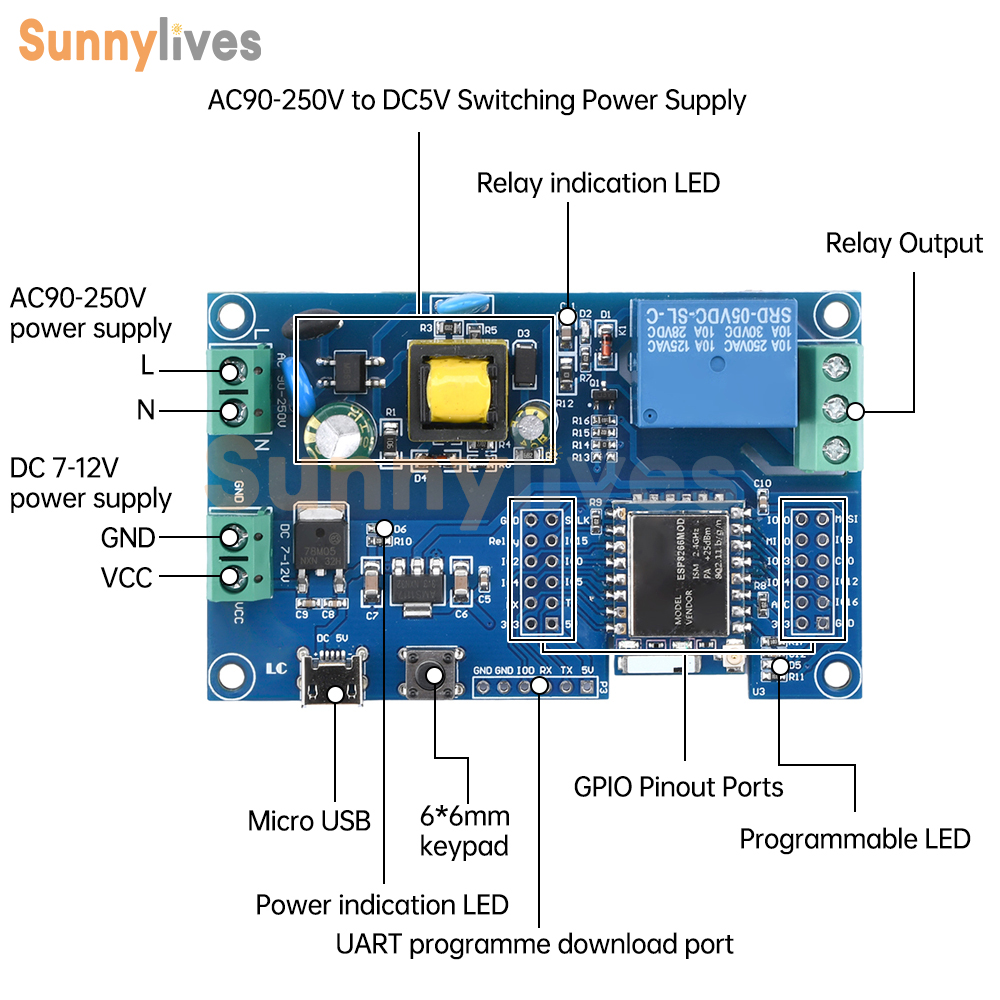

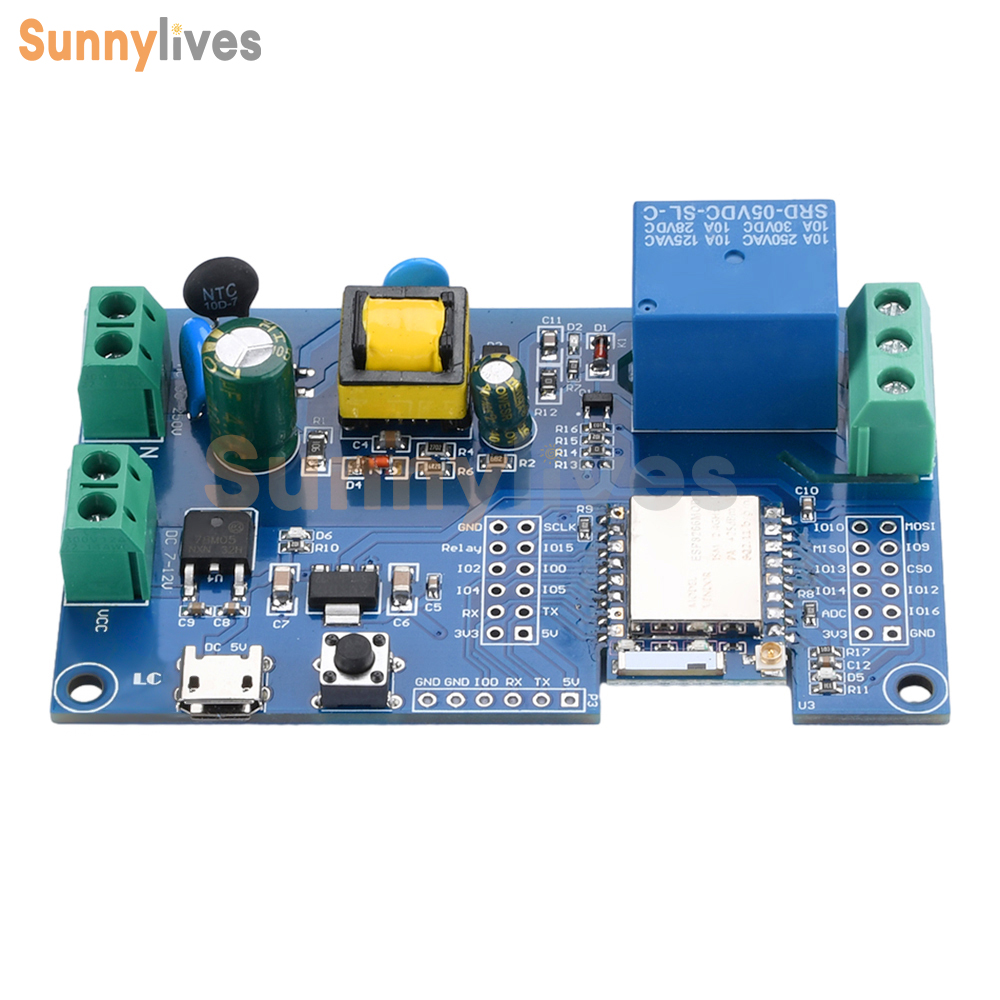

1 way specification
Name: ESP-07 1-way WIFI relay module AC/DC power supply
Power supply: AC90-250V/DC7-12V/USB 5V
Number of relay channels:1 channel
Board Size:80*50mm
Product Description:On-board AC-DC switching power supply module, on-board 1-way 5V relay, output switching signals, suitable for controlling the control of loads within the operating voltage of AC250V/DC30V
Name: ESP-07 1-way WIFI relay module AC/DC power supply
Power supply: AC90-250V/DC7-12V/USB 5V
Number of relay channels:1 channel
Board Size:80*50mm
Product Description:On-board AC-DC switching power supply module, on-board 1-way 5V relay, output switching signals, suitable for controlling the control of loads within the operating voltage of AC250V/DC30V
List
1 x Single relay module
2 x Double row pin 6pin
1 x Single row pin 6pin
1 x Shorting cap
1 x Single relay module
2 x Double row pin 6pin
1 x Single row pin 6pin
1 x Shorting cap

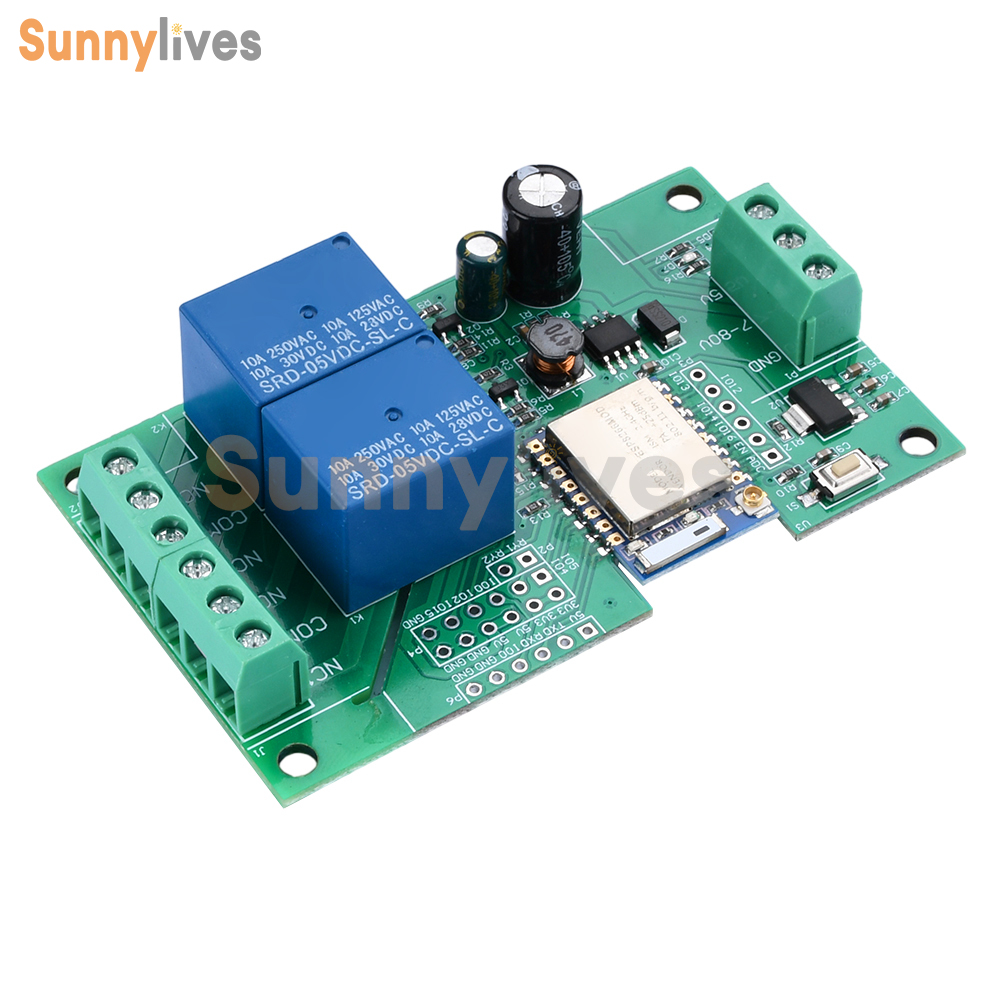

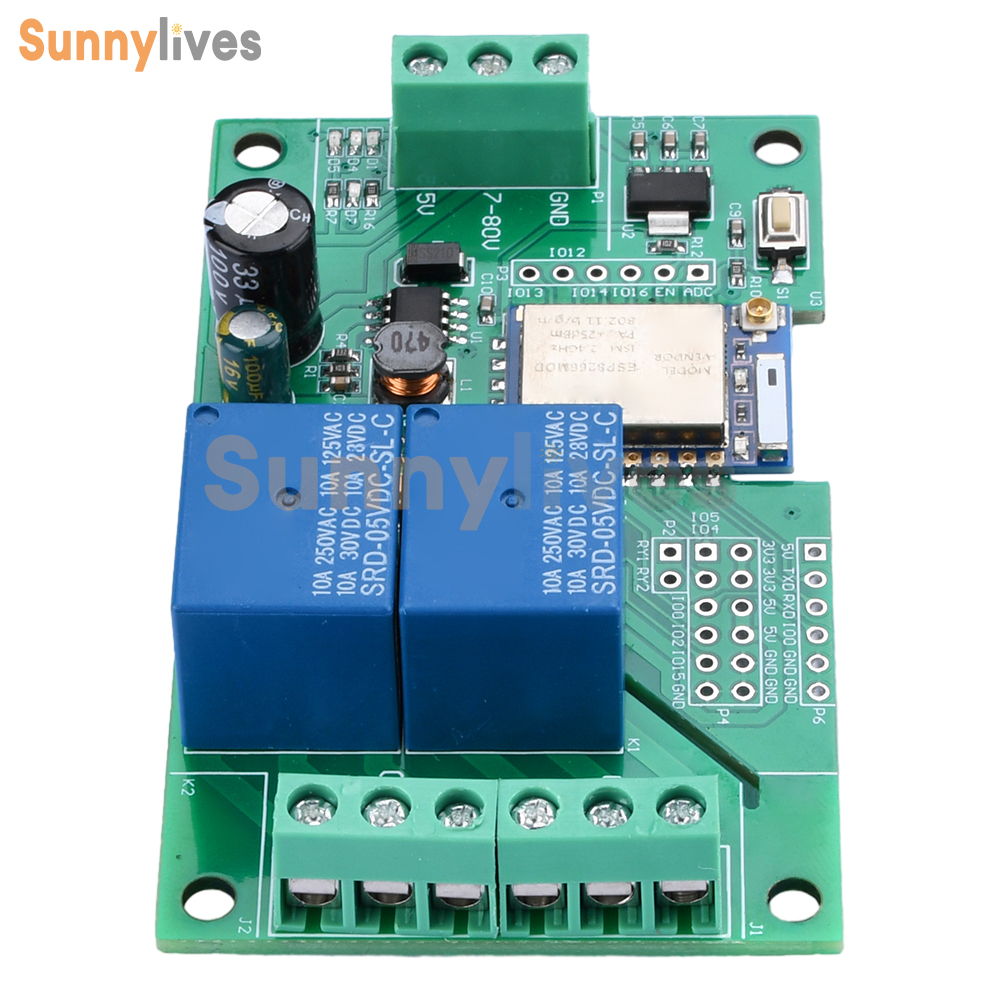

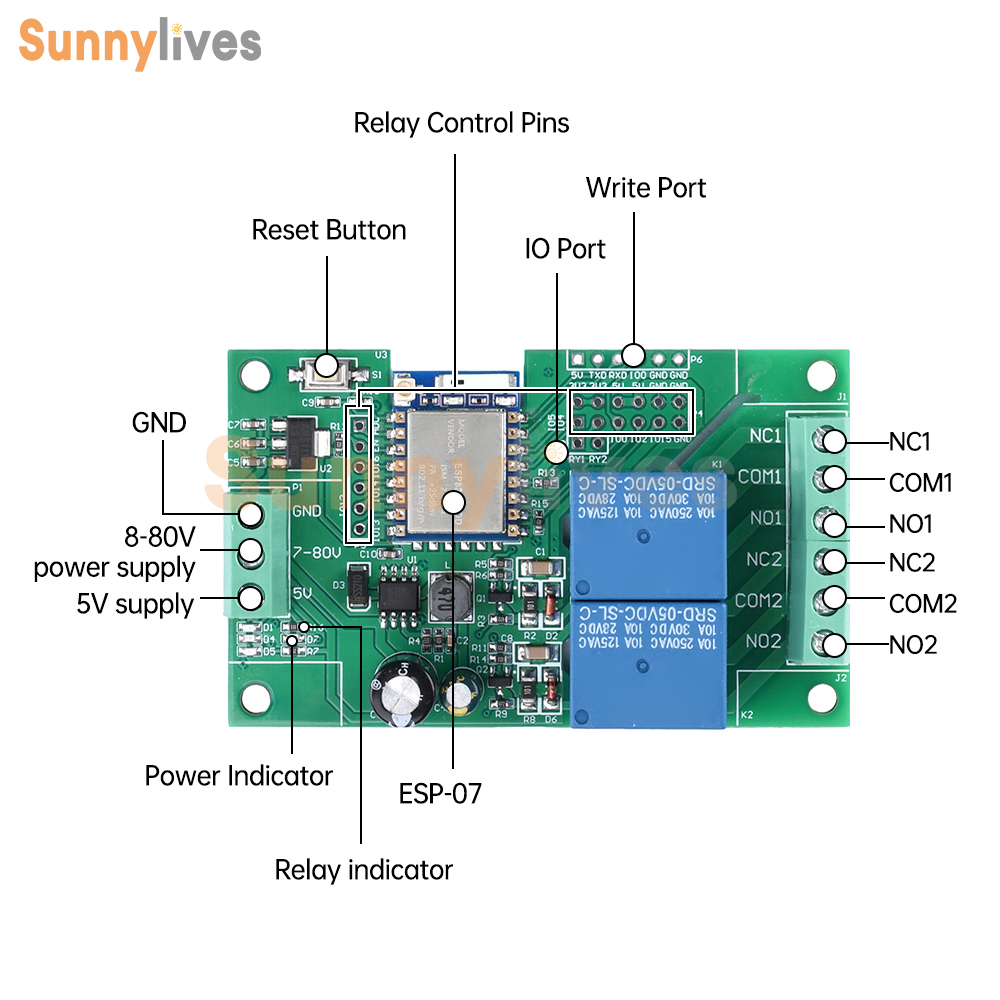

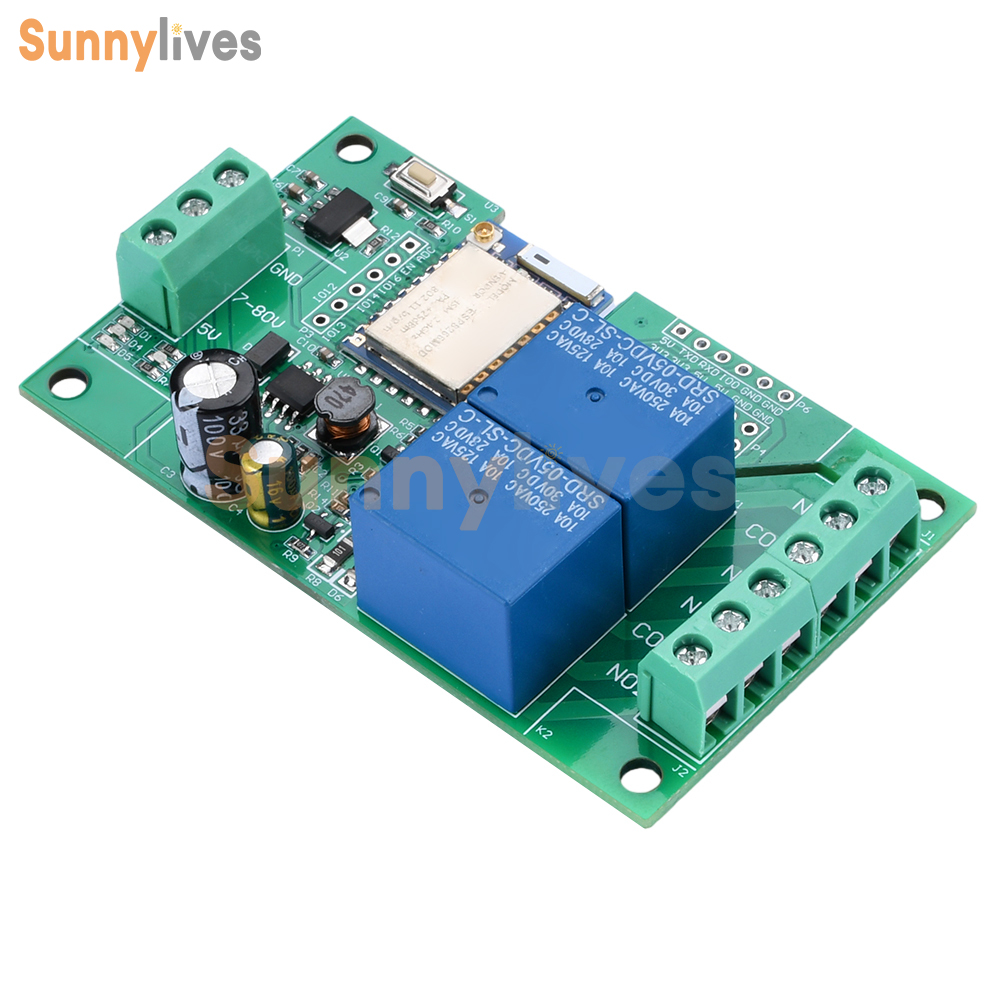

2-way specification
Name: ESP-07 2-way WIFI relay module DC power supply
Power supply: DC8-80V/DC5V
Number of relay channels:2 channels
Board size:78*47mm
Product Description:Board 2-way 5V relay, output switch signal, suitable for controlling the control of loads within the operating voltage of AC250V/DC30V
Name: ESP-07 2-way WIFI relay module DC power supply
Power supply: DC8-80V/DC5V
Number of relay channels:2 channels
Board size:78*47mm
Product Description:Board 2-way 5V relay, output switch signal, suitable for controlling the control of loads within the operating voltage of AC250V/DC30V
List
1 x 2-way relay module
1 x Single row pin 26pin
3 x Shorting Cap
1 x 2-way relay module
1 x Single row pin 26pin
3 x Shorting Cap

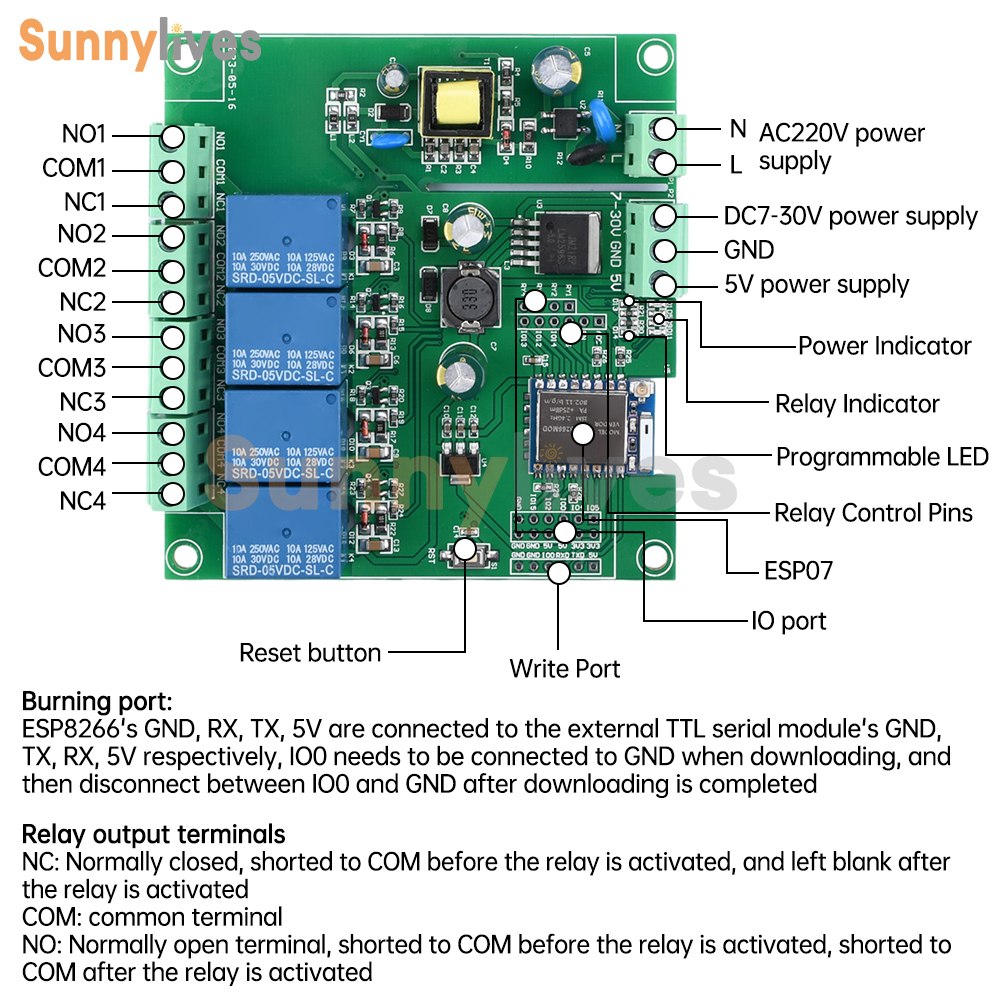

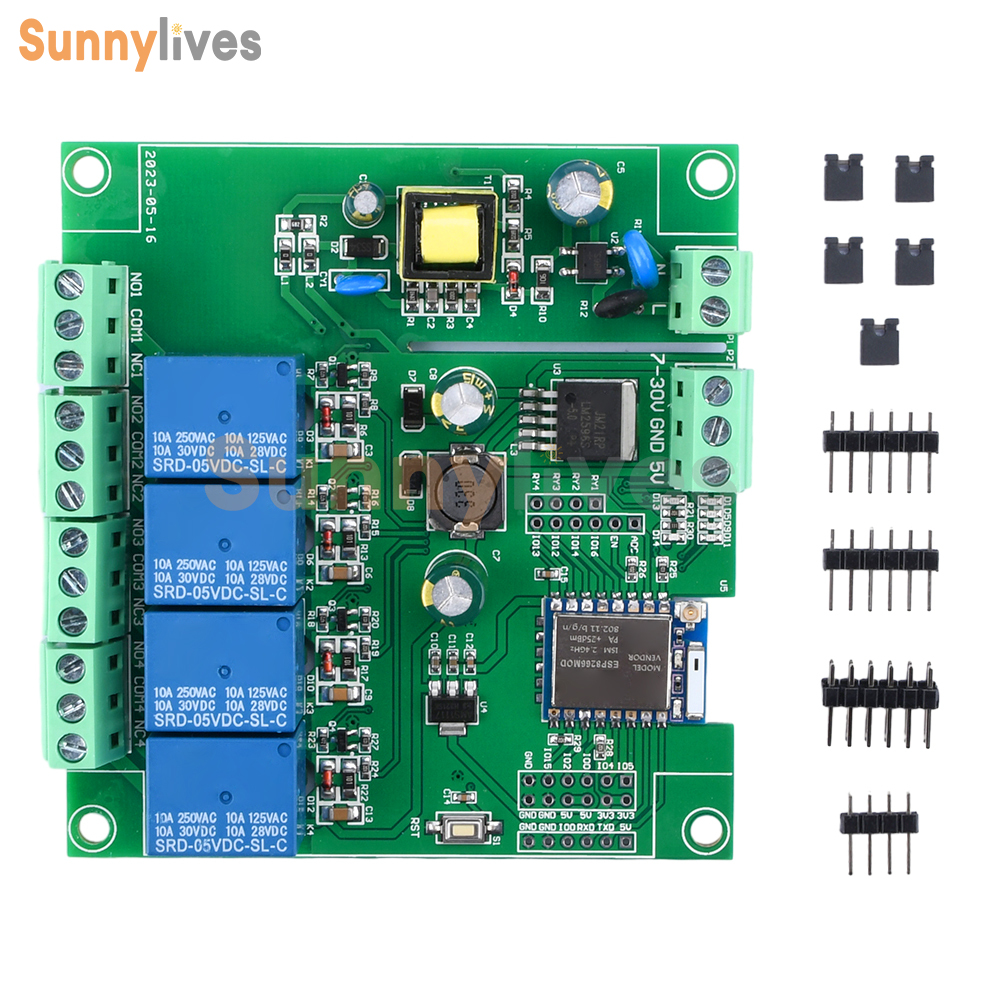

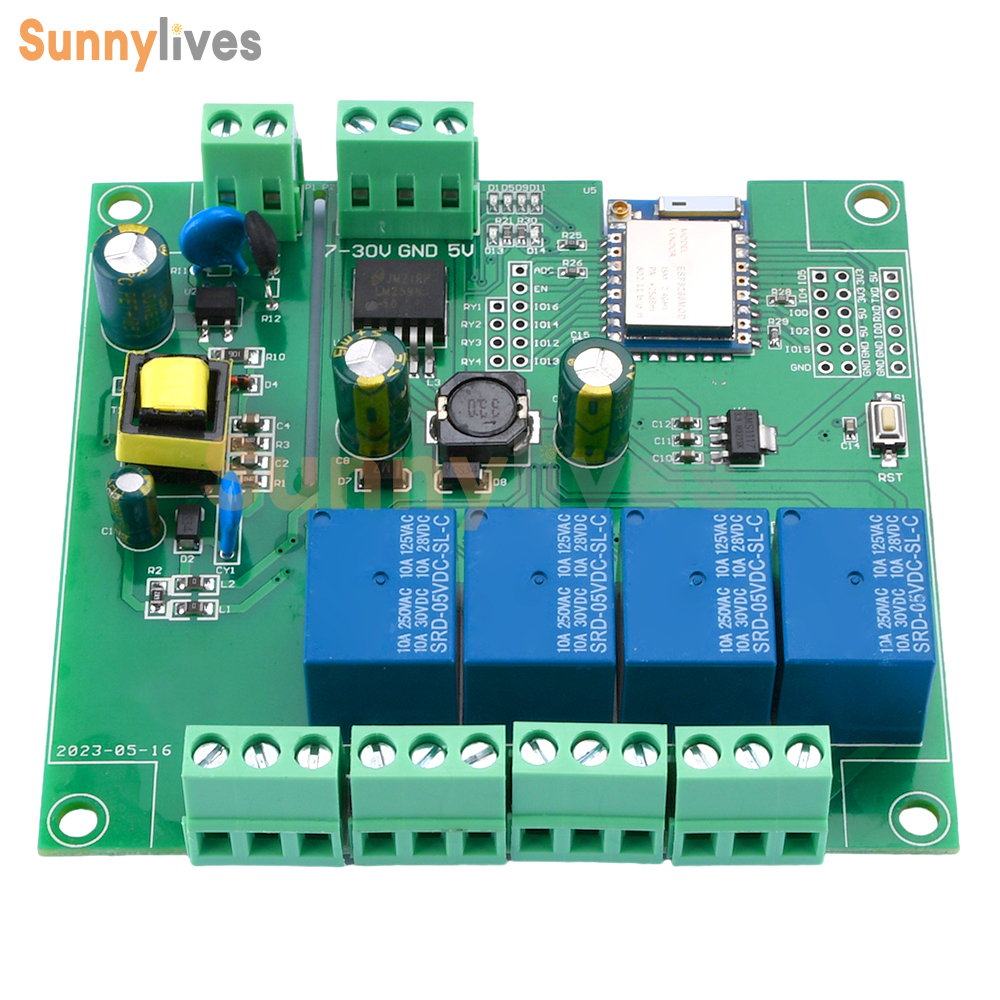

4-way specification
Name: 4-way WIFI relay module AC/DC power supply
Power supply: AC90-250V/DC7-30V/DC5V
Number of relay ways:4 ways
Board size:93*87mm
Product Description:On-board AC-DC switching power supply module, on-board 4-way 5V relay, output switching signals, suitable for controlling the control of loads within the operating voltage of AC 250V/DC30V
Name: 4-way WIFI relay module AC/DC power supply
Power supply: AC90-250V/DC7-30V/DC5V
Number of relay ways:4 ways
Board size:93*87mm
Product Description:On-board AC-DC switching power supply module, on-board 4-way 5V relay, output switching signals, suitable for controlling the control of loads within the operating voltage of AC 250V/DC30V
List
1 x 4-way relay module
2 x Single row pin
1 x Double row pin
5 x Shorting caps
1 x 4-way relay module
2 x Single row pin
1 x Double row pin
5 x Shorting caps

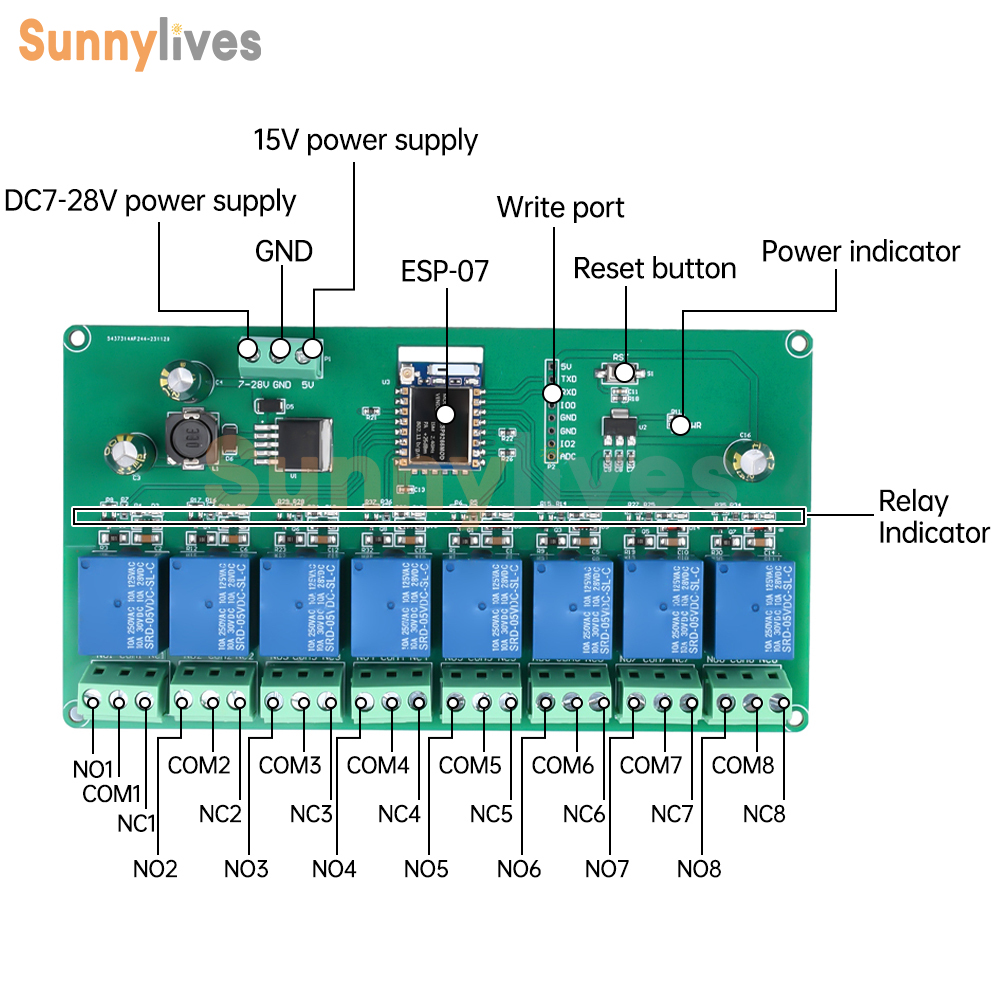

8-channel specification
Name: ESP-07 8-way WIFI relay module DC power supply
Power supply: DC7-28V/DC5V
Number of relay channels:8 channels
Board size:148*79.8mm
Product Description:Board 8-way 5V relay, output switch signal, suitable for controlling loads that control the operating voltage within AC 250V/DC30V
Name: ESP-07 8-way WIFI relay module DC power supply
Power supply: DC7-28V/DC5V
Number of relay channels:8 channels
Board size:148*79.8mm
Product Description:Board 8-way 5V relay, output switch signal, suitable for controlling loads that control the operating voltage within AC 250V/DC30V
List
1 x 8-way relay module
1 x Single row pin 8pin
1 x Shorting Cap
1 x 8-way relay module
1 x Single row pin 8pin
1 x Shorting Cap
