Leister WELDPLAST S2 TPO Handheld Extruder, 230V/3000W, EU plug - 136.602
DETAILS Specialized handheld extruder
The WELDPLAST S2 TPO extruder is designed specifically to process thermoplastic elastomers with an olefin base. This type of plastic requires a different plasticization process, as well as specific extruder screws. TPO plastics are used primarily in tunnel construction and underground engineering. In this kind of work and application, the WELDPLAST S2 TPO makes the most of its size and weight due to a large part of the welds taking place overhead. These applications can only be handled over a longer period of time with such a light device.
Technical Data
Article: 136.602
Voltage: 230 V
Frequency: 50/60 Hz
Power: 3000 W
Welding Rod: ø 3-4 mm / 0.12–0.16 in
Material Output ø 3 mm: 0.6 - 1.3 kg/h / 1.32 - 2.86 lb/h
Material Output ø 4 mm: 1 - 2 kg/h / 2.2 - 4.4 lb/h
Welding Materials: FPO; HDPE; LDPE; LLDPE; PP; TPO
Air Guide: Internal
Screw Heating: Coil heater
Air Temperature Control: Closed loop
LQS: No
Display: Yes
Brushless Blower Motor: Yes
Brushless Drive Motor: No
Led Working Light: No
Length: 450 mm / 17.71 in
Width: 98 mm / 3.85 in
Height: 260 mm / 10.23 in
Weight: 5.8 kg / 12.78 lb
Power Cable Length: 5 m / 16.4 ft
Plug: EU, 3 poles, 16A
Noise Emission Level: < 70 dB(A)
Approvals: CE; UKCA
Protection Class: I
Country Of Origin: Switzerland
Features:
- Extrudes TPO plastics
-Lightweight
-Especially useful in tunnel construction and underground engineering
HIGHLIGHTS TPO extrusion
√ SPECIALIZED Specially designed
Thanks to its TPO processing ability, this extrusion welder is used most of all in tunnel construction and underground engineering.
√ LIGHT Lightweight

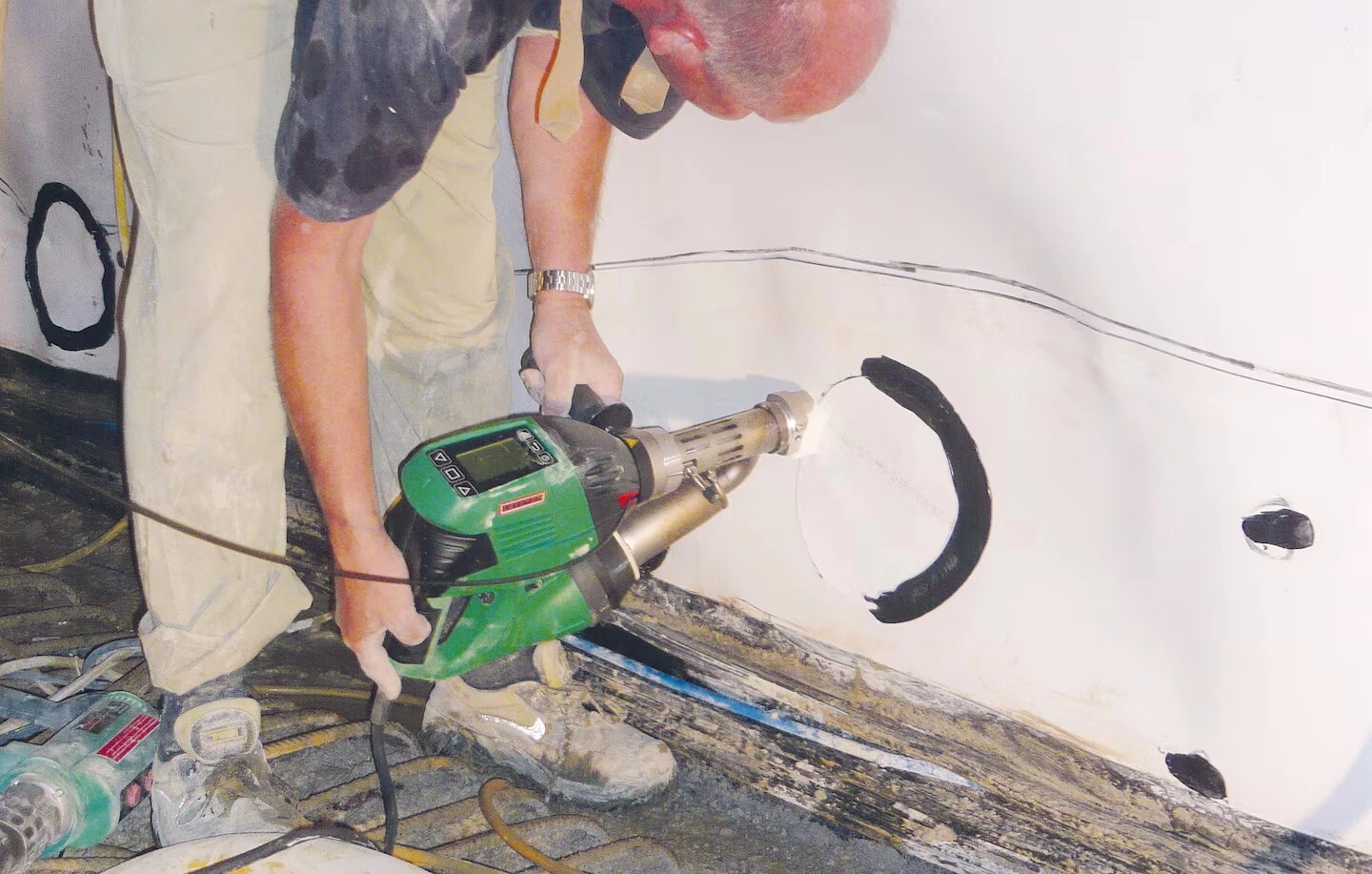

Overhead welding is enabled by the light weight of the WELDPLAST S2 TPO.
APPLICATIONS Virtually unlimited
Landfill and mining membrane welding
Tunnel waterproofing
Flat roof membrane welding
Flexible tank welding
