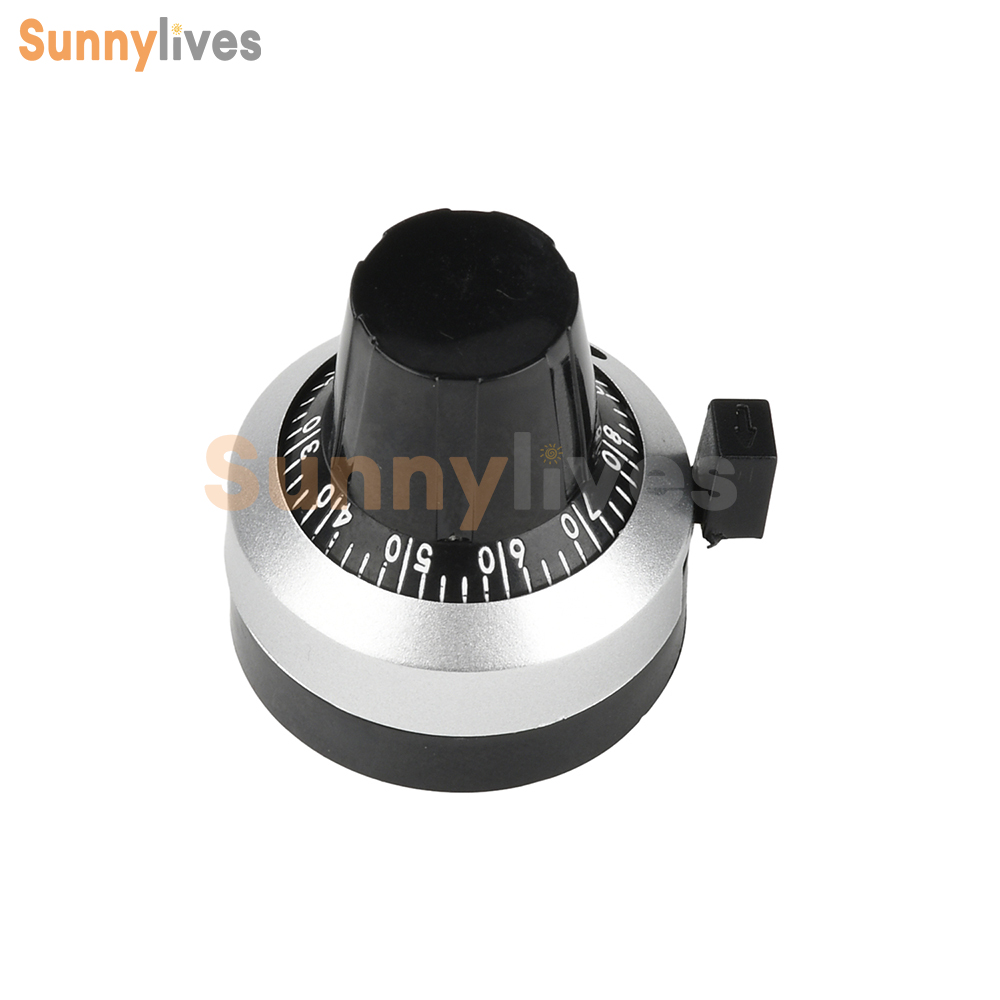

Product View
Product Details
Features:

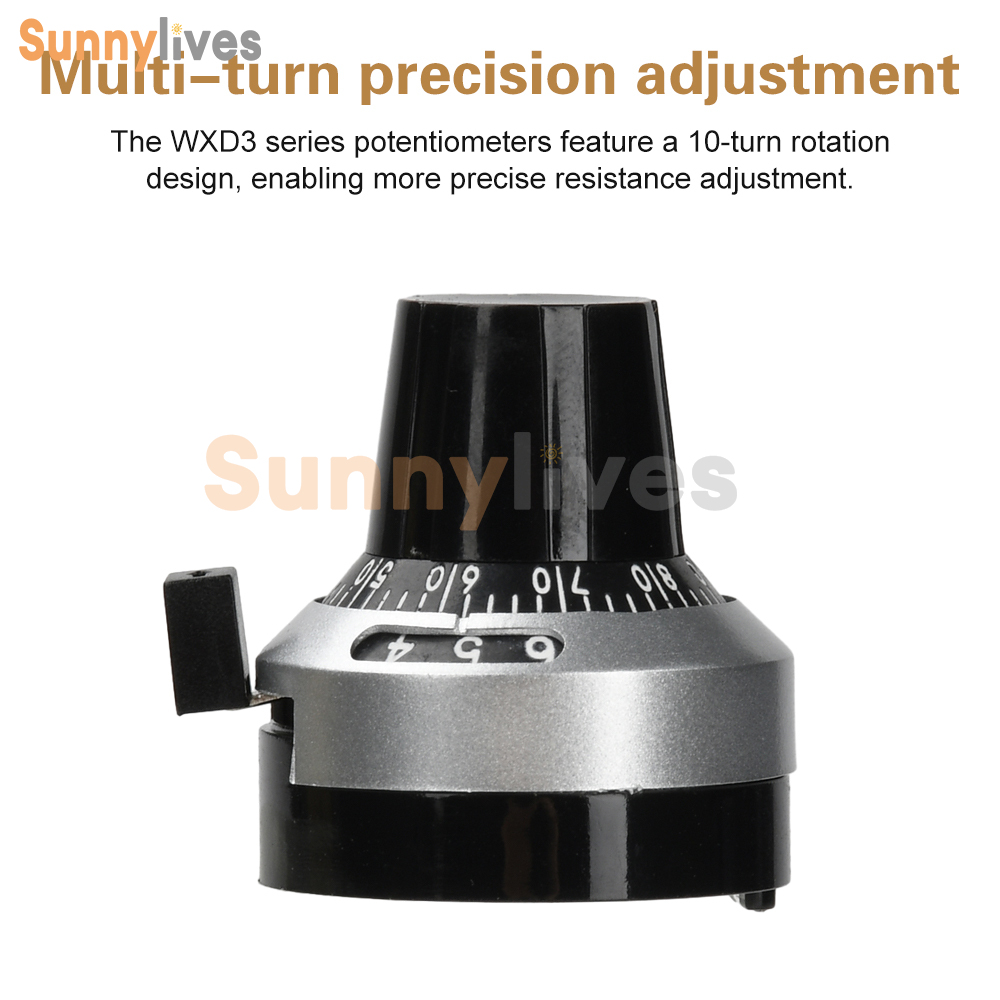

1. Multi-turn precision adjustment: The WXD3 series potentiometer features a 10-turn rotation design for highly accurate resistance adjustment.

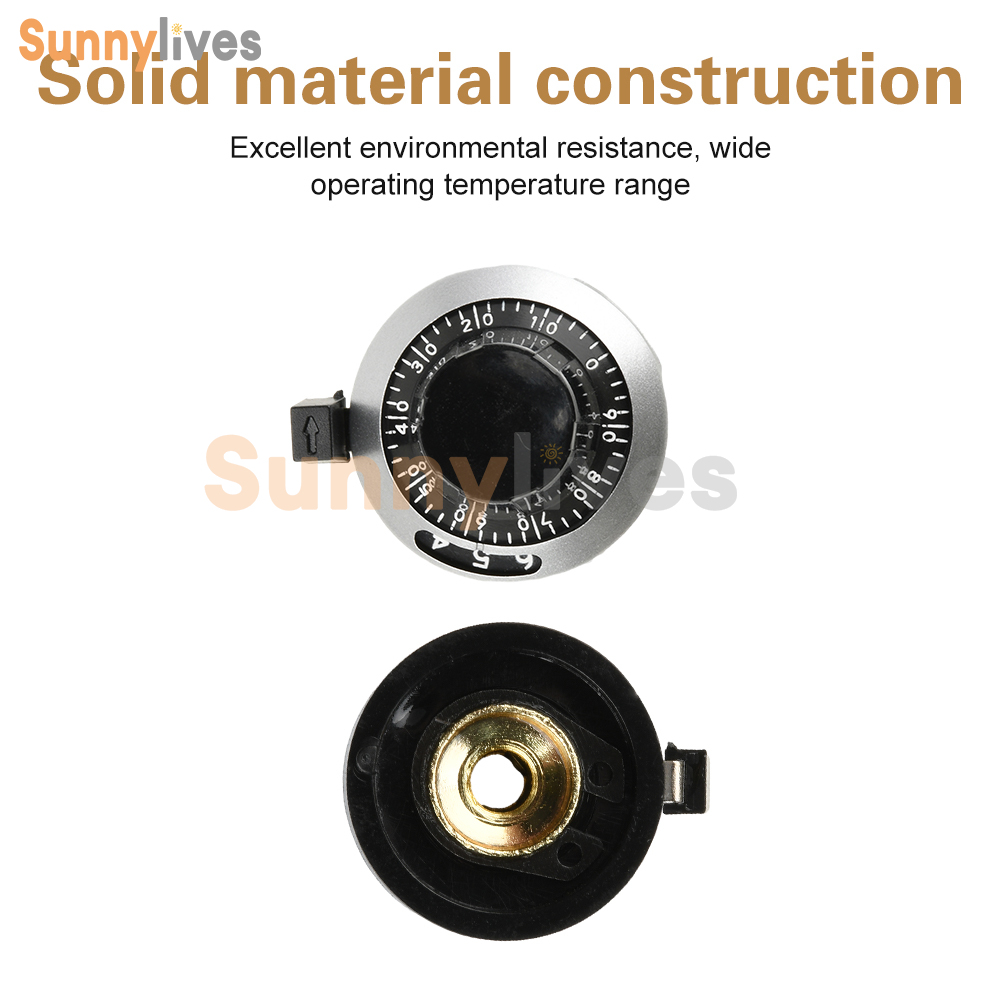

2. Organic solid material construction: Constructed from organic solid material, it offers excellent environmental resistance and a wide operating temperature range.

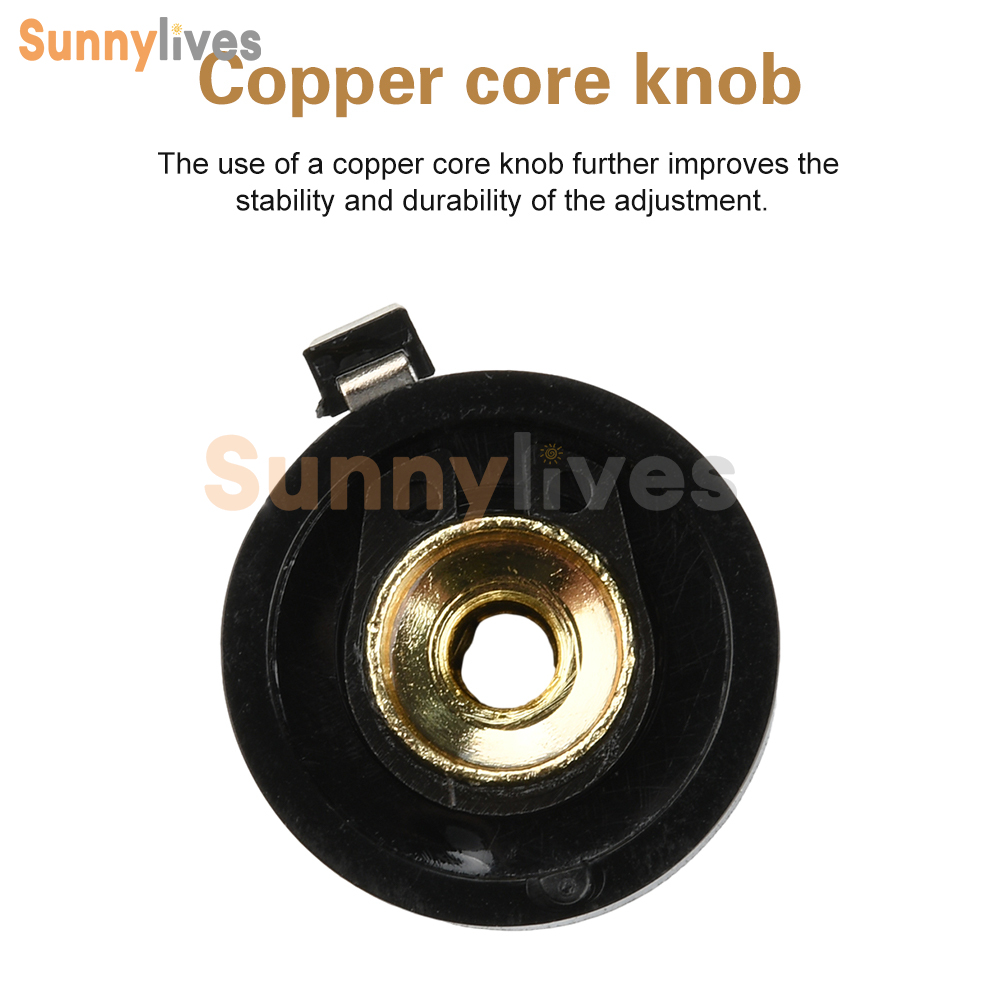

3. Copper core knob: The copper core knob further enhances adjustment stability and durability.

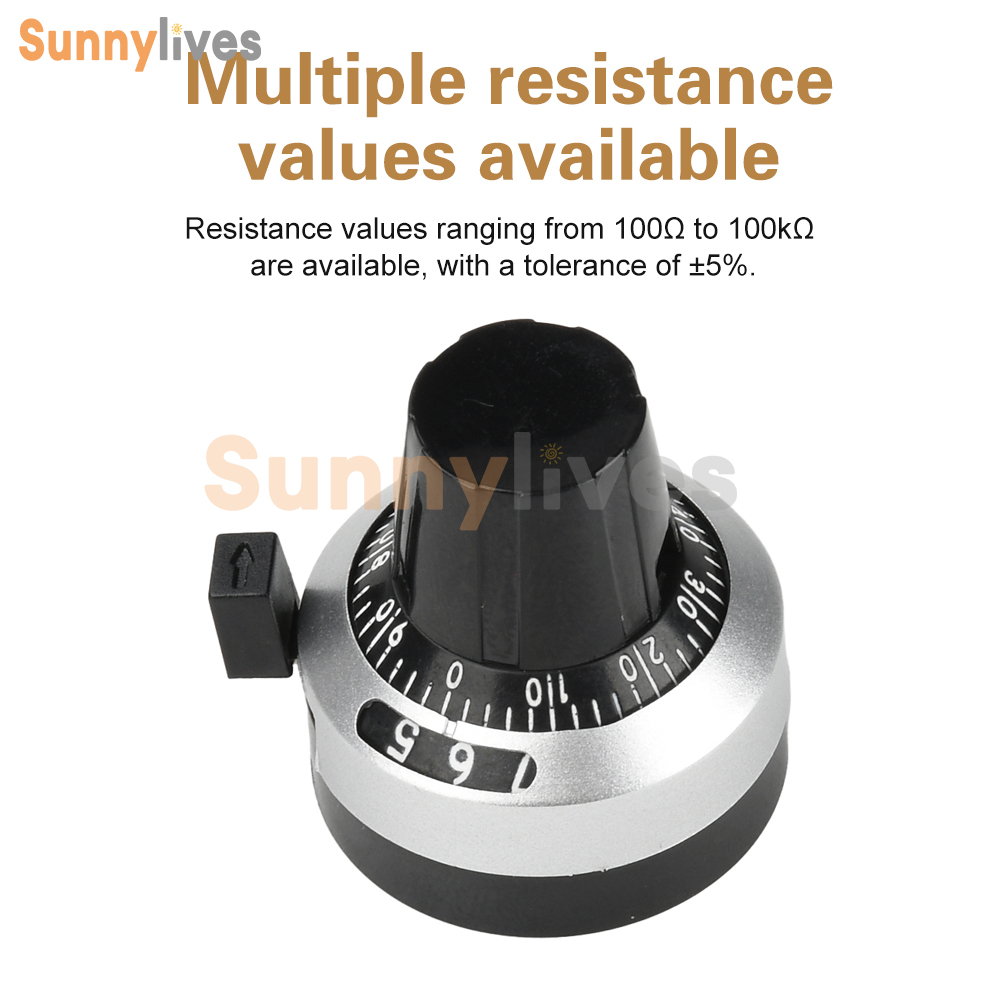

4. Multiple Resistance Options: Available in resistance values ranging from 100Ω to 100kΩ, with a tolerance of ±5%.

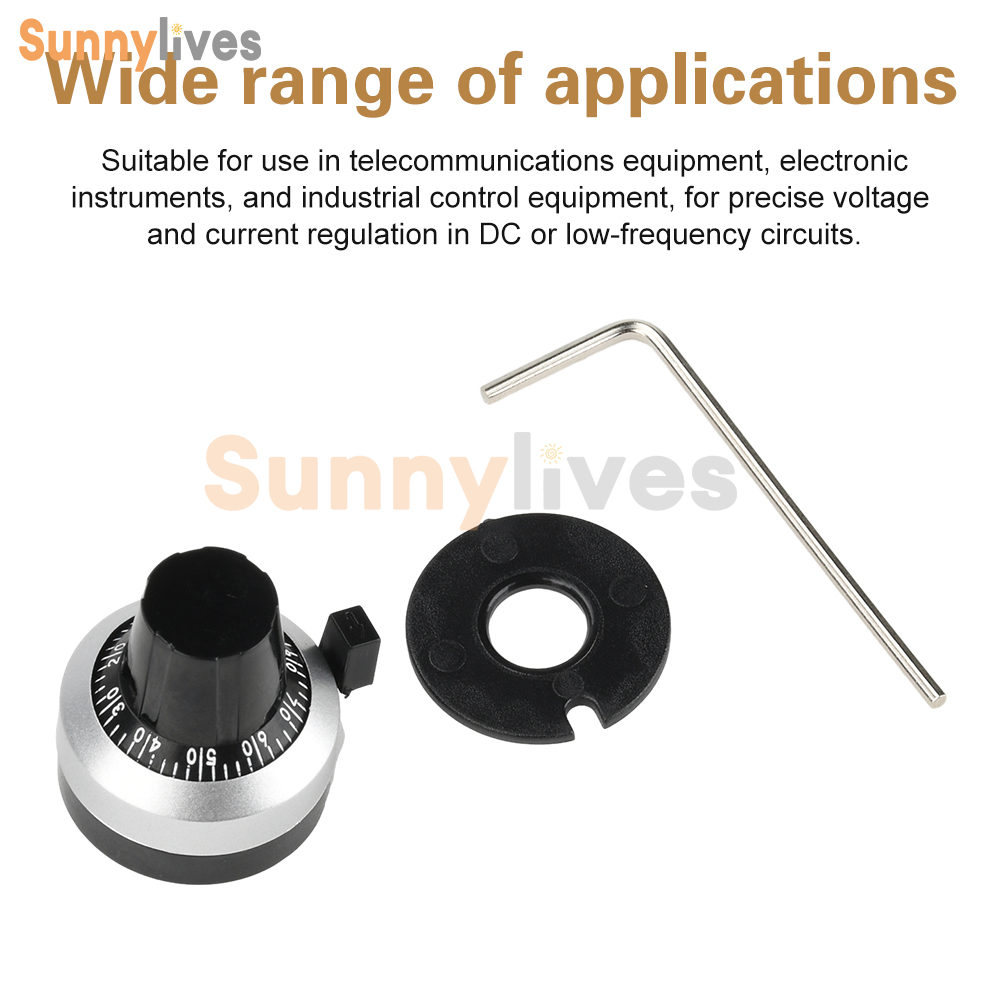

5. Wide Range of Applications: Suitable for telecommunication equipment, electronic instruments, and industrial control devices, used for precise voltage and current adjustment in DC or low-frequency circuits. Typical applications include audio amplifier circuits, test and measurement instruments, automation control equipment, and other scenarios requiring precise resistance adjustment.
1. Multi-turn precision adjustment: The WXD3 series potentiometer features a 10-turn rotation design for highly accurate resistance adjustment.
2. Organic solid material construction: Constructed from organic solid material, it offers excellent environmental resistance and a wide operating temperature range.
3. Copper core knob: The copper core knob further enhances adjustment stability and durability.
4. Multiple Resistance Options: Available in resistance values ranging from 100Ω to 100kΩ, with a tolerance of ±5%.
5. Wide Range of Applications: Suitable for telecommunication equipment, electronic instruments, and industrial control devices, used for precise voltage and current adjustment in DC or low-frequency circuits. Typical applications include audio amplifier circuits, test and measurement instruments, automation control equipment, and other scenarios requiring precise resistance adjustment.

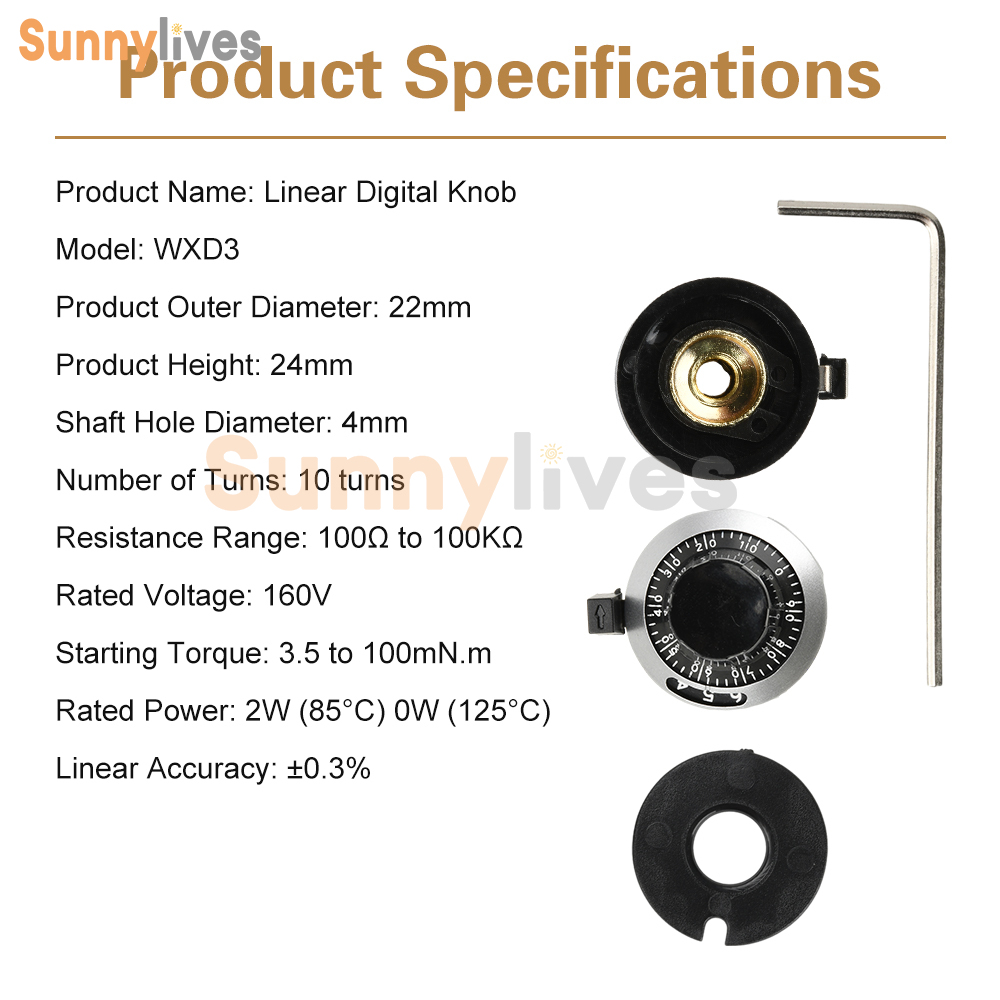

Product Specifications:
Product Name: Linear Digital Knob
Model: WXD3

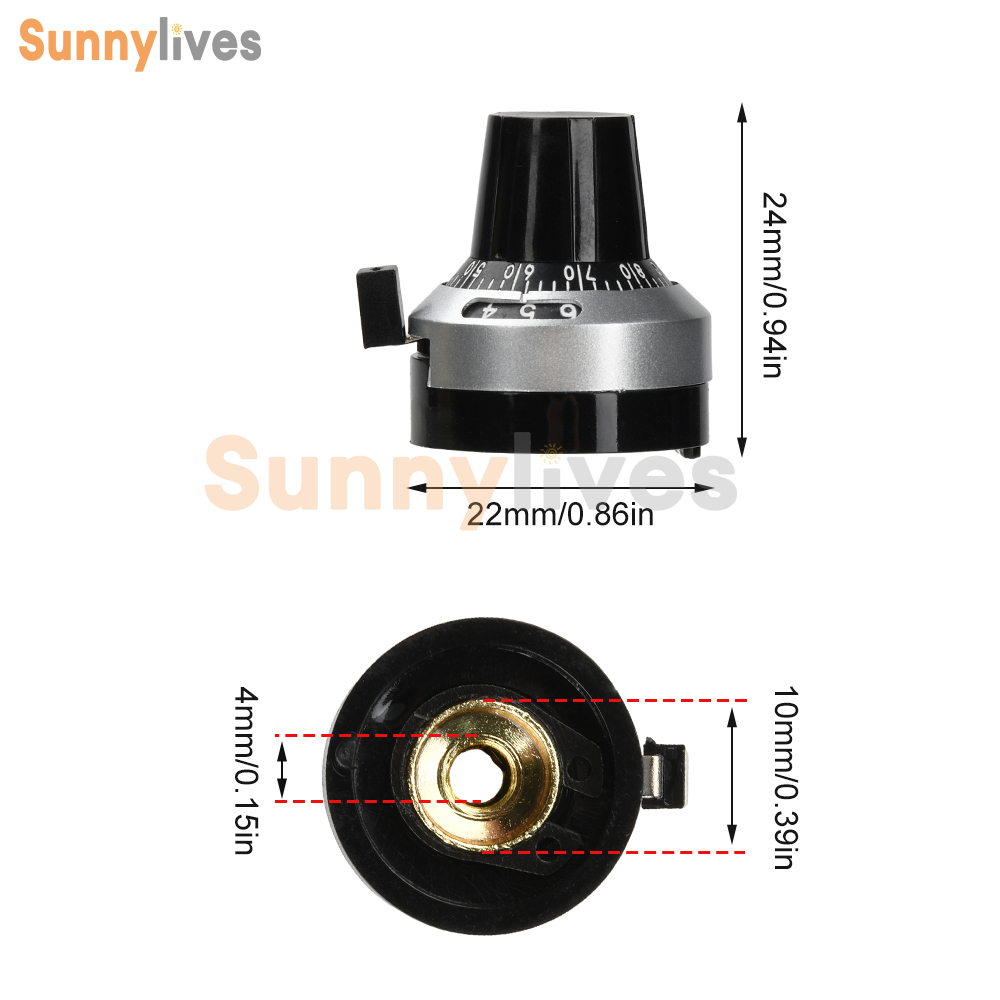

Outer Diameter: 22mm
Height: 24mm
Shaft Hole Diameter: 4mm
Turns: 10 turns
Resistance Range: 100Ω to 100kΩ
Rated Voltage: 160V
Starting Torque: 3.5~100 mN·m Rated Power: 2W (85°C) 0W (125°C) Linear Accuracy: ±0.3%
Product Name: Linear Digital Knob
Model: WXD3
Outer Diameter: 22mm
Height: 24mm
Shaft Hole Diameter: 4mm
Turns: 10 turns
Resistance Range: 100Ω to 100kΩ
Rated Voltage: 160V
Starting Torque: 3.5~100 mN·m Rated Power: 2W (85°C) 0W (125°C) Linear Accuracy: ±0.3%

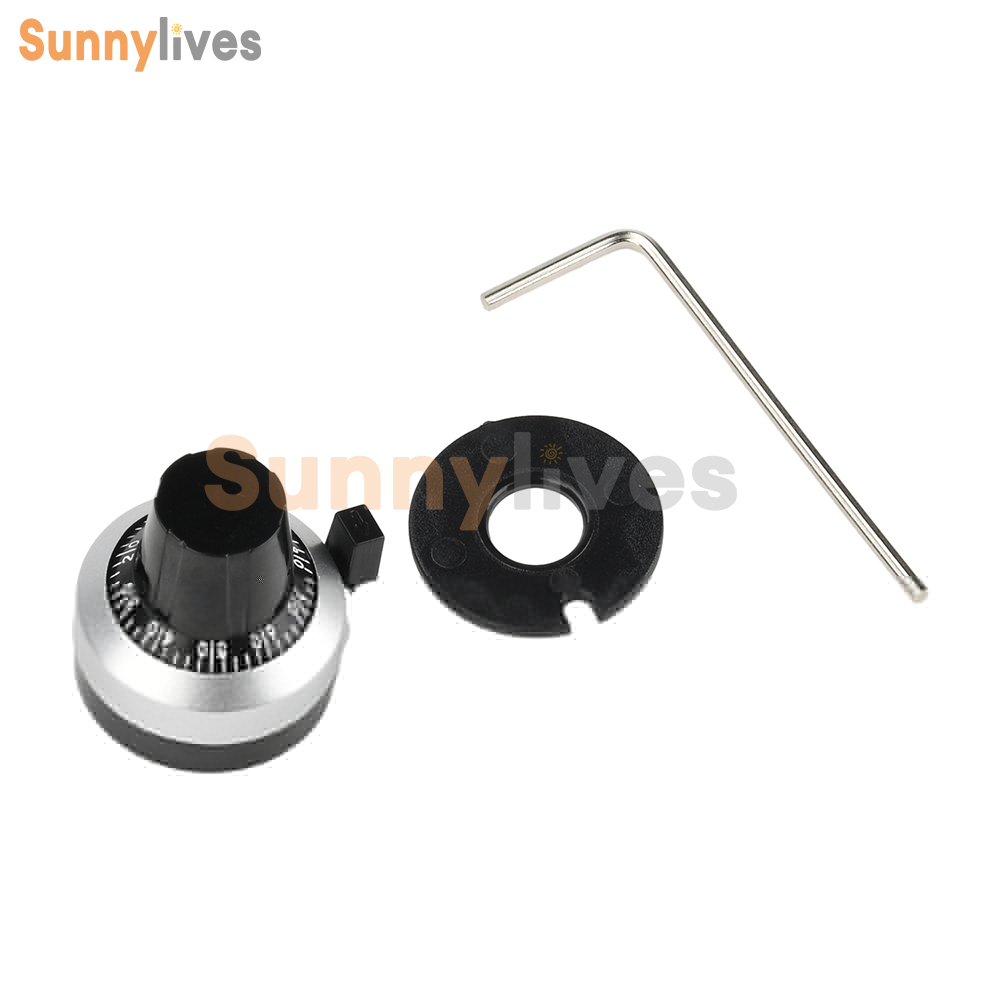

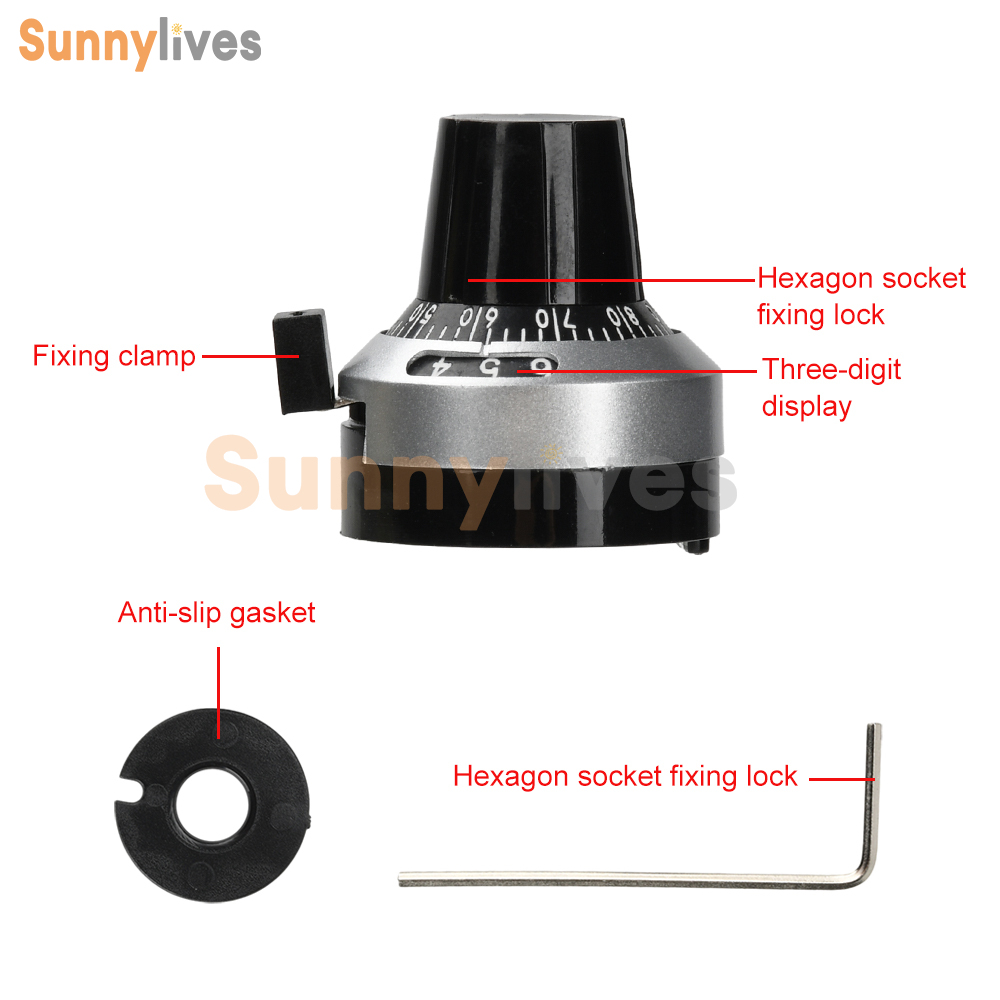

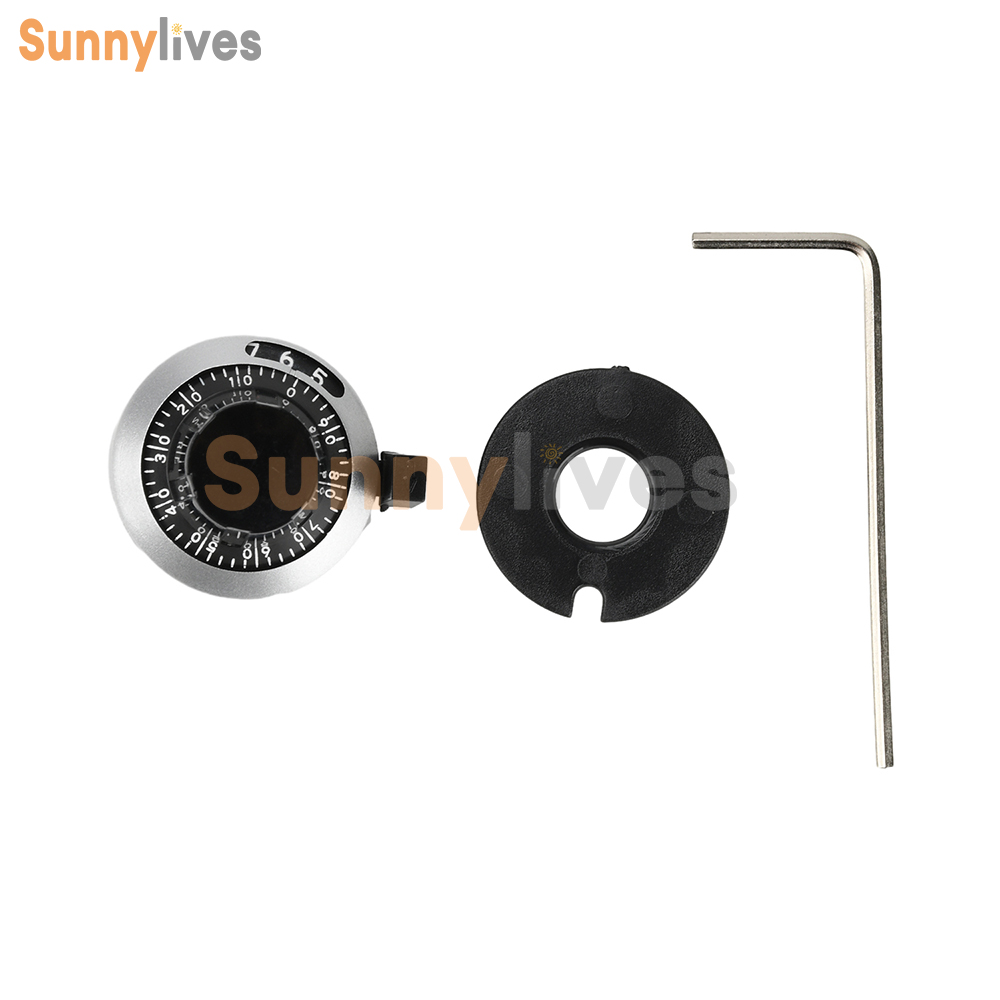

Shipping Contents:
Potentiometer Assembly*1
Anti-slip Washer*1
Hex Wrench*1
