Product View
Product Details
Features
1. High-efficiency connection: transmission distance up to 15 meters, support Bluetooth, AUX, U disk, USB sound card multiple input methods.
2. Built-in boosting circuit: adapted to DC9-24V power supply, especially suitable for battery-powered outdoor and mobile speakers.
3. Multi-function button control: one button to realize play/pause, switch tracks, switch on/off and enter TWS mode, convenient operation.
4. Powerful pair of boxes: two sets of equipment can be combined into left and right channel stereo, strong sense of spatial localization, suitable for DIY production.
5. Intelligent protection mechanism: with anti-reverse, over-temperature, over-current, short-circuit, anti-static protection, to ensure the use of safe and stable.
1. High-efficiency connection: transmission distance up to 15 meters, support Bluetooth, AUX, U disk, USB sound card multiple input methods.
2. Built-in boosting circuit: adapted to DC9-24V power supply, especially suitable for battery-powered outdoor and mobile speakers.
3. Multi-function button control: one button to realize play/pause, switch tracks, switch on/off and enter TWS mode, convenient operation.
4. Powerful pair of boxes: two sets of equipment can be combined into left and right channel stereo, strong sense of spatial localization, suitable for DIY production.
5. Intelligent protection mechanism: with anti-reverse, over-temperature, over-current, short-circuit, anti-static protection, to ensure the use of safe and stable.
Specification

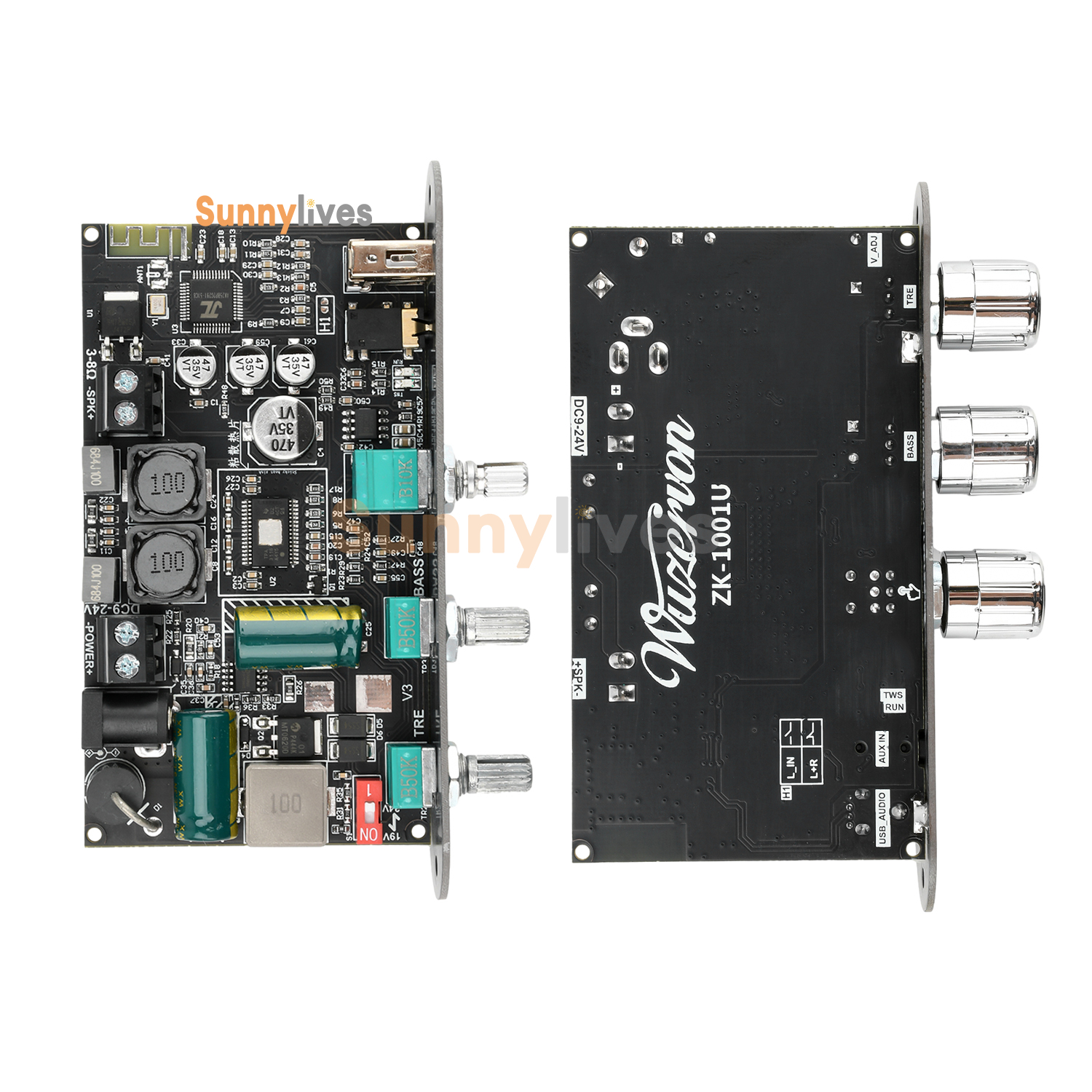

Product Model: 1001U

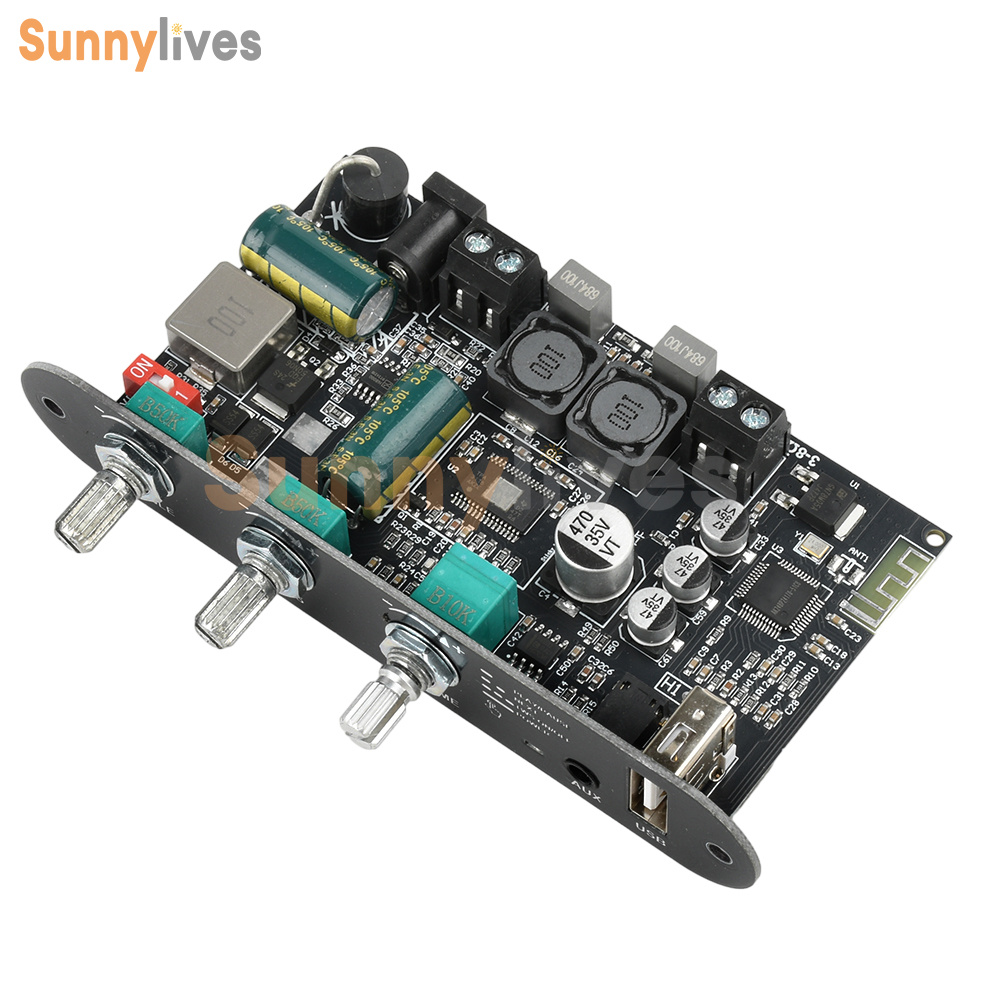

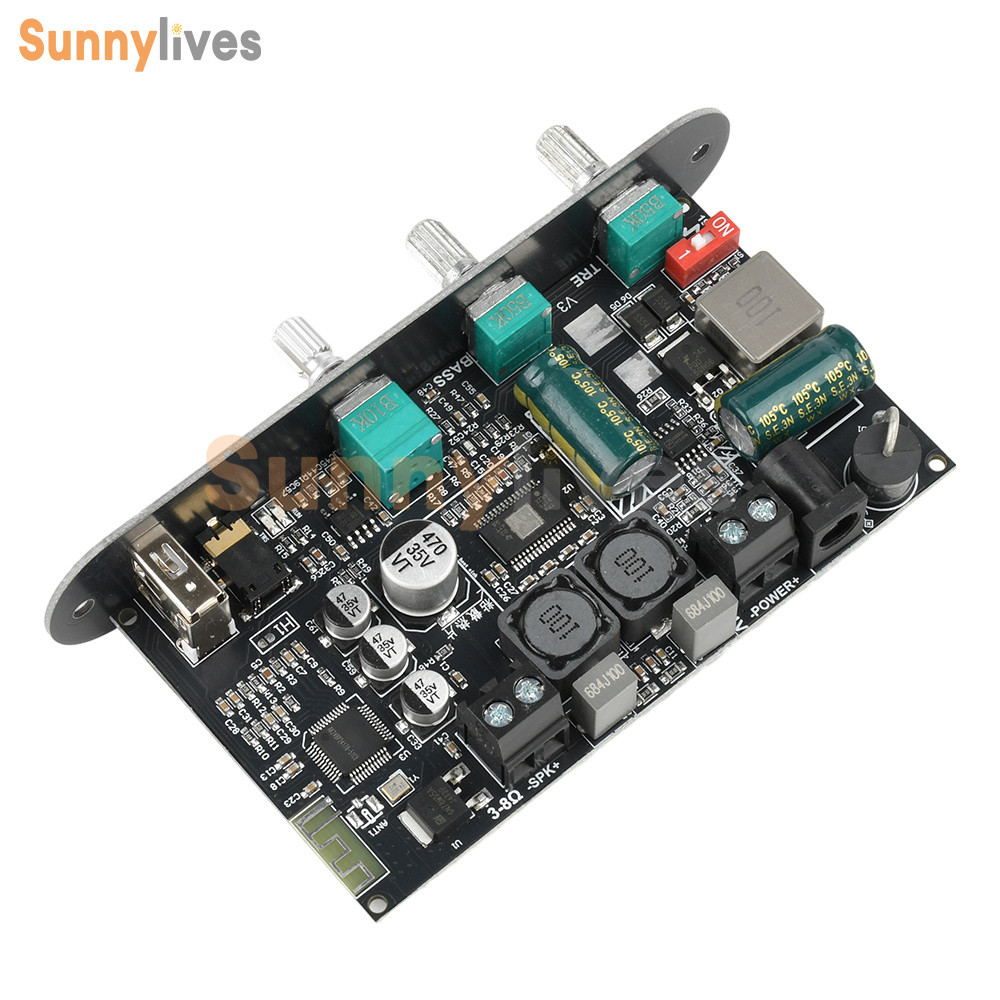

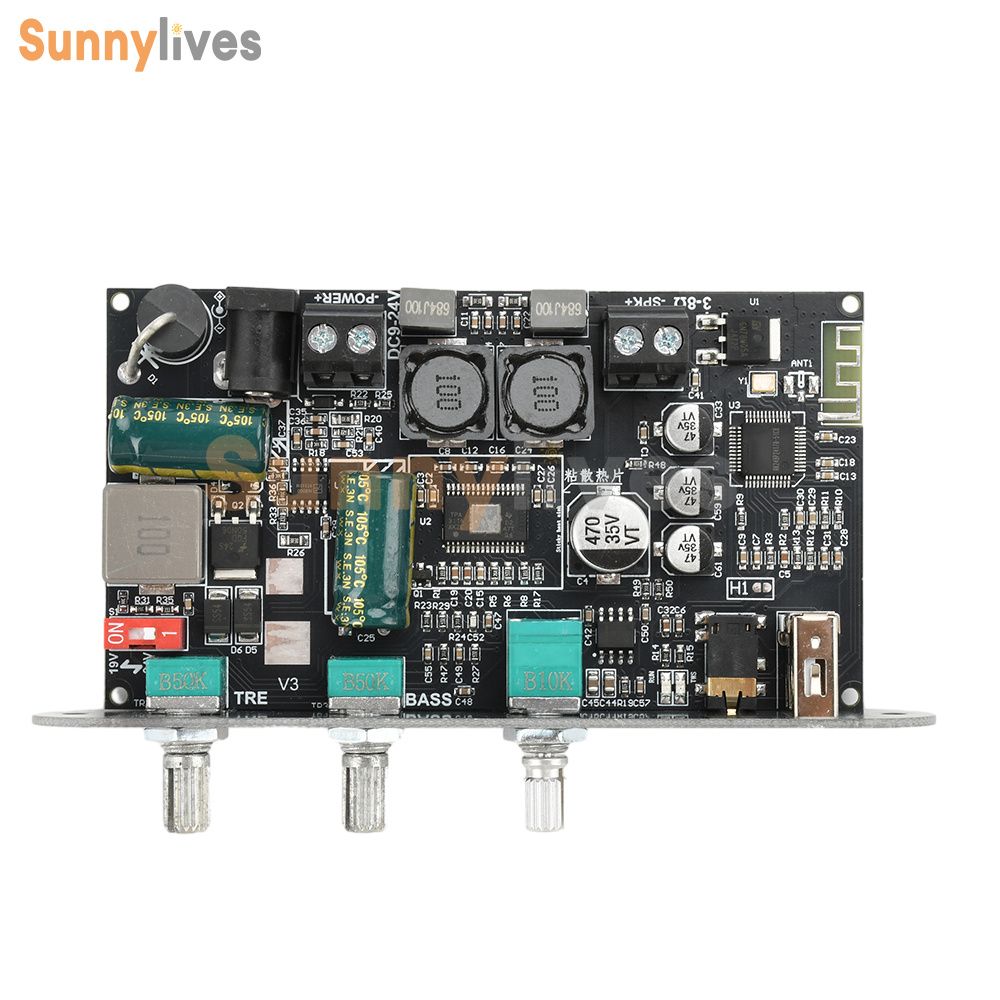

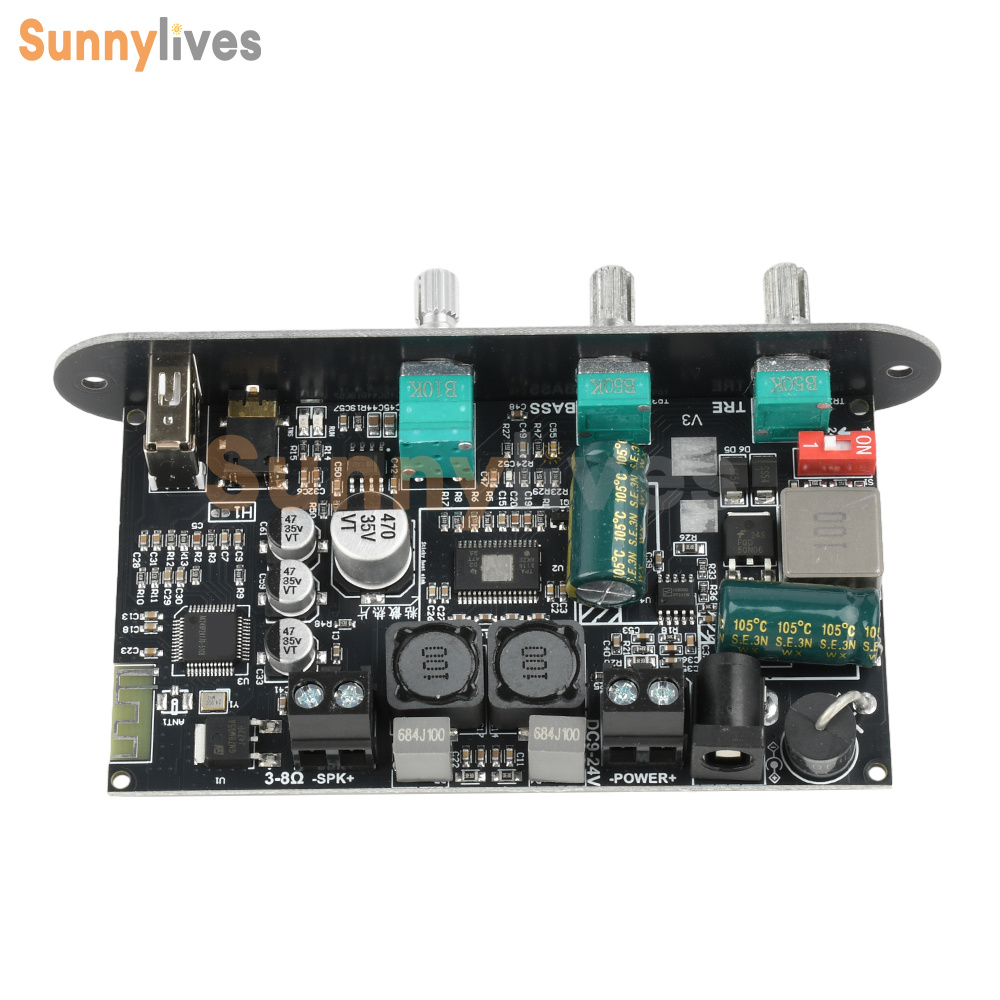

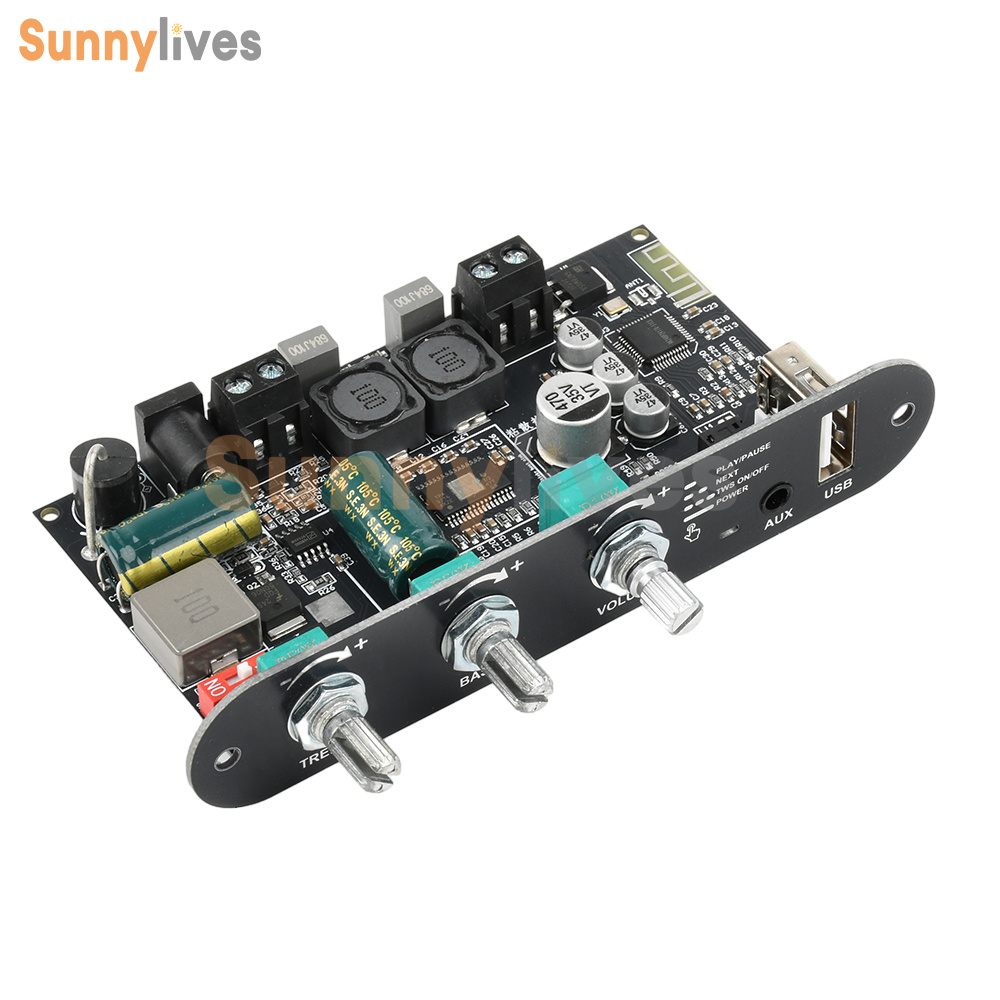

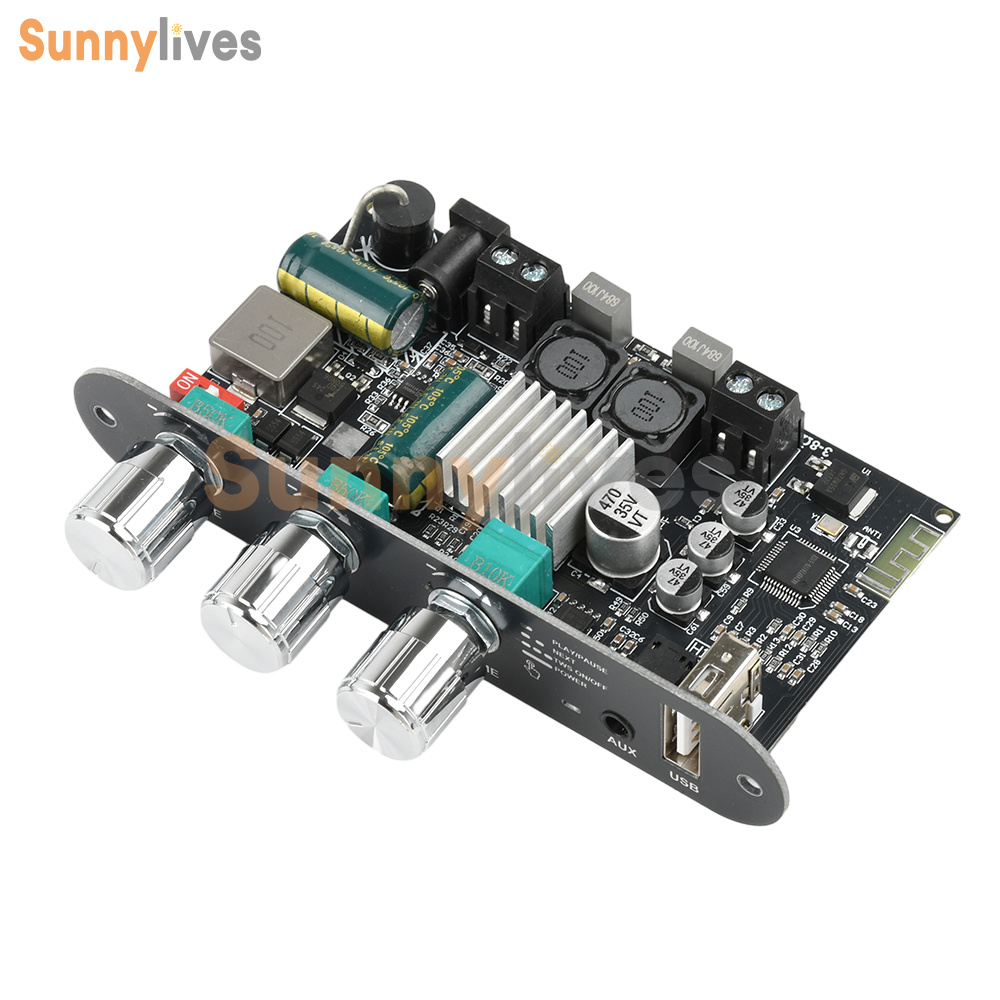

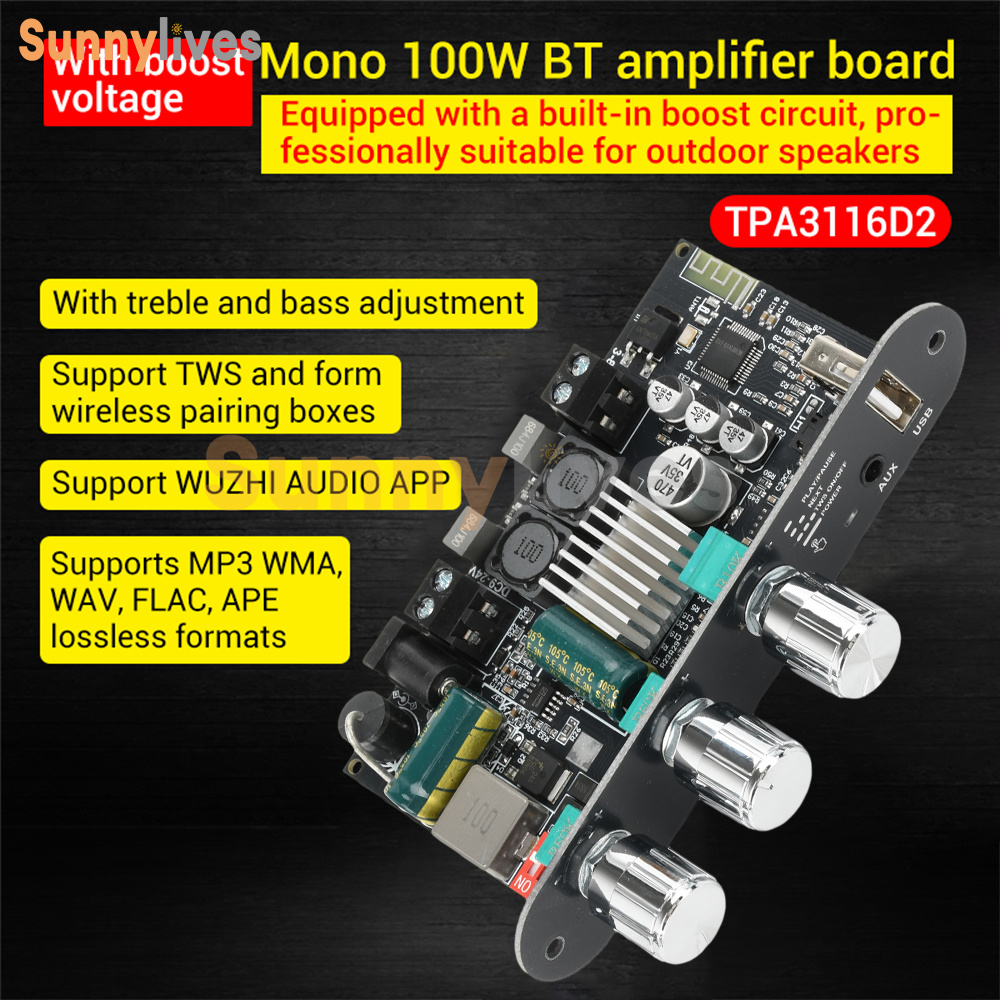

Product Name: mono 100W bluetooth amplifier board module with boost with bass and treble adjustment
Amplifier chip: TPA3116D2
Bluetooth version: 5.3
Bluetooth transmission distance: 15 meters
Audio input: Bluetooth + AUX + U disk + USB sound card
Audio Output: Mono 100W
Adaptable power supply: DC9-24V, ≥4A (not connect AC), suitable for 7.4V12V21V and other batteries, not suitable for 24V batteries, fully charged will be over-voltage.
Applicable speakers: 20-100W, 3-8Ω.
Volume adjustment: total volume with button

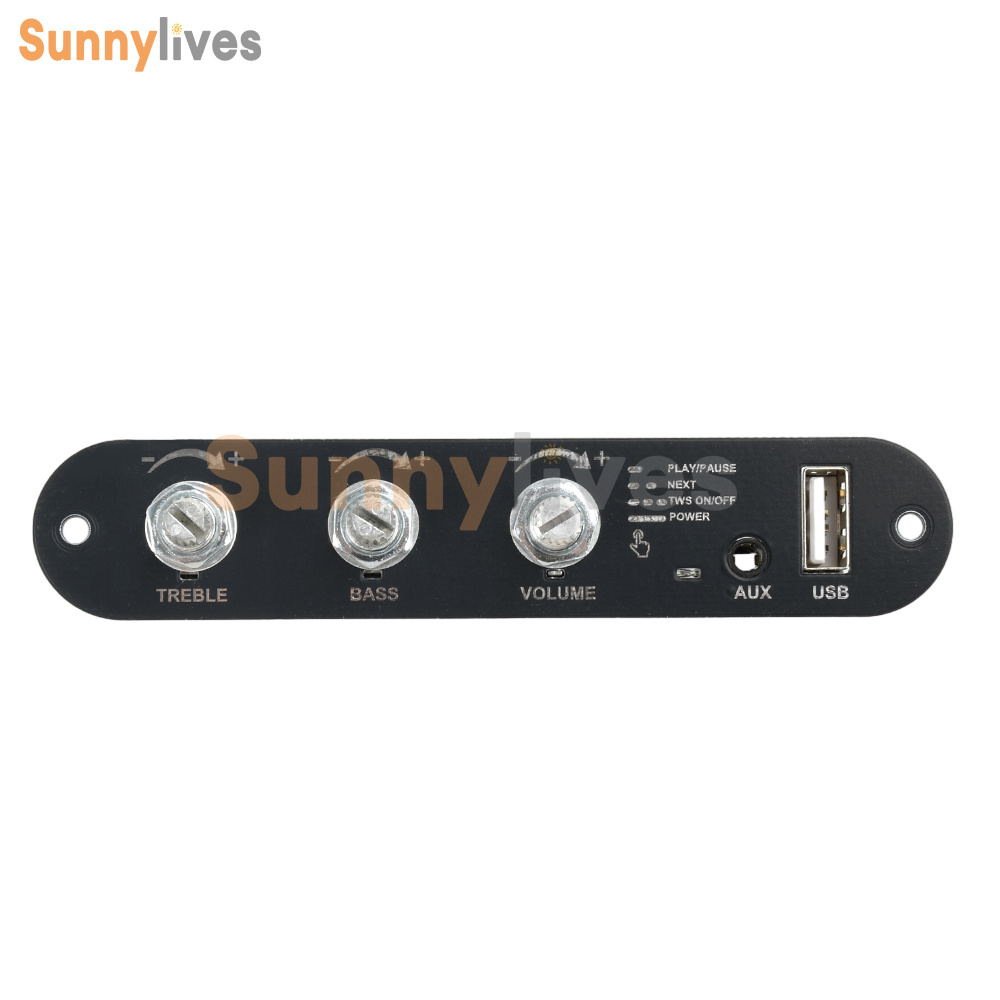

Single click: play/pause Double click: next song Three clicks: enter or exit T W S mode Long press: power off/on
Protection mechanism: input anti-reverse, over-temperature, over-current, short-circuit, anti-static protection
Features: Support Wuzhi Audio APP, modify the Bluetooth name, password settings, beep volume adjustment, on/off beep, sleep song, firmware upgrade, etc. Pair box function, true wireless function so that two sets of speakers can be combined into a left and right channel pair box, a stronger sense of spatial positioning.
Product size: 99x75x22.8mm
Product Model: 1001U
Product Name: mono 100W bluetooth amplifier board module with boost with bass and treble adjustment
Amplifier chip: TPA3116D2
Bluetooth version: 5.3
Bluetooth transmission distance: 15 meters
Audio input: Bluetooth + AUX + U disk + USB sound card
Audio Output: Mono 100W
Adaptable power supply: DC9-24V, ≥4A (not connect AC), suitable for 7.4V12V21V and other batteries, not suitable for 24V batteries, fully charged will be over-voltage.
Applicable speakers: 20-100W, 3-8Ω.
Volume adjustment: total volume with button
Single click: play/pause Double click: next song Three clicks: enter or exit T W S mode Long press: power off/on
Protection mechanism: input anti-reverse, over-temperature, over-current, short-circuit, anti-static protection
Features: Support Wuzhi Audio APP, modify the Bluetooth name, password settings, beep volume adjustment, on/off beep, sleep song, firmware upgrade, etc. Pair box function, true wireless function so that two sets of speakers can be combined into a left and right channel pair box, a stronger sense of spatial positioning.
Product size: 99x75x22.8mm
Pair box function: This function requires the purchase of two sets of amplifier boards to form a pair box, this product is very suitable for DIY simple mono amplifier, comes with a boost circuit, very suitable for battery-powered, outdoor speakers, trolley speakers, mobile speakers, upgrading or production.
After two independent stereo through TWS interconnection, it instantly becomes left and right channel stereo audio, realizing true wireless connection.
After two independent stereo through TWS interconnection, it instantly becomes left and right channel stereo audio, realizing true wireless connection.
Package includes

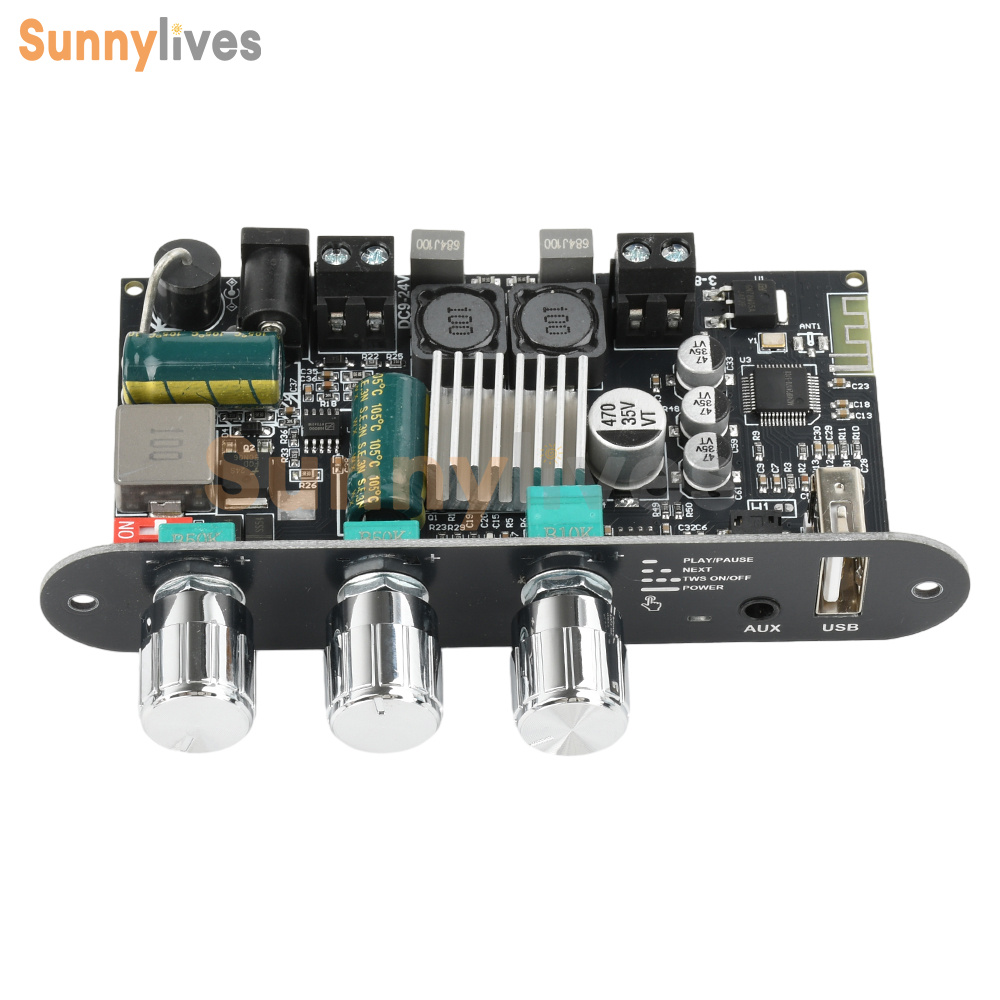

1 x Amplifier board (heat sink and knob caps need to be installed by yourself)
1 x Amplifier board (heat sink and knob caps need to be installed by yourself)
