New Water Flow Control Meter 1/2" Digital MeasuringGauge With Flow Sensor Alarm
Product Description
Features:
The flow meter is used to accumulate or fixed quantify the amount of water used, and can control the water switch.
Function settings:
Press and hold the SET key for ten seconds to enter the function settings.
The flow meter is used to accumulate or fixed quantify the amount of water used, and can control the water switch.
Function settings:
Press and hold the SET key for ten seconds to enter the function settings.
| Functional symbols | Function | Set range |
| H1 | Count value | -1999~99999 |
| H2 |
Delay alarm output time |
0-9999.9s |
| H3 |
Alarm and output time |
0-9999.9s |
| H4 |
Automatic reset time |
0-9999.9s |
| H5 |
Position of decimal point |
0 1 2 3 |
| H6 |
Magnification |
0.0001-9.9999 |
| H7 | Direction recognition | 0 1 |
| H8 | Counting speed 1 setting | -999~999 |
| H9 |
Counting speed 2 setting |
-999~999 |
| H10 |
Power outage memory |
0 1 |
| H11 | Buzzer switch | 0 1 |

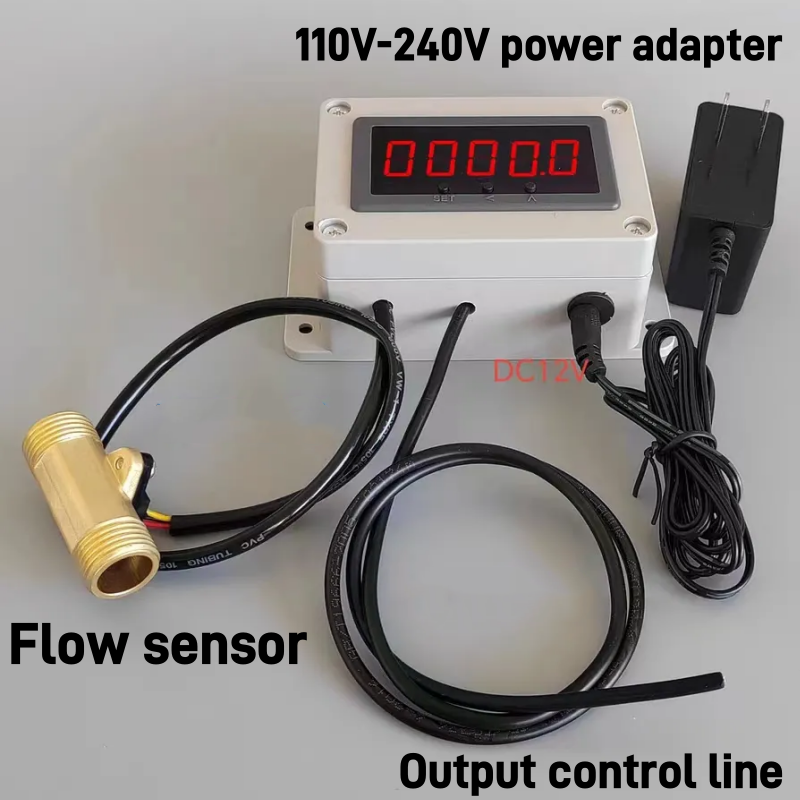

Specifications:
Flow sensor interface: 1/2"
Applicable outer diameter of water pipe: 20mm
Flow range: 1-25 L/min
Power adapter: 110V-240V
Output control line: DC12V
The packaging includes:
A Set Of Flow Meter
